Model Whirlpool 83EN-1G GAS COOK-TOP – Common Parts & Diagrams

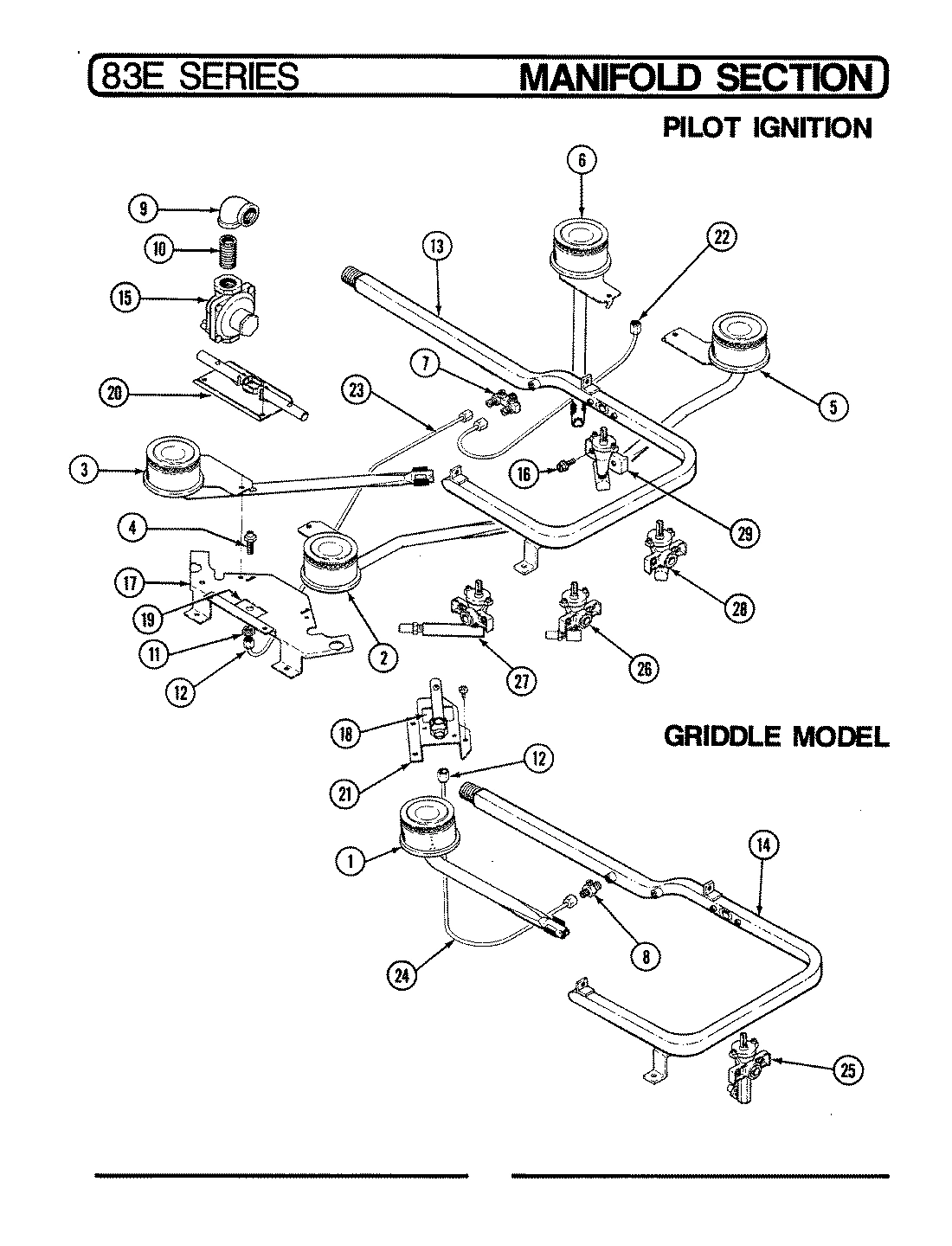

02 - MANIFOLD SECTION (PILOT IGNITION)

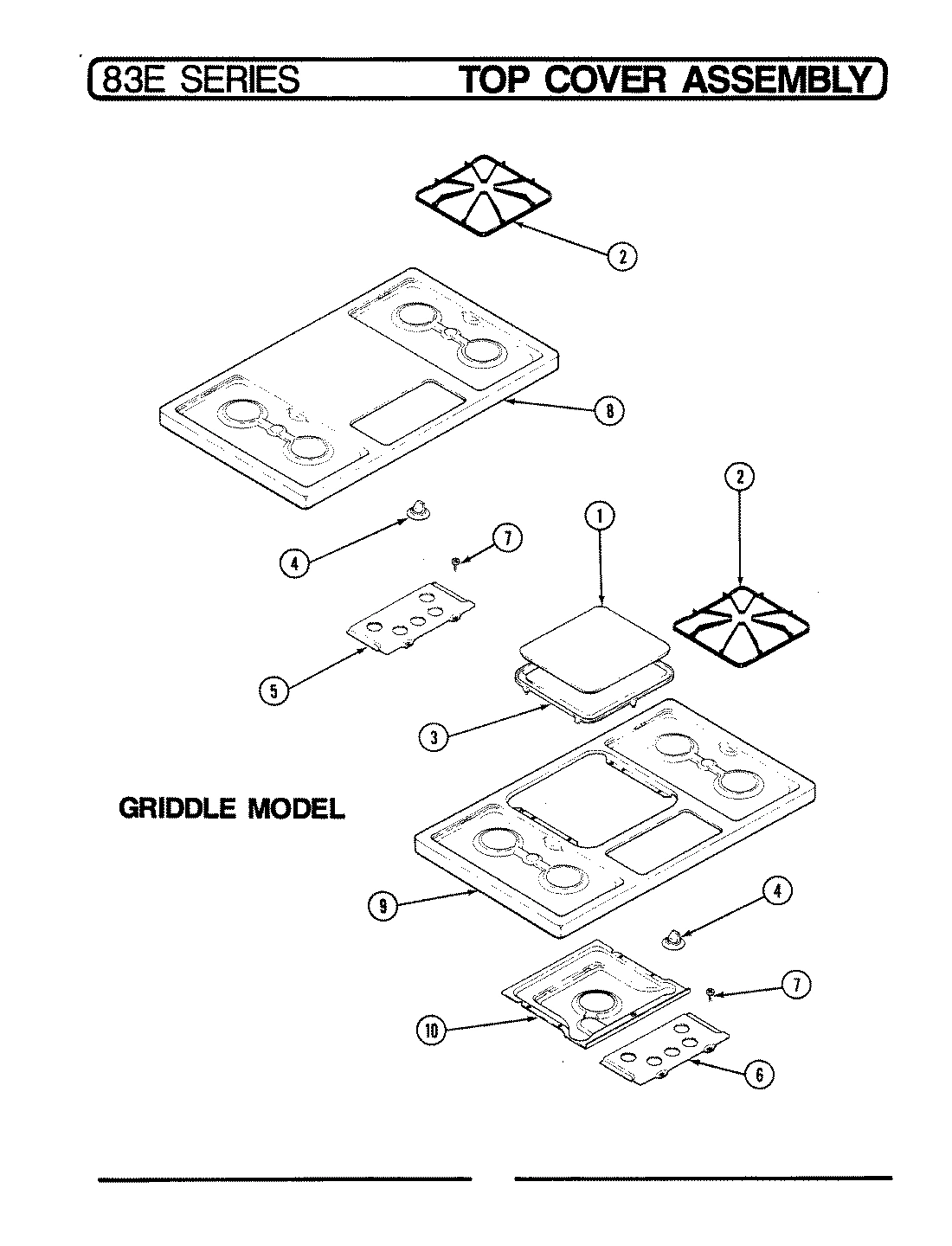

03 - TOP ASSY.

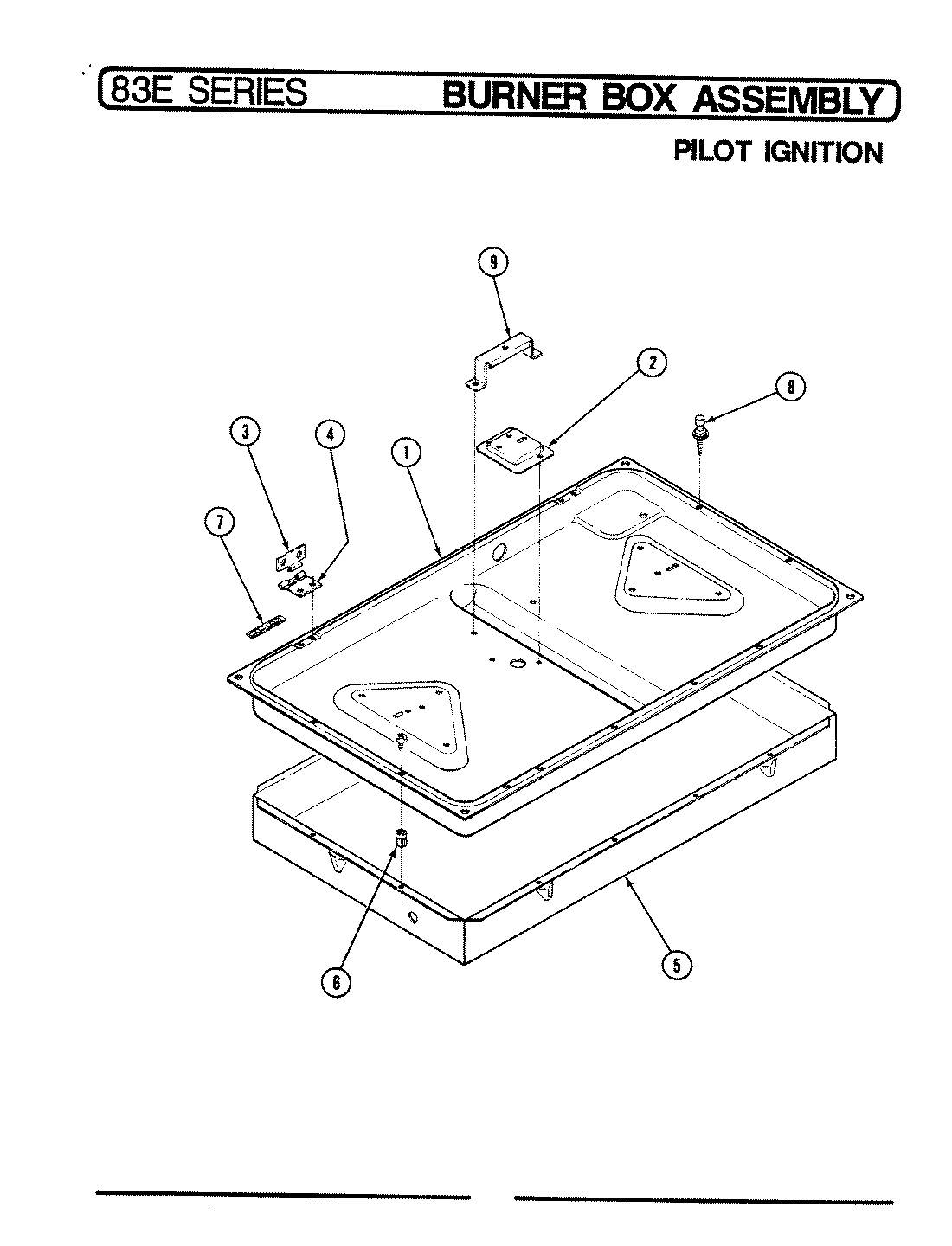

01 - BURNER BOX ASSY. (PILOT IGNITION)
Common parts from model Whirlpool 83EN-1G GAS COOK-TOP
1
BURNER, GRIDDLE ASSY WPL Y0B06300722 Contact Us For Availability
1
COVER, GRIDDLE WPL 4E272025MB Contact Us For Availability
1
BOTTOM, BURNER BOX WPL 4G10104446 Contact Us For Availability
2
BURNER, ASSY TOP WPL Y0B06101722 Contact Us For Availability
2
GRATE, BURNER WPL Y0G00300912 Contact Us For Availability
2
COVER, LIGHTER MOUNT WPL 4G27202745 Contact Us For Availability
3
BURNER ASSY TOP WPL 0B06101822 Contact Us For Availability
3
GRIDDLE WPL Y0G00501916 Contact Us For Availability
3
HINGE, TOP WPL Y0H01400311 Contact Us For Availability
4
BURNER, PILOT WPL Y0B03700316 Contact Us For Availability
4
KNOB, VALVE GAS WPL Y0K01001643 Contact Us For Availability
4
HINGE, TOP W/PIN WPL Y0H01400411 Contact Us For Availability
5
BURNER ASSY TOP R.F. WPL Y0B06102022 Contact Us For Availability
5
HOUSING, UNIT WPL 4G23000341 Contact Us For Availability
6
BURNER ASSY TOP WPL 0B06101922 Contact Us For Availability
6
TRIM WPL Y0T01701816 Contact Us For Availability
6
NUT, SNAP 1/4X1/4 WPL 0N10001199 Contact Us For Availability
7
FILTER, PILOT GAS WPL Y0F00105099 Contact Us For Availability
7
NUT, TWIN SPEED WPL 0N10001499 Contact Us For Availability
8
FILTER, PILOT GAS WPL 0F00104999 Contact Us For Availability
8
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
8
SPACER, TOP WPL 0S03501722 Contact Us For Availability
9
FITTING, ELBOW 1/2 WPL 0F00300799 Contact Us For Availability
9
TOP, MAIN WHITE WPL 4G080088MW Contact Us For Availability
9
SUPPORT, GRIDDLE BUR WPL 4G55405926 Contact Us For Availability
10
TRAY, DRIP WPL 4G12900424 Contact Us For Availability
11
NUT, PILOT BURNER WPL 0N10001399 Contact Us For Availability
11
MANUAL, USE & CARE WPL 8110P00960 Contact Us For Availability
12
NUT , 1/8`` WPL 1555225 Contact Us For Availability
14
PIPE, MANIFOLD 3/4 WPL 0P07501799 Contact Us For Availability
15
REGULATOR, PRESS LP WPL Y0R00302599 Contact Us For Availability
16
SCREW, CONTROL VALVE WPL Y0S10001099 Contact Us For Availability
17
SUPPORT, BURNER PILO WPL 4G55405726 Contact Us For Availability
18
SUPPORT, GR PILOT WPL 4G55406126 Contact Us For Availability
21
TUBE ASSY FLASH GRID WPL 0T02200416 Contact Us For Availability
22
TUBING 1/8 X 15 WPL 4E42204916 Contact Us For Availability
23
TUBING 1/8 X 18 1/2 WPL 4E42205016 Contact Us For Availability
24
TUBING 1/8 X 9 WPL 4E42204816 Contact Us For Availability
25
VALVE WPL 7502P00360 Contact Us For Availability
25
VALVE, BURNER (GRIDDLE) WPL 7502P00460 Contact Us For Availability
26
VALVE WPL 7502P03260 Contact Us For Availability
26
VALVE WPL 7502P03460 Contact Us For Availability
27
VALVE WPL 7502P02560 Contact Us For Availability
27
VALVE WPL 7502P02760 Contact Us For Availability
28
VALVE WPL 7502P01160 Contact Us For Availability
28
VALVE, TOP BURNER WPL 7502P03360 Contact Us For Availability
29
VALVE WPL 7502P02660 Contact Us For Availability
29
VALVE WPL 7502P02860 Contact Us For Availability
× ![]()
