Model Whirlpool 8341VD GAS COOK-TOP – Common Parts & Diagrams

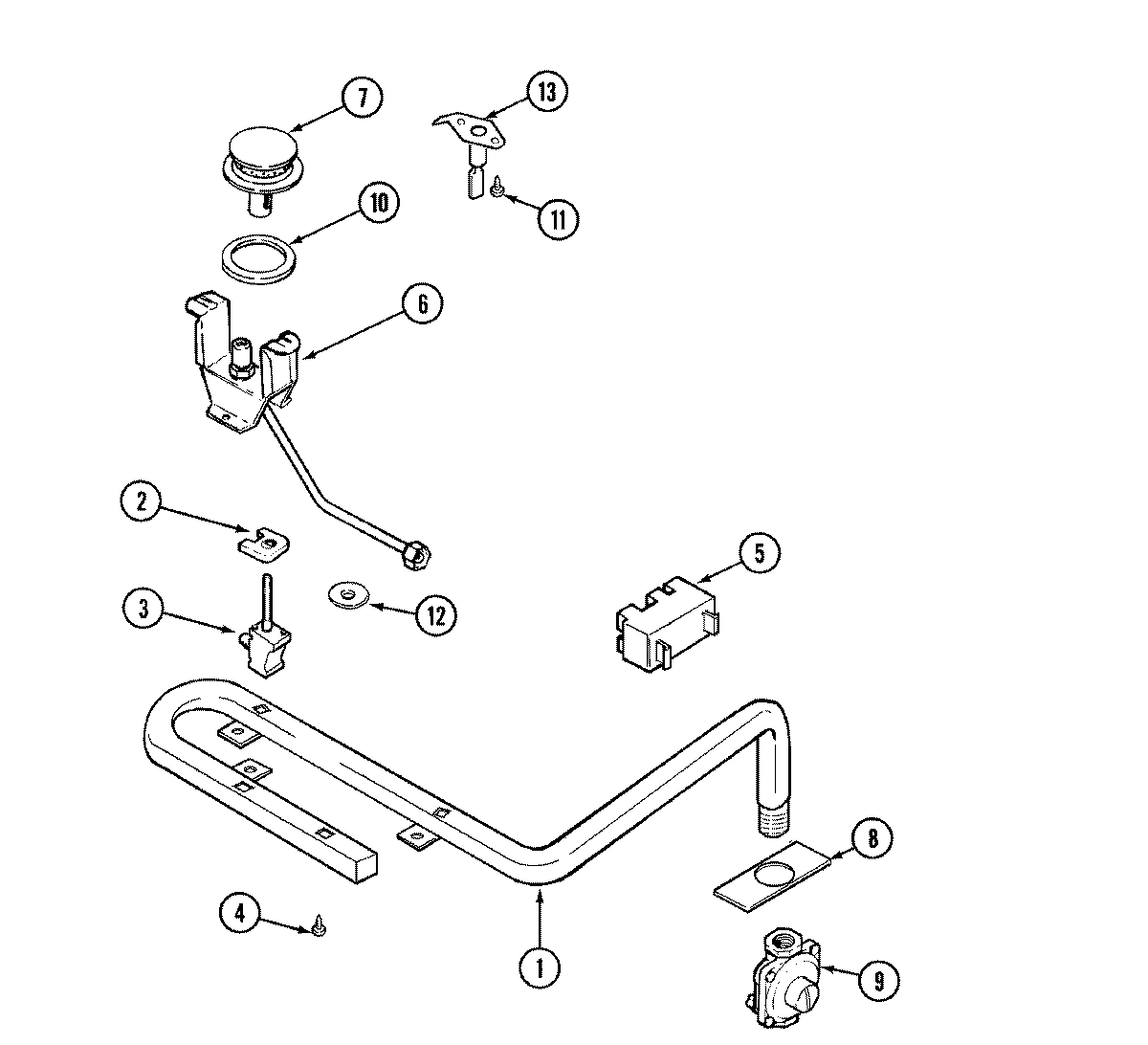

01 - GAS CONTROLS
03 - WIRING INFORMATION

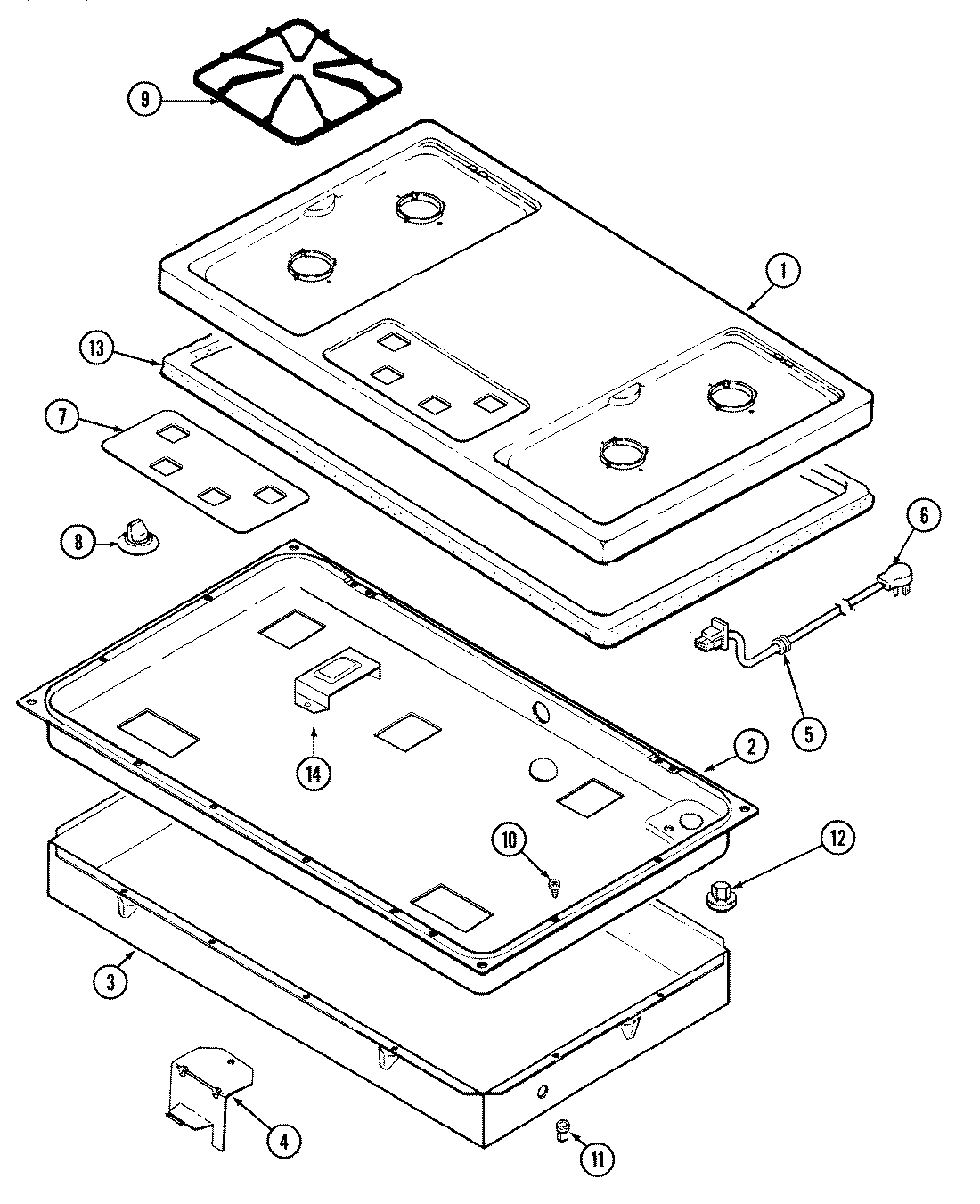

02 - TOP ASSEMBLY
Common parts from model Whirlpool 8341VD GAS COOK-TOP
1
PLUG, MANIFOLD PIPE WPL 74001788 Contact Us For Availability
1
PIPE, MANIFOLD WPL 74001978 Contact Us For Availability
1
TOP, MAIN (ALM) WPL 74002022 Contact Us For Availability
2
SLEEVE KIT, IGN. SWITCH WPL 12001434 Contact Us For Availability
2
SWITCH, IGNITER WPL 7403P36860 Contact Us For Availability
2
SWITCH, IGNITER WPL 7403P36960 Contact Us For Availability
2
SWITCH, IGNITER WPL 7403P37060 Contact Us For Availability
2
BOTTOM, BURNER BOX WPL 74001965 Contact Us For Availability
3
VALVE, BURNER WPL 74001979 Contact Us For Availability
3
VALVE, BURNER-----NA WPL 74001980 Contact Us For Availability
3
VALVE, BURNER WPL 74001981 Contact Us For Availability
3
SCREW, GROUND (GRN) WPL 7101P02760 Contact Us For Availability
3
HOUSING, UNIT WPL 74001966 Contact Us For Availability
4
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
4
BRACKET, TIE DOWN WPL 74001969 Contact Us For Availability
5
MODULE, SPARK WPL 7431P02760 Contact Us For Availability
5
BUSHING, SNAP WPL 8007P00360 Contact Us For Availability
6
ORIFICE FITTING ASSY. WPL 74001974 Contact Us For Availability
6
ORIFICE FITTING ASSY. WPL 74001975 Contact Us For Availability
6
ORIFICE FITTING ASSY. WPL 74001976 Contact Us For Availability
6
ORIFICE FITTING ASSY. WPL 74001977 Contact Us For Availability
6
CORD, POWER WPL 7402P04760 Contact Us For Availability
7
SEALED BURNER ASSY. (BRN) WPL 3412D01808 Contact Us For Availability
7
SEALED BURNER ASSY. (TAUPE) WPL 74003521 Contact Us For Availability
7
BURNER, SEALED (TAUPE) WPL 74003966 Contact Us For Availability
7
TRIM, CONTROL PANEL (ALM) WPL 74002023 Contact Us For Availability
8
SEAL, MANIFOLD PIPE WPL 74002077 Contact Us For Availability
8
KNOB, BURNER (ALM) WPL 74001962 Contact Us For Availability
9
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
9
GRATE (BRN) WPL 2003W02708 Contact Us For Availability
9
GRATE (BRN) WPL 74001060 Contact Us For Availability
9
GRATE (BRN) WPL 74001654 Contact Us For Availability
9
GRATE (TAUPE) WPL 74003514 Contact Us For Availability
10
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
11
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
11
NUT, SNAP WPL 7103P01660 Contact Us For Availability
12
COVER, BURNER VALVE WPL 7724P00460 Contact Us For Availability
12
PLUG, BUTTON (7/8``) WPL 74002078 Contact Us For Availability
13
NOT REQUIRED PART OR SEE NOTE IGNITER NOT SOL WPL W10124350 Contact Us For Availability
13
TAPE, FOAM SEAL WPL 74002138 Contact Us For Availability
14
WIRE, IGNITER - R WPL 5111A26160 Contact Us For Availability
14
WIRE, IGNITER - R WPL 5111A61060 Contact Us For Availability
14
COVER, SPARK MODULE WPL 74002076 Contact Us For Availability
15
GROMMET, NYLON WPL 8008P01260 Contact Us For Availability
16
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
16
TAPE, SEAL (INSTALLATION) WPL 74002139 Contact Us For Availability
17
HARNESS, MAIN WIRE WPL 74001877 Contact Us For Availability
18
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
18
MANUAL, USE & CARE WPL 74001971 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001540 Contact Us For Availability
× ![]()
