Model Whirlpool 8321TA GAS COOK-TOP – Common Parts & Diagrams

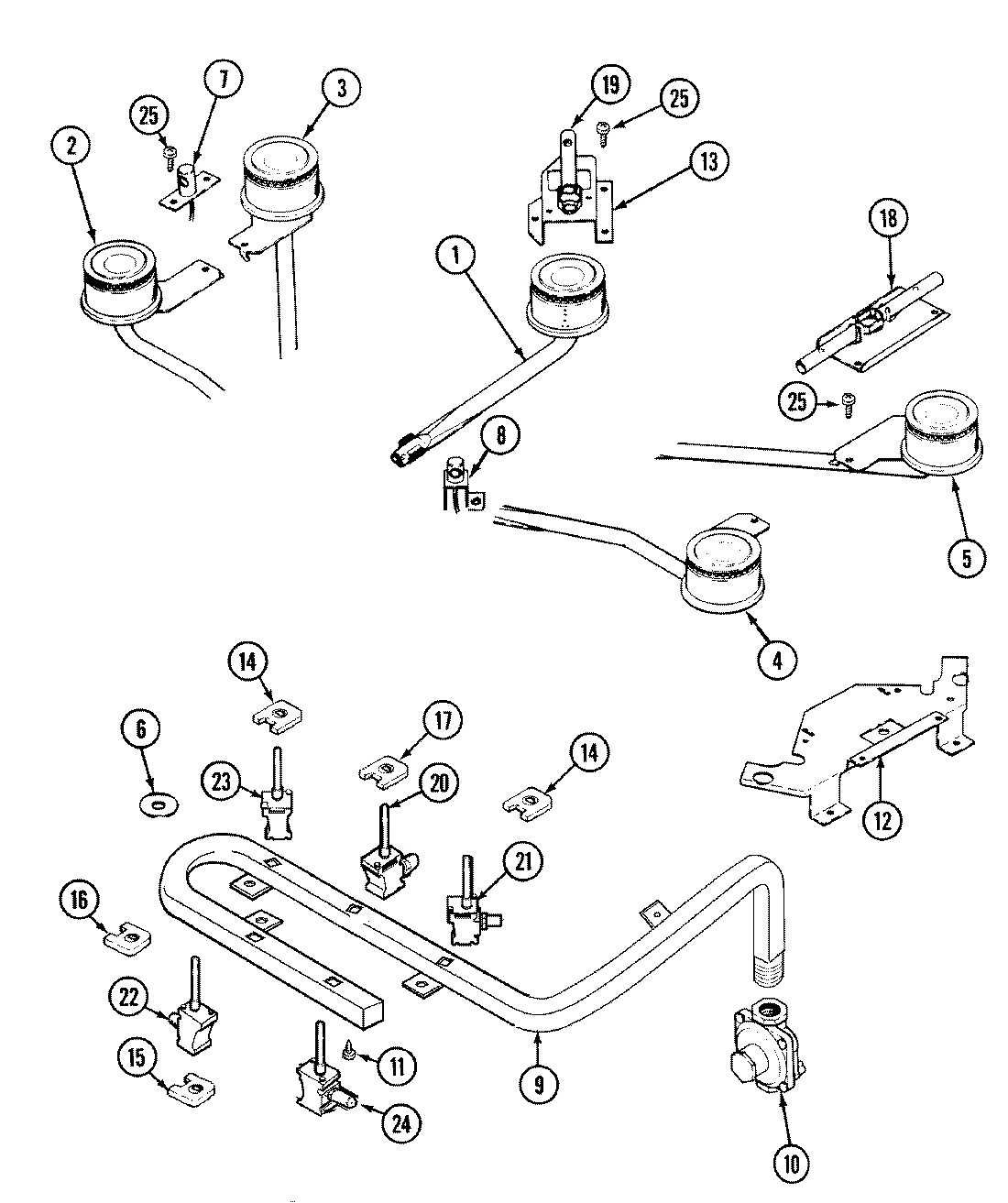

02 - GAS CONTROLS

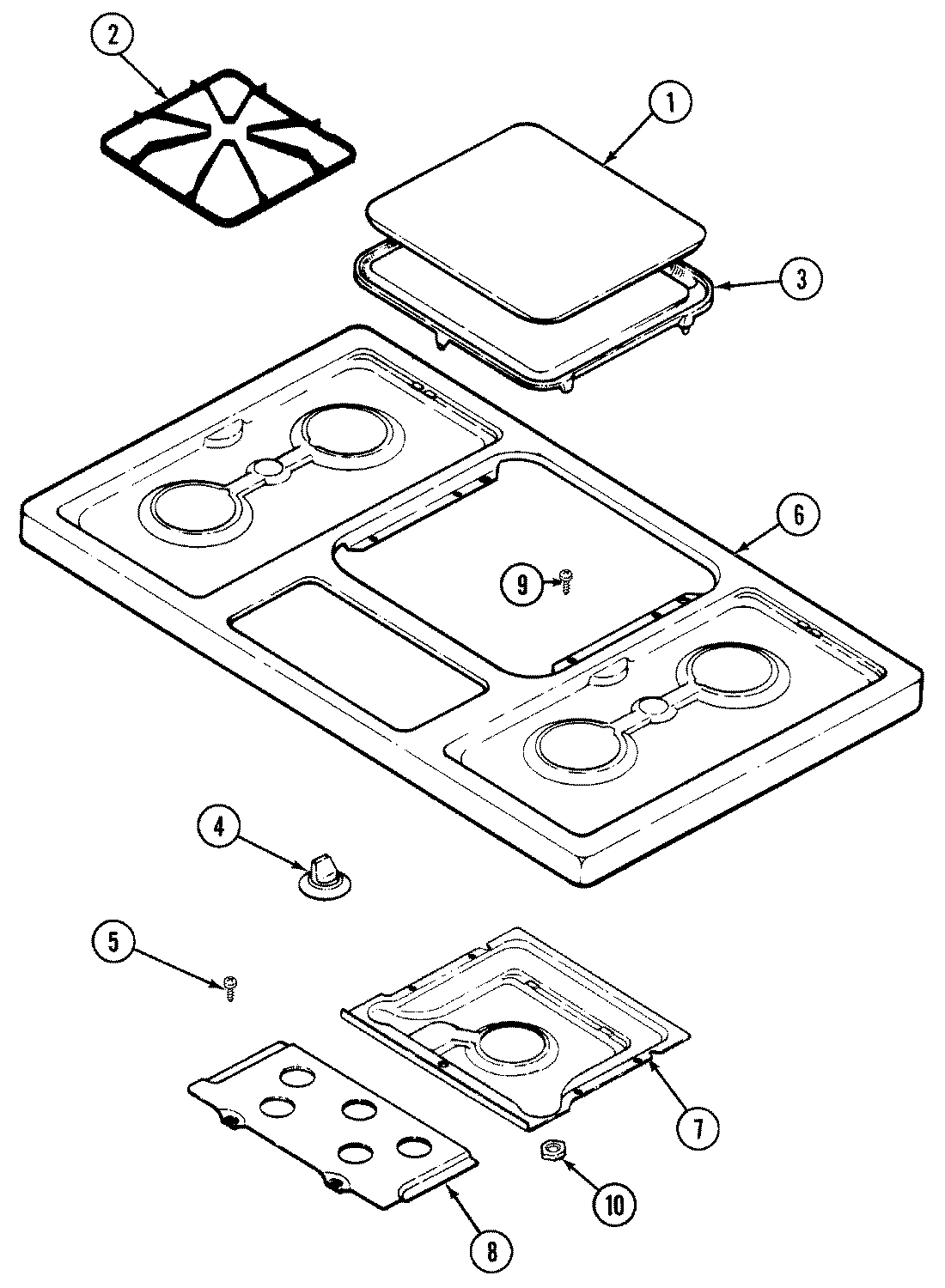

03 - TOP ASSEMBLY

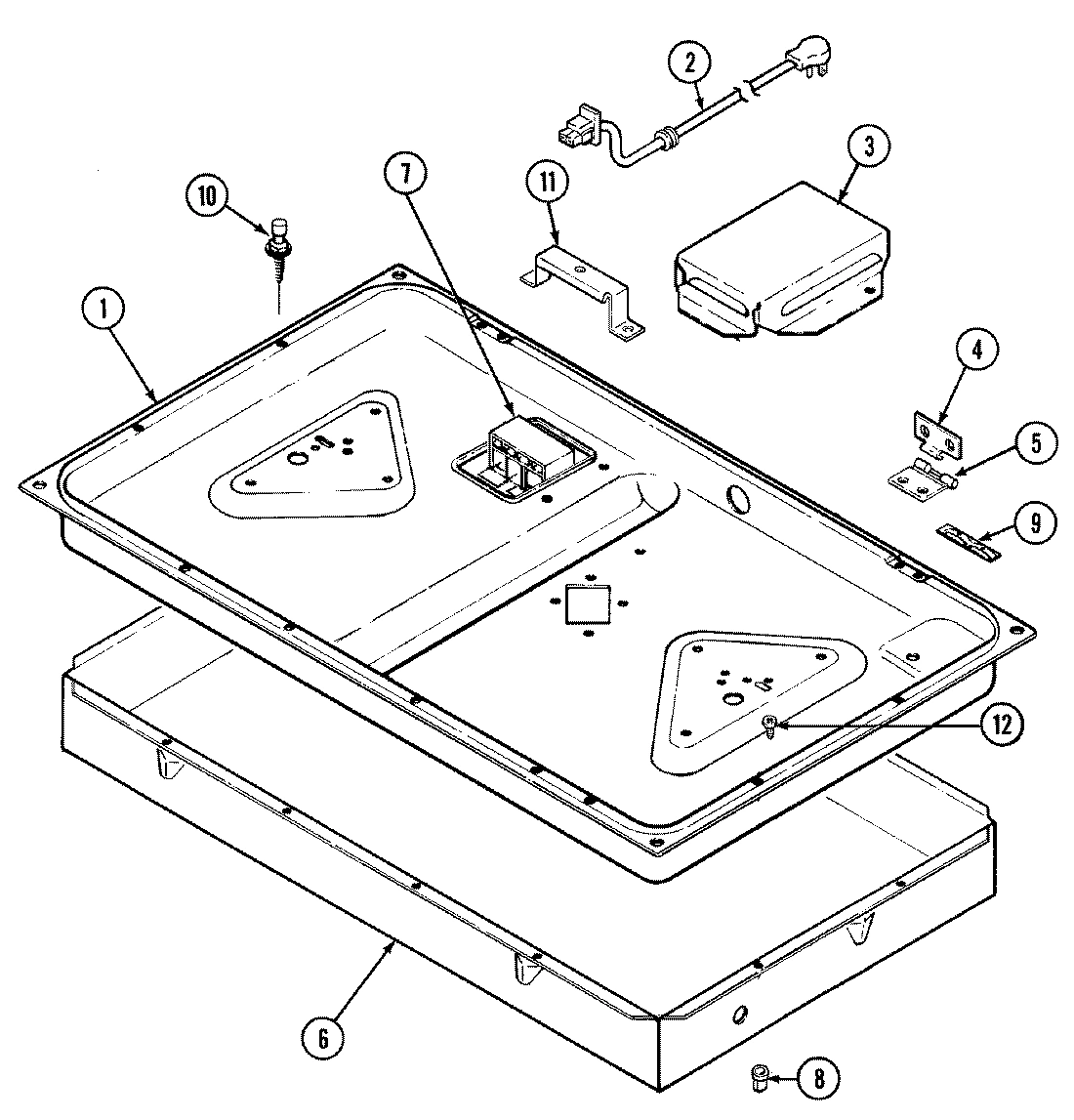

01 - BODY
Common parts from model Whirlpool 8321TA GAS COOK-TOP
1
BURNER, GRIDDLE WPL 7505P21660 Contact Us For Availability
1
COVER, GRIDDLE WPL 2005F00530 Contact Us For Availability
1
BOX, BURNER WPL 4011F23280 Contact Us For Availability
2
BURNER (L.F.) WPL 7505P21860 Contact Us For Availability
2
GRATE (BLK) WPL 2003W02700 Contact Us For Availability
2
GROMMET WPL Y8007P02060 Contact Us For Availability
2
CORD, POWER WPL 7402P04760 Contact Us For Availability
3
BURNER (L.R.) WPL 7505P21760 Contact Us For Availability
3
GRIDDLE WPL 7508P00660 Contact Us For Availability
3
COVER, TRANSFORMER WPL 4005F10851 Contact Us For Availability
4
BURNER (R.F.) WPL 7505P22060 Contact Us For Availability
4
KNOB, VALVE (BLK) WPL 7733P10260 Contact Us For Availability
4
HINGE, TOP WPL 7106P00160 Contact Us For Availability
5
BURNER (R.R.) WPL 7505P21960 Contact Us For Availability
5
SCREW WPL 7101P05960 Contact Us For Availability
5
HINGE, TOP WPL 7106P00560 Contact Us For Availability
6
COVER, BURNER VALVE WPL 7724P00460 Contact Us For Availability
6
TOP, MAIN (ALM) WPL 2001F04184 Contact Us For Availability
6
HOUSING, UNIT WPL 4001F09651 Contact Us For Availability
7
IGNITER (RT) WPL 7432P00960 Contact Us For Availability
7
IGNITER (LT) WPL 7432P01760 Contact Us For Availability
7
TRAY, GRIDDLE-DRIP WPL 2006F00350 Contact Us For Availability
7
MODULE, SPARK WPL 7431P02460 Contact Us For Availability
7
MODULE, SPARK WPL 7431P02760 Contact Us For Availability
8
IGNITER, TOP WPL 7432P01660 Contact Us For Availability
8
TRIM, CONTROL PANEL (BLK) WPL 7720P17060 Contact Us For Availability
8
NUT, SNAP WPL 7103P01660 Contact Us For Availability
8
NUT, PAL WPL 7103P11060 Contact Us For Availability
9
PIPE, MANIFOLD WPL 7513P16260 Contact Us For Availability
9
SCREW WPL 7101P11460 Contact Us For Availability
9
NUT, TWIN SPEED WPL 7103P02860 Contact Us For Availability
10
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
10
NUT, LOCK WPL 7103P08560 Contact Us For Availability
10
SPACER, TOP WPL 8010P00760 Contact Us For Availability
11
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
11
SUPPORT, GRIDDLE WPL 3807F19834 Contact Us For Availability
11
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
11
MANUAL, USE & CARE WPL 8113P03760 Contact Us For Availability
12
SUPPORT, BURNER WPL 3807F33051 Contact Us For Availability
12
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
13
SUPPORT FIRST ARTICLE WPL 3807F40545 Contact Us For Availability
13
BRACKET, COOKTOP MTG. WPL 3801F34280 Contact Us For Availability
15
SWITCH, BURNER WPL 7403P34660 Contact Us For Availability
15
SWITCH, IGNITER WPL 7403P36960 Contact Us For Availability
16
SWITCH, BURNER WPL 7403P34560 Contact Us For Availability
16
SWITCH, IGNITER WPL 7403P36860 Contact Us For Availability
17
SWITCH, IGNITER WPL 7403P27960 Contact Us For Availability
17
SWITCH, IGNITER WPL 7403P37060 Contact Us For Availability
18
TUBE, ASSY FLASH - GRIDDLE WPL 7506P06460 Contact Us For Availability
19
TUBE, ASSY FLASH WPL 7506P01760 Contact Us For Availability
20
VALVE, BURNER (GRIDDLE) WPL 7502P26260 Contact Us For Availability
22
VALVE, BURNER (L.F.) WPL 7502P25860 Contact Us For Availability
23
VALVE, BURNER (R.R.) WPL 7502P25560 Contact Us For Availability
24
VALVE, BURNER (R.F.) WPL 7502P26060 Contact Us For Availability
25
SCREW WPL 7118P00460 Contact Us For Availability
26
HARNESS, LOOSE WIRE WPL 5125A38560 Contact Us For Availability
× ![]()
