Model Whirlpool 8321PA GAS COOK-TOP – Common Parts & Diagrams
03 - TOP ASSEMBLY

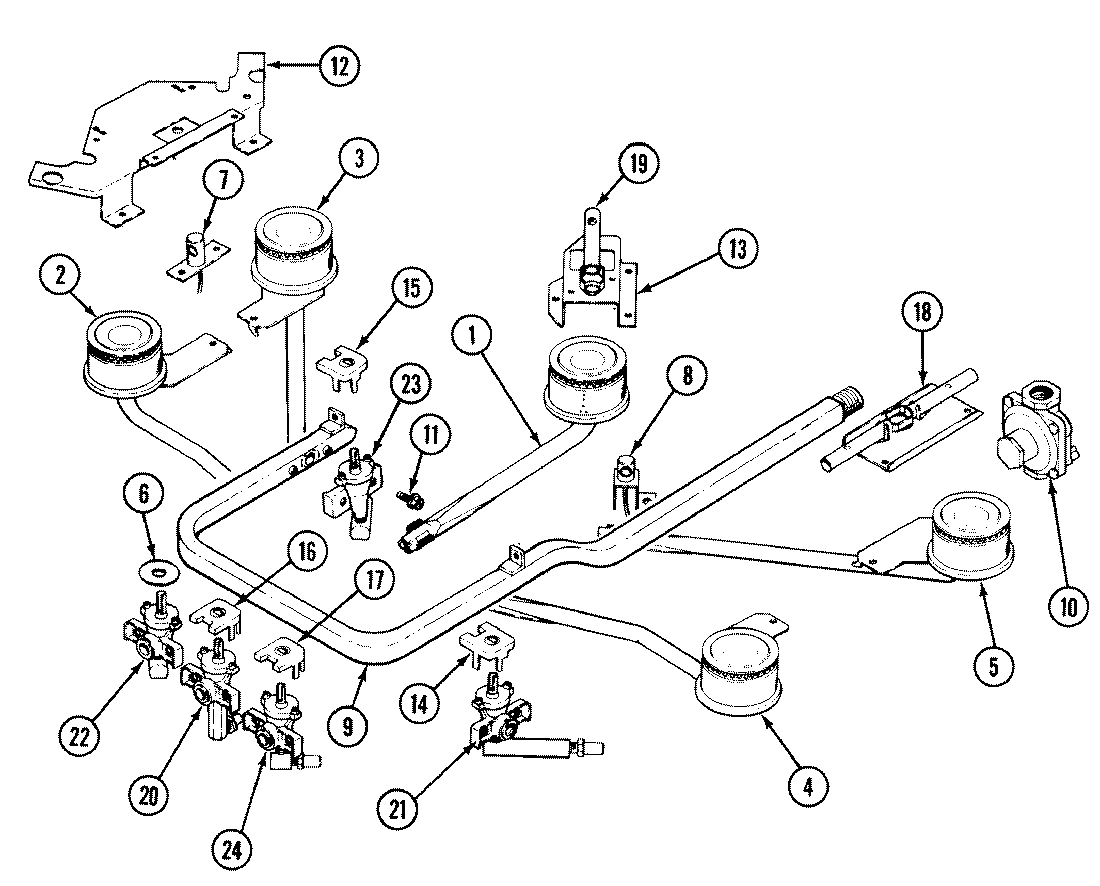

02 - GAS CONTROLS
04 - WIRING INFORMATION

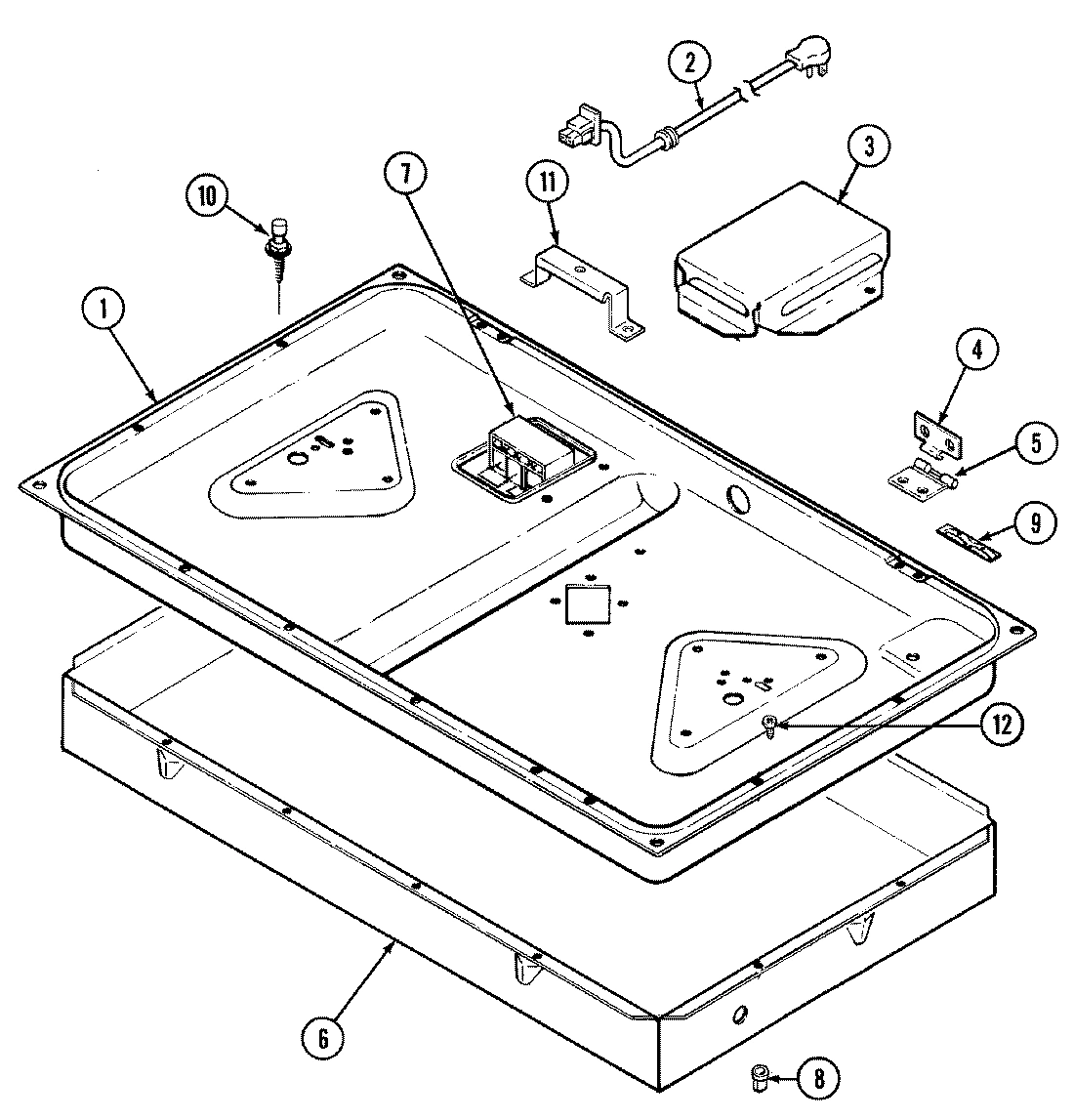

01 - BODY
Common parts from model Whirlpool 8321PA GAS COOK-TOP
1
COVER, GRIDDLE WPL 2005F00530 Contact Us For Availability
1
BURNER, GRIDDLE WPL 7505P09260 Contact Us For Availability
1
BOTTOM, BURNER BOX WPL 4011F12623 Contact Us For Availability
2
GRATE (BLK) WPL 2003W02600 Contact Us For Availability
2
BURNER, LT FR WPL 7505P09060 Contact Us For Availability
2
CORD, POWER WPL 7402P01360 Contact Us For Availability
3
GRIDDLE WPL 7508P00660 Contact Us For Availability
3
BURNER, LT REAR WPL 7505P09160 Contact Us For Availability
3
COVER, TRANSFORMER WPL 4005F10851 Contact Us For Availability
4
KNOB, VALVE WPL 7733P04860 Contact Us For Availability
4
BURNER, RT FR WPL 7505P08860 Contact Us For Availability
4
HINGE, TOP WPL 7106P00160 Contact Us For Availability
5
SCREW WPL 7101P26060 Contact Us For Availability
5
BURNER, RT REAR WPL 7505P08960 Contact Us For Availability
5
HINGE, TOP WPL 7106P00560 Contact Us For Availability
6
TOP, MAIN - ALMOND WPL 2001F04194 Contact Us For Availability
6
COVER, BURNER VALVE WPL 7724P00460 Contact Us For Availability
6
HOUSING, UNIT WPL 4001F05651 Contact Us For Availability
7
TRAY, GRIDDLE-DRIP WPL 2006F00350 Contact Us For Availability
7
IGNITER (RT) WPL 7432P00960 Contact Us For Availability
7
IGNITER (LT) WPL 7432P01760 Contact Us For Availability
7
MODULE, SPARK WPL 7431P01760 Contact Us For Availability
8
TRIM, CONTROL PANEL WPL 7720P14260 Contact Us For Availability
8
IGNITER, TOP WPL 7432P01660 Contact Us For Availability
8
NUT, SNAP WPL 7103P01660 Contact Us For Availability
8
NUT, PAL WPL 7103P11060 Contact Us For Availability
9
SCREW WPL 7101P05960 Contact Us For Availability
9
PIPE, MANIFOLD W/GRIDDLE WPL 7513P08060 Contact Us For Availability
9
NUT, TWIN SPEED WPL 7103P02860 Contact Us For Availability
10
NUT, LOCK WPL 7103P08560 Contact Us For Availability
10
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
10
SPACER, TOP WPL 8010P00760 Contact Us For Availability
11
MANUAL, USE & CARE WPL 74001205 Contact Us For Availability
11
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
11
SUPPORT, GRIDDLE WPL 3807F19834 Contact Us For Availability
12
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
12
SUPPORT, BURNER WPL 3807F33051 Contact Us For Availability
12
BRACKET, COOKTOP MTG. WPL 3801F34280 Contact Us For Availability
12
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
13
SUPPORT WPL 3807F03534 Contact Us For Availability
14
SWITCH, IGN LT RR WPL 7403P19360 Contact Us For Availability
15
SWITCH, IGN RT RR WPL 7403P19260 Contact Us For Availability
17
SWITCH WPL 7403P19160 Contact Us For Availability
18
TUBE, ASSY FLASH - GRIDDLE WPL 7506P06460 Contact Us For Availability
19
TUBE, ASSY FLASH WPL 7506P01760 Contact Us For Availability
20
VALVE, BURNER (GRIDDLE) WPL 7502P00460 Contact Us For Availability
21
VALVE WPL 7502P02860 Contact Us For Availability
22
VALVE WPL 7502P03460 Contact Us For Availability
23
VALVE WPL 7502P02760 Contact Us For Availability
24
VALVE WPL 7502P01160 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001198 Contact Us For Availability
× ![]()
