Model Whirlpool 8320TA GAS COOK-TOP – Common Parts & Diagrams

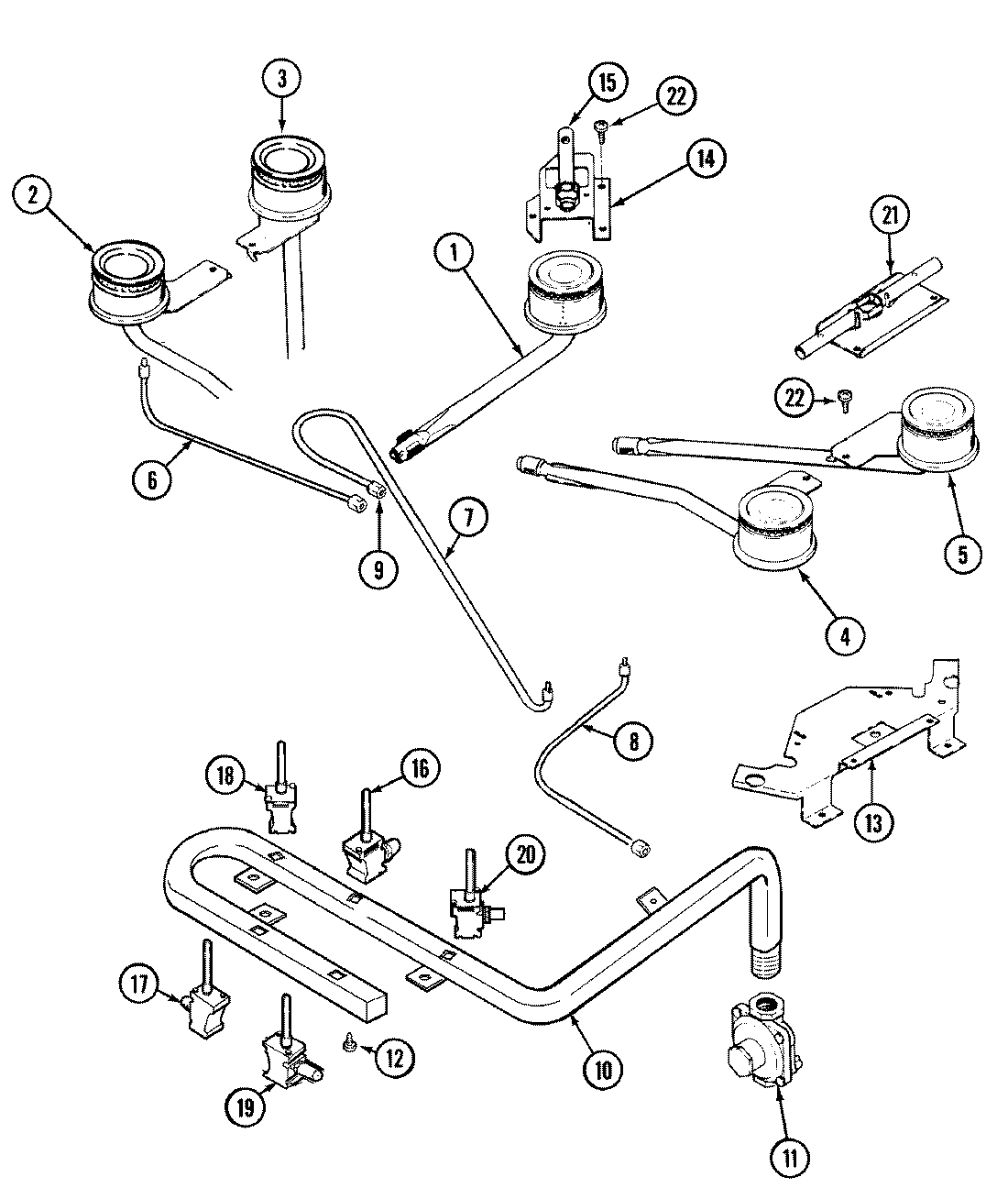

02 - GAS CONTROLS

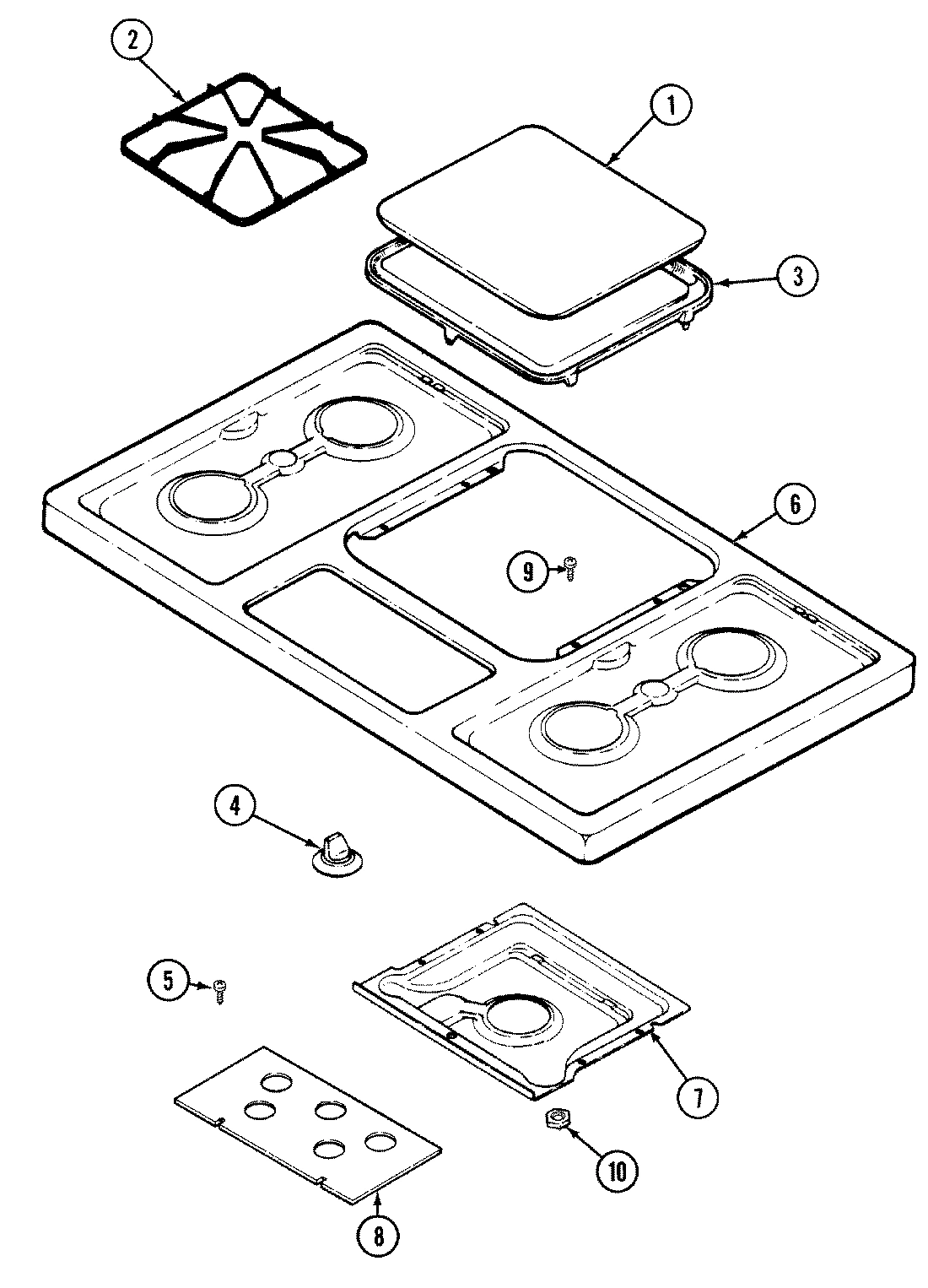

03 - TOP ASSEMBLY

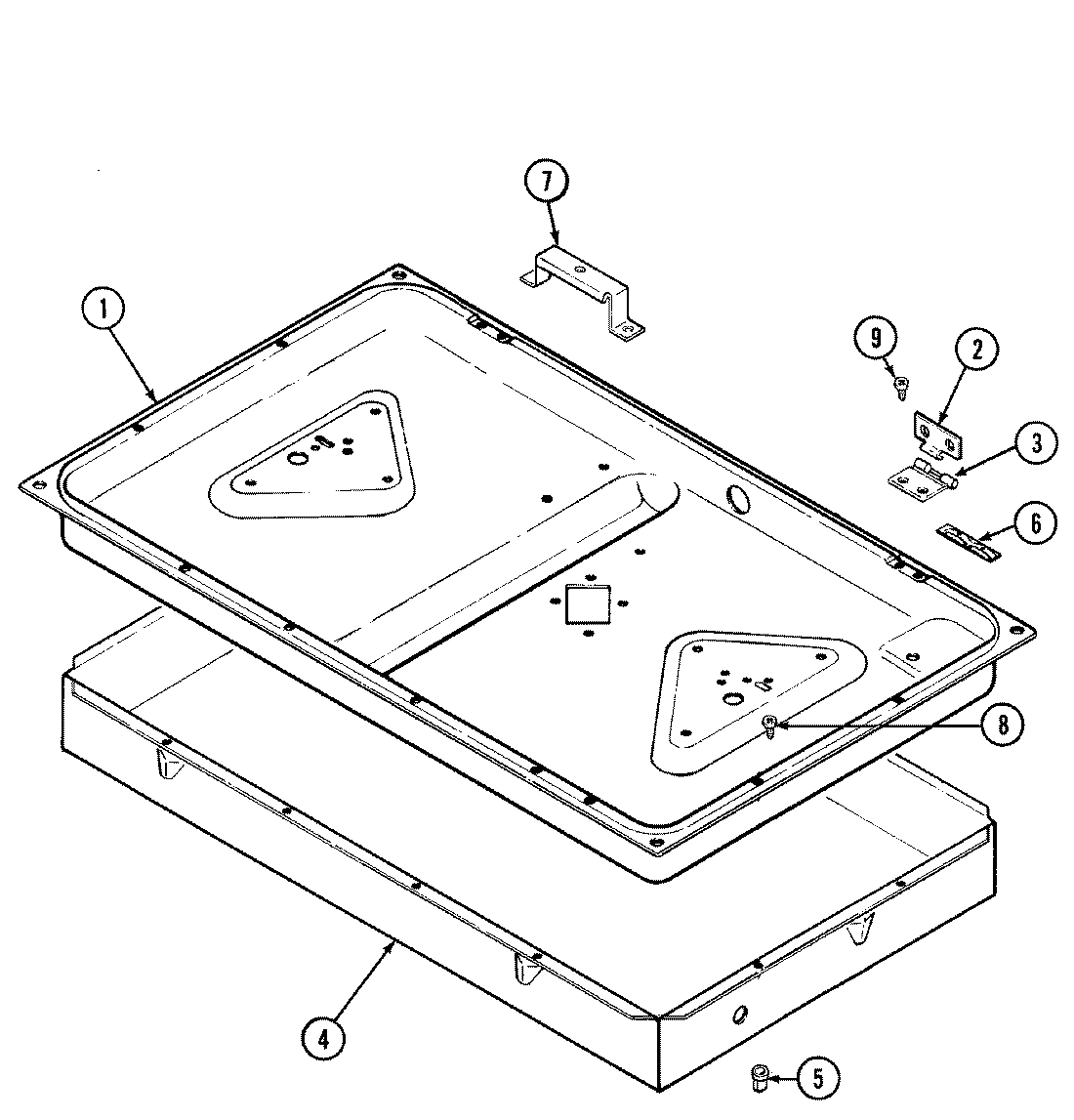

01 - BODY
Common parts from model Whirlpool 8320TA GAS COOK-TOP
1
BURNER, GRIDDLE WPL 7505P21660 Contact Us For Availability
1
COVER, GRIDDLE WPL 2005F00530 Contact Us For Availability
1
BOX, BURNER WPL 74001734 Contact Us For Availability
2
BURNER (L.F.) WPL 7505P21860 Contact Us For Availability
2
GRATE (BLK) WPL 2003W02600 Contact Us For Availability
2
HINGE, TOP WPL 7106P00160 Contact Us For Availability
3
BURNER (L.R.) WPL 7505P21760 Contact Us For Availability
3
GRIDDLE WPL 7508P00660 Contact Us For Availability
3
HINGE, TOP WPL 7106P00560 Contact Us For Availability
4
BURNER (R.F.) WPL 7505P22060 Contact Us For Availability
4
KNOB, VALVE (BLK) WPL 7733P10260 Contact Us For Availability
4
HOUSING, UNIT WPL 4001F09651 Contact Us For Availability
5
BURNER (R.R.) WPL 7505P21960 Contact Us For Availability
5
NUT, PAL WPL 7103P11060 Contact Us For Availability
5
SCREW WPL 7101P07360 Contact Us For Availability
5
NUT, SNAP WPL 7103P01660 Contact Us For Availability
6
BURNER, PILOT (LT) WPL 74001735 Contact Us For Availability
6
TOP, MAIN (ALM) WPL 2001F04184 Contact Us For Availability
6
NUT, TWIN SPEED WPL 7103P02860 Contact Us For Availability
7
TRAY, GRIDDLE-DRIP WPL 2006F00350 Contact Us For Availability
7
SUPPORT, GRIDDLE WPL 3807F19834 Contact Us For Availability
8
BURNER, PILOT (RT) WPL 74001736 Contact Us For Availability
8
TRIM, CONTROL PANEL (BLK) WPL 7720P17060 Contact Us For Availability
8
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
9
NUT & FERRULE 1/8`` KIT WPL 1555225K Contact Us For Availability
9
SCREW WPL 7101P05960 Contact Us For Availability
9
SCREW WPL 7101P11460 Contact Us For Availability
10
PIPE, MANIFOLD WPL 74001737 Contact Us For Availability
10
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
10
NUT, LOCK WPL 7103P08560 Contact Us For Availability
10
MANUAL, USE & CARE WPL 8113P03760 Contact Us For Availability
10
BRACKET, COOKTOP MTG. WPL 3801F34280 Contact Us For Availability
11
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
12
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
13
SUPPORT, BURNER WPL 3807F32151 Contact Us For Availability
13
SUPPORT, GRIDDLE PILOT WPL 74001433 Contact Us For Availability
14
SUPPORT, GRIDDLE FLASH TUBE WPL 3807F32534 Contact Us For Availability
15
WASHER WPL 7109P00460 Contact Us For Availability
15
TUBE, ASSY FLASH WPL 7506P01760 Contact Us For Availability
16
VALVE, BURNER (GRIDDLE) WPL 7502P26260 Contact Us For Availability
17
VALVE, BURNER (L.F.) WPL 7502P25860 Contact Us For Availability
19
VALVE, BURNER (R.F.) WPL 7502P26060 Contact Us For Availability
20
VALVE, BURNER (R.R.) WPL 7502P25560 Contact Us For Availability
21
TUBE, FLASH WPL 7506P00360 Contact Us For Availability
22
SCREW WPL 7118P00460 Contact Us For Availability
× ![]()
