Model Whirlpool 8320PS GAS COOK-TOP – Common Parts & Diagrams
01 - BODY

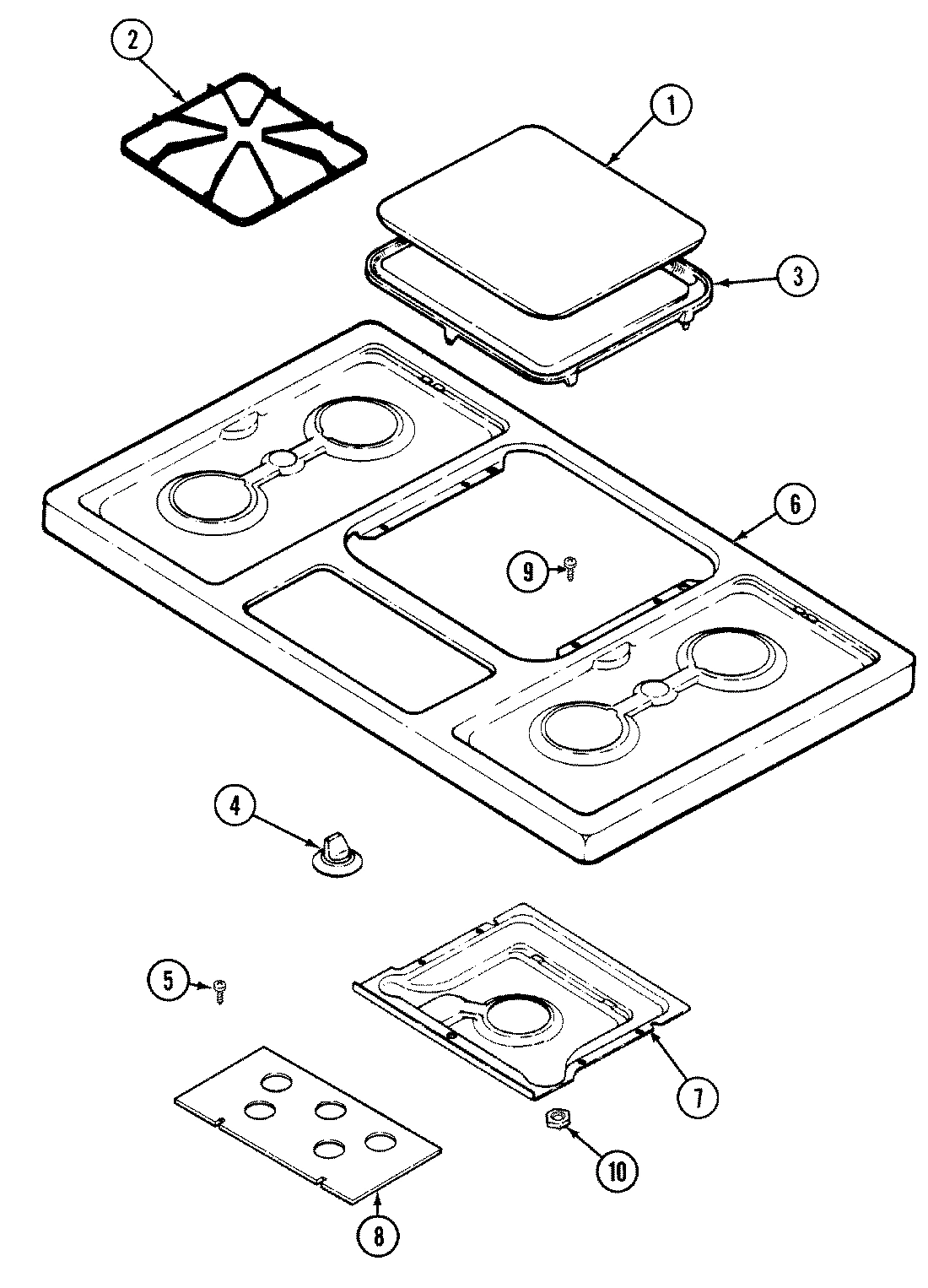

03 - TOP ASSEMBLY

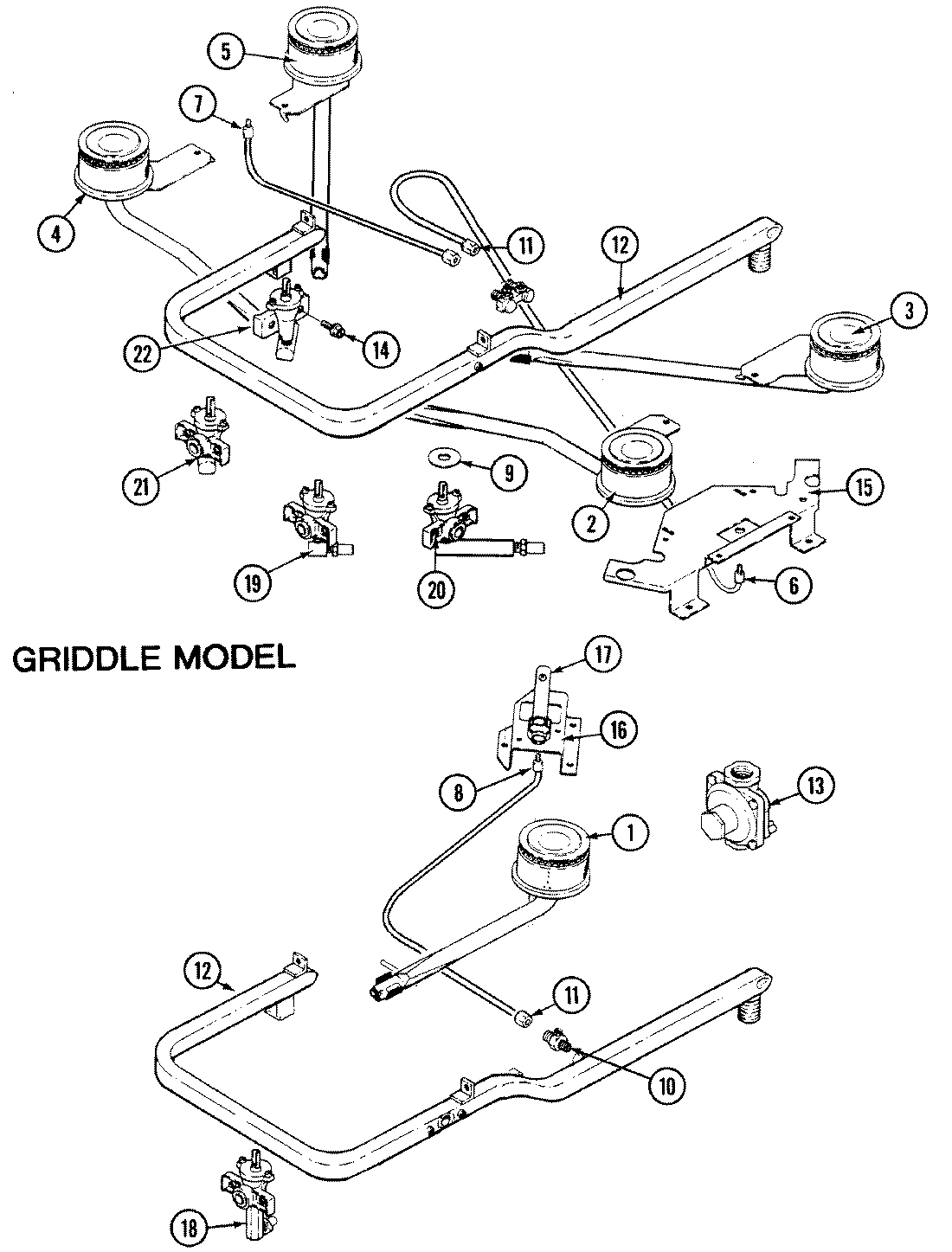

02 - GAS CONTROLS
Common parts from model Whirlpool 8320PS GAS COOK-TOP
1
BOTTOM, BURNER BOX WPL 4011F13080 Contact Us For Availability
1
COVER, GRIDDLE WPL 2005F00530 Contact Us For Availability
1
BURNER, GRIDDLE WPL 7505P09260 Contact Us For Availability
2
HINGE, TOP WPL 7106P00160 Contact Us For Availability
2
GRATE (BLK) WPL 2003W02600 Contact Us For Availability
2
BURNER, RT FR WPL 7505P08860 Contact Us For Availability
3
HINGE, TOP WPL 7106P00560 Contact Us For Availability
3
GRIDDLE WPL 7508P00660 Contact Us For Availability
3
BURNER, RT REAR WPL 7505P08960 Contact Us For Availability
4
HOUSING, UNIT WPL 4001F09651 Contact Us For Availability
4
NUT, PAL WPL 7103P11060 Contact Us For Availability
4
KNOB, VALVE WPL 7733P04860 Contact Us For Availability
4
BURNER, LT FR WPL 7505P09060 Contact Us For Availability
5
SCREW WPL 7101P07360 Contact Us For Availability
5
NUT, SNAP WPL 7103P01660 Contact Us For Availability
5
SCREW WPL 7118P00460 Contact Us For Availability
5
BURNER, LT REAR WPL 7505P09160 Contact Us For Availability
6
NUT, TWIN SPEED WPL 7103P02860 Contact Us For Availability
6
TOP, MAIN (CHR) WPL 2001F07430 Contact Us For Availability
6
BURNER, PILOT 15-1/4 WPL 7505P15860 Contact Us For Availability
7
SPACER, TOP WPL 8010P00760 Contact Us For Availability
7
TRAY, GRIDDLE-DRIP WPL 2006F00350 Contact Us For Availability
7
BURNER, PILOT 18-3/4 WPL 7505P15960 Contact Us For Availability
8
SUPPORT, GRIDDLE WPL 3807F19834 Contact Us For Availability
8
TRIM, CONTROL PANEL WPL 7720P14260 Contact Us For Availability
8
BURNER, PILOT (GRIDDLE) WPL 74001432 Contact Us For Availability
9
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
9
SCREW WPL 7101P05960 Contact Us For Availability
9
COVER, BURNER VALVE WPL 7724P00460 Contact Us For Availability
10
BRACKET, COOKTOP MTG. WPL 3801F34280 Contact Us For Availability
10
SCREW WPL 7101P11460 Contact Us For Availability
10
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
10
NUT, LOCK WPL 7103P08560 Contact Us For Availability
10
MANUAL, USE & CARE WPL 8113P03760 Contact Us For Availability
10
FILTER, PILOT WPL 7507P00460 Contact Us For Availability
11
NUT & FERRULE 1/8`` KIT WPL 1555225K Contact Us For Availability
12
PIPE, MANIFOLD WPL 7513P07860 Contact Us For Availability
13
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
14
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
15
SUPPORT, BURNER WPL 3807F32151 Contact Us For Availability
15
SUPPORT, GRIDDLE PILOT WPL 74001433 Contact Us For Availability
16
SUPPORT, GRIDDLE FLASH TUBE WPL 3807F32534 Contact Us For Availability
17
WASHER WPL 7109P00460 Contact Us For Availability
17
TUBE, ASSY FLASH WPL 7506P01760 Contact Us For Availability
18
VALVE, BURNER (GRIDDLE) WPL 7502P00460 Contact Us For Availability
19
VALVE WPL 7502P03460 Contact Us For Availability
20
VALVE WPL 7502P02760 Contact Us For Availability
21
VALVE WPL 7502P01160 Contact Us For Availability
22
VALVE WPL 7502P02860 Contact Us For Availability
× ![]()
