Model Whirlpool 82LN-3K GAS COOK-TOP – Common Parts & Diagrams
02 - TOP

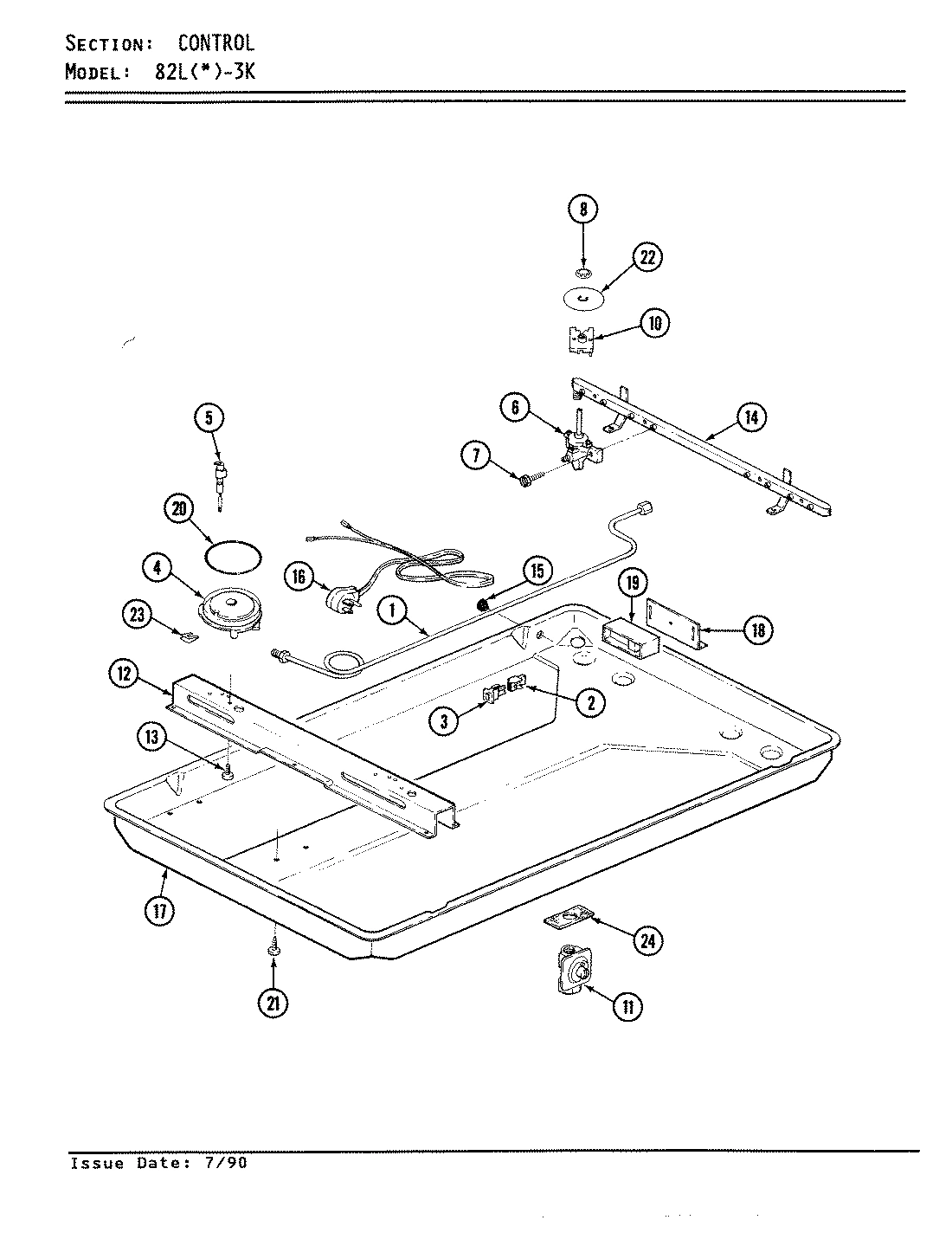

01 - CONTROL
Common parts from model Whirlpool 82LN-3K GAS COOK-TOP
1
KNOB, BURNER (WHT) WPL 7733P04360 Contact Us For Availability
1
WIRE, IGNITER WPL 5110P87360 Contact Us For Availability
1
WIRE, IGNITER WPL 5110P87460 Contact Us For Availability
1
TUBE, TOP BURNER WPL 7506P08360 Contact Us For Availability
1
TUBING, TOP BURNER WPL 7506P08460 Contact Us For Availability
2
GLASS, MAIN TOP (WHITE) WPL 7918P02560 Contact Us For Availability
2
BLOCK, DISCONNECT (PIN) WPL 7401P01760 Contact Us For Availability
3
TAPE, SEAL 112`` LONG WPL 12400008 Contact Us For Availability
3
BLOCK WPL 7401P01860 Contact Us For Availability
4
BOWL, DRIP (WHT) WPL 3424F00160 Contact Us For Availability
4
BOWL, DRIP WPL 3424F00185 Contact Us For Availability
4
BURNER, TOP COMPLETE WPL 7505A15560 Contact Us For Availability
5
GRATE, GREY ROUND WPL 2003F02214 Contact Us For Availability
5
IGNITER, BURNER WPL 7432P05360 Contact Us For Availability
6
RING BURNER WPL 2014F00260 Contact Us For Availability
6
VALVE, TOP BURNER WPL 7502P10660 Contact Us For Availability
7
CAP, BURNER (LT.GRAY) WPL 7504P00960 Contact Us For Availability
7
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
8
TAPE KIT (WHT) FOAM 112`` WPL 12400017 Contact Us For Availability
8
TAPE BURNER BOX SEAL 107`` WPL 12400021 Contact Us For Availability
8
SCREW, BURNER MTG WPL 7101P28660 Contact Us For Availability
8
CLIP WPL 7112P02460 Contact Us For Availability
9
BRACKET, TIE DOWN WPL 3801F19245 Contact Us For Availability
10
MANUAL, USE & CARE WPL 8112P04160 Contact Us For Availability
10
SWITCH, BURNER WPL 7403P19060 Contact Us For Availability
11
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
12
SUPPORT, TOP BURNER WPL 3807F36845 Contact Us For Availability
14
PIPE, MANIFOLD WPL 7513P09860 Contact Us For Availability
15
BUSHING, SNAP WPL 8007P00360 Contact Us For Availability
16
CORD, POWER WPL 7402P01460 Contact Us For Availability
17
BOTTOM, BURNER BOX WPL 4011F16223 Contact Us For Availability
18
SCREW WPL 7101P05960 Contact Us For Availability
18
BRACKET, MODULE SUPPORT WPL 3801F20545 Contact Us For Availability
18
BRACKET, SPARK MODULE WPL 3801F22645 Contact Us For Availability
18
BRACKET, SPARK MODULE WPL 3801F30445 Contact Us For Availability
19
MODULE, SPARK WPL 7431P01660 Contact Us For Availability
19
MODULE, SPARK WPL 7431P01760 Contact Us For Availability
20
GASKET, BURNER WPL 7201P03760 Contact Us For Availability
21
SCREW WPL 7101P07460 Contact Us For Availability
22
COVER, BURNER VALVE WPL 7724P00460 Contact Us For Availability
22
BUSHING (WHT) WPL 8007P02260 Contact Us For Availability
23
CLIP WPL 7112P07260 Contact Us For Availability
24
CONVERSION KIT, NATURAL TO LP WPL 5415A02660 Contact Us For Availability
24
SEAL, MANIFOLD PIPE WPL 7208P01960 Contact Us For Availability
× ![]()
