Model Maytag 7MMVWX700XL2 WASHER – Common Parts & Diagrams
01 - TOP AND CABINET PARTS

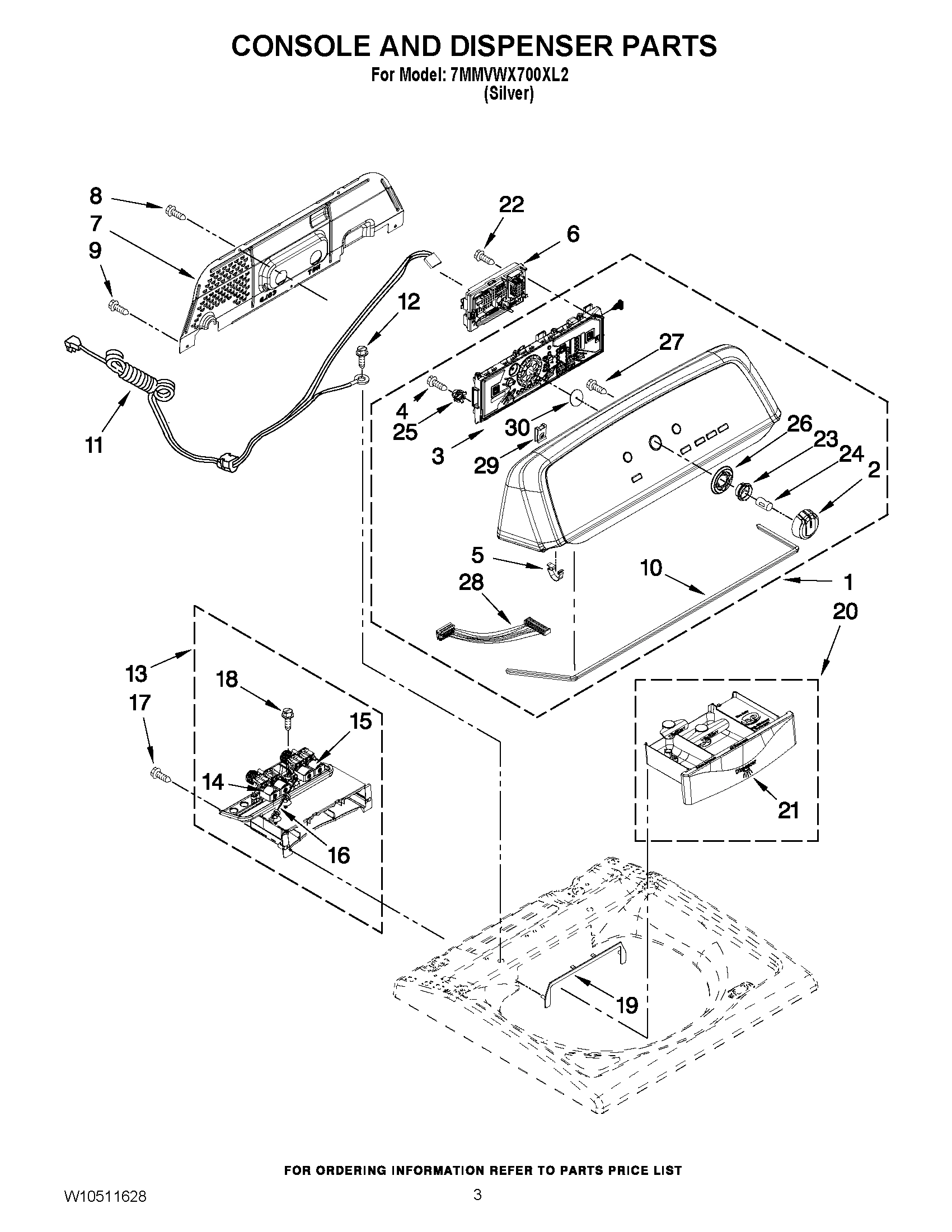

02 - CONSOLE AND DISPENSER PARTS

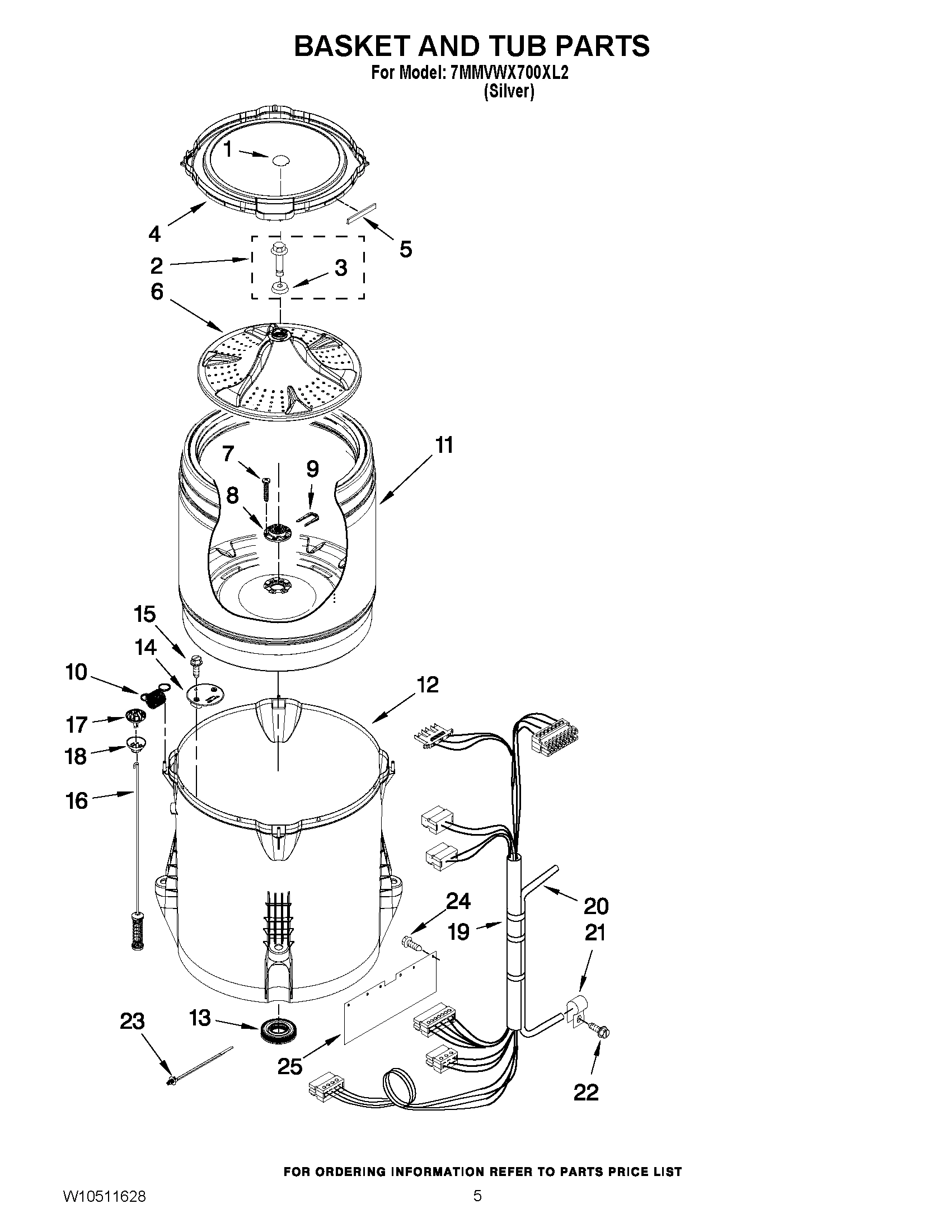

03 - BASKET AND TUB PARTS

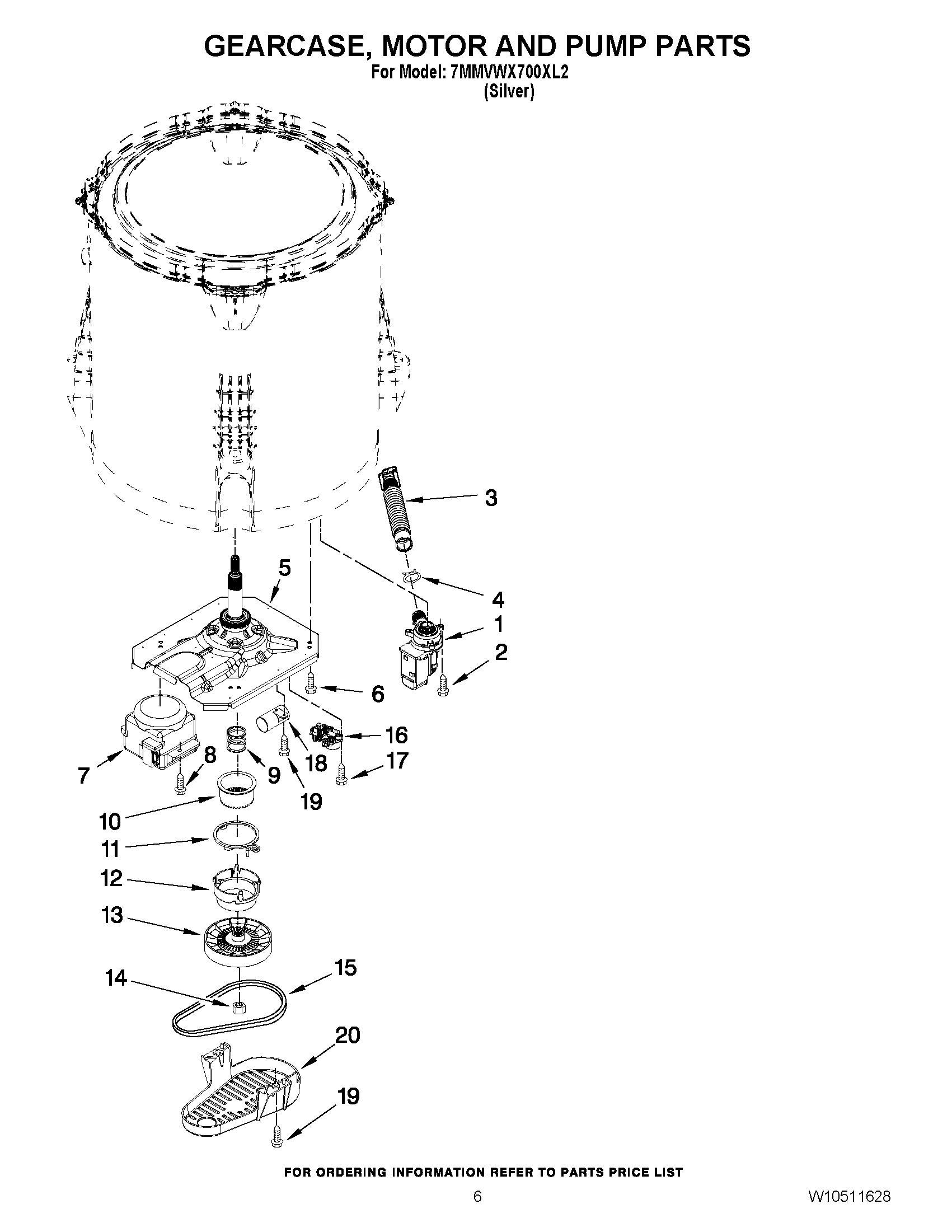

04 - GEARCASE, MOTOR AND PUMP PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 7MMVWX700XL2 WASHER
1
MAY W10329770 MAY W10329770 Contact Us For Availability
1
MAY W10331110 MAY W10331110 Contact Us For Availability
1
MAY W10366295 MAY W10366295 Contact Us For Availability
1
MAY W10468342 MAY W10468342 Contact Us For Availability
1
MAY W10478095 MAY W10478095 Contact Us For Availability
1
CONSOLE MAY W10351444 Contact Us For Availability
1
MAY W10305251 MAY W10305251 Contact Us For Availability
1
MAY W10465543 MAY W10465543 Contact Us For Availability
2
TOP MAY W10268719 Contact Us For Availability
2
KNOB, CONTROL MAY W10251384 Contact Us For Availability
2
MAY W10003790 MAY W10003790 Contact Us For Availability
2
SCREW MAY W10004910 Contact Us For Availability
3
MAY W10427125 MAY W10427125 Contact Us For Availability
3
MAY W10272638 MAY W10272638 Contact Us For Availability
3
MAY 3949550 MAY 3949550 Contact Us For Availability
3
MAY W10215091 MAY W10215091 Contact Us For Availability
4
BUMPER, LID MAY 9724509 Contact Us For Availability
4
MAY W10219342 MAY W10219342 Contact Us For Availability
4
MAY W10215146 MAY W10215146 Contact Us For Availability
4
MAY 8317496 MAY 8317496 Contact Us For Availability
5
HINGE, LID (L.H.) MAY W10270398 Contact Us For Availability
5
HINGE LID (R.H.) MAY W10270399 Contact Us For Availability
5
MAY 8312709 MAY 8312709 Contact Us For Availability
5
MAY W10205824 MAY W10205824 Contact Us For Availability
5
GEARCASE ASSEMBLY (INCLUDES ITEMS 7, 8, 9, 10 MAY W10469846 Contact Us For Availability
6
MAY W10414221 MAY W10414221 Contact Us For Availability
6
MAY W10480322 MAY W10480322 Contact Us For Availability
6
MAY W10215119 MAY W10215119 Contact Us For Availability
6
SCREW MAY W10249633 Contact Us For Availability
7
Screw MAY 693995 Contact Us For Availability
7
MAY W10420984 MAY W10420984 Contact Us For Availability
7
SCREW MAY 8533953 Contact Us For Availability
7
MAY W10416660 MAY W10416660 Contact Us For Availability
8
STRIKE, LID LOCK MAY W10239969 Contact Us For Availability
8
SCREW MAY 3390647 Contact Us For Availability
8
HUB - DRIVEN, BASKET (INCLUDES ITEM 7) MAY W10396887 Contact Us For Availability
8
SCREW MAY W10094780 Contact Us For Availability
9
MAY 1157158 MAY 1157158 Contact Us For Availability
9
RETAINER MAY W10402178 Contact Us For Availability
9
MAY W10326374 MAY W10326374 Contact Us For Availability
10
DISPENSER, BLEACH MAY W10304138 Contact Us For Availability
10
MAY W10280079 MAY W10280079 Contact Us For Availability
10
MAY W10348658 MAY W10348658 Contact Us For Availability
10
MAY W10006352 MAY W10006352 Contact Us For Availability
11
BEZEL, LID LOCK MAY W10392092 Contact Us For Availability
11
MAY W10266797 MAY W10266797 Contact Us For Availability
11
BASKET ASSEMBLY (INCLUDES ITEMS 7 & 8) MAY W10469848 Contact Us For Availability
11
MAY W10006353 MAY W10006353 Contact Us For Availability
12
MAY W10293293 MAY W10293293 Contact Us For Availability
12
MAY W10293653 MAY W10293653 Contact Us For Availability
12
SCREW MAY 3400076 Contact Us For Availability
12
MAY W10238301 MAY W10238301 Contact Us For Availability
12
MAY W10006354 MAY W10006354 Contact Us For Availability
13
CLIP, LID LOCK HARNESS MAY 90016 Contact Us For Availability
13
HOUSING ASSEMBLY - DISPENSER MAY W10432327 Contact Us For Availability
13
MAY W10006371 MAY W10006371 Contact Us For Availability
13
MAY W10006356 MAY W10006356 Contact Us For Availability
14
MAY W10238287 MAY W10238287 Contact Us For Availability
14
MAY W10240949 MAY W10240949 Contact Us For Availability
14
MAY W10215093 MAY W10215093 Contact Us For Availability
14
MAY W10163336 MAY W10163336 Contact Us For Availability
15
Screw MAY 8281163 Contact Us For Availability
15
MAY W10240948 MAY W10240948 Contact Us For Availability
15
Screw MAY 8533928 Contact Us For Availability
15
MAY W10006384 MAY W10006384 Contact Us For Availability
16
MAY 356138 MAY 356138 Contact Us For Availability
16
MAY W10240967 MAY W10240967 Contact Us For Availability
16
MAY W10257085 MAY W10257085 Contact Us For Availability
16
MAY W10006355 MAY W10006355 Contact Us For Availability
17
CABINET MAY W10240528 Contact Us For Availability
17
SCREW, DISPENSER HOUSING MOUNTING MAY 3400061 Contact Us For Availability
17
BALL, SUSPENSION (SET OF 4 - INCLUDES ITEM 18 MAY W10405423 Contact Us For Availability
17
SCREW MAY 9741052 Contact Us For Availability
18
MAY W10215098 MAY W10215098 Contact Us For Availability
18
SCREW, INLET VALVE MOUNTING MAY 97787 Contact Us For Availability
18
BUSHING, SUSPENSION (SET OF 4 - INCLUDES ITEM MAY W10256551 Contact Us For Availability
18
MAY W10390446 MAY W10390446 Contact Us For Availability
19
BRACE, CABINET TOP - REAR MAY W10215099 Contact Us For Availability
19
MAY W10240946 MAY W10240946 Contact Us For Availability
19
HARNESS, LOWER MAY W10383573 Contact Us For Availability
19
SCREW MAY 357640 Contact Us For Availability
20
MAY W10240960 MAY W10240960 Contact Us For Availability
20
MAY 8572540 MAY 8572540 Contact Us For Availability
20
MAY W10427633 MAY W10427633 Contact Us For Availability
21
MAY W10248088 MAY W10248088 Contact Us For Availability
21
MAY W10287478 MAY W10287478 Contact Us For Availability
21
MAY W10005430 MAY W10005430 Contact Us For Availability
22
SCREW MAY 9740848 Contact Us For Availability
22
MAY W10397767 MAY W10397767 Contact Us For Availability
22
SCREW MAY 8533943 Contact Us For Availability
23
PANEL, REAR MAY W10250884 Contact Us For Availability
23
MAY W10339879 MAY W10339879 Contact Us For Availability
23
MAY W10326923 MAY W10326923 Contact Us For Availability
24
MAY W10215102 MAY W10215102 Contact Us For Availability
24
MAY 8536939 MAY 8536939 Contact Us For Availability
24
MAY W10429200 MAY W10429200 Contact Us For Availability
25
SCREW MAY W10142728 Contact Us For Availability
25
MAY W10274524 MAY W10274524 Contact Us For Availability
25
SHIELD, SPLASH MAY W10392691 Contact Us For Availability
26
MAY W10215139 MAY W10215139 Contact Us For Availability
26
MAY W10305134 MAY W10305134 Contact Us For Availability
27
MAY 3196172 MAY 3196172 Contact Us For Availability
28
MAY W10285492 MAY W10285492 Contact Us For Availability
29
HOSE, OUTER DRAIN ASSEMBLY (INCLUDES ITEMS 30 MAY W10221546 Contact Us For Availability
29
NUT, U-TYPE MAY W10298336 Contact Us For Availability
30
MAY W10280024 MAY W10280024 Contact Us For Availability
30
MAY W10323092 MAY W10323092 Contact Us For Availability
31
MAY 8563965 MAY 8563965 Contact Us For Availability
31
MAY 8572974 MAY 8572974 Contact Us For Availability
32
SCREW MAY W10339706 Contact Us For Availability
33
BADGE, MAYTAG MAY W10323735 Contact Us For Availability
34
NUT, LOCKING MAY 3359452 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
MAY 285448A MAY 285448A Contact Us For Availability
NI
MAY 285452A MAY 285452A Contact Us For Availability
NI
MAY 285834 MAY 285834 Contact Us For Availability
NI
MAY 3363920 MAY 3363920 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
WATER SYSTEM PARTS, DRAIN PROTECTOR MAY 367031 Contact Us For Availability
NI
MAY 384496 MAY 384496 Contact Us For Availability
NI
Inlet Hoses, 5 Ft. (Two Braided Hoses W/Strai MAY 8212487RP Contact Us For Availability
NI
WASHER DRIP TRAY MAY 8212526 Contact Us For Availability
NI
INLET HOSES, 5 FT. (ONE RED HOSE & ONE BLUE H MAY 8212545RP Contact Us For Availability
NI
MAY 8212546RP MAY 8212546RP Contact Us For Availability
NI
INLET HOSES, 6 FT. (TWO BLACK HOSES W/ ONE ST MAY 8212637RP Contact Us For Availability
NI
INLET HOSES, 6 FT. (TWO BRAIDED HOSES W/ ONE MAY 8212638RP Contact Us For Availability
NI
Inlet Hoses, 5 Ft. (Two Black Hoses W/Straigh MAY 8212641RP Contact Us For Availability
NI
INLET HOSES, 10 FT (TWO BLACK HOSES W/ STRAIG MAY 8212656RP Contact Us For Availability
NI
WATER SYSTEM PARTS, DRAIN HOSE EXTENSION KIT MAY DRNEXT4 Contact Us For Availability
NI
MAY W10135699 MAY W10135699 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (MERCURY SILVER) MAY W10268217 Contact Us For Availability
NI
MAY W10355010 MAY W10355010 Contact Us For Availability
× ![]()
