Model Maytag 7MMVWX655EW0 WASHER – Common Parts & Diagrams
01 - COVER SHEET

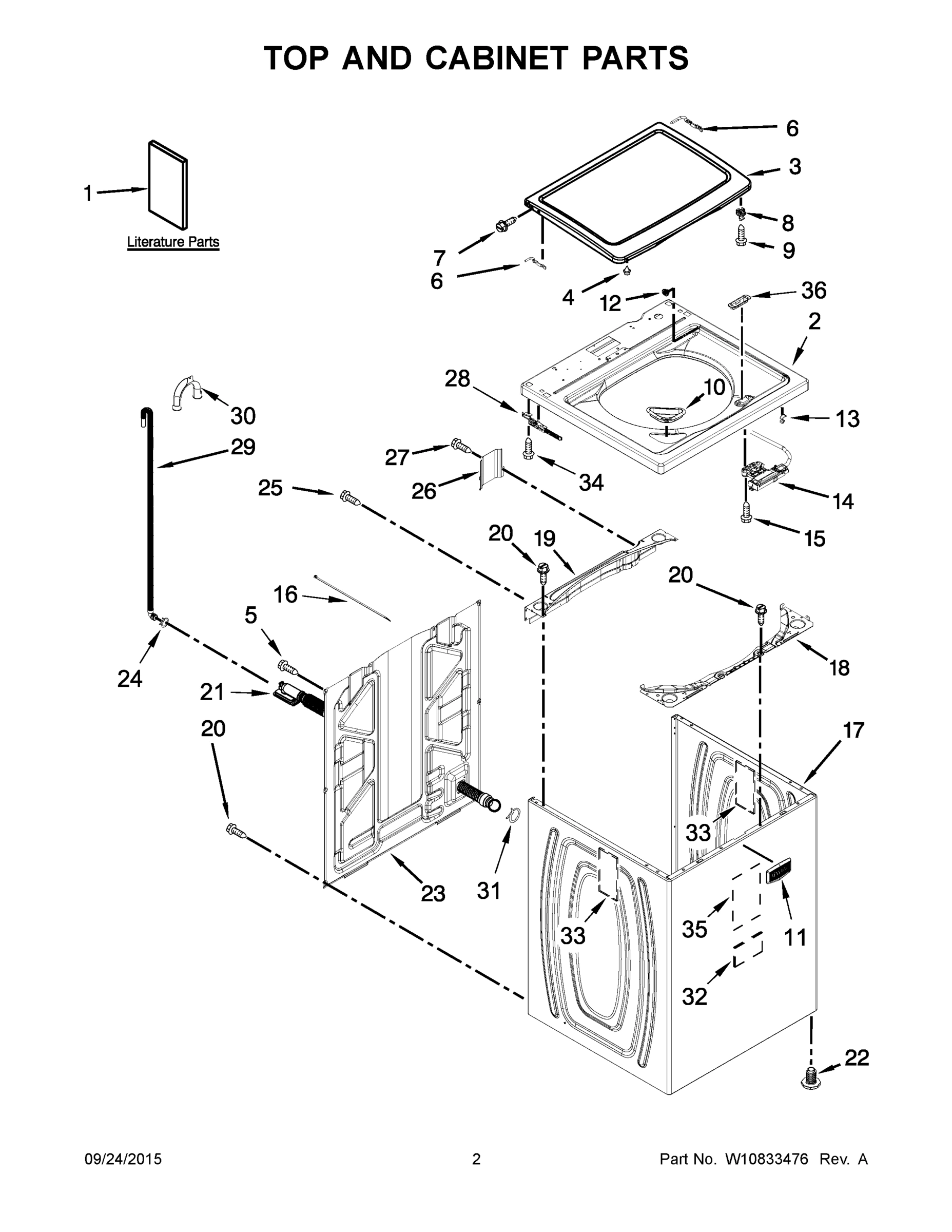

02 - TOP AND CABINET PARTS

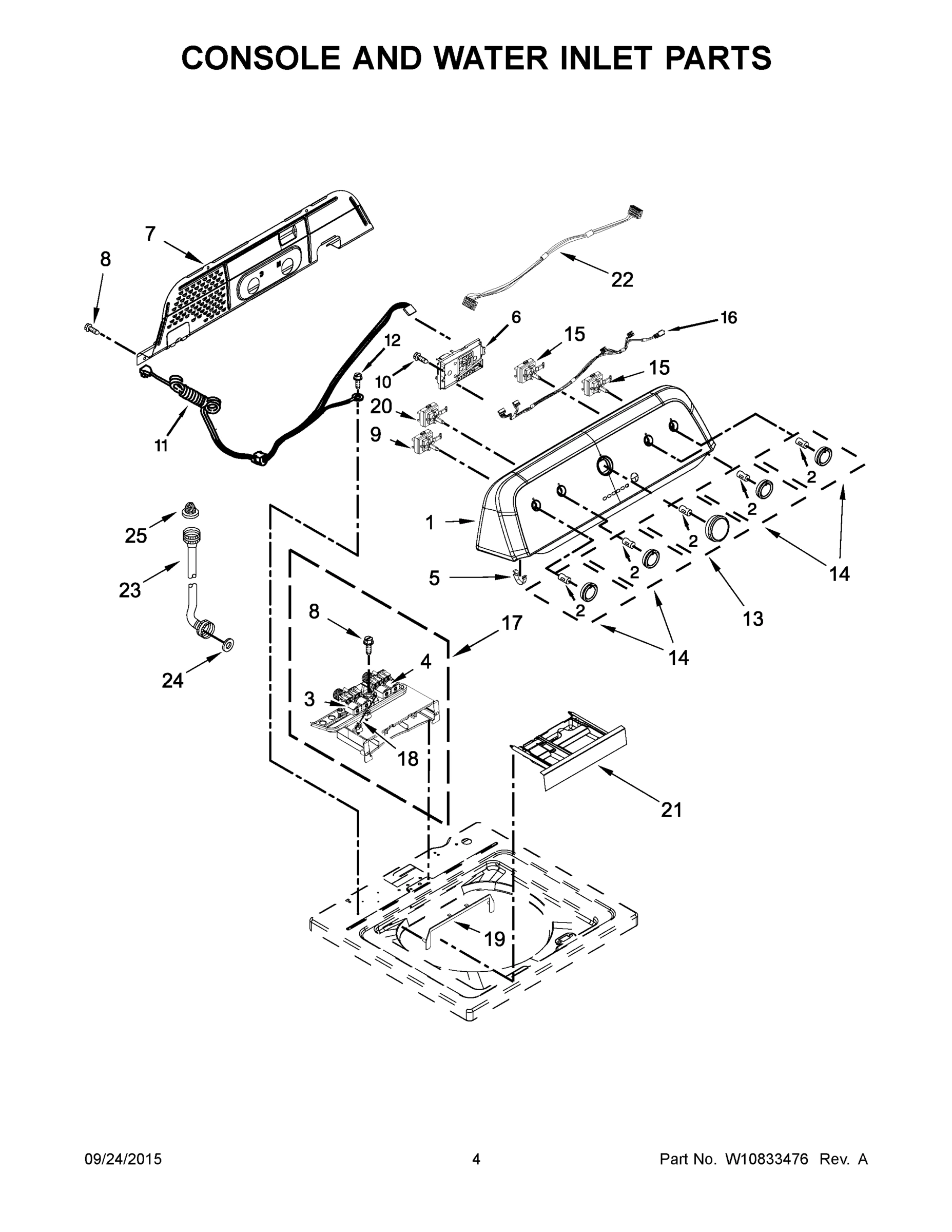

03 - CONSOLE AND WATER INLET PARTS

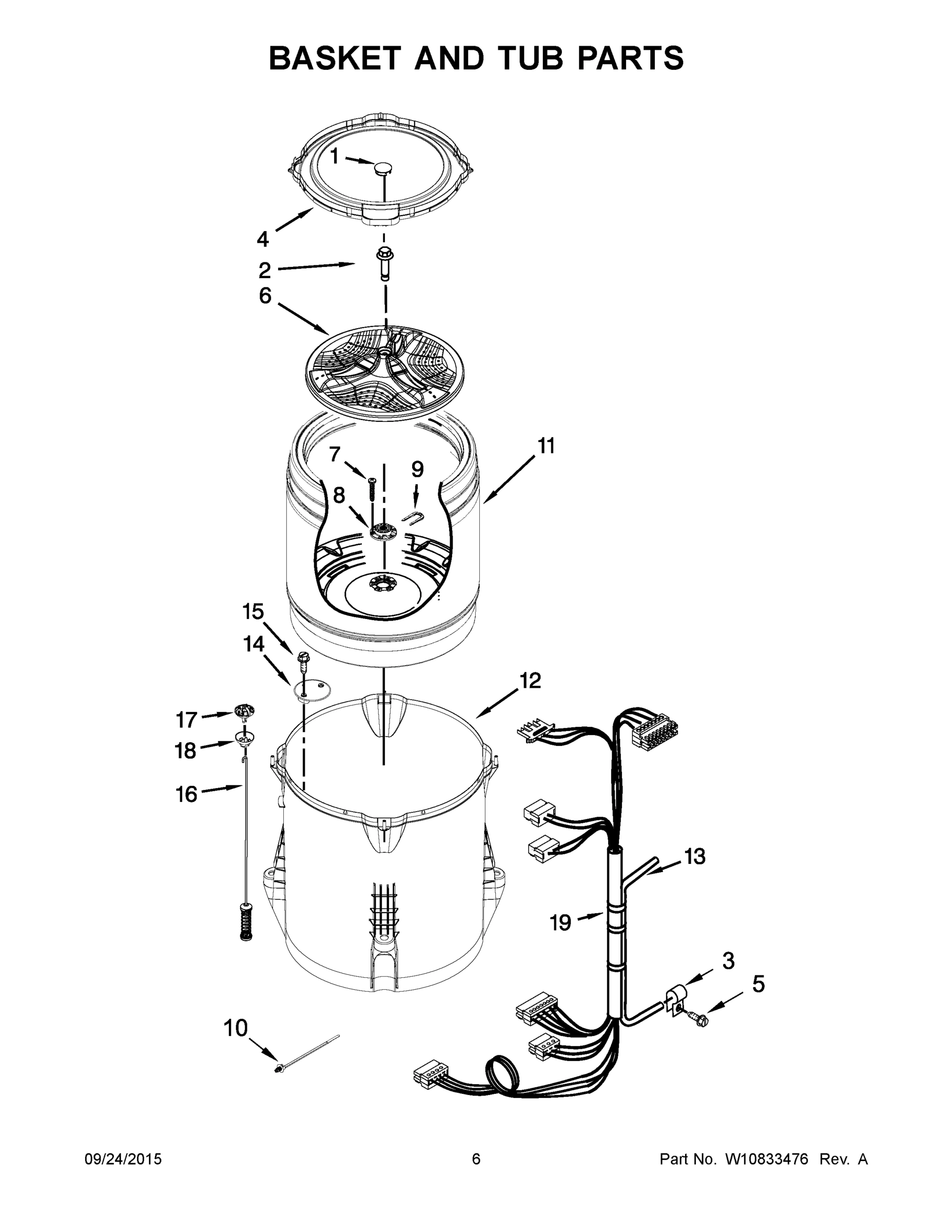

04 - BASKET AND TUB PARTS

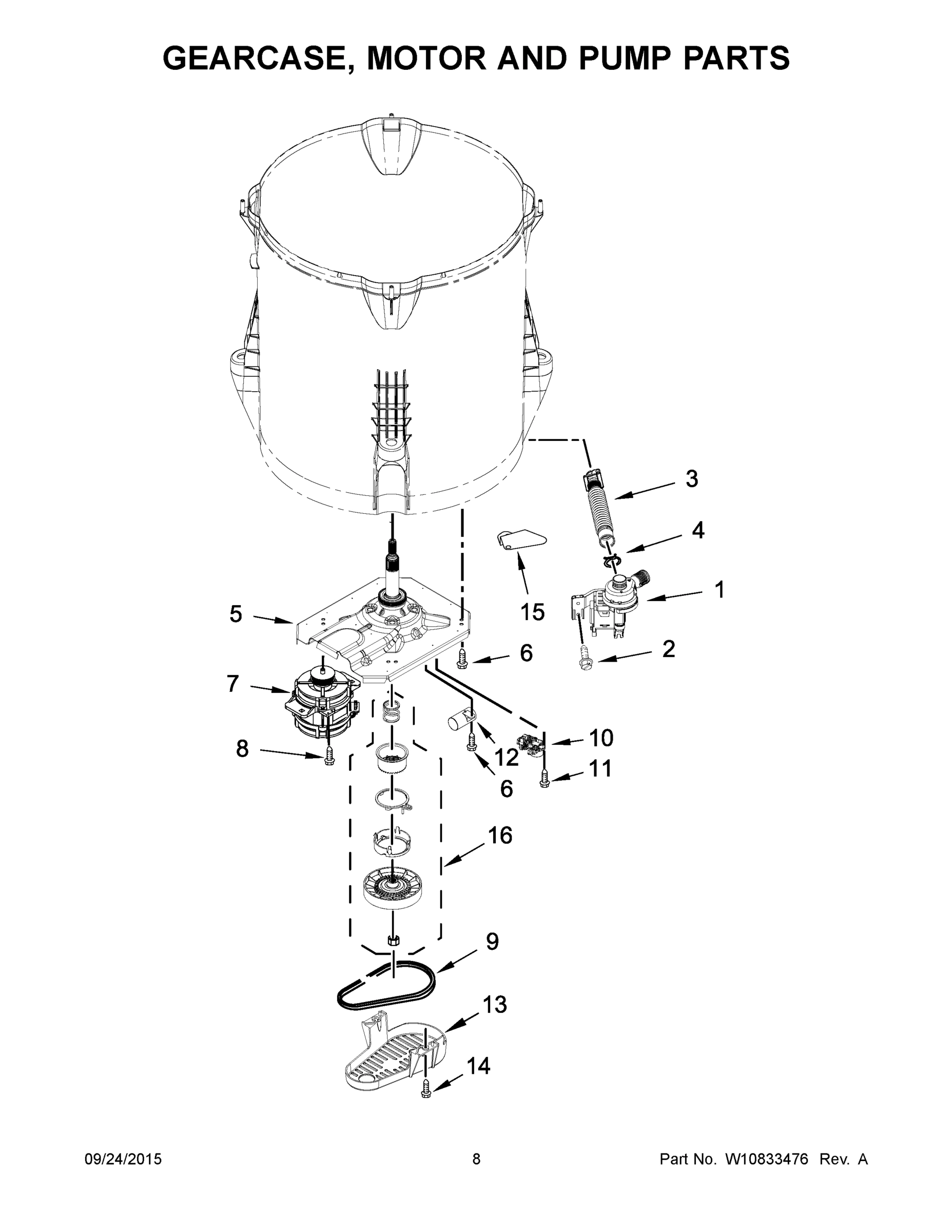

05 - GEARCASE, MOTOR AND PUMP PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 7MMVWX655EW0 WASHER
1
MAY W10779529 MAY W10779529 Contact Us For Availability
1
MAY W10789660 MAY W10789660 Contact Us For Availability
1
MAY W10609549 MAY W10609549 Contact Us For Availability
1
MAY W10581874 MAY W10581874 Contact Us For Availability
1A
MAY W10677676 MAY W10677676 Contact Us For Availability
1B
MAY W10807224 MAY W10807224 Contact Us For Availability
1C
MAY W10806818 MAY W10806818 Contact Us For Availability
1D
MAY W10809788 MAY W10809788 Contact Us For Availability
2
MAY W10621531 MAY W10621531 Contact Us For Availability
2
CLIP, SPRING MAY 8536939 Contact Us For Availability
2
MAY W10625252 MAY W10625252 Contact Us For Availability
2
SCREW MAY W10004910 Contact Us For Availability
3
LID (WHITE) MAY W10296171 Contact Us For Availability
3
MAY W10240949 MAY W10240949 Contact Us For Availability
3
CLAMP, CABLE MAY W10005430 Contact Us For Availability
3
MAY W10763259 MAY W10763259 Contact Us For Availability
4
BUMPER, LID MAY 9724509 Contact Us For Availability
4
MAY W10240948 MAY W10240948 Contact Us For Availability
4
MAY W10578859 MAY W10578859 Contact Us For Availability
4
MAY 8317496 MAY 8317496 Contact Us For Availability
5
SCREW MAY 9740848 Contact Us For Availability
5
MAY 8312709 MAY 8312709 Contact Us For Availability
5
SCREW MAY 8533943 Contact Us For Availability
5
MAY W10006481 MAY W10006481 Contact Us For Availability
6
HINGE, WIRE (LEFT) MAY 8563965 Contact Us For Availability
6
MAY W10625696 MAY W10625696 Contact Us For Availability
6
MAY W10609480 MAY W10609480 Contact Us For Availability
6
SCREW MAY W10249633 Contact Us For Availability
6A
HINGE, WIRE (RIGHT) MAY 8572974 Contact Us For Availability
7
SCREW MAY W10339706 Contact Us For Availability
7
MAY W10641337 MAY W10641337 Contact Us For Availability
7
SCREW MAY 8533953 Contact Us For Availability
7
MAY W10006487 MAY W10006487 Contact Us For Availability
8
STRIKE, LID LOCK (WHITE) MAY W10239968 Contact Us For Availability
8
SCREW MAY 97787 Contact Us For Availability
8
MAY W10396887 MAY W10396887 Contact Us For Availability
8
SCREW MAY W10094780 Contact Us For Availability
9
SCREW MAY 3400061 Contact Us For Availability
9
MAY W10584422 MAY W10584422 Contact Us For Availability
9
MAY W10402178 MAY W10402178 Contact Us For Availability
9
MAY W10006384 MAY W10006384 Contact Us For Availability
10
BEZEL, BLEACH DISPENSER (WHITE) MAY W10240977 Contact Us For Availability
10
MAY 1157158 MAY 1157158 Contact Us For Availability
10
MAY W10267532 MAY W10267532 Contact Us For Availability
10
MAY W10597177 MAY W10597177 Contact Us For Availability
11
BADGE (MAYTAG) MAY W10612925 Contact Us For Availability
11
MAY W10621620 MAY W10621620 Contact Us For Availability
11
MAY W10586077 MAY W10586077 Contact Us For Availability
11
SCREW MAY 9741052 Contact Us For Availability
12
BEARING, LID HINGE (LEFT HAND) MAY W10293653 Contact Us For Availability
12
SCREW MAY 3400076 Contact Us For Availability
12
MAY W10512161 MAY W10512161 Contact Us For Availability
12
MAY W10625046 MAY W10625046 Contact Us For Availability
12A
BEARING, LID HINGE (RIGHT HAND) MAY W10293293 Contact Us For Availability
13
MAY 90016 MAY 90016 Contact Us For Availability
13
KNOB, TIMER (GREY) MAY W10558463 Contact Us For Availability
13
MAY W10236981 MAY W10236981 Contact Us For Availability
13
MAY W10427633 MAY W10427633 Contact Us For Availability
14
MAY W10744659 MAY W10744659 Contact Us For Availability
14
KNOB, CONTROL (GREY) MAY W10562155 Contact Us For Availability
14
MAY W10215093 MAY W10215093 Contact Us For Availability
14
SCREW MAY 357640 Contact Us For Availability
15
SCREW (STAINLESS) MAY 8281163 Contact Us For Availability
15
MAY W10584420 MAY W10584420 Contact Us For Availability
15
SCREW MAY 8533928 Contact Us For Availability
15
MAY W10637932 MAY W10637932 Contact Us For Availability
16
TIE, CABLE MAY W10339879 Contact Us For Availability
16
MAY W10694680 MAY W10694680 Contact Us For Availability
16
MAY W10748956 MAY W10748956 Contact Us For Availability
16
MAY W10721967 MAY W10721967 Contact Us For Availability
17
MAY W10676680 MAY W10676680 Contact Us For Availability
17
MAY W10638044 MAY W10638044 Contact Us For Availability
17
BALL, SUSPENSION (SET OF 4 - INCLUDES SUSPENS MAY W10583768 Contact Us For Availability
18
BRACE, CABINET TOP, FRONT (WHITE) MAY W10724131 Contact Us For Availability
18
MAY W10601130 MAY W10601130 Contact Us For Availability
18
BUSHING - UPPER SUSPENSION (SET OF 4 - INCLUD MAY W10256551 Contact Us For Availability
19
BRACE, CABINET TOP, REAR MAY W10512626 Contact Us For Availability
19
MAY W10601843 MAY W10601843 Contact Us For Availability
19
MAY W10777951 MAY W10777951 Contact Us For Availability
20
MAY W10584423 MAY W10584423 Contact Us For Availability
21
MAY W10786886 MAY W10786886 Contact Us For Availability
21
MAY W10794843 MAY W10794843 Contact Us For Availability
22
MAY W10687506 MAY W10687506 Contact Us For Availability
22
MAY W10786100 MAY W10786100 Contact Us For Availability
23
MAY W10612644 MAY W10612644 Contact Us For Availability
23
HOSE, WATER INLET (COLD) MAY W10194210 Contact Us For Availability
23A
HOSE, WATER INLET (HOT) MAY W10194211 Contact Us For Availability
24
MAY 356138 MAY 356138 Contact Us For Availability
24
WASHER, HOSE MAY W10242307 Contact Us For Availability
25
SCREW MAY W10142728 Contact Us For Availability
25
WASHER, FILTER MAY W10810281 Contact Us For Availability
26
MAY W10648853 MAY W10648853 Contact Us For Availability
28
HINGE, LID (LEFT) MAY W10270398 Contact Us For Availability
28A
HINGE, LID (RIGHT) MAY W10270399 Contact Us For Availability
29
HOSE, OUTER DRAIN ASSEMBLY MAY W10221546 Contact Us For Availability
30
MAY W10280024 MAY W10280024 Contact Us For Availability
31
MAY W10142630 MAY W10142630 Contact Us For Availability
32
MAY 8564458 MAY 8564458 Contact Us For Availability
33
MAY W10688364 MAY W10688364 Contact Us For Availability
34
SCREW MAY 693995 Contact Us For Availability
35
MAY W10414221 MAY W10414221 Contact Us For Availability
36
BEZEL, LID LOCK (WHITE) MAY W10392041 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
ACCESSORY PARTS, HOSE WASHERS (PACKAGE OF 4) MAY 285448A Contact Us For Availability
NI
ACCESSORY PARTS, HOSE SCREEN (PACKAGE OF 2) MAY 285452A Contact Us For Availability
NI
MAY 285834 MAY 285834 Contact Us For Availability
NI
MAY 285835 MAY 285835 Contact Us For Availability
NI
MAY 285863 MAY 285863 Contact Us For Availability
NI
WATER SYSTEM PARTS, ADAPTER, STANDPIPE 2" DIA MAY 3363920 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
COUPLING, HOSE EXTENSION KIT MAY 384496 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BRAI MAY 8212487RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (ONE RED MAY 8212545RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 4 FT. (TWO BLAC MAY 8212546RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BLAC MAY 8212637RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BRAI MAY 8212638RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BLAC MAY 8212641RP Contact Us For Availability
NI
ACCESSORY PARTS, AFFRESH ODOR REMOVER MAY W10135699 Contact Us For Availability
× ![]()
