Model Maytag 7MMVWC310YW1 WASHER – Common Parts & Diagrams

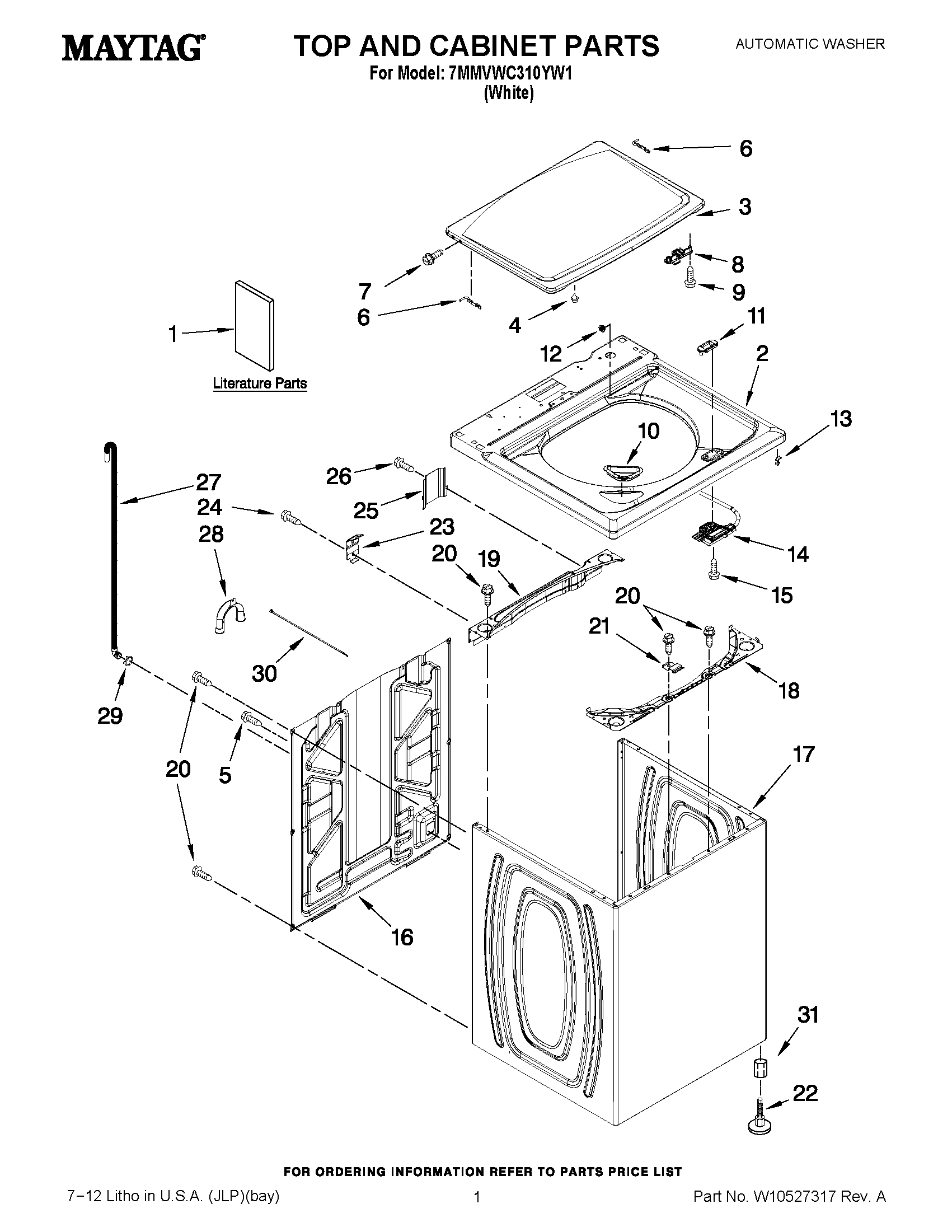

01 - TOP AND CABINET PARTS

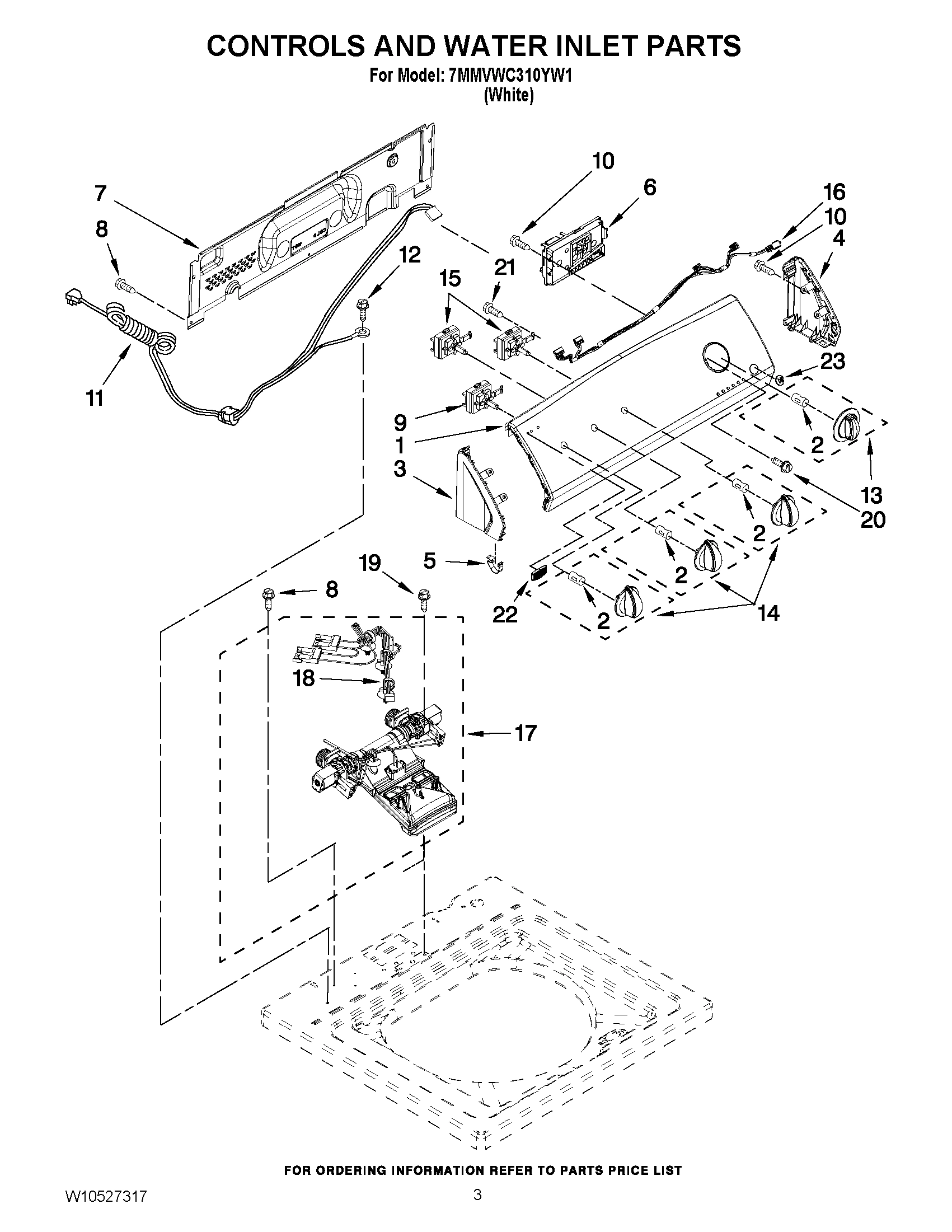

02 - CONTROLS AND WATER INLET PARTS

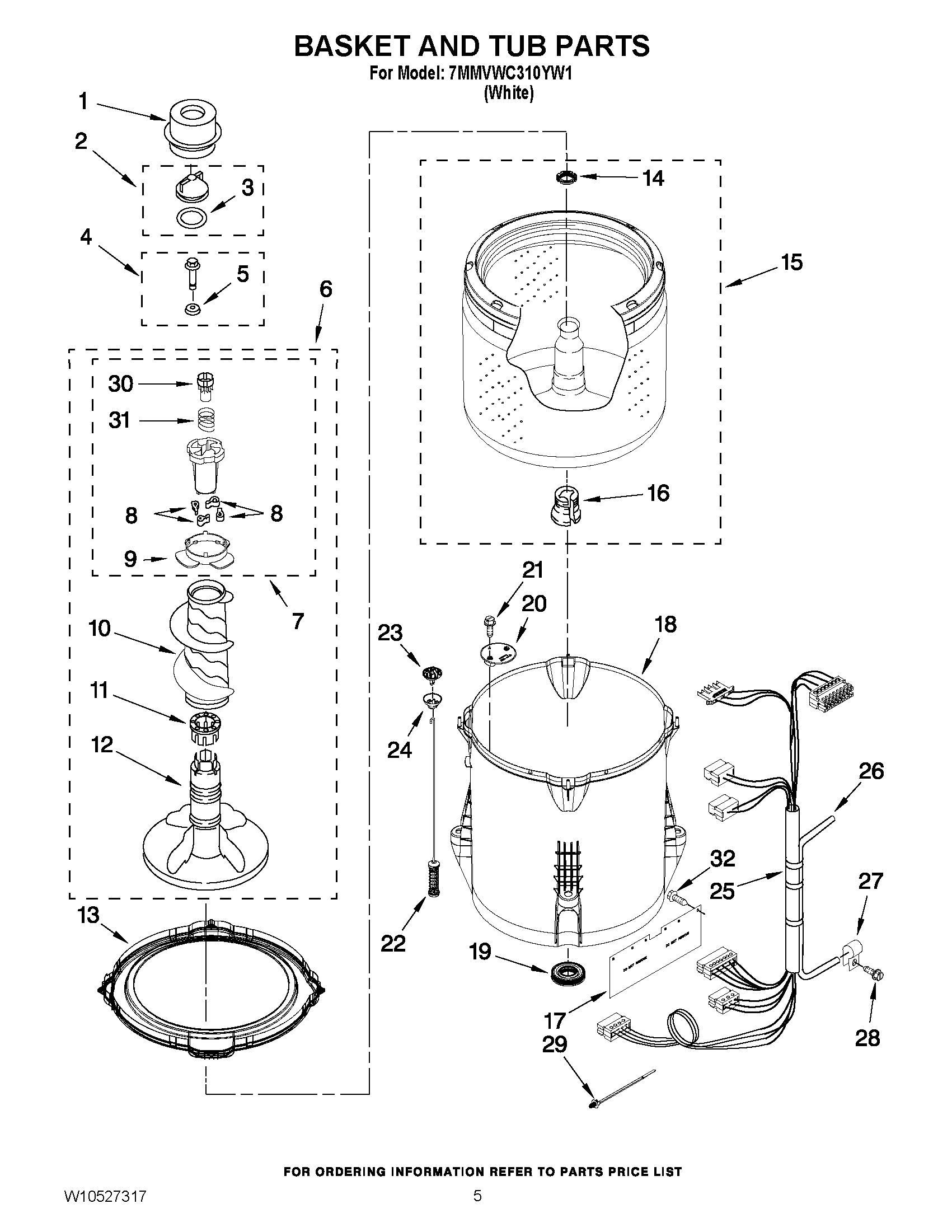

03 - BASKET AND TUB PARTS

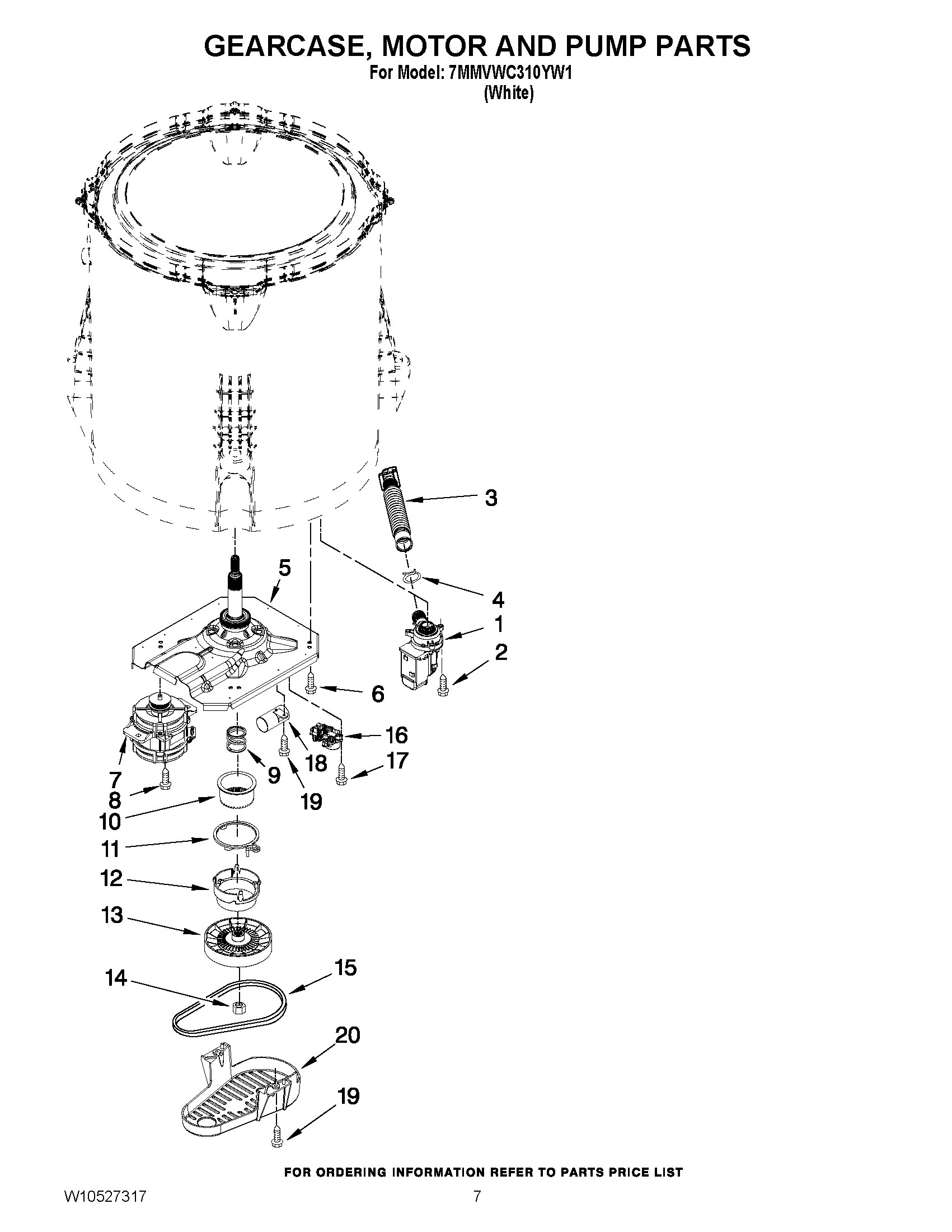

04 - GEARCASE, MOTOR AND PUMP PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 7MMVWC310YW1 WASHER
1
MAY W10418493 MAY W10418493 Contact Us For Availability
1
MAY W10420103 MAY W10420103 Contact Us For Availability
1
MAY W10468340 MAY W10468340 Contact Us For Availability
1
MAY W10478095 MAY W10478095 Contact Us For Availability
1
MAY W10416834 MAY W10416834 Contact Us For Availability
1
MAY 8580006 MAY 8580006 Contact Us For Availability
1
MAY W10465543 MAY W10465543 Contact Us For Availability
2
TOP MAY W10251325 Contact Us For Availability
2
MAY 8536939 MAY 8536939 Contact Us For Availability
2
MAY 3354733 MAY 3354733 Contact Us For Availability
2
SCREW MAY W10004910 Contact Us For Availability
3
MAY W10338623 MAY W10338623 Contact Us For Availability
3
CAP, END (L.H.) INCLUDES ITEM 5) MAY W10251358 Contact Us For Availability
3
MAY W10072840 MAY W10072840 Contact Us For Availability
3
MAY W10215091 MAY W10215091 Contact Us For Availability
4
BUMPER, LID MAY 9724509 Contact Us For Availability
4
CAP, END (R.H.) (INCLUDES ITEM 5) MAY W10251355 Contact Us For Availability
4
MAY W10003790 MAY W10003790 Contact Us For Availability
4
MAY 8317496 MAY 8317496 Contact Us For Availability
5
SCREW MAY 9740848 Contact Us For Availability
5
MAY 8312709 MAY 8312709 Contact Us For Availability
5
MAY 3949550 MAY 3949550 Contact Us For Availability
5
MAY W10473143 MAY W10473143 Contact Us For Availability
6
HINGE, LID MAY 91770 Contact Us For Availability
6
MAY W10480356 MAY W10480356 Contact Us For Availability
6
MAY 8578210 MAY 8578210 Contact Us For Availability
6
SCREW MAY W10249633 Contact Us For Availability
7
MAY W10119872 MAY W10119872 Contact Us For Availability
7
MAY W10461159 MAY W10461159 Contact Us For Availability
7
MAY 8537434 MAY 8537434 Contact Us For Availability
7
MAY W10416653 MAY W10416653 Contact Us For Availability
8
MAY W10240513 MAY W10240513 Contact Us For Availability
8
MAY 1157158 MAY 1157158 Contact Us For Availability
8
Dog, Agitator Clutch MAY 3366877 Contact Us For Availability
8
SCREW MAY W10094780 Contact Us For Availability
9
SCREW MAY W10273971 Contact Us For Availability
9
MAY W10285518 MAY W10285518 Contact Us For Availability
9
MAY 8055141 MAY 8055141 Contact Us For Availability
9
MAY W10326374 MAY W10326374 Contact Us For Availability
10
MAY W10192089 MAY W10192089 Contact Us For Availability
10
SCREW MAY 90767 Contact Us For Availability
10
MAY 8054468 MAY 8054468 Contact Us For Availability
10
MAY W10006352 MAY W10006352 Contact Us For Availability
11
MAY W10392041 MAY W10392041 Contact Us For Availability
11
MAY W10276649 MAY W10276649 Contact Us For Availability
11
MAY 8055228 MAY 8055228 Contact Us For Availability
11
MAY W10006353 MAY W10006353 Contact Us For Availability
12
BEARING, LID HINGE MAY 21258 Contact Us For Availability
12
SCREW MAY 3400076 Contact Us For Availability
12
MAY 8578209 MAY 8578209 Contact Us For Availability
12
MAY W10006354 MAY W10006354 Contact Us For Availability
13
CLIP, LID LOCK HARNESS MAY 90016 Contact Us For Availability
13
KNOB, TIMER MAY W10327522 Contact Us For Availability
13
MAY W10215108 MAY W10215108 Contact Us For Availability
13
MAY W10006356 MAY W10006356 Contact Us For Availability
14
MAY W10238287 MAY W10238287 Contact Us For Availability
14
KNOB, CONTROL MAY W10327523 Contact Us For Availability
14
MAY 21366 MAY 21366 Contact Us For Availability
14
MAY W10163336 MAY W10163336 Contact Us For Availability
15
SWITCH, ROTARY ENCODER (2 POSITION) MAY W10285511 Contact Us For Availability
15
MAY W10358261 MAY W10358261 Contact Us For Availability
15
MAY W10006384 MAY W10006384 Contact Us For Availability
16
PANEL, REAR MAY W10250884 Contact Us For Availability
16
MAY W10291183 MAY W10291183 Contact Us For Availability
16
MAY 389140 MAY 389140 Contact Us For Availability
16
MAY W10006355 MAY W10006355 Contact Us For Availability
17
MAY W10251994 MAY W10251994 Contact Us For Availability
17
MAY W10472844 MAY W10472844 Contact Us For Availability
17
MAY W10339098 MAY W10339098 Contact Us For Availability
17
SCREW MAY 9741052 Contact Us For Availability
18
MAY W10215098 MAY W10215098 Contact Us For Availability
18
MAY W10423127 MAY W10423127 Contact Us For Availability
18
TUB (INCLUDES ITEM 19) MAY W10238320 Contact Us For Availability
18
MAY W10390451 MAY W10390451 Contact Us For Availability
19
Screw MAY 8281163 Contact Us For Availability
19
BRACE, CABINET TOP - REAR MAY W10215099 Contact Us For Availability
19
MAY W10006371 MAY W10006371 Contact Us For Availability
19
SCREW MAY 357640 Contact Us For Availability
20
SCREW MAY 3400818 Contact Us For Availability
20
MAY W10215093 MAY W10215093 Contact Us For Availability
20
MAY W10427633 MAY W10427633 Contact Us For Availability
21
MAY W10248088 MAY W10248088 Contact Us For Availability
21
SCREW MAY 3400073 Contact Us For Availability
21
Screw MAY 8533928 Contact Us For Availability
22
MAY W10397767 MAY W10397767 Contact Us For Availability
22
MAY W10199708 MAY W10199708 Contact Us For Availability
22
MAY W10110313 MAY W10110313 Contact Us For Availability
23
MAY W10215102 MAY W10215102 Contact Us For Availability
23
MAY W10251309 MAY W10251309 Contact Us For Availability
23
BALL, SUSPENSION SET OF 4 - INCLUDES ITEM 24) MAY W10405423 Contact Us For Availability
24
SCREW MAY W10142728 Contact Us For Availability
24
BUSHING, SUSPENSION (SET OF 4 - INCLUDES ITEM MAY W10256551 Contact Us For Availability
25
MAY W10215139 MAY W10215139 Contact Us For Availability
25
HARNESS, LOWER (INCLUDES ITEMS 26 & 29) MAY W10454996 Contact Us For Availability
26
MAY W10431037 MAY W10431037 Contact Us For Availability
27
MAY W10221546 MAY W10221546 Contact Us For Availability
27
MAY W10005430 MAY W10005430 Contact Us For Availability
28
MAY W10280024 MAY W10280024 Contact Us For Availability
28
SCREW MAY 8533943 Contact Us For Availability
29
MAY 356138 MAY 356138 Contact Us For Availability
29
MAY W10298887 MAY W10298887 Contact Us For Availability
30
MAY W10339879 MAY W10339879 Contact Us For Availability
30
MAY 8533540 MAY 8533540 Contact Us For Availability
31
NUT, LOCKING MAY 3359452 Contact Us For Availability
31
MAY 8055140 MAY 8055140 Contact Us For Availability
32
MAY W10429200 MAY W10429200 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
MAY 285448A MAY 285448A Contact Us For Availability
NI
MAY 285452A MAY 285452A Contact Us For Availability
NI
MAY 285834 MAY 285834 Contact Us For Availability
NI
MAY 3363920 MAY 3363920 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
WATER SYSTEM PARTS, DRAIN PROTECTOR MAY 367031 Contact Us For Availability
NI
MAY 384496 MAY 384496 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Inlet Hoses, 5 Ft. (Two Braided Hoses W/Strai MAY 8212487RP Contact Us For Availability
NI
WASHER DRIP TRAY MAY 8212526 Contact Us For Availability
NI
INLET HOSES, 5 FT. (ONE RED HOSE & ONE BLUE H MAY 8212545RP Contact Us For Availability
NI
MAY 8212546RP MAY 8212546RP Contact Us For Availability
NI
INLET HOSES, 6 FT. (TWO BLACK HOSES W/ ONE ST MAY 8212637RP Contact Us For Availability
NI
INLET HOSES, 6 FT. (TWO BRAIDED HOSES W/ ONE MAY 8212638RP Contact Us For Availability
NI
Inlet Hoses, 5 Ft. (Two Black Hoses W/Straigh MAY 8212641RP Contact Us For Availability
NI
INLET HOSES, 10 FT (TWO BLACK HOSES W/ STRAIG MAY 8212656RP Contact Us For Availability
NI
WATER SYSTEM PARTS, DRAIN HOSE EXTENSION KIT MAY DRNEXT4 Contact Us For Availability
NI
MAY W10135699 MAY W10135699 Contact Us For Availability
NI
MAY W10355010 MAY W10355010 Contact Us For Availability
× ![]()
