Model Maytag 7MMVWC100DW2 LAUNDRY, RESIDENTIAL, WASHER – Common Parts & Diagrams
01 - COVER SHEET

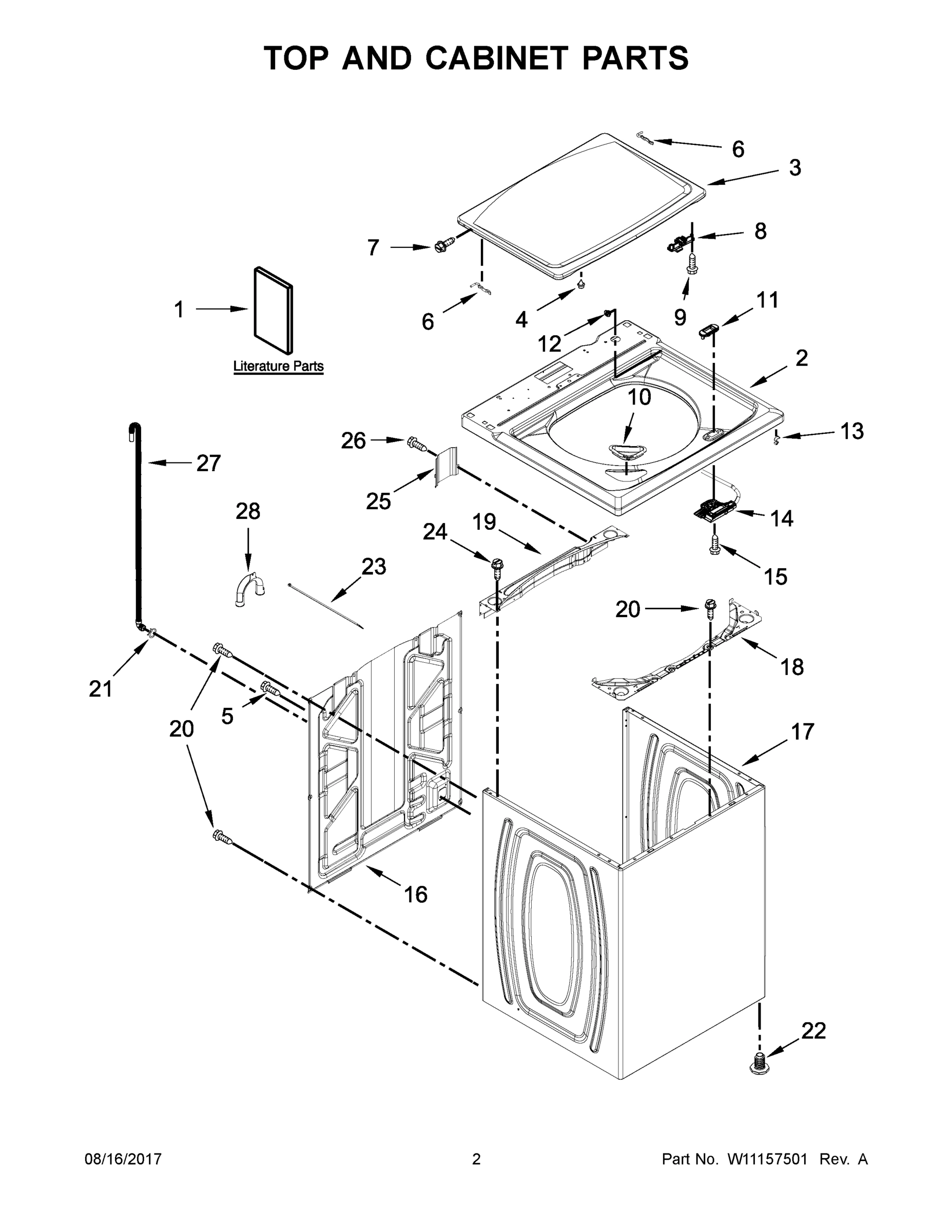

02 - TOP AND CABINET PARTS

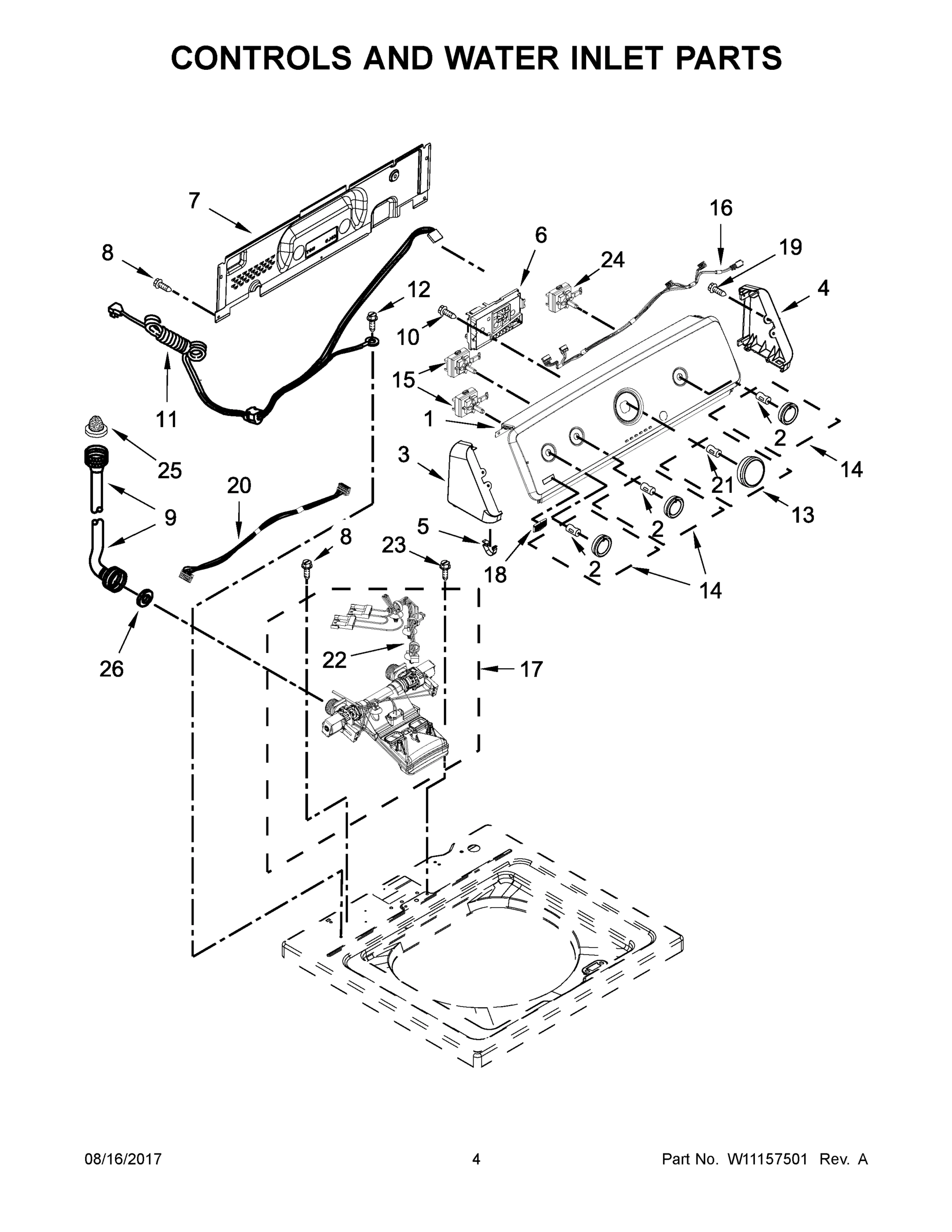

03 - CONTROLS AND WATER INLET PARTS

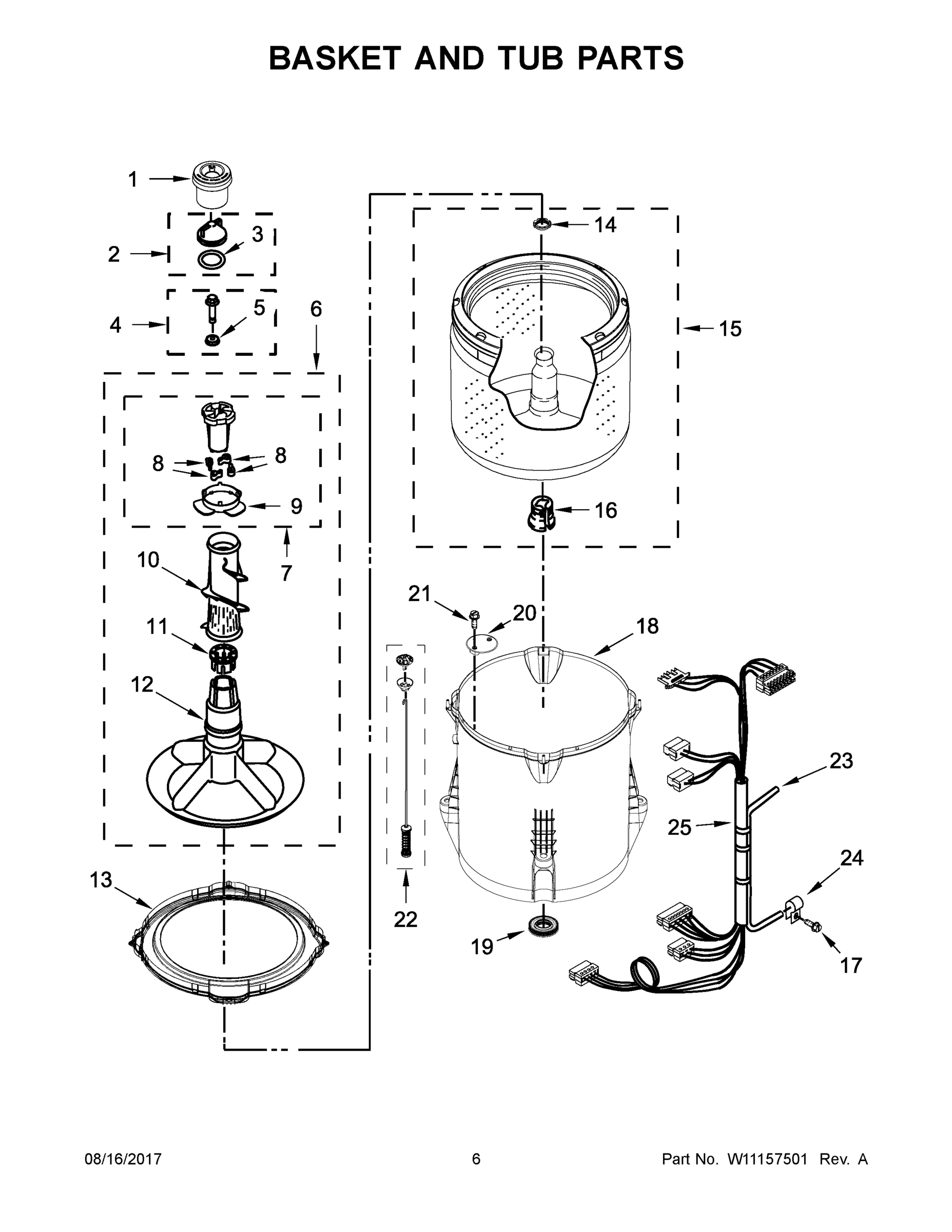

04 - BASKET AND TUB PARTS

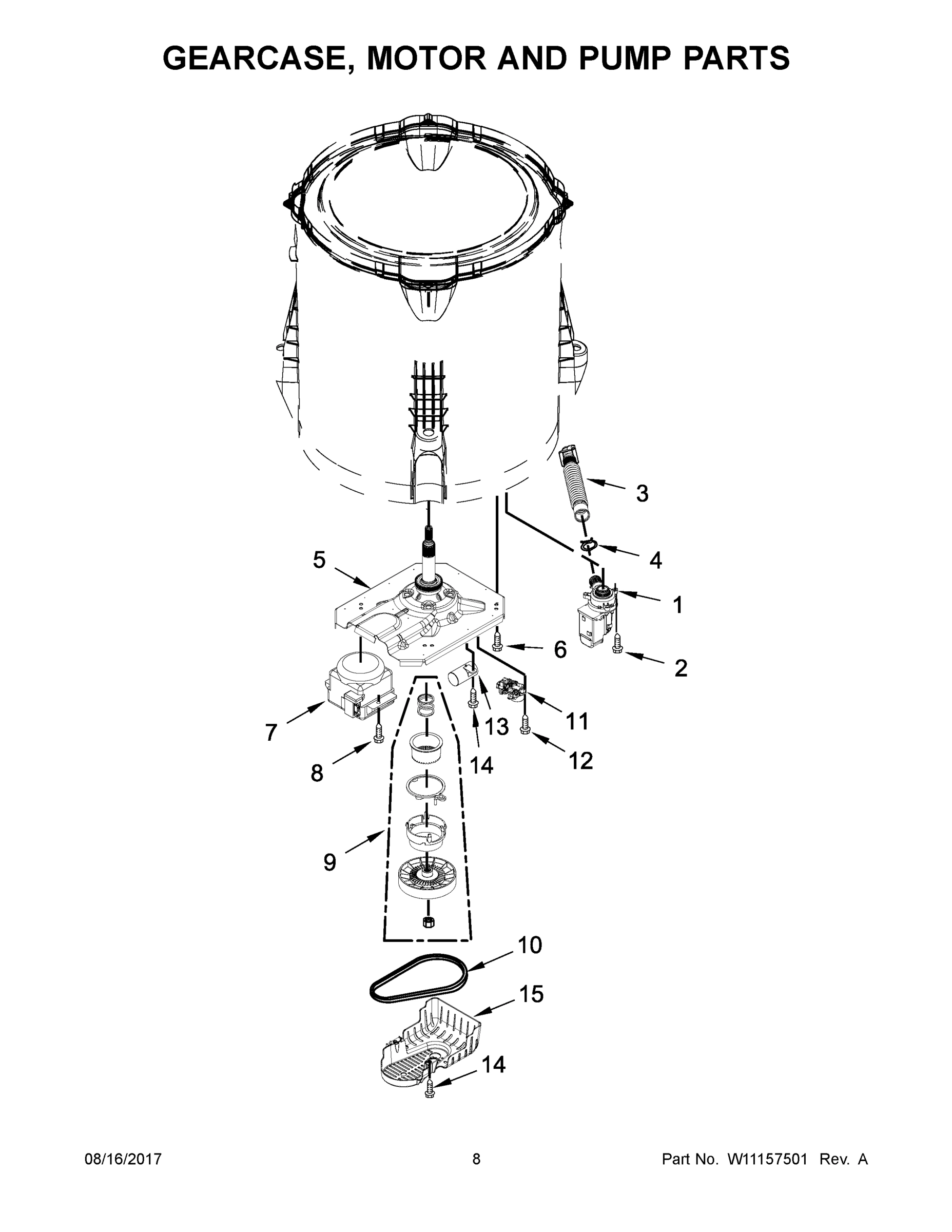

05 - GEARCASE, MOTOR AND PUMP PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 7MMVWC100DW2 LAUNDRY, RESIDENTIAL, WASHER
1
INSTALLATION INSTRUCTIONS MAY W10658636 Contact Us For Availability
1
MAY W10774039 MAY W10774039 Contact Us For Availability
1
DISPENSER, FABRIC SOFTENER MAY 8575076 Contact Us For Availability
1
PUMP ASSEMBLY, DRAIN MAY W10465543 Contact Us For Availability
1A
OWNERS MANUAL MAY W10655230 Contact Us For Availability
1B
TECH SHEET MAY W10468340 Contact Us For Availability
1C
ENERGY GUIDE MAY W10658020 Contact Us For Availability
2
TOP (WHITE) MAY W10251325 Contact Us For Availability
2
CLIP, SPRING MAY 8536939 Contact Us For Availability
2
CAP, BARRIER MAY 3354733 Contact Us For Availability
2
SCREW MAY W10004910 Contact Us For Availability
3
ASSEMBLY, LID AND BUMPER (WHITE) MAY W10332519 Contact Us For Availability
3
END CAP (LEFT) (WHITE) MAY W10193824 Contact Us For Availability
3
SEAL, INNER CAP MAY W10072840 Contact Us For Availability
3
HOSE, INNER DRAIN ASSEMBLY MAY W10763078 Contact Us For Availability
4
BUMPER MAY 9724509 Contact Us For Availability
4
END CAP (RIGHT) (WHITE) MAY W10193821 Contact Us For Availability
4
SCREW AND WASHER MAY W10003790 Contact Us For Availability
4
CLAMP, HOSE MAY 8317496 Contact Us For Availability
5
SCREW MAY 9740848 Contact Us For Availability
5
CLIP, CONSOLE MAY 8312709 Contact Us For Availability
5
WASHER MAY 3949550 Contact Us For Availability
5
GEARCASE ASSEMBLY MAY W10870910 Contact Us For Availability
6
HINGE, LID MAY 91770 Contact Us For Availability
6
CONTROL UNIT ASSEMBLY, MACHINE AND MOTOR MAY W10723772 Contact Us For Availability
6
AGITATOR (COMPLETE) MAY 3348117 Contact Us For Availability
6
SCREW MAY W10249633 Contact Us For Availability
7
SCREW MAY W10119872 Contact Us For Availability
7
PANEL, CONSOLE REAR COVER MAY W10461159 Contact Us For Availability
7
CAM, SHORT-DRIVEN MAY 3363663 Contact Us For Availability
7
MOTOR, DRIVE MAY W10677715 Contact Us For Availability
8
STRIKE, LID LOCK (WHITE) MAY W10240513 Contact Us For Availability
8
SCREW MAY 1157158 Contact Us For Availability
8
DOG, AGITATOR CLUTCH MAY 3366877 Contact Us For Availability
8
SCREW MAY W10094780 Contact Us For Availability
9
SCREW MAY W10273971 Contact Us For Availability
9
WASHER, HOSE MAY W10242307 Contact Us For Availability
9
BEARING, CAM MAY 3363661 Contact Us For Availability
9
SPLUTCH KIT (60HZ) MAY W10721967 Contact Us For Availability
10
DISPENSER, BLEACH MAY W10192089 Contact Us For Availability
10
SCREW MAY 90767 Contact Us For Availability
10
MOVER, CLOTHES MAY 3348752 Contact Us For Availability
10
BELT, DRIVE MAY W10006384 Contact Us For Availability
11
BEZEL, LID LOCK (WHITE) MAY W10392041 Contact Us For Availability
11
CORD, POWER MAY W10525194 Contact Us For Availability
11
SPACER, THRUST MAY 3350389 Contact Us For Availability
11
ACTUATOR-SHIFT MAY W10815026 Contact Us For Availability
12
BEARING, LID HINGE MAY 21258 Contact Us For Availability
12
SCREW MAY 3400076 Contact Us For Availability
12
AGITATOR MAY 3347288 Contact Us For Availability
12
SCREW MAY 9741052 Contact Us For Availability
13
CLIP, HARNESS MAY 90016 Contact Us For Availability
13
ASSEMBLY, TIMER KNOB (GREY) MAY W10558463 Contact Us For Availability
13
RING, TUB MAY W10215108 Contact Us For Availability
13
MAY W10866249 MAY W10866249 Contact Us For Availability
14
LATCH, LID LOCK ASSEMBLY MAY W10744659 Contact Us For Availability
14
ASSEMBLY, CONTROL KNOB (GREY) MAY W10562155 Contact Us For Availability
14
NUT, SPANNER MAY 21366 Contact Us For Availability
14
SCREW MAY 357640 Contact Us For Availability
15
SWITCH, ROTARY ENCODER (4 POSITION) MAY W10285512 Contact Us For Availability
15
BASKET ASSEMBLY MAY W10358261 Contact Us For Availability
15
SHIELD, PULLEY COVER MAY W11046391 Contact Us For Availability
16
PANEL, REAR MAY W10250884 Contact Us For Availability
16
HARNESS, UPPER MAY W10579238 Contact Us For Availability
16
BLOCK, BASKET DRIVE MAY 389140 Contact Us For Availability
17
CABINET (WHITE) MAY W10478060 Contact Us For Availability
17
INLET ASSEMBLY, WATER MAY W10683653 Contact Us For Availability
17
SCREW MAY 8533943 Contact Us For Availability
18
BRACE, CABINET TOP - FRONT MAY W10215098 Contact Us For Availability
18
BADGE MAY W10199708 Contact Us For Availability
18
TUB MAY W10238320 Contact Us For Availability
19
BRACE, CABINET TOP - REAR MAY W10512626 Contact Us For Availability
19
SCREW MAY 359625 Contact Us For Availability
19
SEAL, TUB MAY W10006371 Contact Us For Availability
20
HARNESS, UPPER E-STAR MAY W10291184 Contact Us For Availability
20
FILTER, DRAIN PUMP MAY W10215093 Contact Us For Availability
21
CLAMP, HOSE MAY 356138 Contact Us For Availability
21
CLIP, SPRING MAY 688805 Contact Us For Availability
21
SCREW MAY 8533928 Contact Us For Availability
22
FOOT, LEVELING MAY W10397994 Contact Us For Availability
22
HARNESS, VALVE MAY W10684972 Contact Us For Availability
22
DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INC MAY W10821948 Contact Us For Availability
23
SCREW (STAINLESS) MAY 8281163 Contact Us For Availability
23
TIE, CABLE MAY W10339879 Contact Us For Availability
23
HOSE, PRESSURE SWITCH MAY W10297441 Contact Us For Availability
24
SCREW MAY W10142728 Contact Us For Availability
24
SWITCH, ROTARY ENCODER (3 POSITION) MAY W10285517 Contact Us For Availability
24
CLAMP, CABLE MAY W10005430 Contact Us For Availability
25
COVER, HARNESS MAY W10676061 Contact Us For Availability
25
WASHER, FILTER MAY W10810281 Contact Us For Availability
25
HARNESS, LOWER MAY W10746348 Contact Us For Availability
26
HOSE, WATER INLET (COLD) MAY W10194210 Contact Us For Availability
26A
HOSE, WATER INLET (HOT) MAY W10194211 Contact Us For Availability
27
HOSE, OUTER DRAIN ASSEMBLY MAY W10221546 Contact Us For Availability
28
U-BEND, DRAIN HOSE MAY W10280024 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
ACCESSORY PARTS, HOSE WASHERS (PACKAGE OF 4) MAY 285448A Contact Us For Availability
NI
ACCESSORY PARTS, HOSE SCREEN (PACKAGE OF 2) MAY 285452A Contact Us For Availability
NI
WATER SYSTEM PARTS, SIPHON BREAK KIT MAY 285834 Contact Us For Availability
NI
WATER SYSTEM PARTS, CONNECTOR ASSEMBLY MAY 285835 Contact Us For Availability
NI
WATER SYSTEM PARTS, 4' DRAIN HOSE W/CLAMP MAY 285863 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
COUPLING, HOSE EXTENSION KIT MAY 384496 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BRAI MAY 8212487 Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, DRIP TRAY MAY 8212526 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (ONE RED MAY 8212545RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 4 FT. (TWO BLAC MAY 8212546RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BLAC MAY 8212637RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BRAI MAY 8212638RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BL MAY 8212641RP Contact Us For Availability
NI
MAY 8212656RP MAY 8212656RP Contact Us For Availability
NI
MAY DRNEXT4 MAY DRNEXT4 Contact Us For Availability
NI
MAY W10135699 MAY W10135699 Contact Us For Availability
NI
MAY W10355010 MAY W10355010 Contact Us For Availability
× ![]()
