LG 795.75954401 Top-Mount Refrigerator (Kenmore 79575954401) Parts List

105A

5250JA2009B LG Drain Tube Backorder LGE 5250JA2009B $22.31

View on Model

105F

5070JJ3002A LG Lower Skirt Backorder LGE 5070JJ3002A $26.63

View on Model

106A

Refrigerator Leveling Leg LGE 4779JA2003A Contact Us For Availability

View on Model

113A

Refrigerator Guide LGE 4974JJ2008A Contact Us For Availability

View on Model

113B

Refrigerator Holder LGE 4930JJ2005A Contact Us For Availability

View on Model

113C

Refrigerator Spring LGE 4970JA3016A Contact Us For Availability

View on Model

113D

Refrigerator Gasket LGE 4986JJ2003A Contact Us For Availability

View on Model

116A

Refrigerator Damper and Motor Assembly LGE 4901JK1001A Contact Us For Availability

View on Model

120A

Refrigerator Control Box LGE 4995JJ1003H Contact Us For Availability

View on Model

120B

4994JJ0002A LG Refrigerator Control Case Backorder LGE 4994JJ0002A $109.24

View on Model

128A

4975JJ2002A LG Refrigerator Right Side Drawer Backorder LGE 4975JJ2002A $26.61

View on Model

128B

4975JJ2002B LG Refrigerator Left Side Drawer Backorder LGE 4975JJ2002B $26.61

View on Model

128C

BANK, DAIRY LGE N/A Contact Us For Availability

View on Model

131A

Refrigerator Ice Container LGE 5074JJ1007A Contact Us For Availability

View on Model

140A

Refrigerator Shelf Assembly, Right LGE 5027JJ1013N Contact Us For Availability

View on Model

140B

Refrigerator Glass Shelf LGE 5027JJ1037A Contact Us For Availability

View on Model

140D

5026JJ2001H LG Shelf Net Backorder LGE 5026JJ2001H $56.70

View on Model

140E

5026JJ2001G LG Net Shelf In Stock LGE 5026JJ2001G $65.22

View on Model

141A

5027JJ1014N LG Shelf Assembly Backorder LGE 5027JJ1014N $208.32

View on Model

141B

Refrigerator Shelf Assembly LGE 5027JJ1036A Contact Us For Availability

View on Model

141C

Refrigerator Shelf Assembly LGE 5027JJ2005A Contact Us For Availability

View on Model

142D

5026JJ2001L LG Shelf Net Backorder LGE 5026JJ2001L $65.22

View on Model

142E

5026JJ2001M LG Net Shelf Backorder LGE 5026JJ2001M $65.22

View on Model

145A

Refrigerator Holder LGE 4930JJ2003A Contact Us For Availability

View on Model

145B

Refrigerator Holder LGE 4930JJ2004A Contact Us For Availability

View on Model

147B

3390JJ1014A LG Egg Tray Backorder LGE 3390JJ1014A $41.86

View on Model

149A

Refrigerator Shelf LGE 5026JJ1016A Contact Us For Availability

View on Model

151A

Refrigerator Vegetable Drawer LGE 3391JJ1020A Contact Us For Availability

View on Model

151C

4940JJ2003A LG Knob Shutter Backorder LGE 4940JJ2003A $16.85

View on Model

154A

Refrigerator Crisper Drawer Cover Frame LGE 3550JL2001A Contact Us For Availability

View on Model

155B

4980JJ1010A LG Cover Support Backorder LGE 4980JJ1010A $43.36

View on Model

158A

3550JJ2019B LG Lamp Cover Backorder LGE 3550JJ2019B $16.85

View on Model

158C

3550JJ2019A LG Lamp Cover Backorder LGE 3550JJ2019A $16.85

View on Model

158E

Refrigerator Freezer Lamp Cover LGE 3550JJ2017B Contact Us For Availability

View on Model

167B

Refrigerator Crisper Drawer Cover LGE 3550JJ1011A Contact Us For Availability

View on Model

170A

Meat Tray LGE 3391JJ2004A Contact Us For Availability

View on Model

200A

Refrigerator Door Assembly LGE 3581JJ8012B Contact Us For Availability

View on Model

201A

Refrigerator Door Foam LGE 5433JJ1003B Contact Us For Availability

View on Model

203A

ADX52752651 LG Refrigerator Door Gasket Assem Backorder LGE ADX52752651 $65.22

View on Model

205A

Refrigerator Basket LGE 5004JJ1017A Contact Us For Availability

View on Model

205B

5004JJ2002A LG Tilt Basket Backorder LGE 5004JJ2002A $36.40

View on Model

205C

Refrigerator Freezer Door Tilt Basket End Cap LGE 5004JJ2003A Contact Us For Availability

View on Model

205D

5004JJ1015A LG Refrigerator Door Basket Assem Backorder LGE 5004JJ1015A $93.59

View on Model

210A

4620JJ2006A LG Door Stopper Backorder LGE 4620JJ2006A $7.08

View on Model

210B

4974JA3031B LG Guide Stopper In Stock LGE 4974JA3031B $11.24

View on Model

212A

Refrigerator Freezer Door Handle LGE 3650JJ1013C Contact Us For Availability

View on Model

212C

Refrigerator Handle LGE 3650JJ2007B Contact Us For Availability

View on Model

230A

Refrigerator Door Assembly LGE 3581JJ8013F Contact Us For Availability

View on Model

231A

Refrigerator Door Foam LGE 5433JJ0020F Contact Us For Availability

View on Model

233A

Refrigerator Door Gasket LGE 4987JJ1004S Contact Us For Availability

View on Model

241A

Refrigerator Dairy Bin Cover LGE 3550JL2003A Contact Us For Availability

View on Model

241B

5004JJ1035A LG Refrigerator Assembly Door Bas Backorder LGE 5004JJ1035A $93.59

View on Model

241C

5004JJ1030A LG Refrigerator Door Basket Assem Backorder LGE 5004JJ1030A $93.59

View on Model

241D

Refrigerator Door Bin, Lower LGE 5004JJ1026A Contact Us For Availability

View on Model

241E

Refrigerator Door Bin LGE 5004JJ1028A Contact Us For Availability

View on Model

243A

Refrigerator Stopper LGE 4620JJ3006B Contact Us For Availability

View on Model

244A

Refrigerator Door Handle Assembly LGE 3650JJ1014C Contact Us For Availability

View on Model

244B

Refrigerator Door Handle LGE 3650JJ1016C Contact Us For Availability

View on Model

248A

5218JJ3001A LG Refrigerator Slide Rail Backorder LGE 5218JJ3001A $7.08

View on Model

281A

Refrigerator Door Hinge Cover LGE 3550JJ2013B Contact Us For Availability

View on Model

281B

Refrigerator Door Hinge LGE 4775JJ2003B Contact Us For Availability

View on Model

281D

Refrigerator Cap LGE 5006JJ3007B Contact Us For Availability

View on Model

281E

Refrigerator Hinge Cap LGE 5006JJ3003D Contact Us For Availability

View on Model

282B

Refrigerator Door Hinge LGE 4775JJ2002A Contact Us For Availability

View on Model

282E

Refrigerator Top Door Hinge Hole Cover LGE 5006JJ2001E Contact Us For Availability

View on Model

282H

Refrigerator Hinge Cap LGE 5006JJ3004D Contact Us For Availability

View on Model

282Z

Refrigerator Hinge Cap LGE 5006JA3055L Contact Us For Availability

View on Model

283B

4775JJ2013B LG Lower Hinge Assembly Backorder LGE 4775JJ2013B $93.59

View on Model

283F

4620JJ2007A LG Door Stopper Backorder LGE 4620JJ2007A $11.24

View on Model

284A

Refrigerator Evaporator Cover Fan Grille LGE 3550JJ2023A Contact Us For Availability

View on Model

284C

Refrigerator Freezer Panel Hole Cover Screw LGE 5006JA3080A Contact Us For Availability

View on Model

301A

5421JJ0003A LG Evaporator Assembly Backorder LGE 5421JJ0003A $339.90

View on Model

304A

Refrigerator Cover Assembly LGE 3551JJ2008A Contact Us For Availability

View on Model

305B

4580JJ3001A LG Refrigerator Tray Roller Backorder LGE 4580JJ3001A $20.63

View on Model

305C

4J04238A LG Common Pin Backorder LGE 4J04238A $7.08

View on Model

307A

Refrigerator Compressor LGE 2521JJ8007A Contact Us For Availability

View on Model

308A

Ptc Asm LGE 6749C-0008D Contact Us For Availability

View on Model

309A

6750C-0004S LG Refrigerator Compressor Overlo Backorder LGE 6750C-0004S $26.61

View on Model

310A

Refrigerator Compressor Relay Cover LGE 3550JA2042A Contact Us For Availability

View on Model

312A

Refrigerator Rubber LGE 5040JA3067A Contact Us For Availability

View on Model

314A

4620JA3009A LG Compressor Stopper Backorder LGE 4620JA3009A $7.08

View on Model

315A

Refrigerator Complete Base LGE 3103JJ1001K Contact Us For Availability

View on Model

317A

Refrigerator Drier Assembly LGE 5851JJ2002B Contact Us For Availability

View on Model

318A

4930JJ3002A LG Holder Backorder LGE 4930JJ3002A $7.08

View on Model

319A

3390JJ0003A LG Refrigerator Drip Tray Backorder LGE 3390JJ0003A $93.59

View on Model

319C

4974JJ1009A LG Fan Guide Backorder LGE 4974JJ1009A $41.86

View on Model

323B

Refrigerator Condenser LGE 5403JJ1003A Contact Us For Availability

View on Model

327A

5006JA3034A LG Refrigerator Drain Tube Cap Backorder LGE 5006JA3034A $6.14

View on Model

328A

Refrigerator Rubber LGE 5040JJ3002A Contact Us For Availability

View on Model

329A

5901JJ1003A LG Fan Assembly Backorder LGE 5901JJ1003A $26.61

View on Model

329C

5901JJ1004B LG Refrigerator Compressor Conden Backorder LGE 5901JJ1004B $20.63

View on Model

330B

4998JJ1004A LG Freezer Shroud Backorder LGE 4998JJ1004A $65.22

View on Model

332A

Refrigerator Fan Grille Assembly LGE 3531JJ1002A Contact Us For Availability

View on Model

401A

Refrigerator Controller LGE 4871JK2001A Contact Us For Availability

View on Model

404A

Refrigerator Evaporator Fan Motor LGE 4681JB1016J Contact Us For Availability

View on Model

405A

Refrigerator Evaporator Fan Motor Bracket LGE 4810JJ3003A Contact Us For Availability

View on Model

405C

5040JA3049A LG Damper Motor Support Backorder LGE 5040JA3049A $1.80

View on Model

406B

Refrigerator Light Switch LGE 6600JB2004A Contact Us For Availability

View on Model

408A

Refrigerator Socket LGE 6621JK2001A Contact Us For Availability

View on Model

409A

Refrigerator Lamp (White) LGE 6912JB2004C Contact Us For Availability

View on Model

409B

Refrigerator Lamp LGE 6912JK2002A Contact Us For Availability

View on Model

410G

Refrigerator Run Capacitor LGE 0CZZJB2003H Contact Us For Availability

View on Model

411A

EAD61445204 LG Refrigerator Power Cord Assemb Backorder LGE EAD61445204 $74.64

View on Model

418A

Refrigerator Heater LGE 5300JK1003D Contact Us For Availability

View on Model

420A

Refrigerator Condenser Motor LGE 4681JK1001B Contact Us For Availability

View on Model

501A

6871JB1185B LG Refrigerator Main PCB Printed Backorder LGE 6871JB1185B $276.24

View on Model

501F

Refrigerator Cover LGE 3550JJ2016A Contact Us For Availability

View on Model

503B

6871JB2044A LG Printed Circuit Board Backorder LGE 6871JB2044A $56.70

View on Model

503C

6871JB2044B LG Printed Circuit Board Backorder LGE 6871JB2044B $45.00

View on Model

503D

3110JJ2002A LG Refrigerator Display Case Backorder LGE 3110JJ2002A $11.24

View on Model

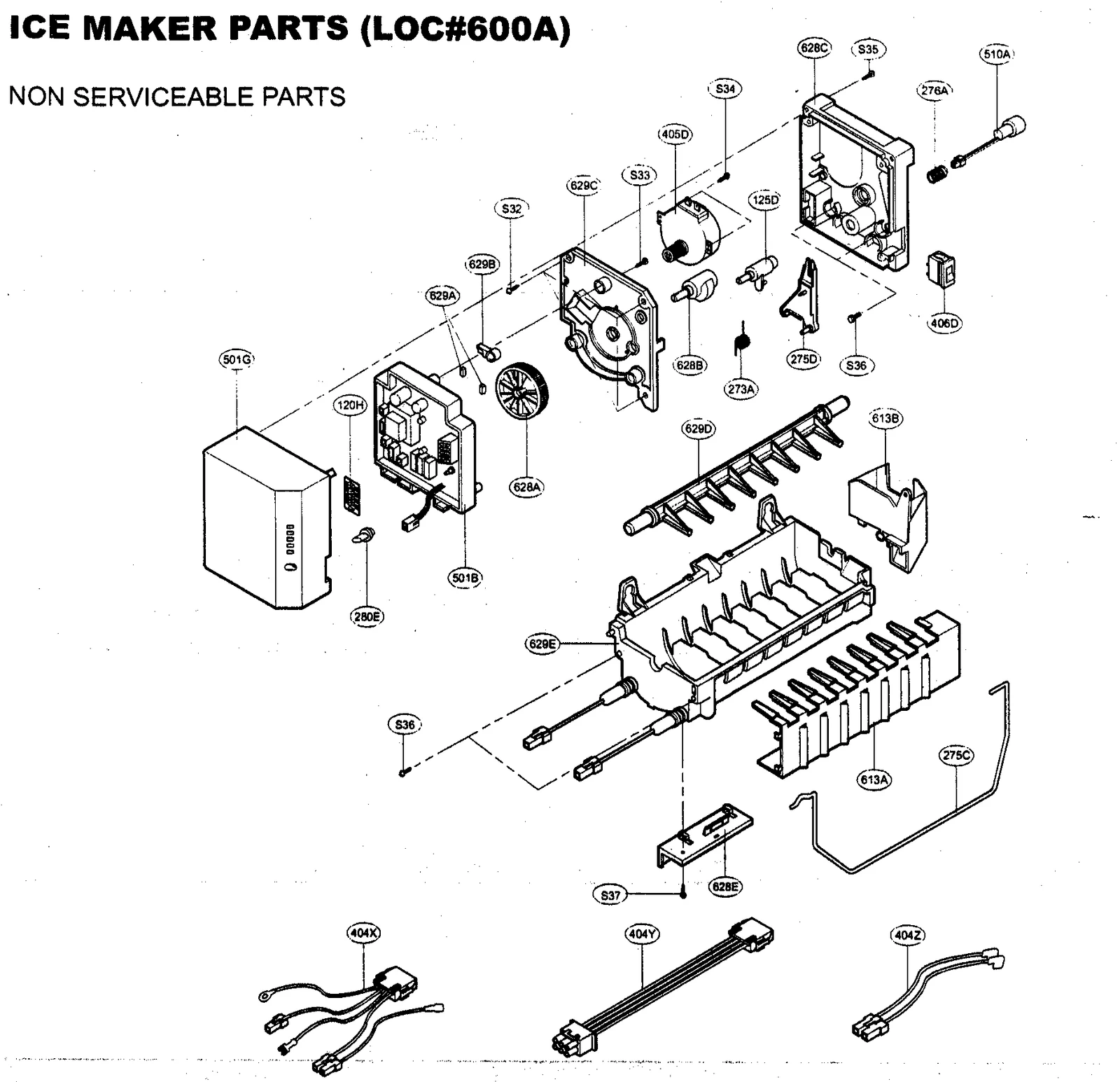

600A

Refrigerator Ice Maker Assembly LGE 5989JA0002E Contact Us For Availability

View on Model

602A

Refrigerator Holder LGE 4930JA3037A Contact Us For Availability

View on Model

610A

Refrigerator Cover LGE 3550JL2004A Contact Us For Availability

View on Model

616D

5210JA3005J LG Plastic Tube Backorder LGE 5210JA3005J $26.61

View on Model

616E

Refrigerator Ice Maker Fill Tube LGE 5210JJ3003B Contact Us For Availability

View on Model

619A

5220JA2009D LG Refrigerator Water Inlet Fill Backorder LGE 5220JA2009D $93.59

View on Model

622A

5210JJ3002A LG Inlet Tube Backorder LGE 5210JJ3002A $2.83

View on Model

623A

4770JA3001A LG Refrigerator Band Backorder LGE 4770JA3001A $7.08

View on Model

700A

Refrigerator Handle Assembly LGE 3651JJ1002E Contact Us For Availability

View on Model

700B

HANDLE ASY, F LGE 3651JJ8001U Contact Us For Availability

View on Model

700C

HANDLE ASY, R LGE 3651JJ8002U Contact Us For Availability

View on Model

903A

3550JJ0005B LG Refrigerator Lower Cover Backorder LGE 3550JJ0005B $49.89

View on Model

903B

Refrigerator Toe Grille Clip LGE 4930JJ2021A No Longer Available

View on Model

903D

6500JB2001B LG Refrigerator Humidity Sensor T In Stock LGE 6500JB2001B $29.27

View on Model

903E

6500JB2002T LG Refrigerator Freezer Temperatu Backorder LGE 6500JB2002T $20.63

View on Model

B01

J351-00004L LG Customized Screw Backorder LGE J351-00004L $7.08

View on Model

B02

Refrigerator Screw LGE J351-00004R Contact Us For Availability

View on Model

B03

Refrigerator Screw LGE J351-00004P Contact Us For Availability

View on Model

B04

1BZZJA2002A LG Refrigerator Common Bolt Backorder LGE 1BZZJA2002A $7.08

View on Model

NI

Refrigerator Owner's Manual LGE 3828JL8003 Contact Us For Availability

View on Model

NI

Tech Data LGE 3840JL2005 Contact Us For Availability

View on Model

NI

Refrigerator Sheet LGE 3840JL8024 Contact Us For Availability

View on Model

NI

REPAIR PART LIST LGE 3850JL8004 Contact Us For Availability

View on Model

NI

Refrigerator Label LGE 3850JL8023Q Contact Us For Availability

View on Model

S28

3J05696W LG Customized Screw Backorder LGE 3J05696W $7.08

View on Model

S29

1SZZJA3009A LG Refrigerator Customized Screw Backorder LGE 1SZZJA3009A $7.08

View on Model

S30

4J00415D LG Refrigerator Customized Screw Backorder LGE 4J00415D $7.08

View on Model

S31

Refrigerator Machine Screw LGE 1MTC0402618 Contact Us For Availability

View on Model

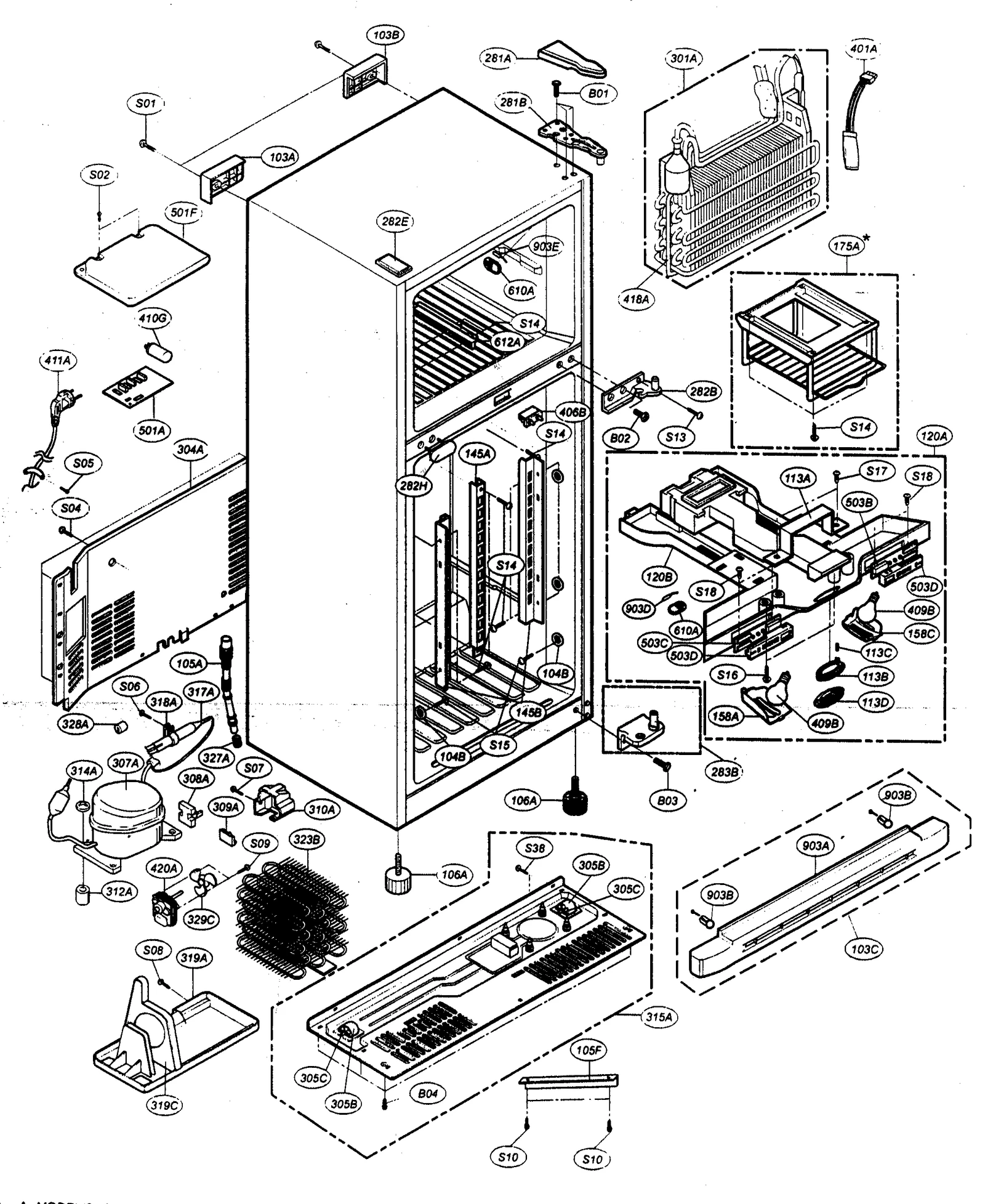

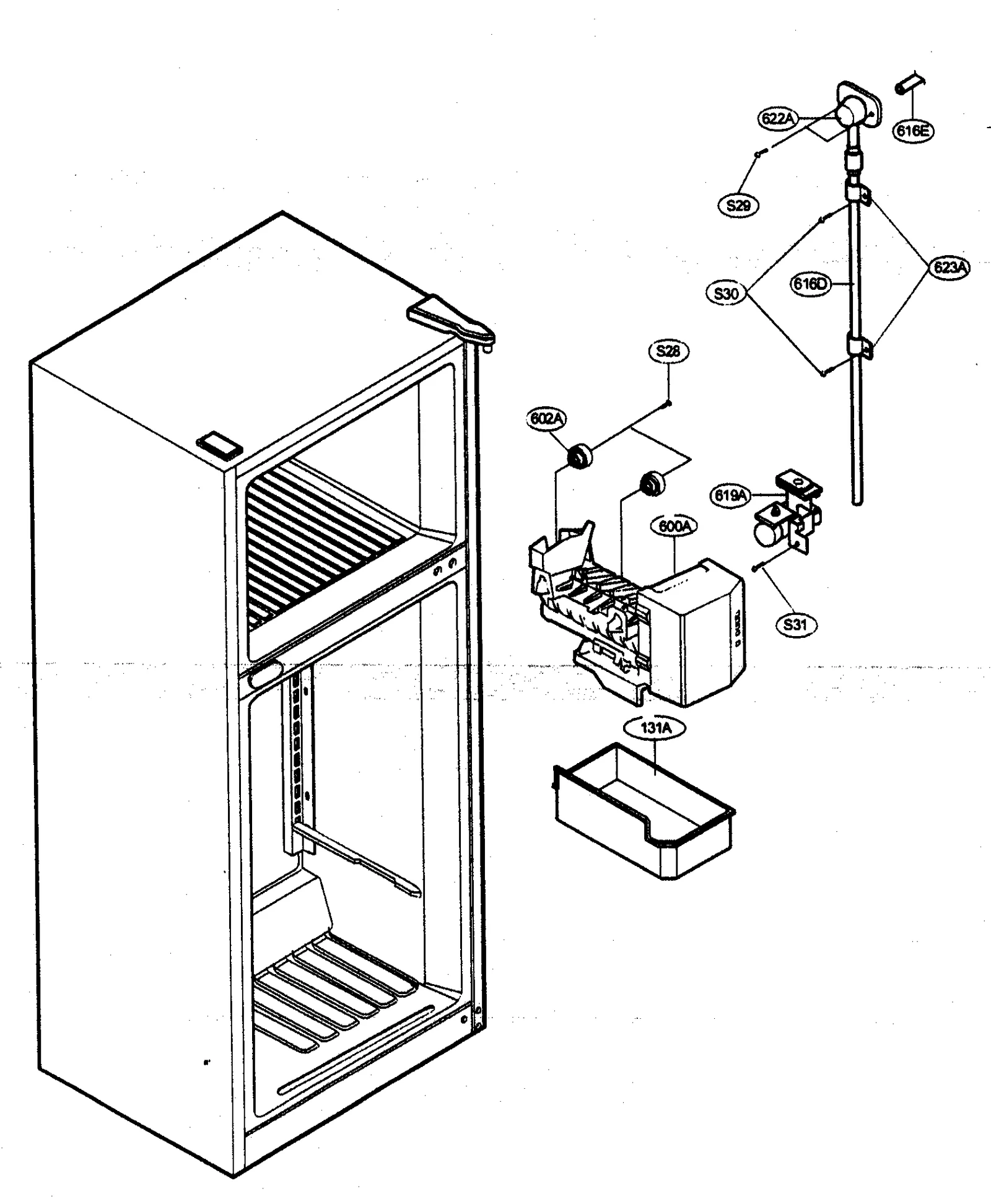

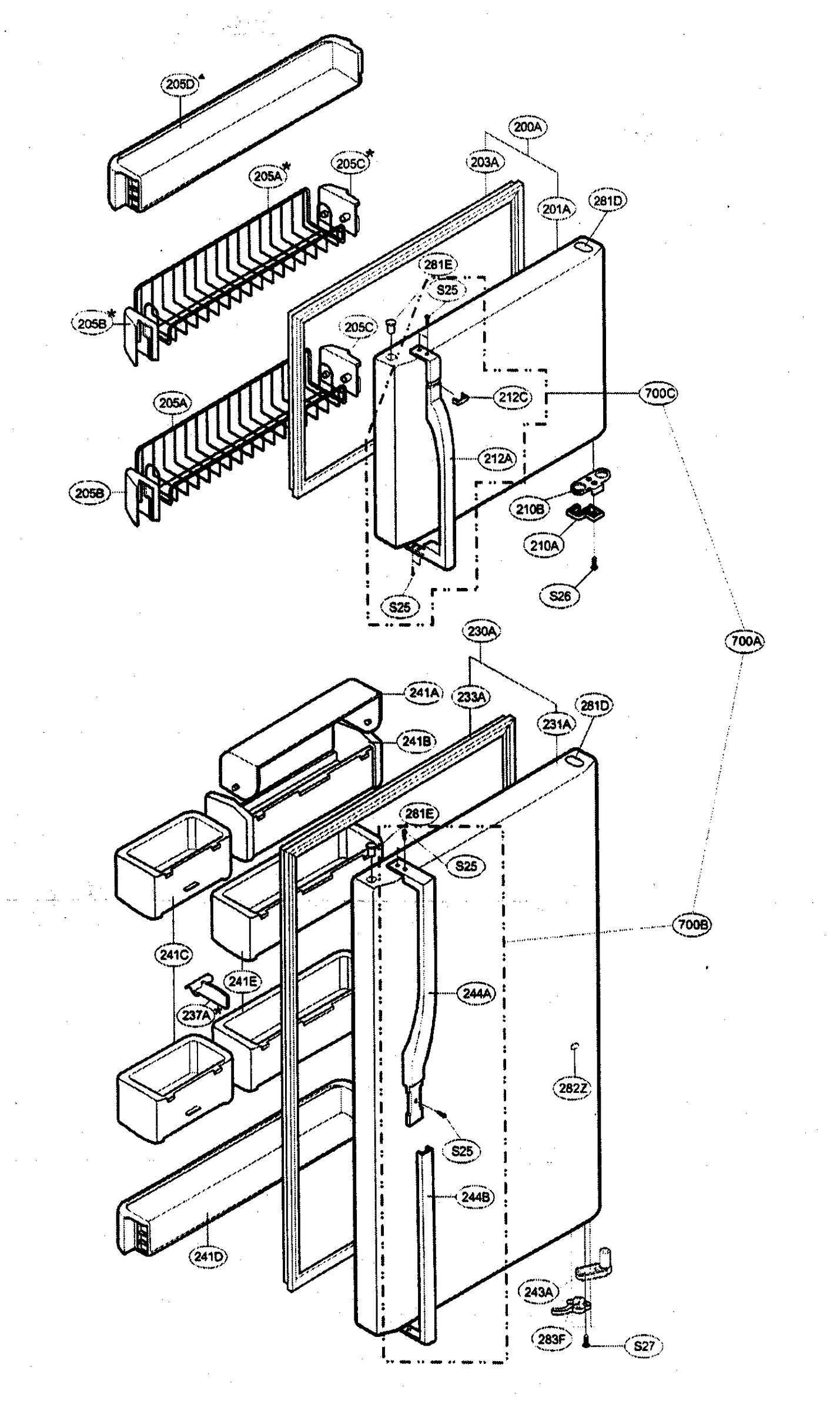

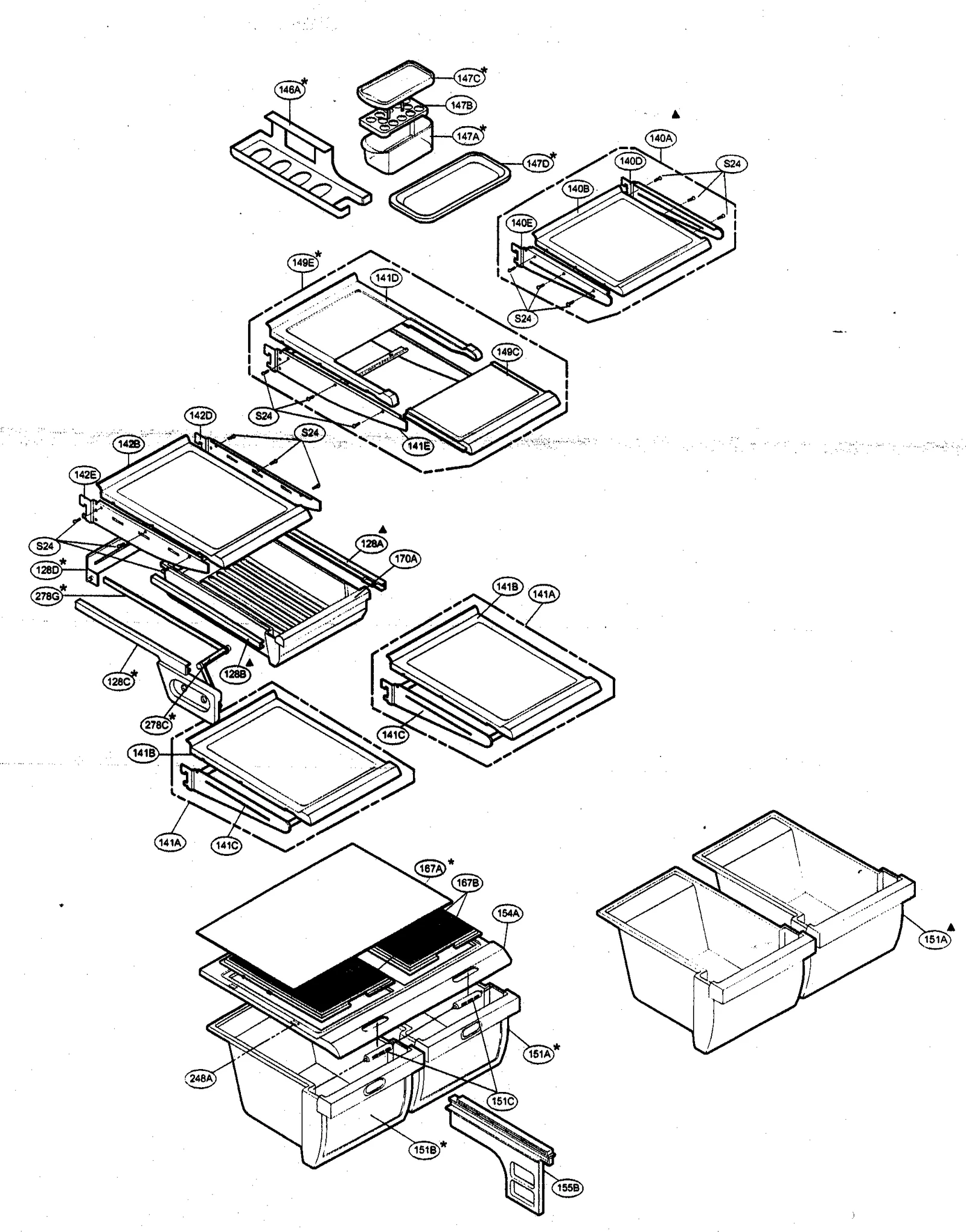

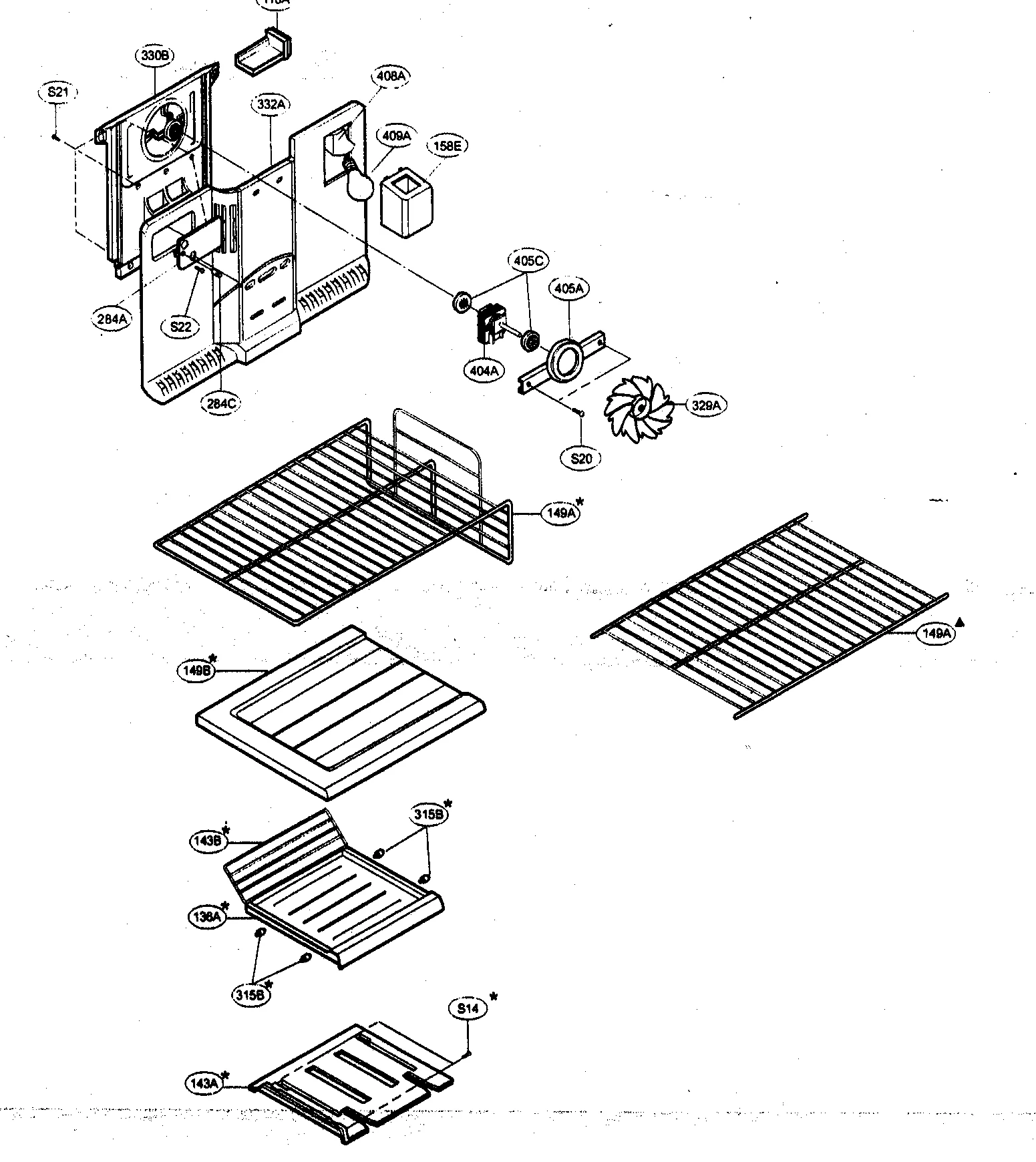

Model LG 795.75954401 Top-Mount Refrigerator (Kenmore 79575954401) – Common Parts & Diagrams

Common parts from model LG 795.75954401 Top-Mount Refrigerator (Kenmore 79575954401)

Search result for :

Help

Customer Service

Company

Model LG 795.75954401 Top-Mount Refrigerator (Kenmore 79575954401) – Common Parts & Diagrams

Common parts from model LG 795.75954401 Top-Mount Refrigerator (Kenmore 79575954401)

Search result for :

Be the First to Know

Help

Customer Service

Company
