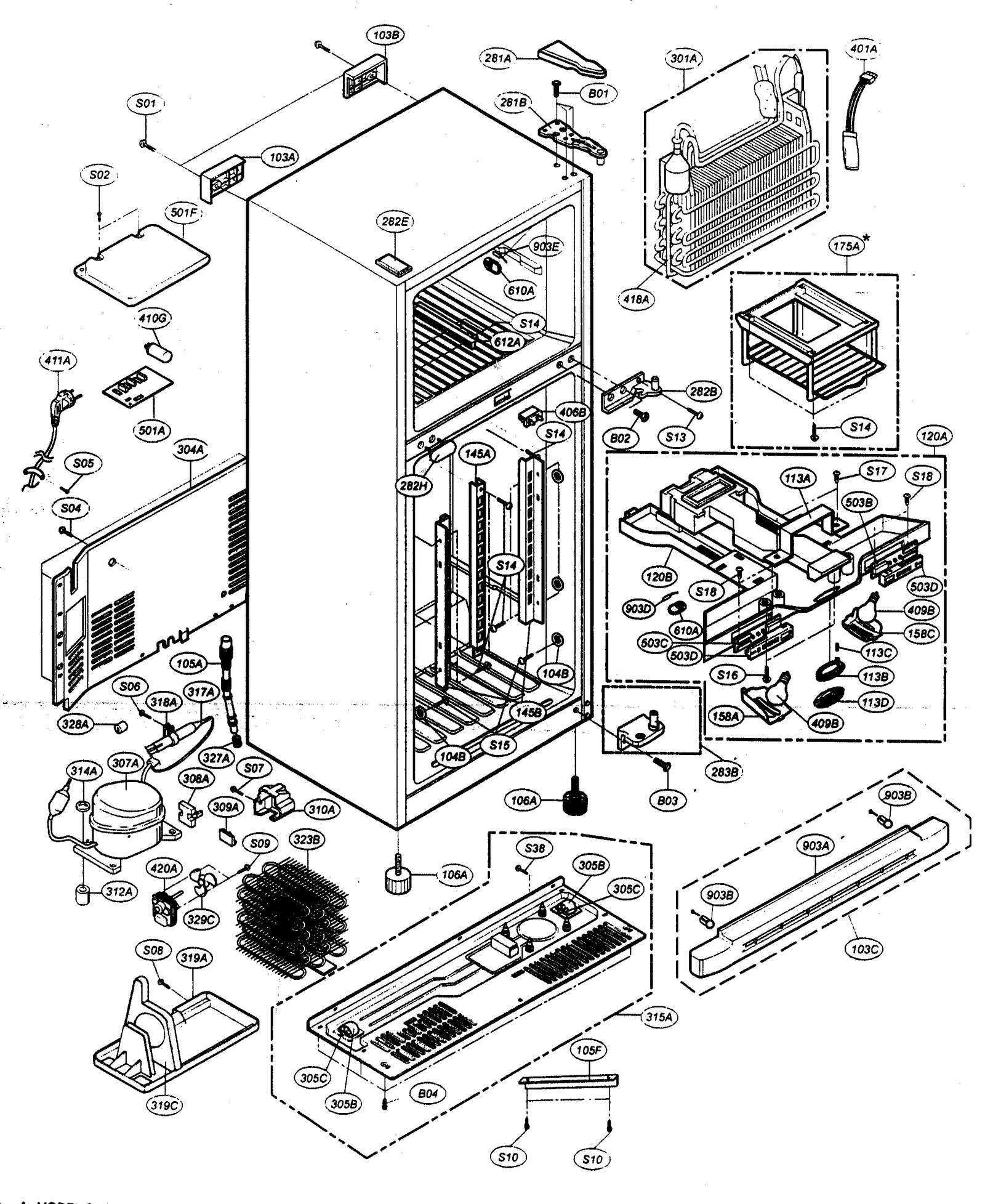

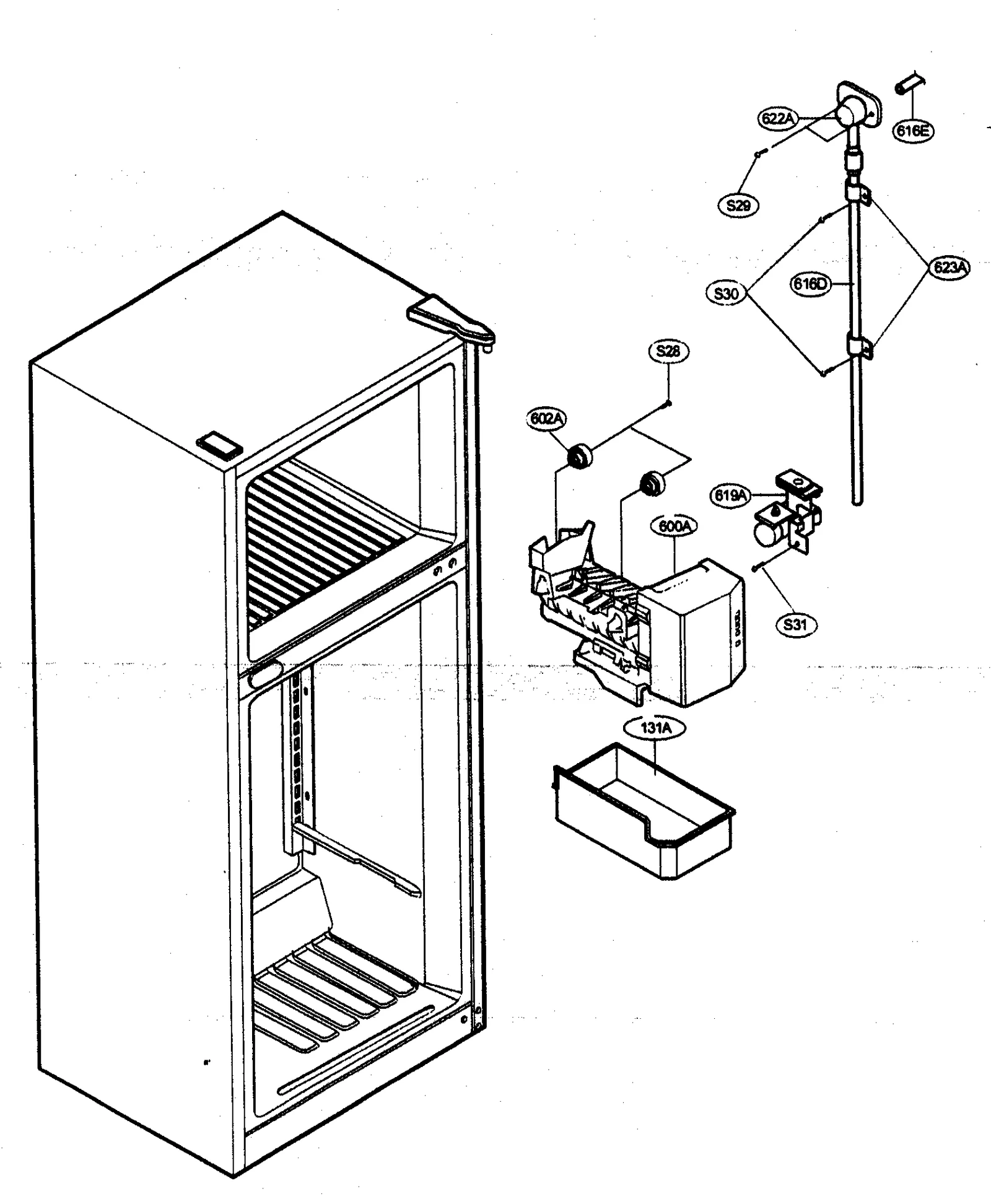

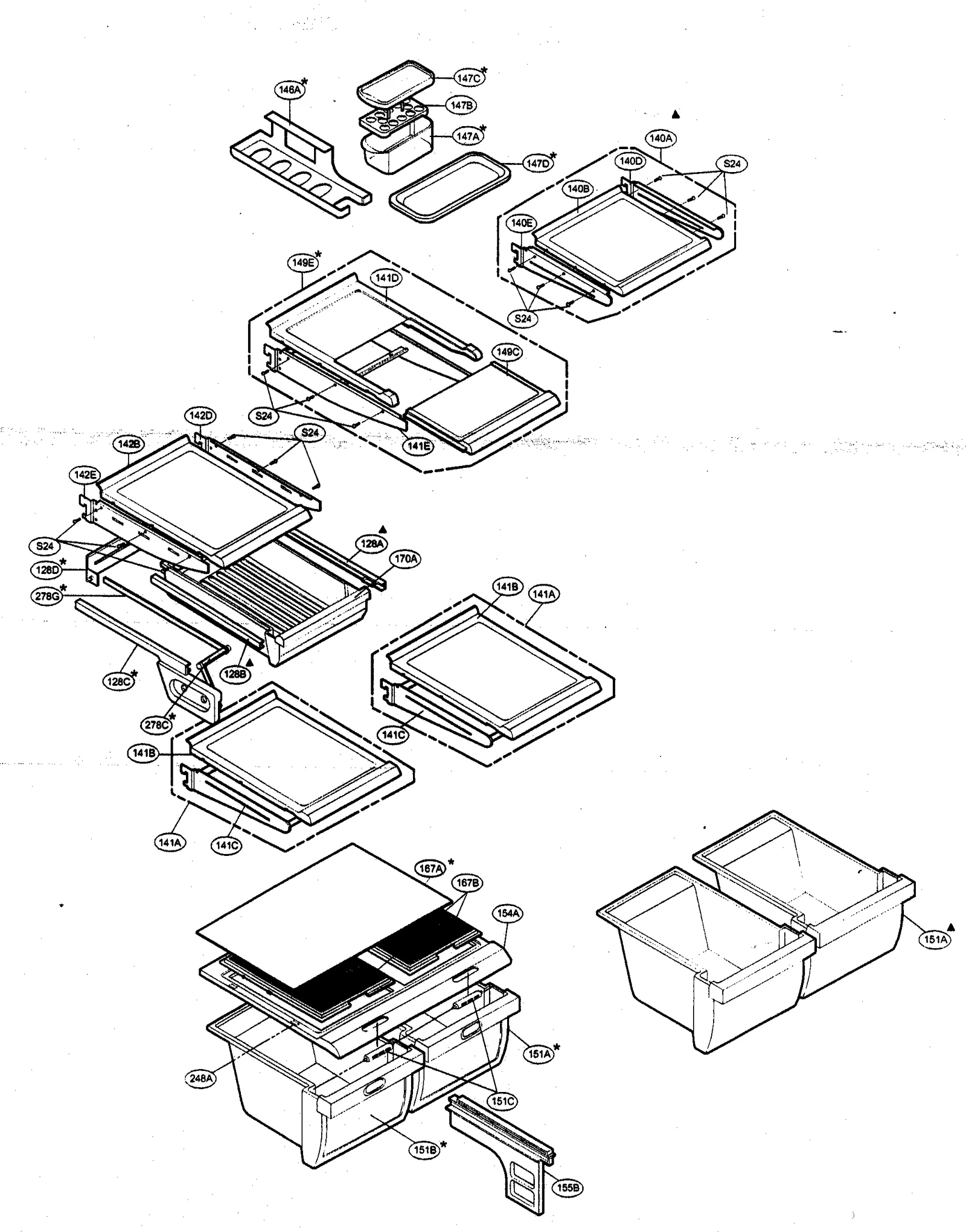

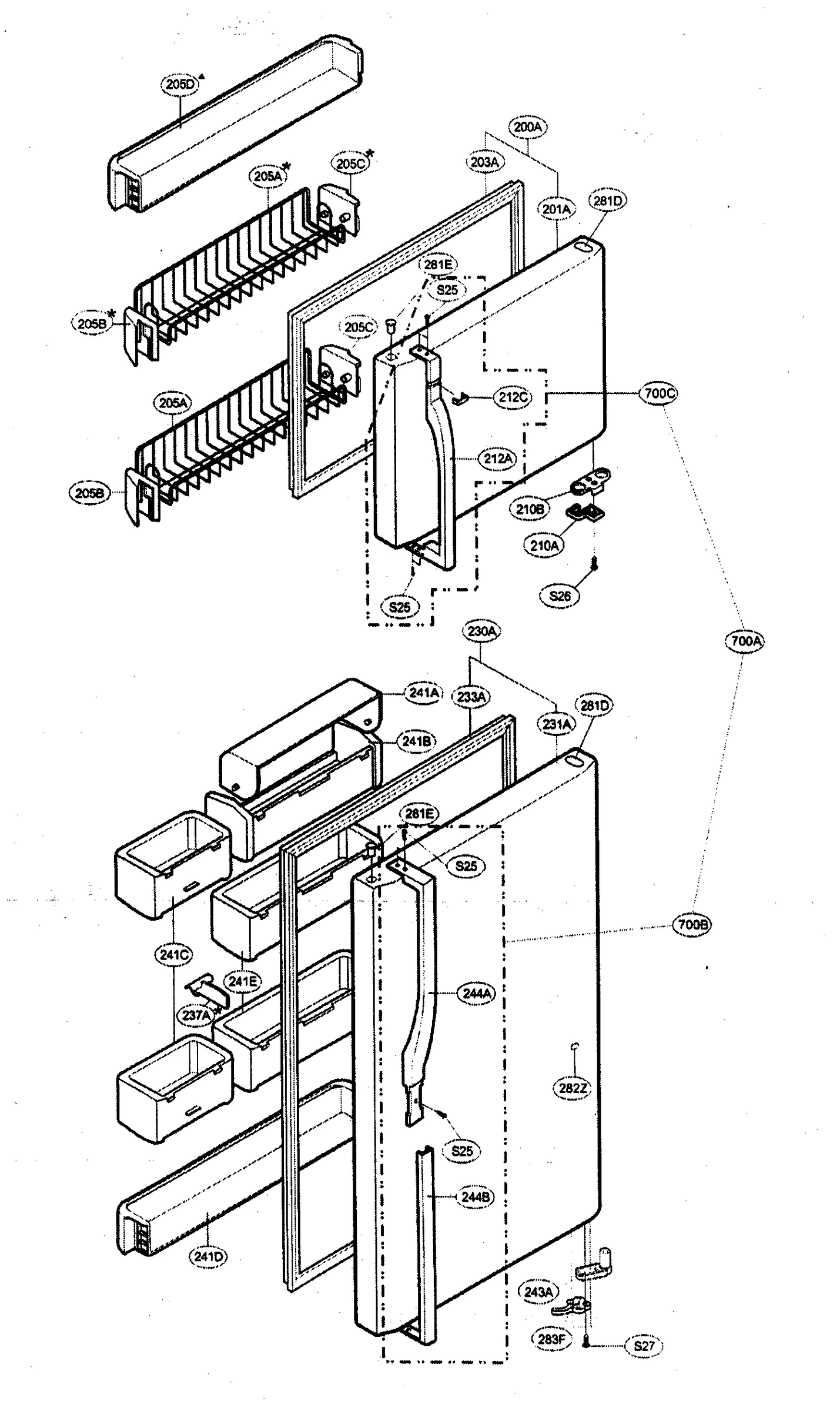

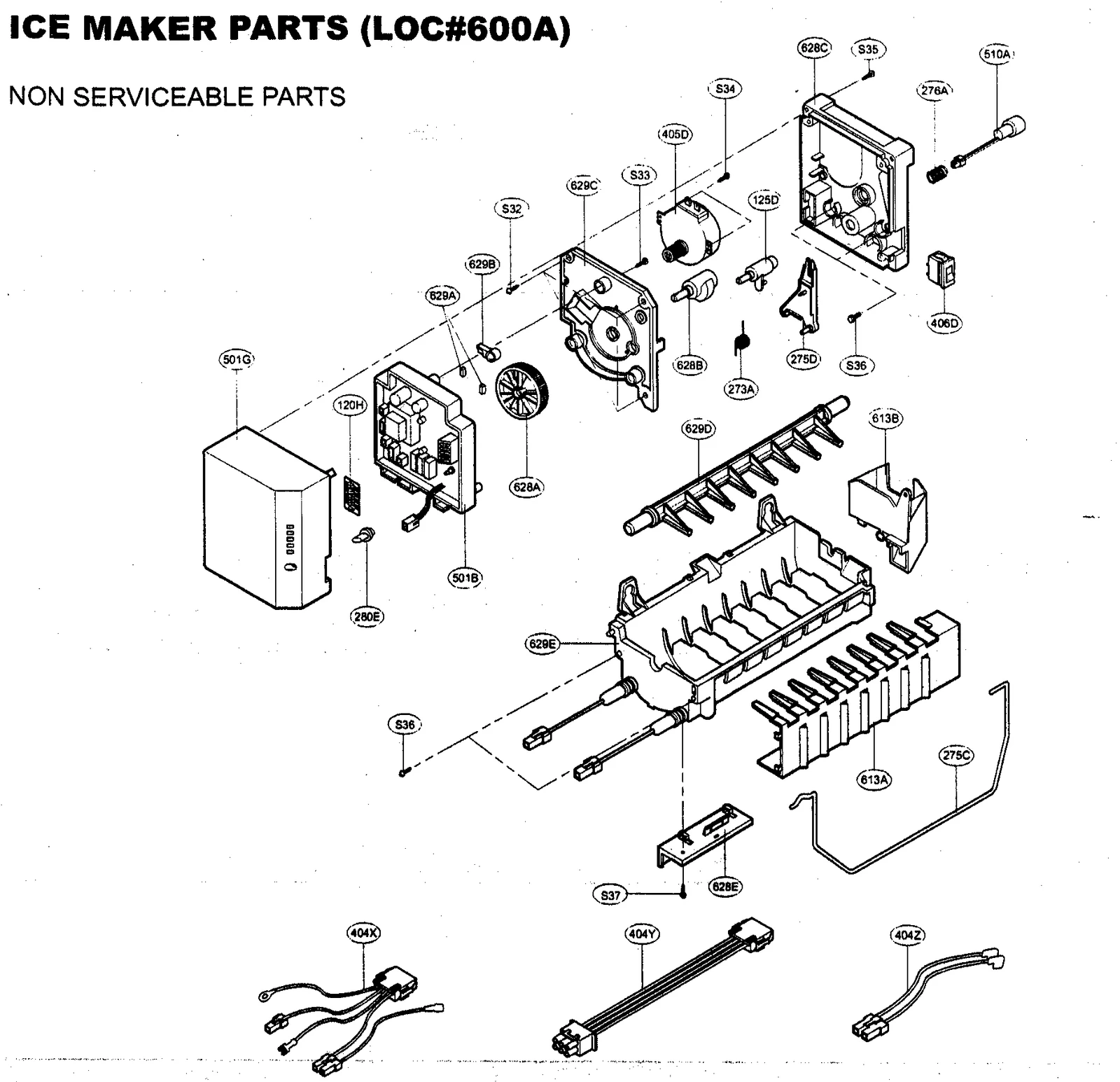

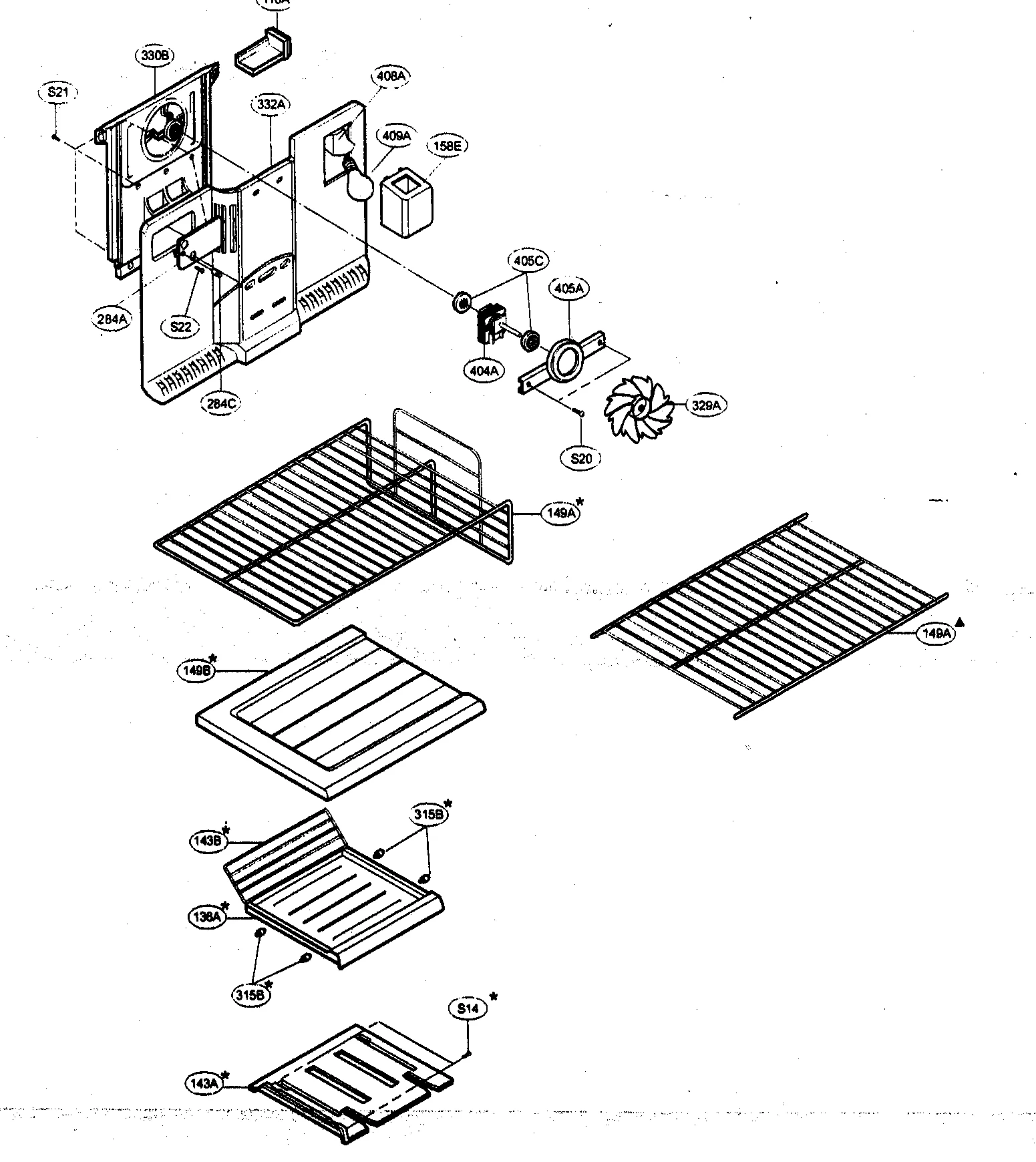

Model LG 795.75254401 Top-Mount Refrigerator (Kenmore 79575254401) – Common Parts & Diagrams

103A
Refrigerator Handle
Refrigerator Handle LGE 3650JJ2003B Contact Us For Availability
View on Model
103B
Refrigerator Handle
Refrigerator Handle LGE 3650JJ2003F Contact Us For Availability
View on Model
103C
Refrigerator Toe Grille
Refrigerator Toe Grille LGE 3551JJ1015D Contact Us For Availability
View on Model
104B
Refrigerator Shelf Bracket Holder
Refrigerator Shelf Bracket Holder LGE 4930JJ3007A Contact Us For Availability
View on Model
106A
Refrigerator Leveling Leg
Refrigerator Leveling Leg LGE 4779JA2003A Contact Us For Availability
View on Model
113A
Refrigerator Guide
Refrigerator Guide LGE 4974JJ2008A Contact Us For Availability
View on Model
113B
Refrigerator Holder
Refrigerator Holder LGE 4930JJ2005A Contact Us For Availability
View on Model
113C
Refrigerator Spring
Refrigerator Spring LGE 4970JA3016A Contact Us For Availability
View on Model
113D
Refrigerator Gasket
Refrigerator Gasket LGE 4986JJ2003A Contact Us For Availability
View on Model
120A
Refrigerator Control Box
Refrigerator Control Box LGE 4995JJ1003D Contact Us For Availability
View on Model
120B
Refrigerator Control Box
Refrigerator Control Box LGE 4994JJ0001A Contact Us For Availability
View on Model
140A
Refrigerator Shelf
Refrigerator Shelf LGE 5027JJ1013R Contact Us For Availability
View on Model
140B
Refrigerator Shelf
Refrigerator Shelf LGE 5027JJ1039A Contact Us For Availability
View on Model
141A
Refrigerator Shelf Assembly
Refrigerator Shelf Assembly LGE 5027JJ1014P Contact Us For Availability
View on Model
141B
Refrigerator Shelf Assembly, Right
Refrigerator Shelf Assembly, Right LGE 5027JJ1038A Contact Us For Availability
View on Model
141C
Refrigerator Shelf Assembly
Refrigerator Shelf Assembly LGE 5027JJ2005C Contact Us For Availability
View on Model
145A
Refrigerator Holder
Refrigerator Holder LGE 4930JJ2003A Contact Us For Availability
View on Model
145B
Refrigerator Holder
Refrigerator Holder LGE 4930JJ2004A Contact Us For Availability
View on Model
154A
Refrigerator Crisper Drawer Cover Frame
Refrigerator Crisper Drawer Cover Frame LGE 3550JL2001C Contact Us For Availability
View on Model
167B
Refrigerator Crisper Drawer Cover Insert
Refrigerator Crisper Drawer Cover Insert LGE 3550JJ1012A Contact Us For Availability
View on Model
170A
Refrigerator Tray Assembly
Refrigerator Tray Assembly LGE 3391JJ2004B Contact Us For Availability
View on Model
175A
BANK, DAIRY
BANK, DAIRY LGE N/A Contact Us For Availability
View on Model
200A
Refrigerator Door Assembly
Refrigerator Door Assembly LGE 3581JJ8016B Contact Us For Availability
View on Model
201A
Refrigerator Door Foam
Refrigerator Door Foam LGE 5433JJ1001B Contact Us For Availability
View on Model
205A
Refrigerator Freezer Door Wire Tilt Basket
Refrigerator Freezer Door Wire Tilt Basket LGE 5004JJ1017B Contact Us For Availability
View on Model
205C
Refrigerator Freezer Door Tilt Basket End Cap
Refrigerator Freezer Door Tilt Basket End Cap LGE 5004JJ2003A Contact Us For Availability
View on Model
205D
Refrigerator Door Bin
Refrigerator Door Bin LGE 5004JJ1024A Contact Us For Availability
View on Model
212A
Refrigerator Freezer Door Handle
Refrigerator Freezer Door Handle LGE 3650JJ1013C Contact Us For Availability
View on Model
212C
Refrigerator Handle
Refrigerator Handle LGE 3650JJ2007B Contact Us For Availability
View on Model
230A
Refrigerator Door Assembly
Refrigerator Door Assembly LGE 3581JJ8017F Contact Us For Availability
View on Model
231A
Refrigerator Door Foam
Refrigerator Door Foam LGE 5433JJ0015F Contact Us For Availability
View on Model
233A
Refrigerator Gasket Assembly
Refrigerator Gasket Assembly LGE 4987JJ1004U Contact Us For Availability
View on Model
241A
Refrigerator Dairy Bin Cover
Refrigerator Dairy Bin Cover LGE 3550JL2003B Contact Us For Availability
View on Model
241B
Refrigerator Door Bin
Refrigerator Door Bin LGE 5004JJ1021A Contact Us For Availability
View on Model
241C
Refrigerator Door Bin
Refrigerator Door Bin LGE 5004JJ1031A Contact Us For Availability
View on Model
241D
Ff Door Bskt
Ff Door Bskt LGE 5004JJ1027A Contact Us For Availability
View on Model
243A
Refrigerator Stopper
Refrigerator Stopper LGE 4620JJ3006B Contact Us For Availability
View on Model
244A
Refrigerator Door Handle Assembly
Refrigerator Door Handle Assembly LGE 3650JJ1014C Contact Us For Availability
View on Model
244B
Refrigerator Handle
Refrigerator Handle LGE 3650JJ1015C Contact Us For Availability
View on Model
281A
Refrigerator Door Hinge Cover
Refrigerator Door Hinge Cover LGE 3550JJ2013B Contact Us For Availability
View on Model
281B
Refrigerator Door Hinge
Refrigerator Door Hinge LGE 4775JJ2003B Contact Us For Availability
View on Model
281D
Refrigerator Cap
Refrigerator Cap LGE 5006JJ3007B Contact Us For Availability
View on Model
281E
Refrigerator Hinge Cap
Refrigerator Hinge Cap LGE 5006JJ3003D Contact Us For Availability
View on Model
282B
Refrigerator Door Hinge
Refrigerator Door Hinge LGE 4775JJ2002A Contact Us For Availability
View on Model
282E
Refrigerator Top Door Hinge Hole Cover
Refrigerator Top Door Hinge Hole Cover LGE 5006JJ2001E Contact Us For Availability
View on Model
282H
Refrigerator Hinge Cap
Refrigerator Hinge Cap LGE 5006JJ3004D Contact Us For Availability
View on Model
282Z
Refrigerator Hinge Cap
Refrigerator Hinge Cap LGE 5006JA3055L Contact Us For Availability
View on Model
301A
Refrigerator Evaporator Assembly
Refrigerator Evaporator Assembly LGE 5421JJ0002A Contact Us For Availability
View on Model
307A
Refrigerator Compressor
Refrigerator Compressor LGE 2521JJ8007A Contact Us For Availability
View on Model
308A
Ptc Asm
Ptc Asm LGE 6749C-0008D Contact Us For Availability
View on Model
310A
Refrigerator Compressor Relay Cover
Refrigerator Compressor Relay Cover LGE 3550JA2042A Contact Us For Availability
View on Model
312A
Refrigerator Rubber
Refrigerator Rubber LGE 5040JA3067A Contact Us For Availability
View on Model
315A
Refrigerator Complete Base
Refrigerator Complete Base LGE 3103JJ1001J Contact Us For Availability
View on Model
317A
Refrigerator Drier Assembly
Refrigerator Drier Assembly LGE 5851JJ2002B Contact Us For Availability
View on Model
323B
Refrigerator Condenser
Refrigerator Condenser LGE 5403JJ1003A Contact Us For Availability
View on Model
328A
Refrigerator Rubber
Refrigerator Rubber LGE 5040JJ3002A Contact Us For Availability
View on Model
401A
Refrigerator Controller
Refrigerator Controller LGE 4871JK2001A Contact Us For Availability
View on Model
406B
Refrigerator Light Switch
Refrigerator Light Switch LGE 6600JB2004A Contact Us For Availability
View on Model
409B
Refrigerator Lamp
Refrigerator Lamp LGE 6912JK2002A Contact Us For Availability
View on Model
410G
Refrigerator Run Capacitor
Refrigerator Run Capacitor LGE 0CZZJB2003H Contact Us For Availability
View on Model
420A
Refrigerator Condenser Motor
Refrigerator Condenser Motor LGE 4681JK1001B Contact Us For Availability
View on Model
501B
Refrigerator Case
Refrigerator Case LGE 6871JB1149A Contact Us For Availability
View on Model
501F
Refrigerator Cover
Refrigerator Cover LGE 3550JJ2016A Contact Us For Availability
View on Model
501G
Refrigerator Cover
Refrigerator Cover LGE 3550JD1064A Contact Us For Availability
View on Model
510A
Refrigerator Ice Maker Temperature Sensor Ass
Refrigerator Ice Maker Temperature Sensor Ass LGE 6501JB3004A Contact Us For Availability
View on Model
610A
Refrigerator Cover
Refrigerator Cover LGE 3550JL2004A Contact Us For Availability
View on Model
613A
GUIDE ICE
GUIDE ICE LGE 4974JA1061A Contact Us For Availability
View on Model
613B
Refrigerator Water Guide
Refrigerator Water Guide LGE 4974JA2054A Contact Us For Availability
View on Model
628A
Refrigerator Gear
Refrigerator Gear LGE 4470JA2001A Contact Us For Availability
View on Model
628B
CAM, SHAFT
CAM, SHAFT LGE 4420JA2009A Contact Us For Availability
View on Model
628C
Refrigerator Supporter
Refrigerator Supporter LGE 4980JA0001A Contact Us For Availability
View on Model
628E
Refrigerator Ice Maker Support Bracket
Refrigerator Ice Maker Support Bracket LGE 4810JA2078A Contact Us For Availability
View on Model
629A
Refrigerator Magnet
Refrigerator Magnet LGE 5016JA3009A Contact Us For Availability
View on Model
629B
HOLDER, MAGNET
HOLDER, MAGNET LGE 4930JA2047A Contact Us For Availability
View on Model
629C
Refrigerator Ice Maker Plate
Refrigerator Ice Maker Plate LGE 3300JA1002A Contact Us For Availability
View on Model
629D
Refrigerator Ejector
Refrigerator Ejector LGE 3558JA2001A Contact Us For Availability
View on Model
700A
Refrigerator Handle Assembly
Refrigerator Handle Assembly LGE 3651JJ1002D Contact Us For Availability
View on Model
700B
HANDLE ASY, F
HANDLE ASY, F LGE 3651JJ8001X Contact Us For Availability
View on Model
700C
Refrigerator Handle Assembly
Refrigerator Handle Assembly LGE 3651JJ8002X Contact Us For Availability
View on Model
903B
Refrigerator Toe Grille Clip
Refrigerator Toe Grille Clip LGE 4930JJ2021A No Longer Available
View on Model
B02
Refrigerator Screw
Refrigerator Screw LGE J351-00004R Contact Us For Availability
View on Model
B03
Refrigerator Screw
Refrigerator Screw LGE J351-00004P Contact Us For Availability
View on Model
NI
Refrigerator Owner's Manual
Refrigerator Owner's Manual LGE 3828JL8003 Contact Us For Availability
View on Model
NI
Tech Data
Tech Data LGE 3840JL2005 Contact Us For Availability
View on Model
NI
Refrigerator Sheet
Refrigerator Sheet LGE 3840JL8024 Contact Us For Availability
View on Model
NI
REPAIR PART LIST
REPAIR PART LIST LGE 3850JL8004 Contact Us For Availability
View on Model
NI
Refrigerator Label
Refrigerator Label LGE 3850JL8023R Contact Us For Availability
View on Model
