Model LG 795.73964303 Top-Mount Refrigerator (Kenmore 79573964303) – Common Parts & Diagrams

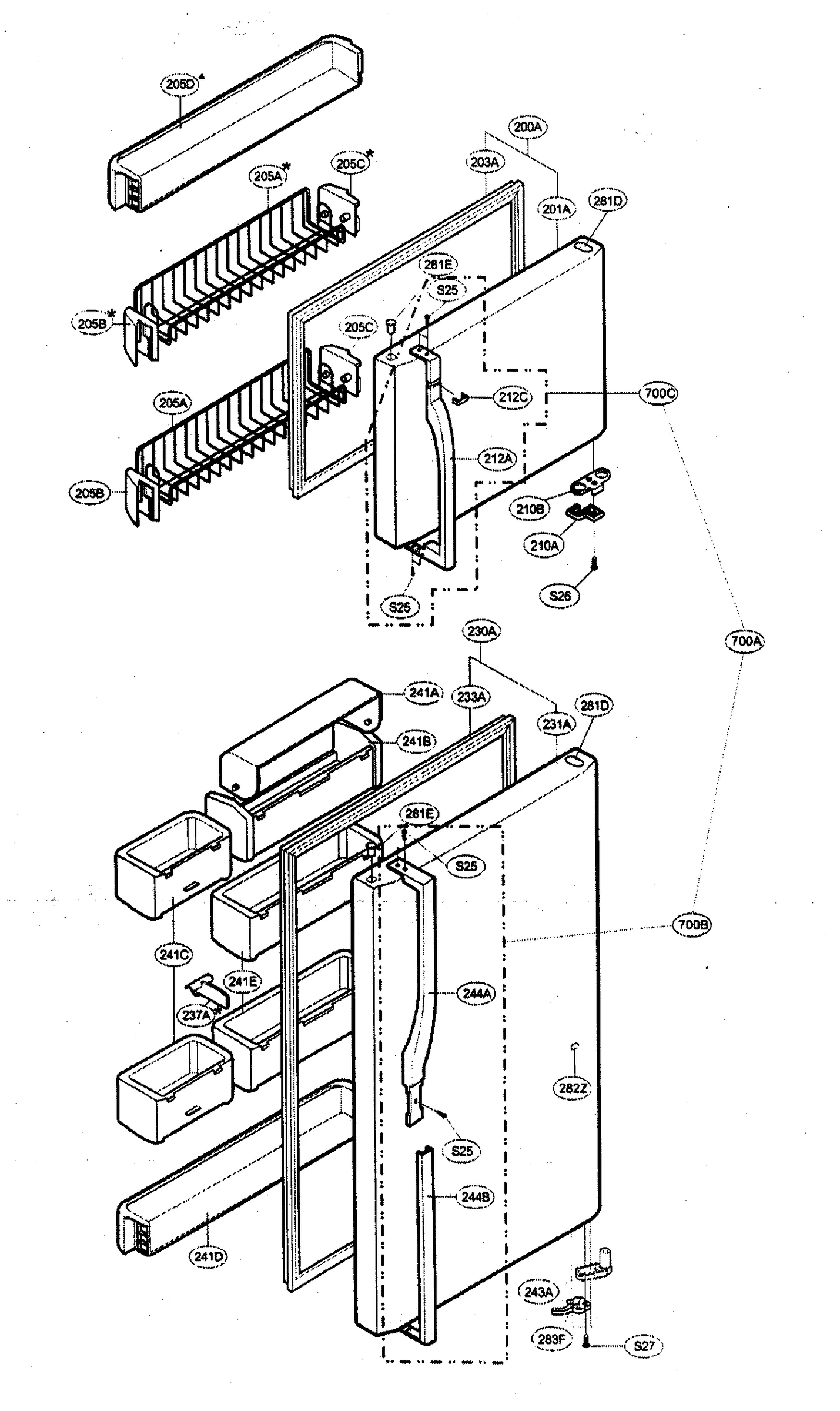

Diagram 0

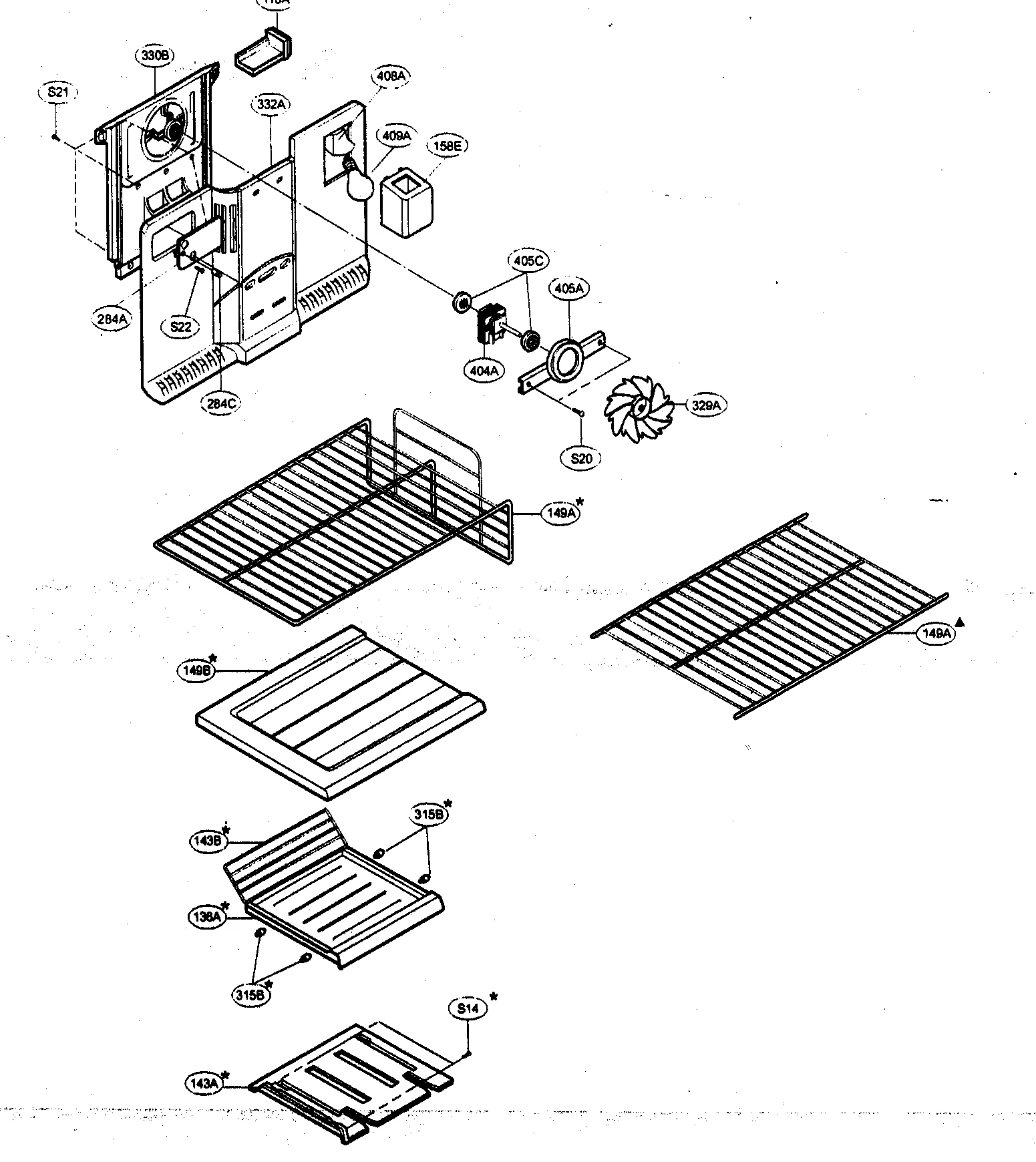

Diagram 1

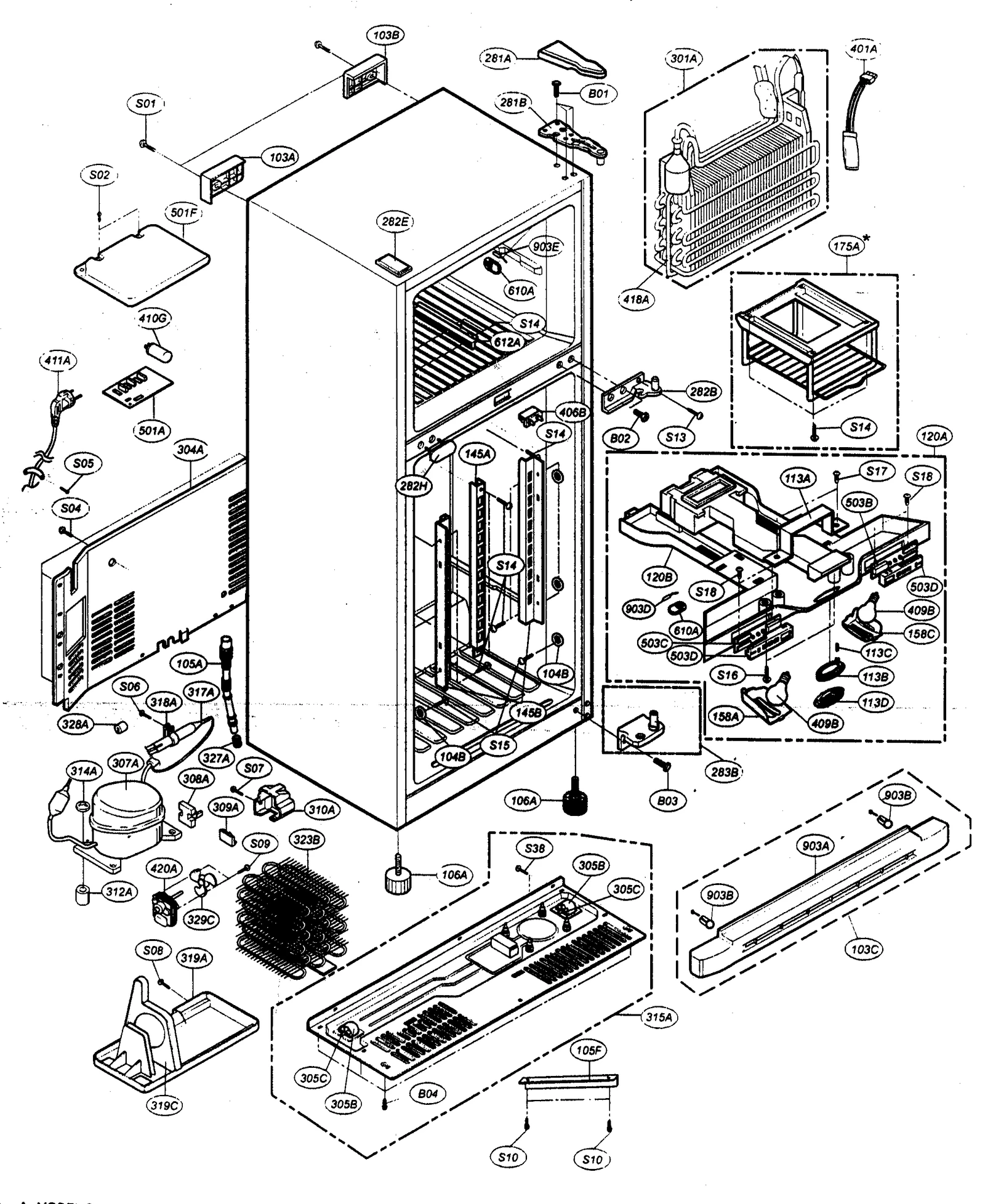

Diagram 2

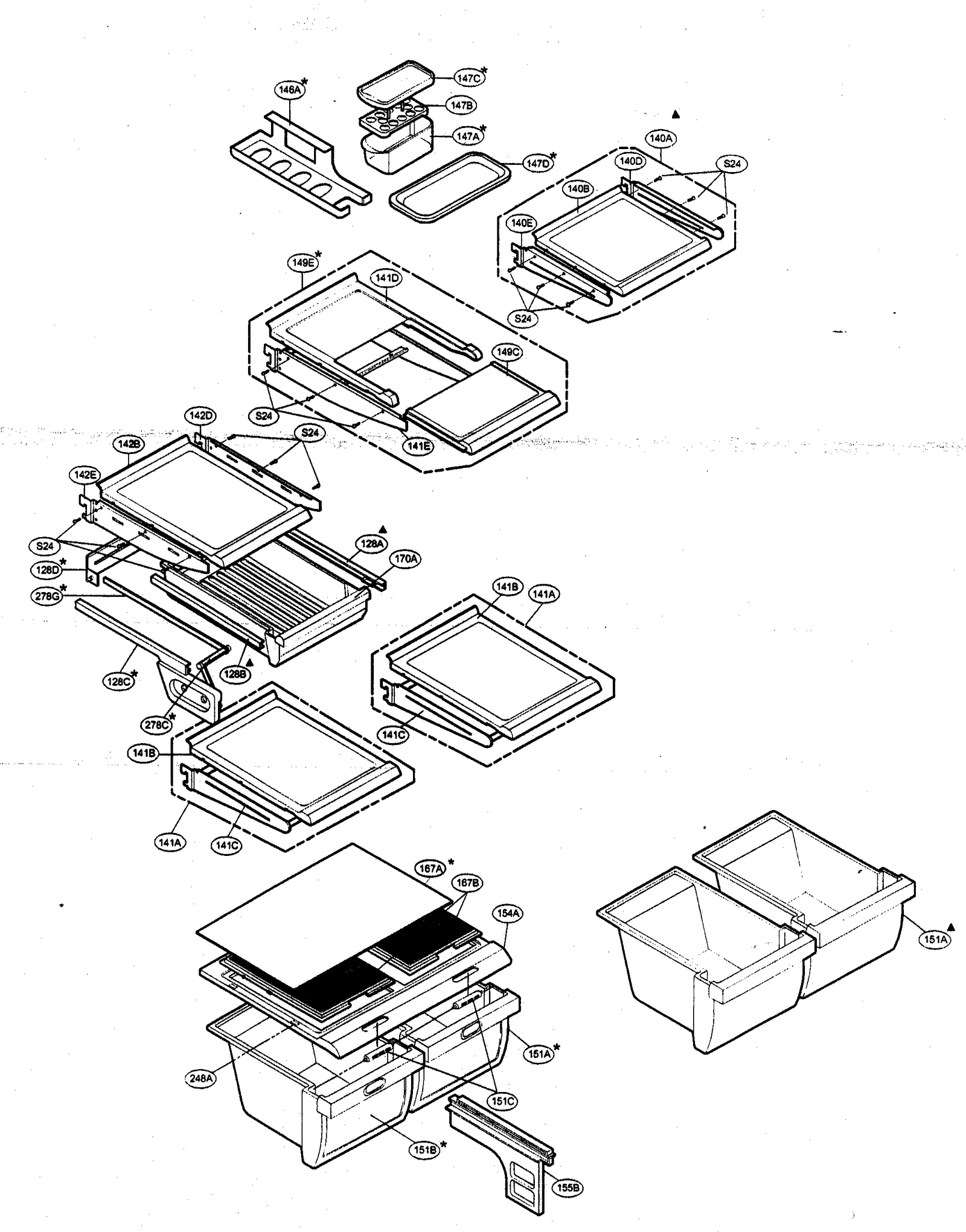

Diagram 3

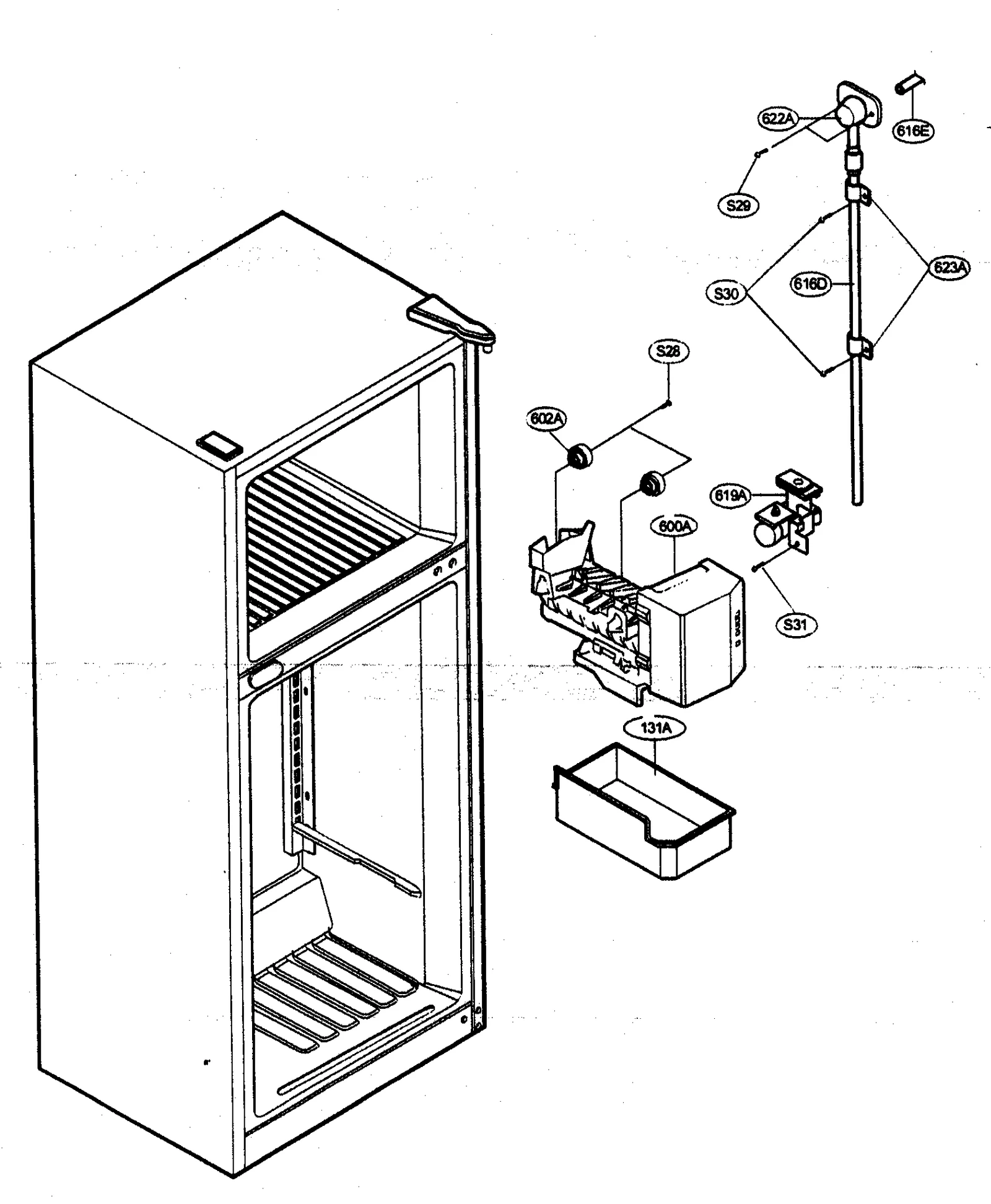

Diagram 4

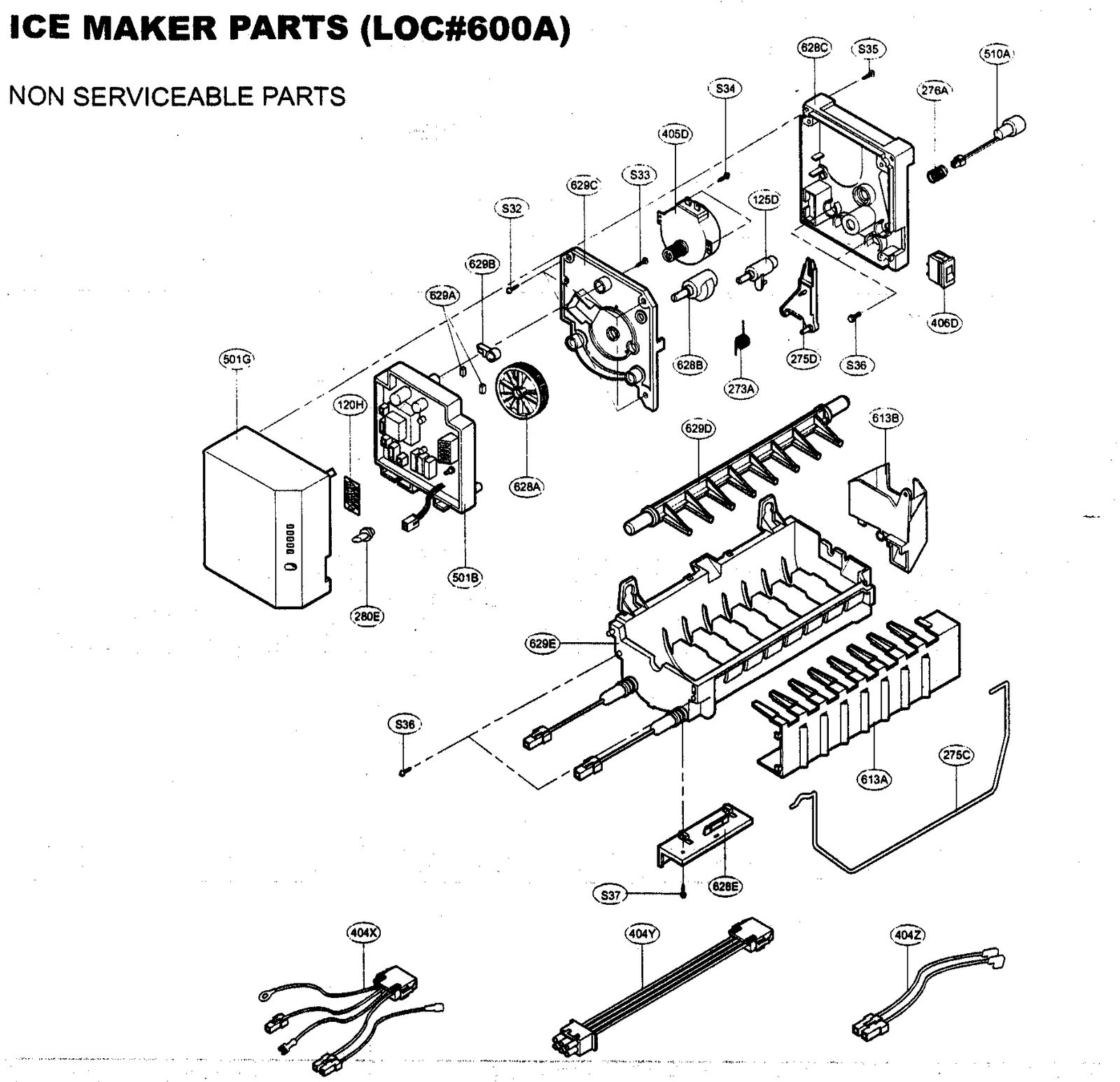

Diagram 5
Common parts from model LG 795.73964303 Top-Mount Refrigerator (Kenmore 79573964303)
103A
Refrigerator Handle LGE 3650JJ2003B Contact Us For Availability
103B
Refrigerator Handle LGE 3650JJ2003F Contact Us For Availability
103C
Lo Grill Asm LGE 3551JJ1015C Contact Us For Availability
104B
Refrigerator Shelf Bracket Holder LGE 4930JJ3007A Contact Us For Availability
106A
Refrigerator Leveling Leg LGE 4779JA2003A Contact Us For Availability
113B
Refrigerator Holder LGE 4930JJ2005A Contact Us For Availability
113C
Refrigerator Spring LGE 4970JA3016A Contact Us For Availability
113D
Refrigerator Gasket LGE 4986JJ2003A Contact Us For Availability
120A
Refrigerator Control Box LGE 4995JJ1003G Contact Us For Availability
120H
COVER, LED LGE 3550JA3118A Contact Us For Availability
125D
HOLDER, SHUT OFF LGE 4930JA2046A Contact Us For Availability
128B
BANK, DAIRY LGE N/A Contact Us For Availability
128D
Refrigerator Guide LGE 4974JJ2008A Contact Us For Availability
131A
Refrigerator Ice Container LGE 5074JJ1007A Contact Us For Availability
141B
Refrigerator Shelf Assembly LGE 5027JJ1036A Contact Us For Availability
141C
Refrigerator Shelf Assembly LGE 5027JJ2005A Contact Us For Availability
142B
Refrigerator Glass Shelf LGE 5027JJ1037A Contact Us For Availability
145A
Refrigerator Holder LGE 4930JJ2003A Contact Us For Availability
145B
Refrigerator Holder LGE 4930JJ2004A Contact Us For Availability
146A
Refrigerator Storage LGE 5047JJ1001A Contact Us For Availability
147A
Refrigerator Dairy Bin LGE 5074JJ1005A Contact Us For Availability
147C
Refrigerator Dairy Bin Cover LGE 3550JJ1017A Contact Us For Availability
147D
Refrigerator Tray LGE 3390JJ2003A Contact Us For Availability
149B
Refrigerator Shelf LGE 5026JJ1017A Contact Us For Availability
149C
Refrigerator Shelf LGE 5027JJ2010A Contact Us For Availability
149E
Refrigerator Shelf Assembly LGE 5027JJ2009A Contact Us For Availability
151A
Refrigerator Tray Assembly LGE 3391JJ1018A Contact Us For Availability
151B
Refrigerator Crisper Drawer, Left LGE 3391JJ1018B Contact Us For Availability
154A
Refrigerator Crisper Drawer Cover Frame LGE 3550JL2001A Contact Us For Availability
158E
Refrigerator Freezer Lamp Cover LGE 3550JJ2017B Contact Us For Availability
167B
Refrigerator Crisper Drawer Cover LGE 3550JJ1011A Contact Us For Availability
170A
Refrigerator Tray Assembly LGE 3391JJ2004B Contact Us For Availability
175A
Refrigerator Freezer Pizza Rack LGE 3391JJ2005A Contact Us For Availability
241C
Refrigerator Door Bin LGE 5005JJ2017B Contact Us For Availability
241E
Refrigerator Door Bin LGE 5005JJ2018B Contact Us For Availability
273A
Refrigerator Lever Spring LGE 4070JA3025A Contact Us For Availability
275C
Refrigerator Lever LGE 4510JA2014A Contact Us For Availability
275D
LEVE, LGE 4510JA2013A Contact Us For Availability
276A
Refrigerator Spring LGE 4970JA3026A Contact Us For Availability
278C
Refrigerator Lever LGE 4510JJ2001A Contact Us For Availability
280E
Decorative Button LGE 5020JA3019A Contact Us For Availability
281A
Refrigerator Door Hinge Cover LGE 3550JJ2013B Contact Us For Availability
281B
Refrigerator Door Hinge LGE 4775JJ2003B Contact Us For Availability
282B
Refrigerator Door Hinge LGE 4775JJ2002A Contact Us For Availability
282E
Refrigerator Top Door Hinge Hole Cover LGE 5006JJ2001E Contact Us For Availability
282H
Refrigerator Hinge Cap LGE 5006JJ3004D Contact Us For Availability
284A
Refrigerator Evaporator Cover Fan Grille LGE 3550JJ2023A Contact Us For Availability
284C
Refrigerator Freezer Panel Hole Cover Screw LGE 5006JA3080A Contact Us For Availability
304A
Refrigerator Cover Assembly LGE 3551JJ2008A Contact Us For Availability
307A
Refrigerator Compressor LGE 2521JJ8007A Contact Us For Availability
308A
Ptc Asm LGE 6749C-0008D Contact Us For Availability
310A
Refrigerator Compressor Relay Cover LGE 3550JA2042A Contact Us For Availability
312A
Refrigerator Rubber LGE 5040JA3067A Contact Us For Availability
315A
Refrigerator Complete Base LGE 3103JJ1001K Contact Us For Availability
315B
Refrigerator Roller LGE 4580JJ3004A Contact Us For Availability
317A
Refrigerator Drier Assembly LGE 5851JJ2002B Contact Us For Availability
323B
Refrigerator Condenser LGE 5403JJ1003A Contact Us For Availability
328A
Refrigerator Rubber LGE 5040JJ3002A Contact Us For Availability
332A
Refrigerator Fan Grille Assembly LGE 3531JJ1002A Contact Us For Availability
401A
Refrigerator Controller LGE 4871JK2001A Contact Us For Availability
404A
Refrigerator Evaporator Fan Motor LGE 4681JB1016J Contact Us For Availability
404Y
HARNESS, JOINT LGE 6877JB3044A Contact Us For Availability
404Z
Refrigerator Harness LGE 6877JB3045A Contact Us For Availability
405A
Refrigerator Evaporator Fan Motor Bracket LGE 4810JJ3003A Contact Us For Availability
405D
Refrigerator Motor LGE 6549JB2001A Contact Us For Availability
406B
Refrigerator Light Switch LGE 6600JB2004A Contact Us For Availability
408A
Refrigerator Socket LGE 6621JK2001A Contact Us For Availability
409A
Refrigerator Lamp (White) LGE 6912JB2004C Contact Us For Availability
409B
Refrigerator Lamp LGE 6912JK2002A Contact Us For Availability
410G
Refrigerator Run Capacitor LGE 0CZZJB2003H Contact Us For Availability
418A
Refrigerator Heater LGE 5300JK1003D Contact Us For Availability
420A
Refrigerator Condenser Motor LGE 4681JK1001B Contact Us For Availability
501A
Refrigerator Electronic Control Board LGE 6871JB1185A Contact Us For Availability
501B
Refrigerator Case LGE 6871JB1149A Contact Us For Availability
501F
Refrigerator Cover LGE 3550JJ2016A Contact Us For Availability
501G
Refrigerator Cover LGE 3550JD1064A Contact Us For Availability
503B
Refrigerator Power Control Board Assembly LGE 6871JB2043A Contact Us For Availability
503C
Refrigerator Power Control Board Assembly LGE 6871JB2043B Contact Us For Availability
510A
Refrigerator Ice Maker Temperature Sensor Ass LGE 6501JB3004A Contact Us For Availability
600A
Refrigerator Ice Maker Assembly LGE 5989JA0002E Contact Us For Availability
602A
Refrigerator Holder LGE 4930JA3037A Contact Us For Availability
610A
Refrigerator Cover LGE 3550JL2004A Contact Us For Availability
612A
Refrigerator Guide LGE 4974JJ2006A Contact Us For Availability
613A
GUIDE ICE LGE 4974JA1061A Contact Us For Availability
613B
Refrigerator Water Guide LGE 4974JA2054A Contact Us For Availability
616E
Refrigerator Ice Maker Fill Tube LGE 5210JJ3003B Contact Us For Availability
628A
Refrigerator Gear LGE 4470JA2001A Contact Us For Availability
628B
CAM, SHAFT LGE 4420JA2009A Contact Us For Availability
628C
Refrigerator Supporter LGE 4980JA0001A Contact Us For Availability
628E
Refrigerator Ice Maker Support Bracket LGE 4810JA2078A Contact Us For Availability
629A
Refrigerator Magnet LGE 5016JA3009A Contact Us For Availability
629B
HOLDER, MAGNET LGE 4930JA2047A Contact Us For Availability
629C
Refrigerator Ice Maker Plate LGE 3300JA1002A Contact Us For Availability
629D
Refrigerator Ejector LGE 3558JA2001A Contact Us For Availability
903B
Refrigerator Toe Grille Clip LGE 4930JJ2021A No Longer Available
B02
Refrigerator Screw LGE J351-00004R Contact Us For Availability
B03
Refrigerator Screw LGE J351-00004P Contact Us For Availability
NI
Refrigerator Owner's Manual LGE 3828JL8003 Contact Us For Availability
NI
Tech Data LGE 3840JL2005 Contact Us For Availability
NI
Refrigerator Sheet LGE 3840JL8024 Contact Us For Availability
NI
REPAIR PART LIST LGE 3850JL8004 Contact Us For Availability
NI
Refrigerator Label LGE 3850JL8023Q Contact Us For Availability
S31
Refrigerator Machine Screw LGE 1MTC0402618 Contact Us For Availability
× ![]()
