Model Electrolux 790.98059001 Electric Range (Kenmore 79098059001) – Common Parts & Diagrams
MAIN TOP

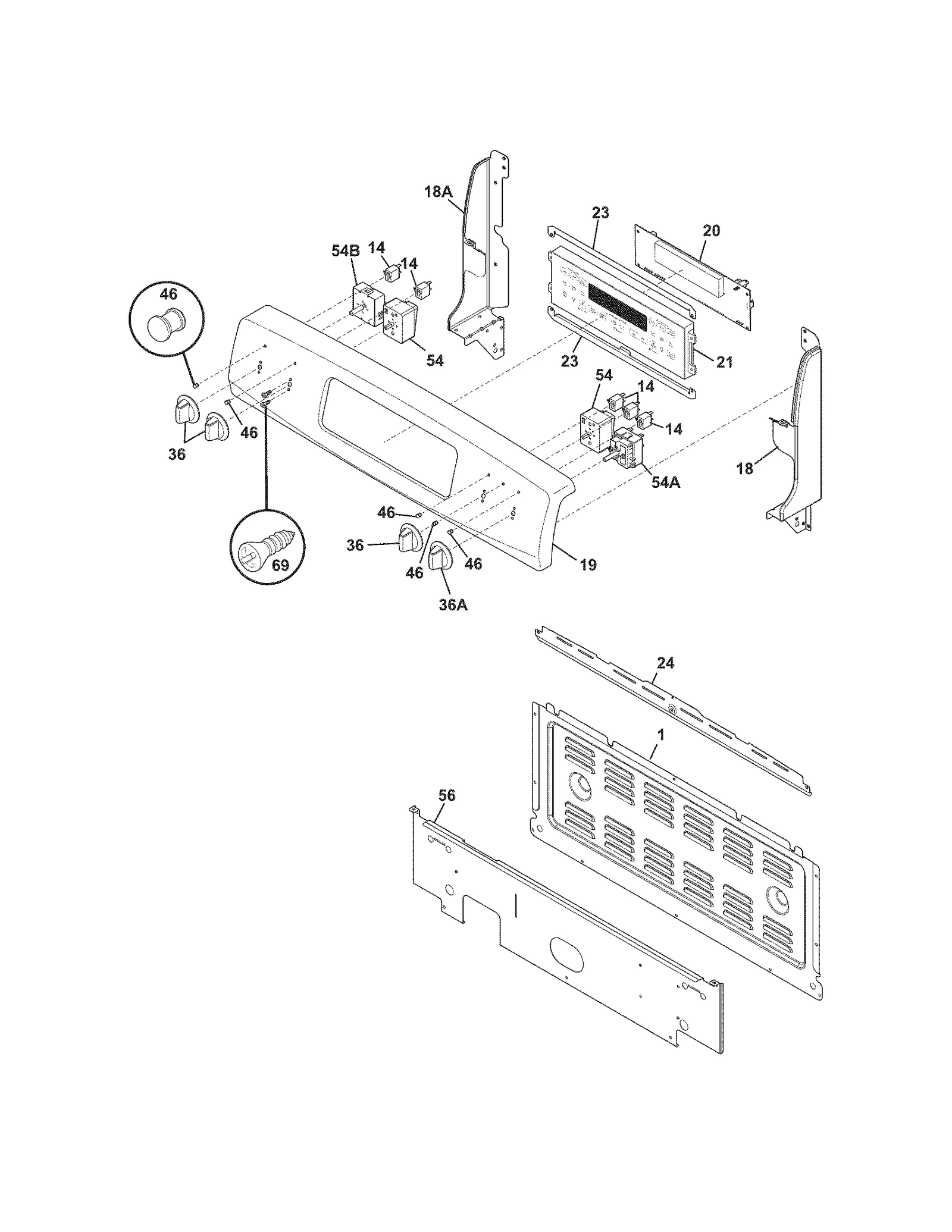

BACKGUARD

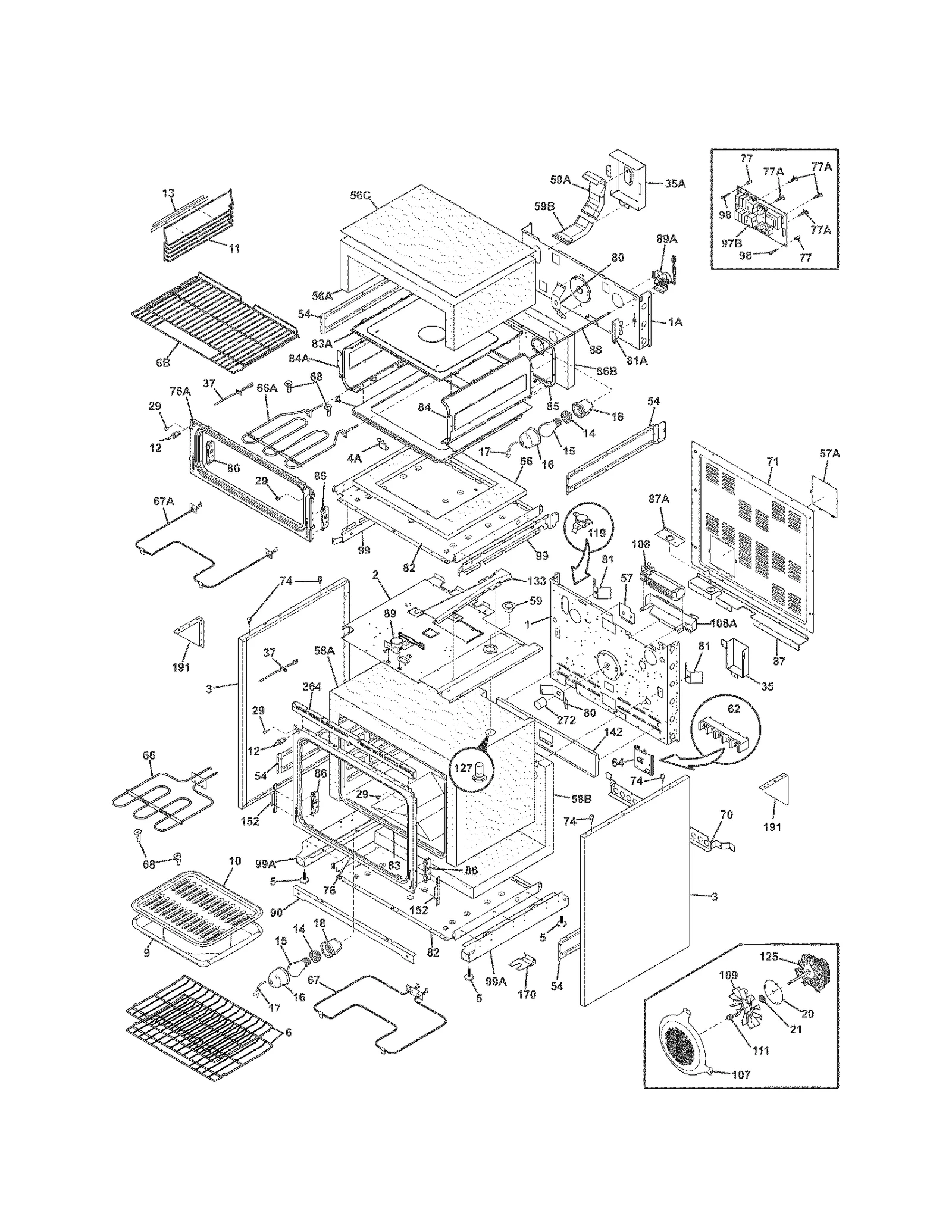

BODY

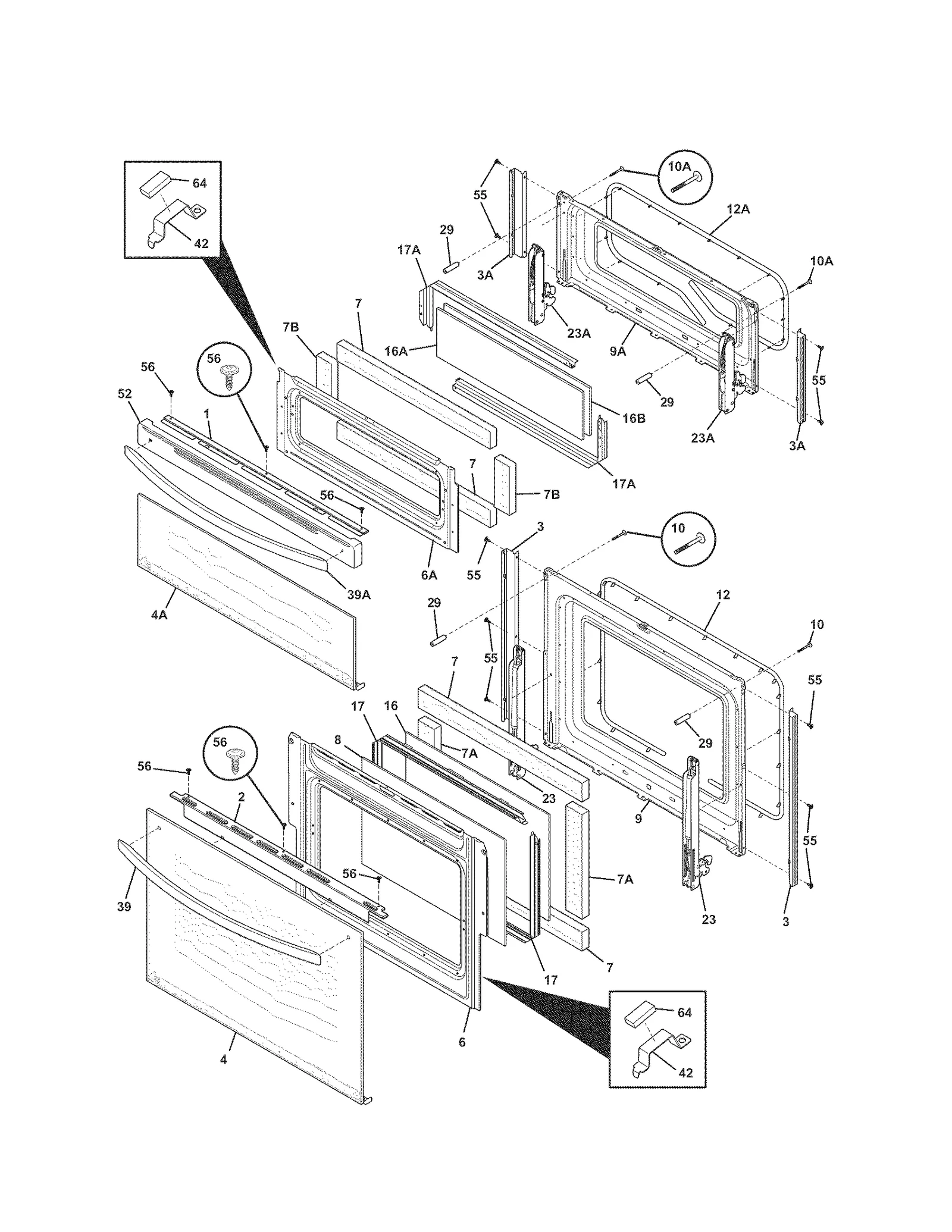

DOORS
Common parts from model Electrolux 790.98059001 Electric Range (Kenmore 79098059001)
1
Range Trim WCI 318562703 Contact Us For Availability
2
Range Trim WCI 318260226 Contact Us For Availability
2
Range Oven Door Vent Trim (Black) WCI 318260227 Contact Us For Availability
3
Panel WCI 318299851 Contact Us For Availability
3
Oven Trim WCI 318301411 Contact Us For Availability
3
Range Oven Door Lower Trim (Black) WCI 318301412 Contact Us For Availability
3A
Range Upper Oven Door Trim (White) WCI 318301421 Contact Us For Availability
3A
Range Trim WCI 318301422 Contact Us For Availability
4
Range Oven Door Outer Panel, Lower (Black) WCI 318304115 Contact Us For Availability
4
Range Oven Door Outer Panel Assembly (White) WCI 318304111 Contact Us For Availability
4A
Oven Door WCI 318304112 Contact Us For Availability
4A
Range Oven Door Outer Panel, Upper (White) WCI 318304114 Contact Us For Availability
5
Range Leveling Leg WCI 318175503 Contact Us For Availability
6
Range Oven Rack WCI 318922304 Contact Us For Availability
6
Oven Baffle WCI 318260527 Contact Us For Availability
6A
Range Oven Door Outer Frame WCI 318260526 Contact Us For Availability
9
Oven Liner WCI 318360113 Contact Us For Availability
9A
Liner WCI 318259676 Contact Us For Availability
10
Range Screw, 10 x 24 x 1.79-in WCI 5304462582 Contact Us For Availability
10A
Range Screw WCI 5304459529 Contact Us For Availability
11
Range Oven Rack Ladder WCI 318603810 Contact Us For Availability
12A
Range Oven Door Seal, Upper WCI 318053152 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 318212210 Contact Us For Availability
16
Range Main Top Assembly WCI 318394214 Contact Us For Availability
16
Range Main Top (White) WCI 318394215 Contact Us For Availability
16A
Range Oven Door Inner Glass, Upper WCI 318212211 Contact Us For Availability
16B
Range Oven Door Inner Glass WCI 318212212 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
18
Range Oven Door Hinge Support Bracket WCI 316436600 Contact Us For Availability
18
Range Oven Light Housing WCI 318222400 Contact Us For Availability
20
Range Oven Control Board WCI 316443855 Contact Us For Availability
20
Plate WCI 318389400 Contact Us For Availability
23
Range Oven Door Hinge, Lower WCI 318567107 Contact Us For Availability
23A
Range Upper Oven Door Hinge WCI 318567132 Contact Us For Availability
26B
Range Radiant Element Support Bracket, Front WCI 316214202 Contact Us For Availability
29
Oven Spacer WCI 318014405 Contact Us For Availability
36
Range Surface Burner Knob WCI 316352800 Contact Us For Availability
36A
Range Surface Burner Knob WCI 316352804 Contact Us For Availability
36A
Range Surface Burner Knob WCI 316352805 Contact Us For Availability
39
Range Oven Door Handle WCI 318372416 Contact Us For Availability
39
Range Oven Door Handle WCI 318372417 Contact Us For Availability
39A
Range Oven Door Handle WCI 316553300 Contact Us For Availability
39A
Range Oven Door Handle (Black) WCI 316553301 Contact Us For Availability
52
Range Trim WCI 318304209 Contact Us For Availability
52
Range Trim WCI 318304210 Contact Us For Availability
56
Range Screw, #8-18 x 1/2-in (White) WCI 5304448821 Contact Us For Availability
56
Range Surface Element Screw WCI 5303317179 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
84
Liner WCI 318364338 Contact Us For Availability
84A
Liner WCI 318364339 Contact Us For Availability
85
Liner WCI 318364427 Contact Us For Availability
87
Bracket WCI 318405500 Contact Us For Availability
87A
Plate WCI 318111806 Contact Us For Availability
88
Range Oven Door Lock Latch Rod WCI 318250207 Contact Us For Availability
99
Wall Oven Side Support Bracket WCI 318252804 Contact Us For Availability
99A
Bracket WCI 318256210 Contact Us For Availability
107
Range Convection Fan Cover WCI 318219405 Contact Us For Availability
108
Range Convection Fan Motor Support Bracket WCI 318251300 Contact Us For Availability
127
Adapter WCI 318357001 Contact Us For Availability
133
Chimney WCI 318347800 Contact Us For Availability
142
Deflector WCI 318123910 Contact Us For Availability
152
Bracket WCI 318338520 Contact Us For Availability
170
Anti-Tip Kit WCI 5304469772 Contact Us For Availability
191
Angle WCI 318322801 Contact Us For Availability
264
Trim WCI 318257829 Contact Us For Availability
272
Oven Tube WCI 318249409 Contact Us For Availability
NI
Range Oven Rack Ladder Bracket Rivet WCI 5304456367 Contact Us For Availability
NI
Appliance Cleaning Pad WCI 316459400 Contact Us For Availability
NI
SCREW, HOUSING, 8 X 1/2", UPPER OVEN (NOT SHO WCI 08011122 Contact Us For Availability
NI
Insulation WCI 318346050 Contact Us For Availability
NI
Oven Seal WCI 318368501 Contact Us For Availability
NI
Wiring Harness WCI 318370378 Contact Us For Availability
NI
Wall Oven Wire Harness WCI 318532135 Contact Us For Availability
NI
Harness WCI 318572722 Contact Us For Availability
NI
Range Wire Harness Retainer WCI 5304400192 Contact Us For Availability
NI
Range Screw WCI 5304454881 Contact Us For Availability
NI
Washer WCI 5304440228 Contact Us For Availability
× ![]()
