Model Electrolux 790.98052003 Electric Range (Kenmore 79098052003) – Common Parts & Diagrams

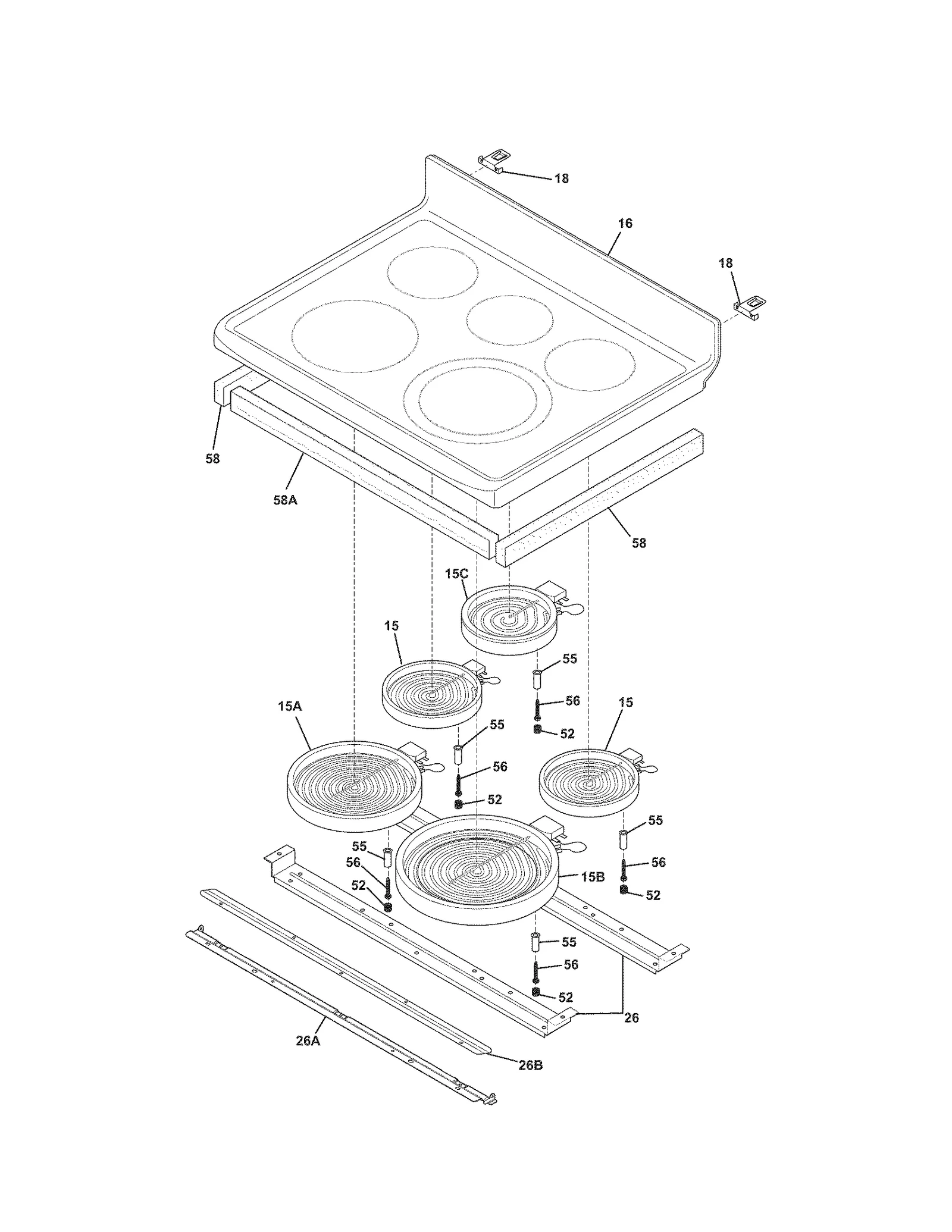

MAIN TOP
BODY
BACKGUARD
DOORS
Common parts from model Electrolux 790.98052003 Electric Range (Kenmore 79098052003)
1
Range Trim WCI 318562703 Contact Us For Availability
2
Range Trim WCI 318260226 Contact Us For Availability
2
Range Oven Door Vent Trim (Black) WCI 318260227 Contact Us For Availability
3
Range Side Panel (Black) WCI 318299882 Contact Us For Availability
3
Oven Trim WCI 318301411 Contact Us For Availability
3
Range Oven Door Lower Trim (Black) WCI 318301412 Contact Us For Availability
3A
Range Upper Oven Door Trim (White) WCI 318301421 Contact Us For Availability
3A
Range Trim WCI 318301422 Contact Us For Availability
4
Range Oven Door Outer Panel, Lower (Black) WCI 318304115 Contact Us For Availability
4
Range Oven Door Outer Panel Assembly (White) WCI 318304111 Contact Us For Availability
4A
Oven Door WCI 318304112 Contact Us For Availability
4A
Range Oven Door Outer Panel, Upper (White) WCI 318304114 Contact Us For Availability
5
Range Leveling Leg WCI 318175503 Contact Us For Availability
6
Range Oven Rack WCI 318922304 Contact Us For Availability
6
Oven Baffle WCI 318260527 Contact Us For Availability
6A
Range Oven Door Outer Frame WCI 318260526 Contact Us For Availability
9
Oven Liner WCI 318360113 Contact Us For Availability
9A
Liner WCI 318259676 Contact Us For Availability
10
Range Screw, 10 x 24 x 1.79-in WCI 5304462582 Contact Us For Availability
10A
Range Screw WCI 5304459529 Contact Us For Availability
11
Range Oven Rack Ladder WCI 318603810 Contact Us For Availability
12A
Range Oven Door Seal, Upper WCI 318053152 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 318212210 Contact Us For Availability
16
Range Main Top Assembly WCI 318394214 Contact Us For Availability
16
Range Main Top (White) WCI 318394215 Contact Us For Availability
16A
Range Oven Door Inner Glass, Upper WCI 318212211 Contact Us For Availability
16B
Range Oven Door Inner Glass WCI 318212212 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
18
Range Oven Door Hinge Support Bracket WCI 316436600 Contact Us For Availability
18
Range Oven Light Housing WCI 318222400 Contact Us For Availability
18
End Cap WCI 318311942 Contact Us For Availability
18
Oven End Cap WCI 318311944 Contact Us For Availability
18A
End Cap WCI 318311943 Contact Us For Availability
18A
Oven End Cap WCI 318311945 Contact Us For Availability
19
Range Control Panel (White) WCI 318571010 Contact Us For Availability
19
Wall Oven Control Panel WCI 318571011 Contact Us For Availability
20
Range Oven Control Board WCI 316443855 Contact Us For Availability
20
Plate WCI 318389400 Contact Us For Availability
21
Timer Assembly WCI 318566032 Contact Us For Availability
21
Range Oven Control Board and Overlay (Black) WCI 318566033 Contact Us For Availability
23
Bracket WCI 318575702 Contact Us For Availability
23
Range Oven Door Hinge, Lower WCI 318567107 Contact Us For Availability
23A
Range Upper Oven Door Hinge WCI 318567132 Contact Us For Availability
24
Range Trim WCI 318566203 Contact Us For Availability
26B
Range Radiant Element Support Bracket, Front WCI 316214202 Contact Us For Availability
29
Oven Spacer WCI 318014405 Contact Us For Availability
36
Range Surface Burner Knob WCI 316352800 Contact Us For Availability
36A
Range Surface Burner Knob WCI 316352804 Contact Us For Availability
36A
Range Surface Burner Knob WCI 316352805 Contact Us For Availability
39
Range Oven Door Handle WCI 318372416 Contact Us For Availability
39
Range Oven Door Handle WCI 318372417 Contact Us For Availability
39A
Range Oven Door Handle WCI 316553300 Contact Us For Availability
39A
Range Oven Door Handle (Black) WCI 316553301 Contact Us For Availability
52
Range Trim WCI 318304209 Contact Us For Availability
52
Range Trim WCI 318304210 Contact Us For Availability
54B
Range Surface Element Control Switch WCI 318589600 Contact Us For Availability
56
Range Screw, #8-18 x 1/2-in (White) WCI 5304448821 Contact Us For Availability
56
Range Surface Element Screw WCI 5303317179 Contact Us For Availability
56
Shield WCI 318534911 Contact Us For Availability
56
Shield WCI 318534912 Contact Us For Availability
66
Range Broil Element WCI 318255808 Contact Us For Availability
67
Range Bake Element WCI 318255013 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
88
Range Oven Door Lock Latch Rod WCI 318250207 Contact Us For Availability
107
Range Convection Fan Cover WCI 318219405 Contact Us For Availability
108
Range Convection Fan Motor Support Bracket WCI 318251300 Contact Us For Availability
127
Adapter WCI 318357001 Contact Us For Availability
170
Range Anti-Tip Bracket Kit WCI 318584501 Contact Us For Availability
NI
Range Oven Rack Ladder Bracket Rivet WCI 5304456367 Contact Us For Availability
NI
Appliance Cleaning Pad WCI 316459400 Contact Us For Availability
NI
Instructions WCI 318201732 Contact Us For Availability
NI
Service Data Sheet WCI 318204817 Contact Us For Availability
NI
Range Wire Harness WCI 318532133 Contact Us For Availability
NI
Harness WCI 318532188 Contact Us For Availability
NI
Range Screw, #10 x 1/2-in WCI 5303317975 Contact Us For Availability
NI
Range Screw WCI 5304454881 Contact Us For Availability
NI
Repair Parts List WCI 5995610861 Contact Us For Availability
NI
Washer WCI 5304440228 Contact Us For Availability
× ![]()
