Model Electrolux 790.98042901 Electric Range (Kenmore 79098042901) – Common Parts & Diagrams
BACKGUARD

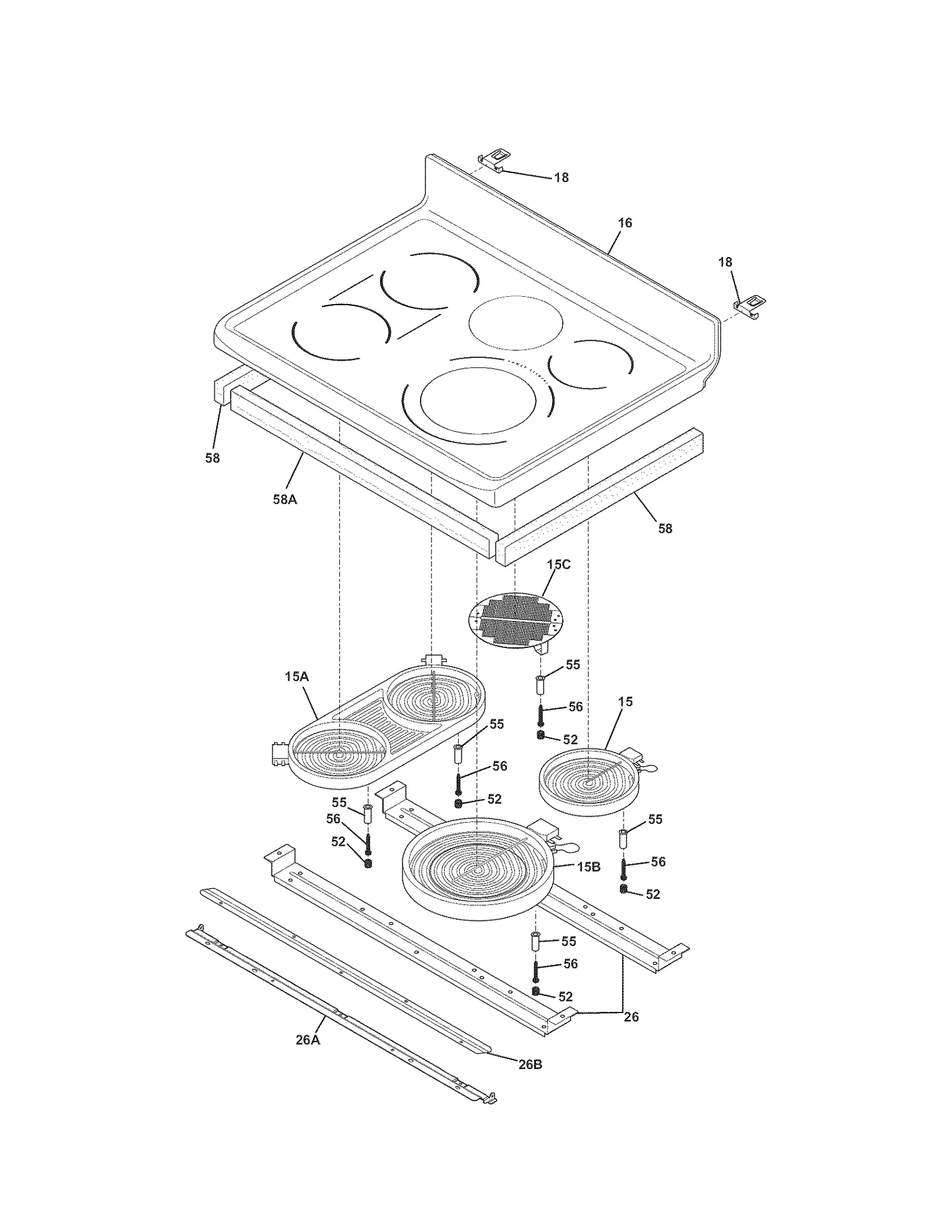

MAIN TOP

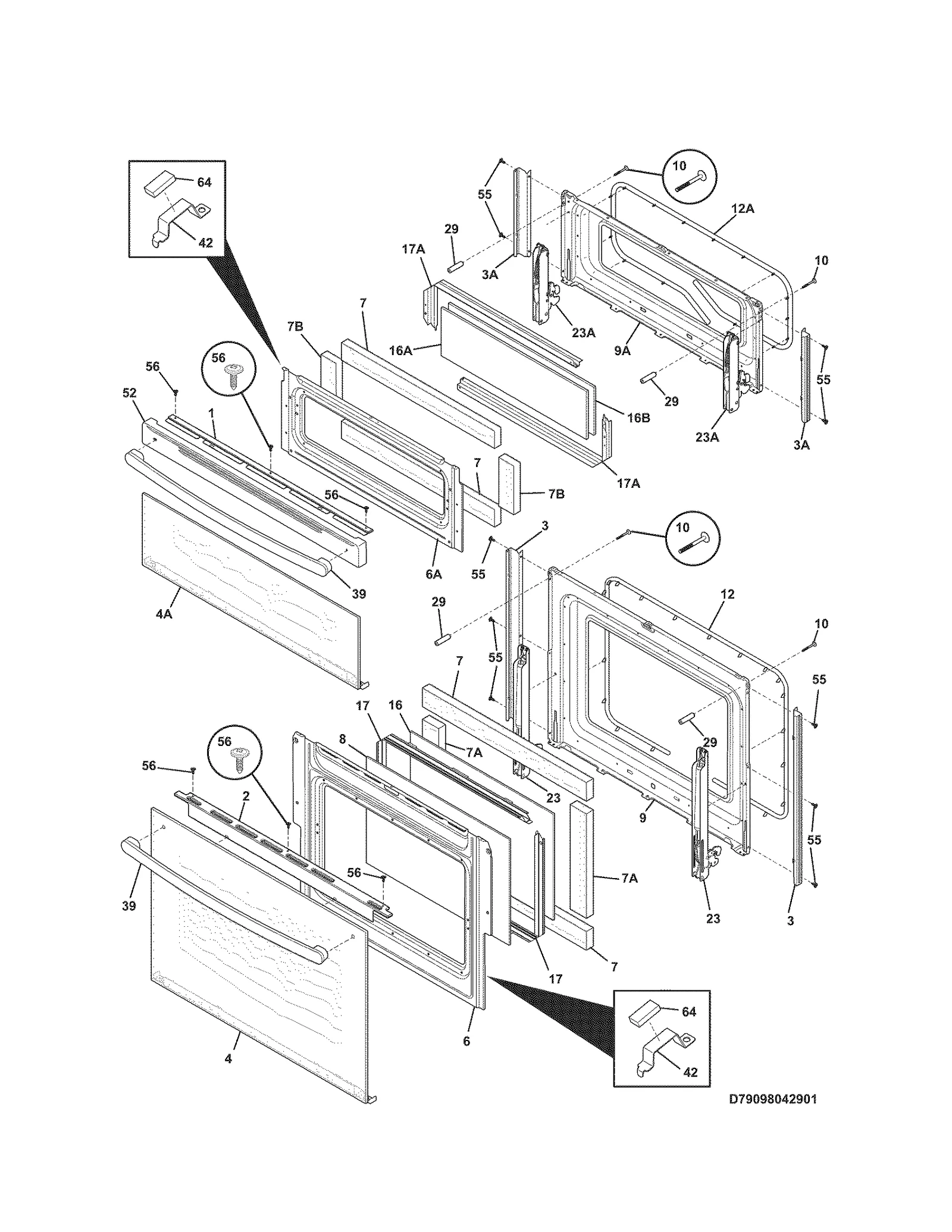

DOORS

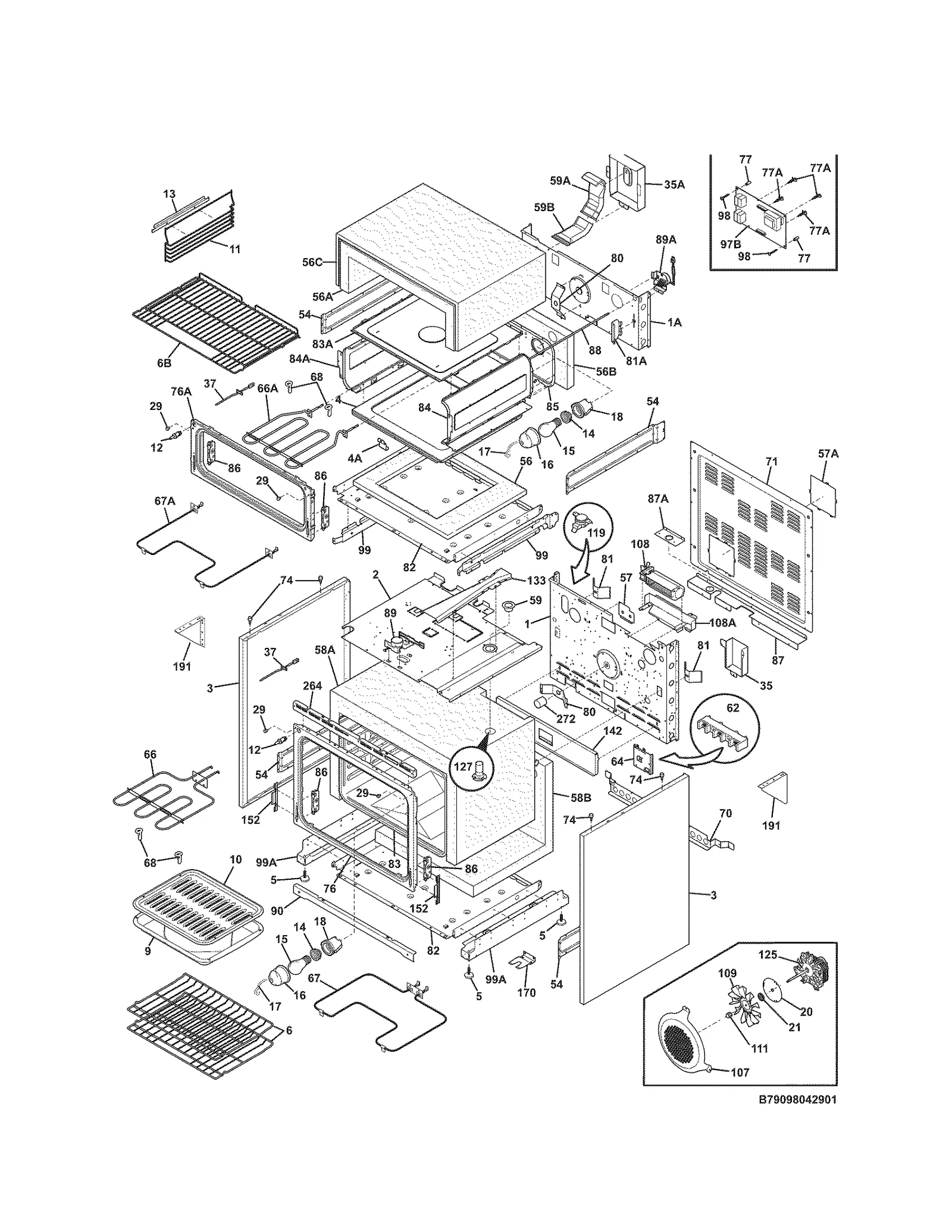

BODY
Common parts from model Electrolux 790.98042901 Electric Range (Kenmore 79098042901)
1
Range Rear Panel WCI 318259220 Contact Us For Availability
1A
Back WCI 318259261 Contact Us For Availability
2
Shield WCI 318258960 Contact Us For Availability
3
Panel WCI 318299851 Contact Us For Availability
3
Panel WCI 318299852 Contact Us For Availability
4
Range Oven Door Outer Panel, Lower (Black) WCI 318304115 Contact Us For Availability
4
Range Oven Door Outer Panel Assembly (White) WCI 318304111 Contact Us For Availability
4
Range Oven Bottom Liner WCI 318364111 Contact Us For Availability
4A
Bracket WCI 318407200 Contact Us For Availability
5
Range Leveling Leg WCI 318175503 Contact Us For Availability
5
Screw WCI 318175508 Contact Us For Availability
6
Oven Rack WCI 318345306 Contact Us For Availability
6B
Range Oven Rack WCI 318601905 Contact Us For Availability
9
Broiler Pan WCI 5303317977 Contact Us For Availability
10
Insert Broil WCI 5303317976 Contact Us For Availability
11
Range Oven Rack Ladder WCI 318603810 Contact Us For Availability
12A
Range Oven Door Seal, Upper WCI 318053152 Contact Us For Availability
13
Range Oven Rack Ladder Bracket WCI 318603915 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 318212210 Contact Us For Availability
16B
Range Oven Door Inner Glass WCI 318212212 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
18
Range Oven Door Hinge Support Bracket WCI 316436600 Contact Us For Availability
18
Range Oven Light Housing WCI 318222400 Contact Us For Availability
20
Plate WCI 318389400 Contact Us For Availability
23
Range Oven Control Bracket WCI 316441500 Contact Us For Availability
26B
Range Radiant Element Support Bracket, Front WCI 316214202 Contact Us For Availability
27
Range Simmer Select Switch (Black) WCI 5303935316 Contact Us For Availability
27
Oven Switch WCI 5303935314 Contact Us For Availability
28
Range Simmer Select Switch Button (Black) WCI 316219301 Contact Us For Availability
29
Oven Spacer WCI 318014405 Contact Us For Availability
35
Shield WCI 318406500 Contact Us For Availability
35A
SHIELD, VENT TUBE WCI 318535000 Contact Us For Availability
39
Door Handle WCI 318930000 Contact Us For Availability
39
Oven Handle WCI 318930001 Contact Us For Availability
52
Trim WCI 318304206 Contact Us For Availability
52
Range Trim WCI 318304210 Contact Us For Availability
54
Bracket WCI 318535400 Contact Us For Availability
56
Range Screw, #8-18 x 1/2-in (White) WCI 5304448821 Contact Us For Availability
56
Range Surface Element Screw WCI 5303317179 Contact Us For Availability
56A
Insulation WCI 318362132 Contact Us For Availability
56B
Insulation WCI 318362142 Contact Us For Availability
56C
Panel WCI 318235715 Contact Us For Availability
57
Plate WCI 318402800 Contact Us For Availability
57A
Range Access Panel WCI 318407100 Contact Us For Availability
58A
Insulation WCI 318362133 Contact Us For Availability
58B
Insulation WCI 318386112 Contact Us For Availability
59A
Vent Tube WCI 318408204 Contact Us For Availability
59B
Catalyst Assembly WCI 318408401 Contact Us For Availability
64
Bracket WCI 318561801 Contact Us For Availability
66
Oven Broil Element WCI 318255801 Contact Us For Availability
66A
Element WCI 318255814 Contact Us For Availability
67
Element WCI 318255010 Contact Us For Availability
67A
Range Bake Element WCI 318255009 Contact Us For Availability
70
Bracket WCI 318565000 Contact Us For Availability
71
Panel WCI 318405401 Contact Us For Availability
74
Bumper WCI 318141910 Contact Us For Availability
76
Wall Oven Front Frame WCI 318056292 Contact Us For Availability
76A
Front WCI 318056263 Contact Us For Availability
76A
Bracket WCI 318373811 Contact Us For Availability
77
Range Spacer WCI 318293702 Contact Us For Availability
80
Wall Oven Rear Panel Spacer Bracket WCI 5303320846 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
81A
Bracket WCI 318373700 Contact Us For Availability
82
Shield WCI 318258778 Contact Us For Availability
83
Liner WCI 318261750 Contact Us For Availability
83A
Liner WCI 318364211 Contact Us For Availability
84
Liner WCI 318364338 Contact Us For Availability
84A
Liner WCI 318364339 Contact Us For Availability
85
Liner WCI 318364427 Contact Us For Availability
87
Bracket WCI 318405500 Contact Us For Availability
87A
Plate WCI 318111806 Contact Us For Availability
88
Range Oven Door Lock Latch Rod WCI 318250207 Contact Us For Availability
99
Wall Oven Side Support Bracket WCI 318252804 Contact Us For Availability
99A
Bracket WCI 318256210 Contact Us For Availability
107
Range Convection Fan Cover WCI 318219405 Contact Us For Availability
108
Range Convection Fan Motor Support Bracket WCI 318251300 Contact Us For Availability
127
Adapter WCI 318357001 Contact Us For Availability
133
Chimney WCI 318347800 Contact Us For Availability
142
Deflector WCI 318123910 Contact Us For Availability
152
Bracket WCI 318338520 Contact Us For Availability
170
Anti-Tip Kit WCI 5304469772 Contact Us For Availability
191
Angle WCI 318322801 Contact Us For Availability
264
Trim WCI 318257829 Contact Us For Availability
272
Oven Tube WCI 318249409 Contact Us For Availability
NI
Range Oven Rack Ladder Bracket Rivet WCI 5304456367 Contact Us For Availability
NI
Appliance Cleaning Pad WCI 316459400 Contact Us For Availability
NI
Washer WCI 5304440228 Contact Us For Availability
NI
SCREW, HOUSING, 8 X 1/2", UPPER OVEN (NOT SHO WCI 08011122 Contact Us For Availability
NI
Insulation WCI 318346050 Contact Us For Availability
NI
Oven Seal WCI 318368501 Contact Us For Availability
NI
Wiring Harness WCI 318370378 Contact Us For Availability
NI
Wall Oven Wire Harness WCI 318532135 Contact Us For Availability
NI
Range Wire Harness WCI 318532187 Contact Us For Availability
NI
Range Wire Harness Retainer WCI 5304400192 Contact Us For Availability
NI
Range Screw WCI 5304454881 Contact Us For Availability
× ![]()
