Model Electrolux 790.97609300 Electric Range (Kenmore 79097609300) – Common Parts & Diagrams
BACKGUARD

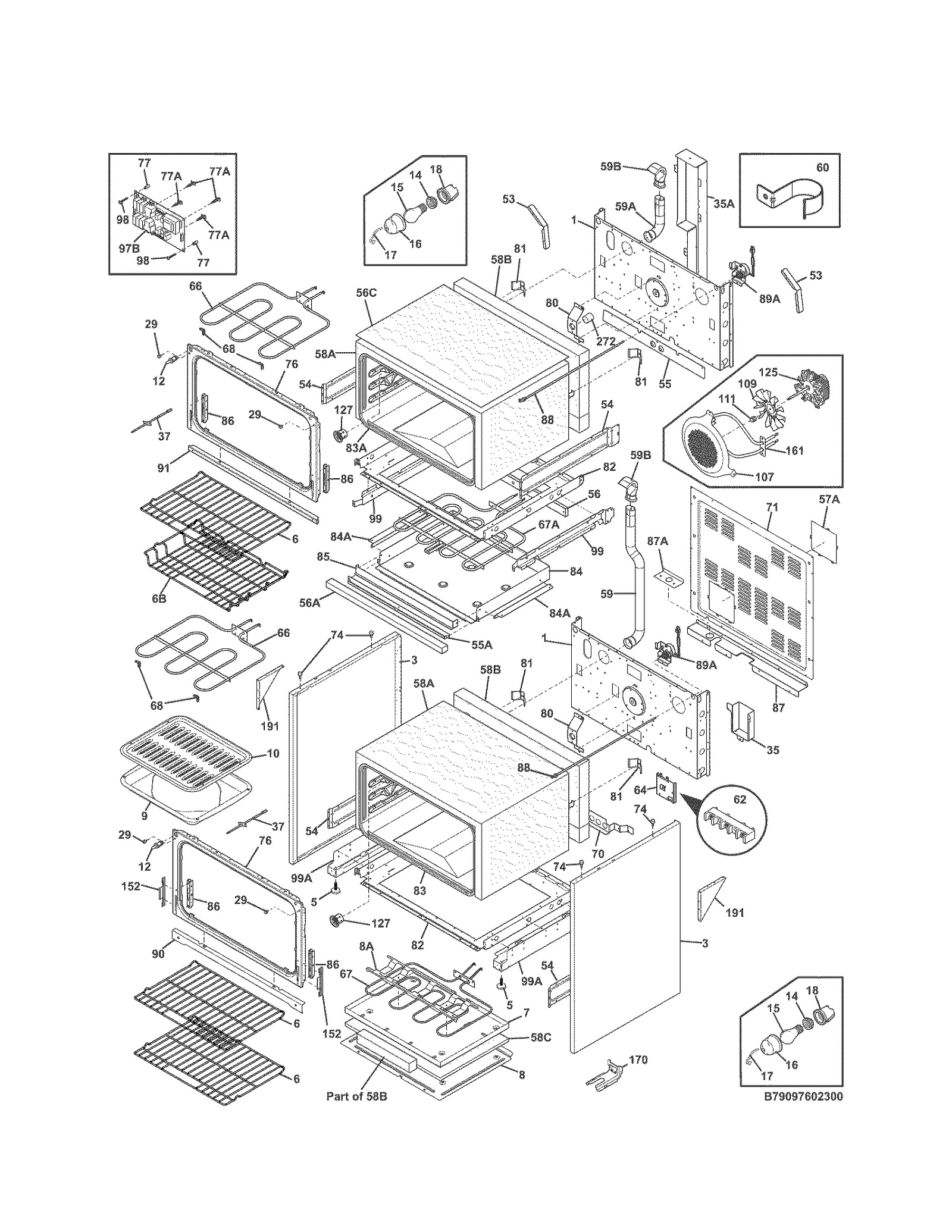

BODY

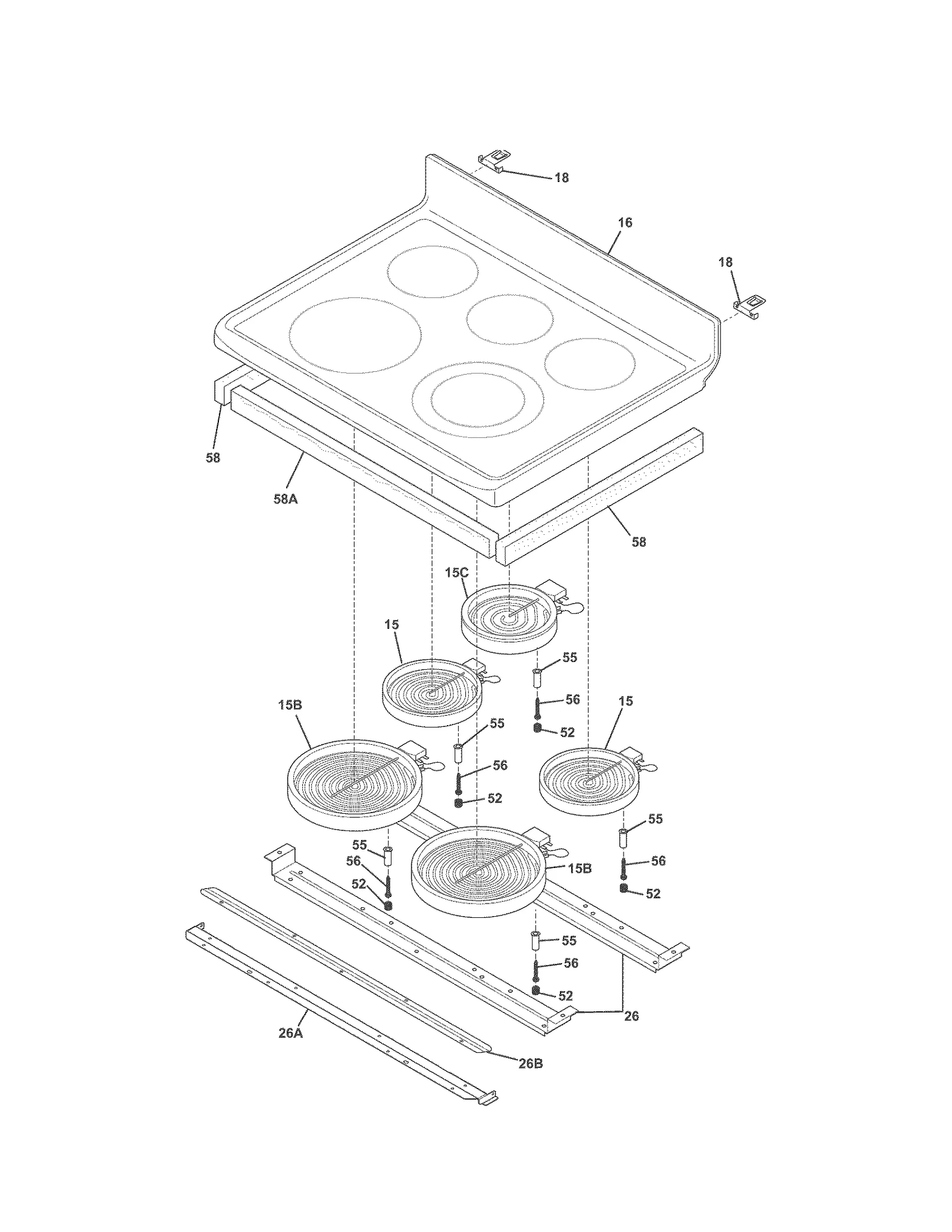

MAIN TOP

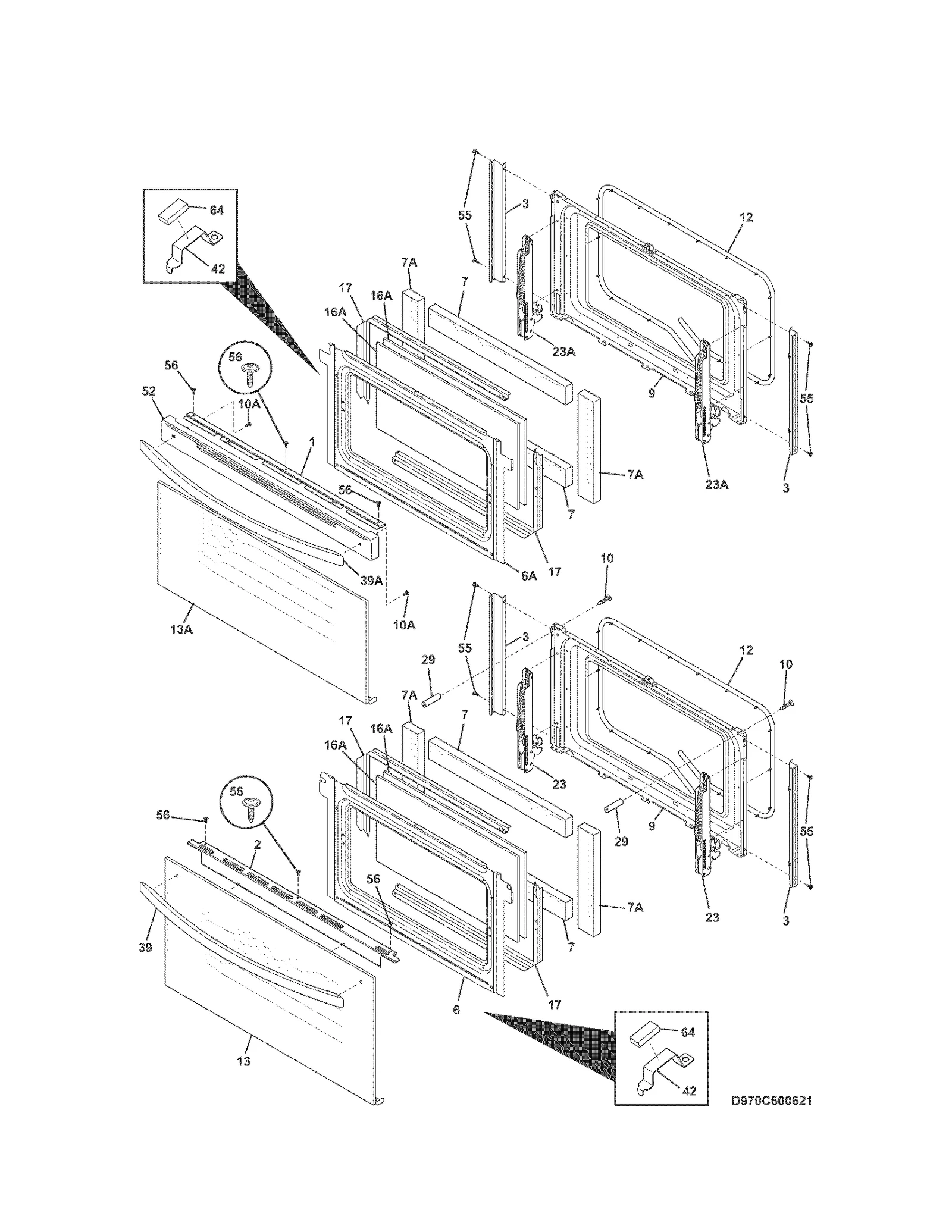

DOORS
Common parts from model Electrolux 790.97609300 Electric Range (Kenmore 79097609300)
1
Range Trim WCI 318562703 Contact Us For Availability
2
Range Trim WCI 318260226 Contact Us For Availability
2
Range Oven Door Vent Trim (Black) WCI 318260227 Contact Us For Availability
3
Range Side Panel (Black) WCI 318299882 Contact Us For Availability
3
Trim WCI 318301431 Contact Us For Availability
3
Range Oven Door Trim WCI 318301432 Contact Us For Availability
5
Range Leveling Leg WCI 318175510 Contact Us For Availability
5
Range Leveling Leg WCI 318175503 Contact Us For Availability
6
Range Oven Rack WCI 318922316 Contact Us For Availability
6
Range Lower Oven Door Baffle WCI 318260525 Contact Us For Availability
6A
Oven Baffle WCI 318260528 Contact Us For Availability
8A
Range Bake Element Bracket WCI 318313601 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
9
Range Oven Door Liner WCI 318259682 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
10
Range Screw, 10 x 24 x 1.79-in WCI 5304462582 Contact Us For Availability
10A
Range Screw WCI 5304459529 Contact Us For Availability
12
Range Oven Door Seal WCI 318053154 Contact Us For Availability
13
Oven Door Assembly WCI 318646609 Contact Us For Availability
13
Range Lower Oven Door Outer Panel WCI 318646611 Contact Us For Availability
13A
Oven Door Assembly WCI 318646608 Contact Us For Availability
13A
Oven Door Assembly WCI 318646610 Contact Us For Availability
16
Range Main Top (Black) WCI 318394231 Contact Us For Availability
16
Range Main Top (Black and White) WCI 318394233 Contact Us For Availability
16A
Range Oven Door Inner Glass WCI 318212216 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
17
Range Oven Door Glass Retainer WCI 318640200 Contact Us For Availability
18
Range Oven Light Housing WCI 318222400 Contact Us For Availability
18
Range Oven Door Hinge Support Bracket WCI 316436600 Contact Us For Availability
20
Range Oven Control Board WCI 316443867 Contact Us For Availability
21
Range Clock and Timer Kit (Black) WCI 318566051 Contact Us For Availability
23
Hinge WCI 318567122 Contact Us For Availability
23A
Oven Hinge WCI 318567120 Contact Us For Availability
26
Bracket WCI 318410902 Contact Us For Availability
26A
Bracket WCI 318640301 Contact Us For Availability
26B
Range Radiant Element Support Bracket, Front WCI 316214202 Contact Us For Availability
29
Oven Spacer WCI 318014405 Contact Us For Availability
36
Range Surface Burner Knob WCI 316352800 Contact Us For Availability
36A
Range Surface Burner Knob WCI 316352804 Contact Us For Availability
36A
Range Surface Burner Knob WCI 316352805 Contact Us For Availability
39
Range Oven Door Handle WCI 318372416 Contact Us For Availability
39
Range Oven Door Handle WCI 318372417 Contact Us For Availability
39A
Range Oven Door Handle WCI 316553300 Contact Us For Availability
39A
Range Oven Door Handle (Black) WCI 316553301 Contact Us For Availability
52
Range Trim WCI 318304209 Contact Us For Availability
52
Range Trim WCI 318304210 Contact Us For Availability
54A
Range Surface Element Control Switch WCI 318293836 Contact Us For Availability
54B
Range Surface Element Control Switch WCI 318589600 Contact Us For Availability
55
Cooking Appliance Element Spacer WCI 5303317178 Contact Us For Availability
56
Range Surface Element Screw WCI 5303317179 Contact Us For Availability
58A
Insulation WCI 318362141 Contact Us For Availability
66
Range Broil Element WCI 318255808 Contact Us For Availability
67
Range Bake Element WCI 318254912 Contact Us For Availability
67A
Range Bake Element, 2,500-watt WCI 318641100 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
88
Range Oven Door Lock Latch Rod WCI 318250207 Contact Us For Availability
107
Range Convection Fan Cover WCI 318219405 Contact Us For Availability
170
Range Anti-Tip Bracket Kit WCI 318584501 Contact Us For Availability
NI
Appliance Cleaning Pad WCI 316459400 Contact Us For Availability
NI
Insulation WCI 318268099 Contact Us For Availability
NI
Wiring Harness WCI 318370378 Contact Us For Availability
NI
Range Wire Harness Retainer WCI 5304400192 Contact Us For Availability
NI
Harness WCI 5304490677 Contact Us For Availability
NI
Harness WCI 5304490679 Contact Us For Availability
NI
Screw WCI 08016432 Contact Us For Availability
NI
Cleaner-cook WCI 316112100 Contact Us For Availability
NI
Harness WCI 5304490678 Contact Us For Availability
NI
Washer WCI 5304440228 Contact Us For Availability
× ![]()
