Model Electrolux 790.97603300 Electric Range (Kenmore 79097603300) – Common Parts & Diagrams
BACKGUARD

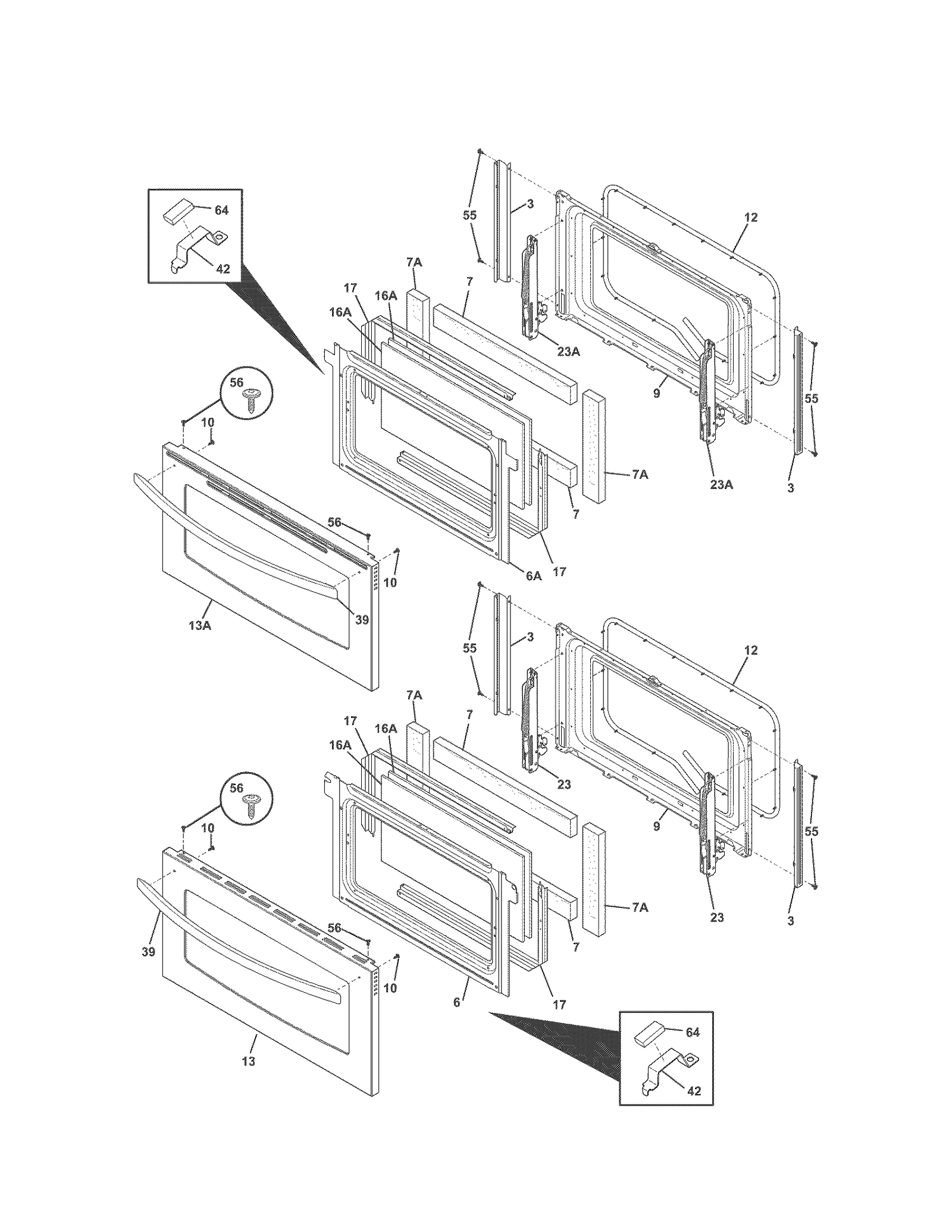

DOORS

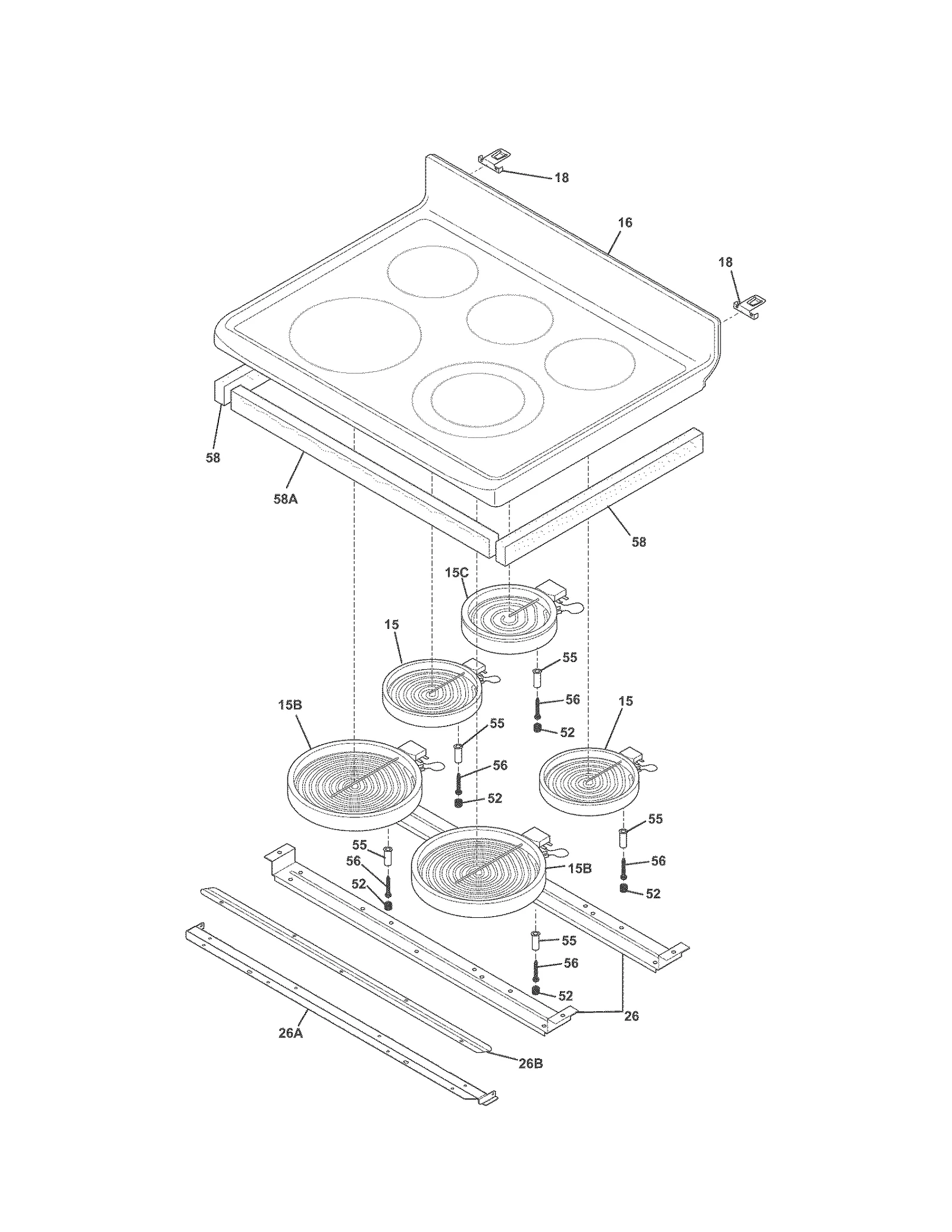

MAIN TOP

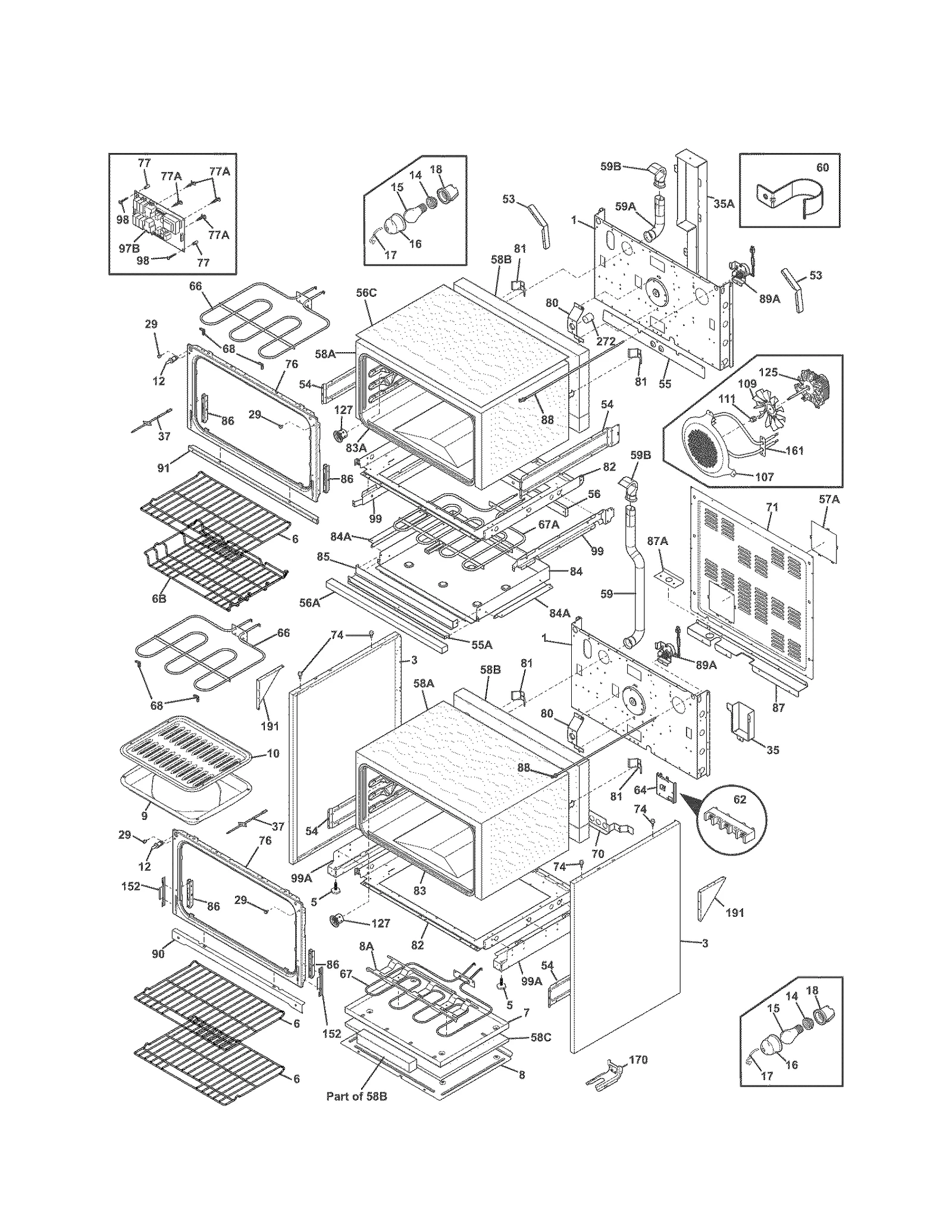

BODY
Common parts from model Electrolux 790.97603300 Electric Range (Kenmore 79097603300)
3
Range Side Panel (Black) WCI 318299882 Contact Us For Availability
5
Range Leveling Leg WCI 318175510 Contact Us For Availability
5
Range Leveling Leg WCI 318175503 Contact Us For Availability
6
Range Oven Rack WCI 318922316 Contact Us For Availability
8A
Range Bake Element Bracket WCI 318313601 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
12
Range Oven Door Seal WCI 318053154 Contact Us For Availability
16A
Range Oven Door Inner Glass WCI 318212216 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
18
Range Oven Door Hinge Support Bracket WCI 316436600 Contact Us For Availability
18
Range Oven Light Housing WCI 318222400 Contact Us For Availability
20
Range Oven Control Board WCI 316443867 Contact Us For Availability
21
Range Clock and Timer Kit (Black) WCI 318566051 Contact Us For Availability
26B
Range Radiant Element Support Bracket, Front WCI 316214202 Contact Us For Availability
54A
Range Surface Element Control Switch WCI 318293836 Contact Us For Availability
54B
Range Surface Element Control Switch WCI 318589600 Contact Us For Availability
56
Range Surface Element Screw WCI 5303317179 Contact Us For Availability
66
Range Broil Element WCI 318255808 Contact Us For Availability
67
Range Bake Element WCI 318254912 Contact Us For Availability
67A
Range Bake Element, 2,500-watt WCI 318641100 Contact Us For Availability
71
Range Rear Panel, Lower WCI 318405404 Contact Us For Availability
74
Bumper WCI 318141910 Contact Us For Availability
76
Front WCI 318056249 Contact Us For Availability
77
Range Spacer WCI 318293702 Contact Us For Availability
80
Wall Oven Rear Panel Spacer Bracket WCI 5303320846 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
82
Shield WCI 318258779 Contact Us For Availability
83
Liner WCI 318327042 Contact Us For Availability
83A
Liner WCI 318327059 Contact Us For Availability
84
Base WCI 318640500 Contact Us For Availability
84A
Support WCI 318640700 Contact Us For Availability
85
Front WCI 318640600 Contact Us For Availability
87
Bracket WCI 318405500 Contact Us For Availability
87A
Plate WCI 318111806 Contact Us For Availability
88
Range Oven Door Lock Latch Rod WCI 318250207 Contact Us For Availability
91
Trim WCI 318642500 Contact Us For Availability
99
Support WCI 318640000 Contact Us For Availability
99A
Bracket WCI 318256210 Contact Us For Availability
107
Range Convection Fan Cover WCI 318219405 Contact Us For Availability
127
Vent Tube WCI 318641200 Contact Us For Availability
152
Bracket WCI 318338520 Contact Us For Availability
170
Range Anti-Tip Bracket Kit WCI 318584501 Contact Us For Availability
191
Angle WCI 318322801 Contact Us For Availability
272
Oven Tube WCI 318249409 Contact Us For Availability
NI
Appliance Cleaning Pad WCI 316459400 Contact Us For Availability
NI
Shouldr Bolt WCI 3051050 Contact Us For Availability
NI
Stiffener WCI 318172904 Contact Us For Availability
NI
Insulation WCI 318268099 Contact Us For Availability
NI
Wiring Harness WCI 318370378 Contact Us For Availability
NI
Range Wire Harness Retainer WCI 5304400192 Contact Us For Availability
NI
Harness WCI 5304490677 Contact Us For Availability
NI
Harness WCI 5304490679 Contact Us For Availability
× ![]()
