Model Electrolux 790.95722990 Electric Range (Kenmore 79095722990) – Common Parts & Diagrams
All Parts

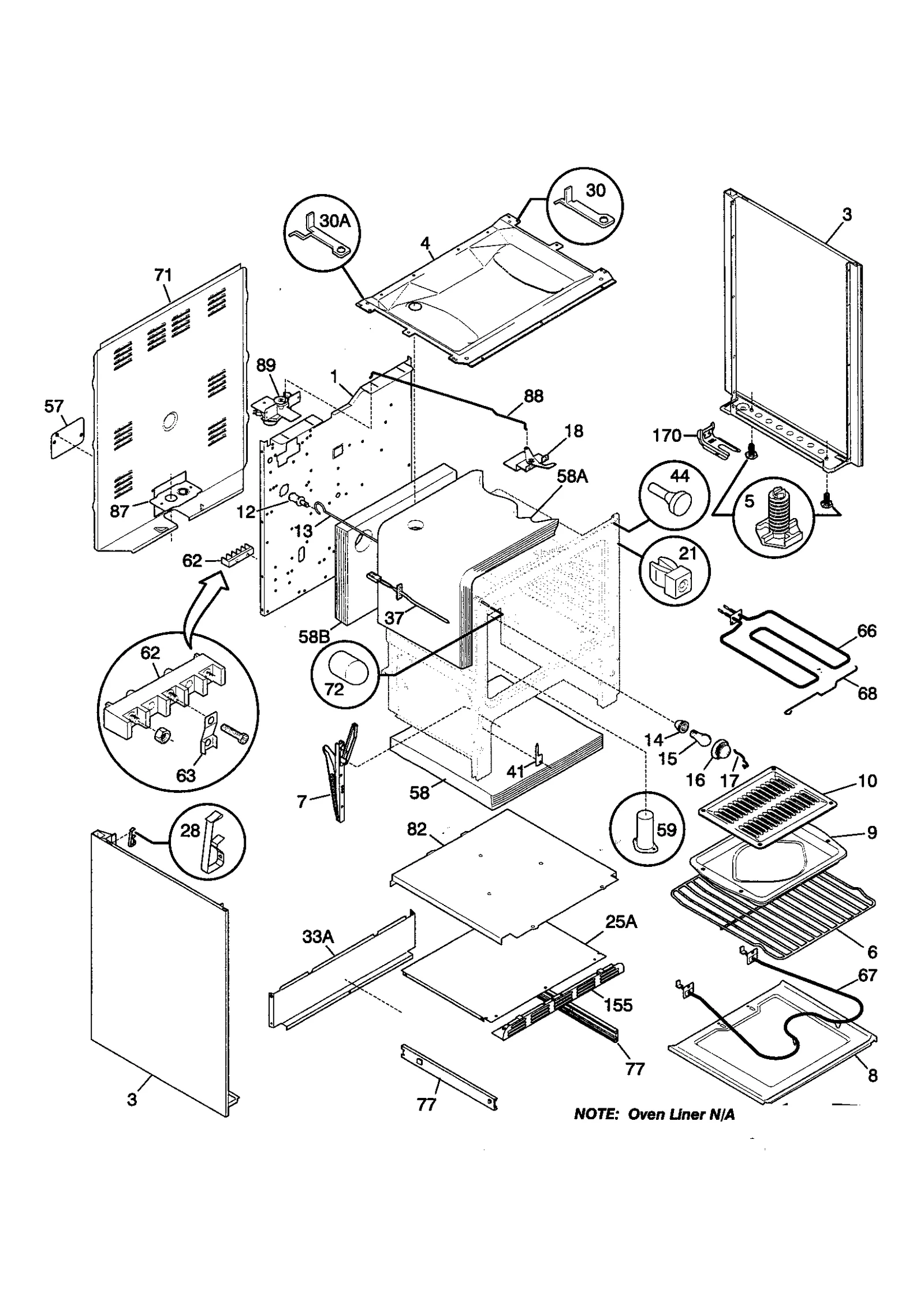

BODY

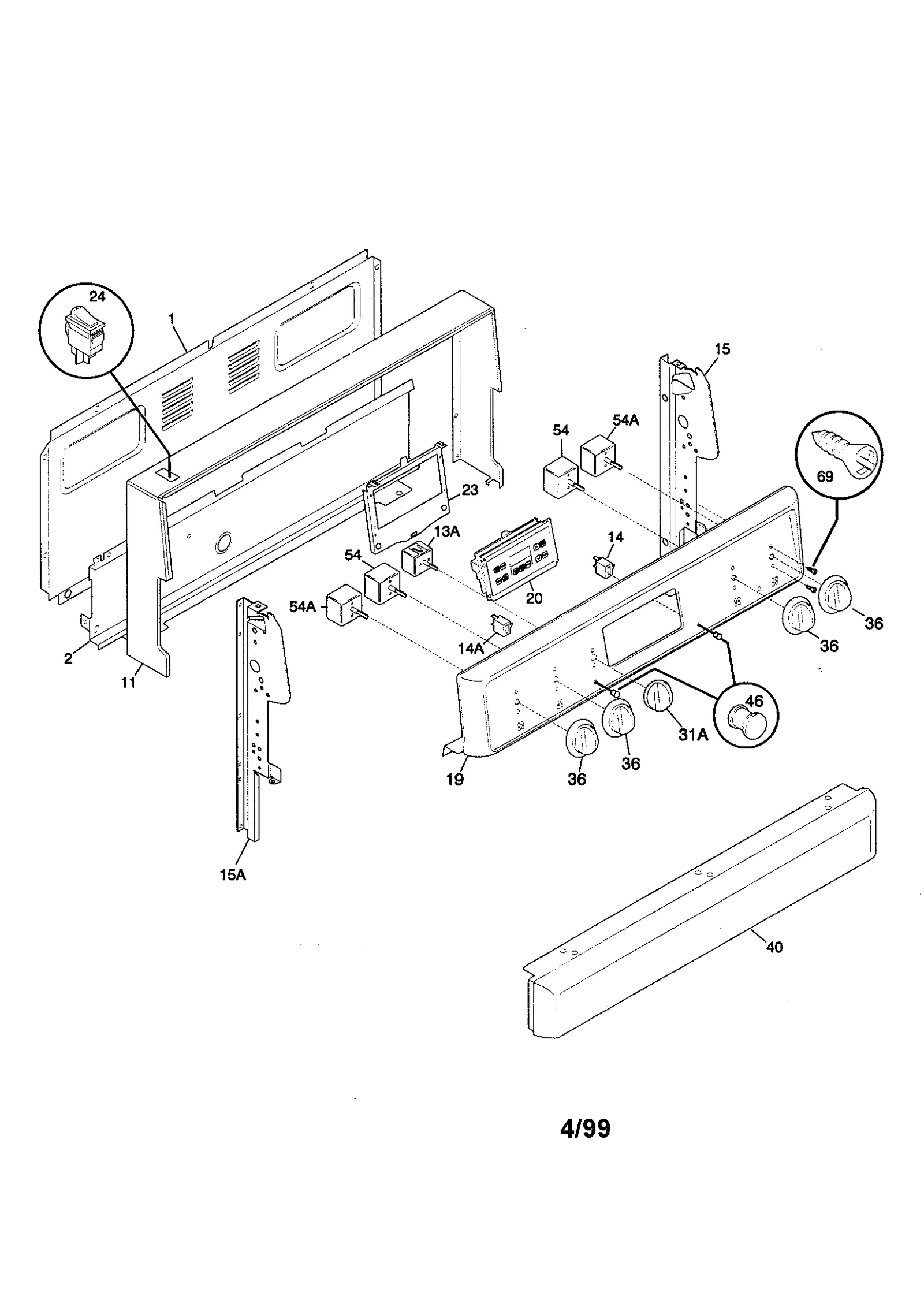

BACKGUARD

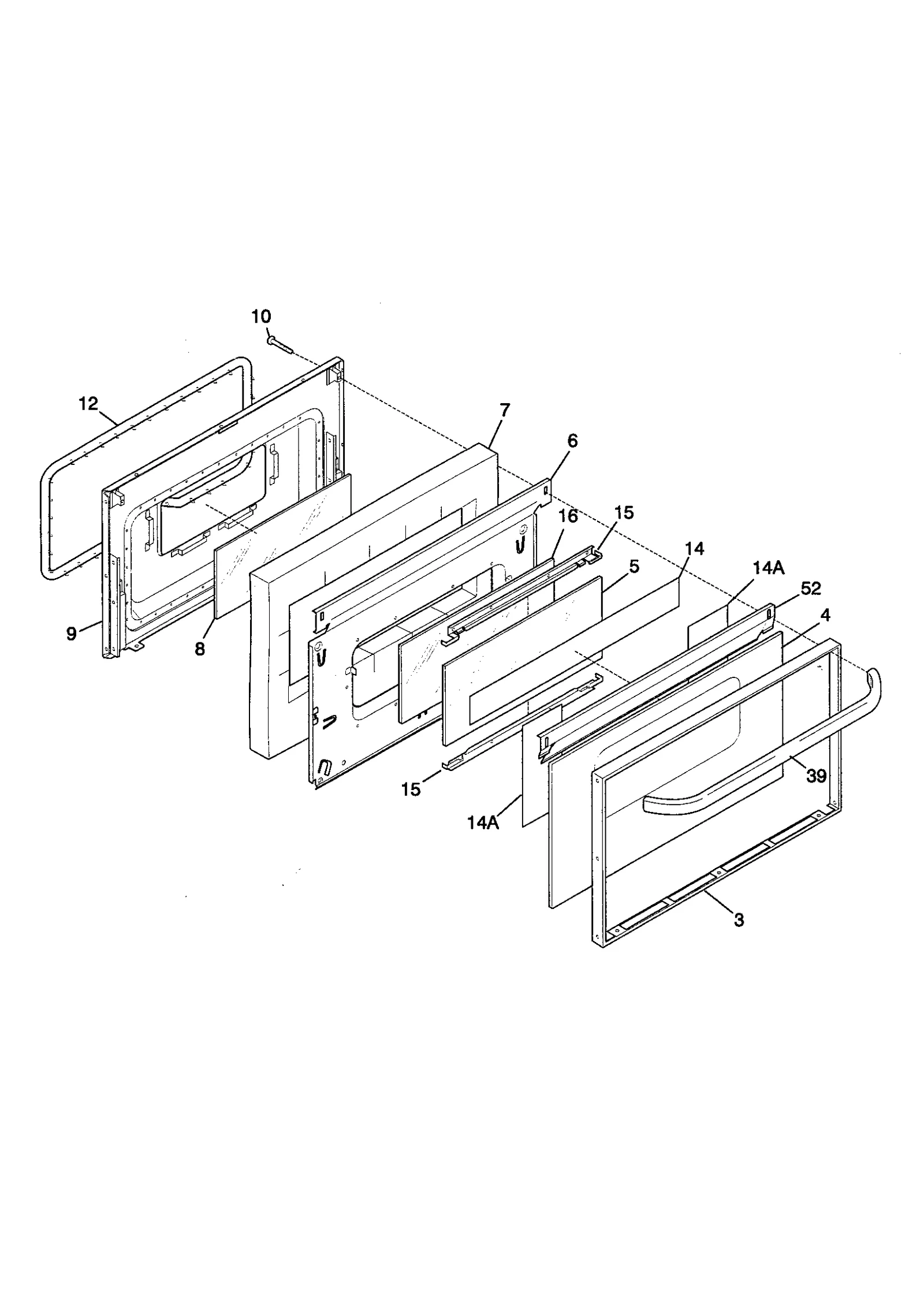

DOOR

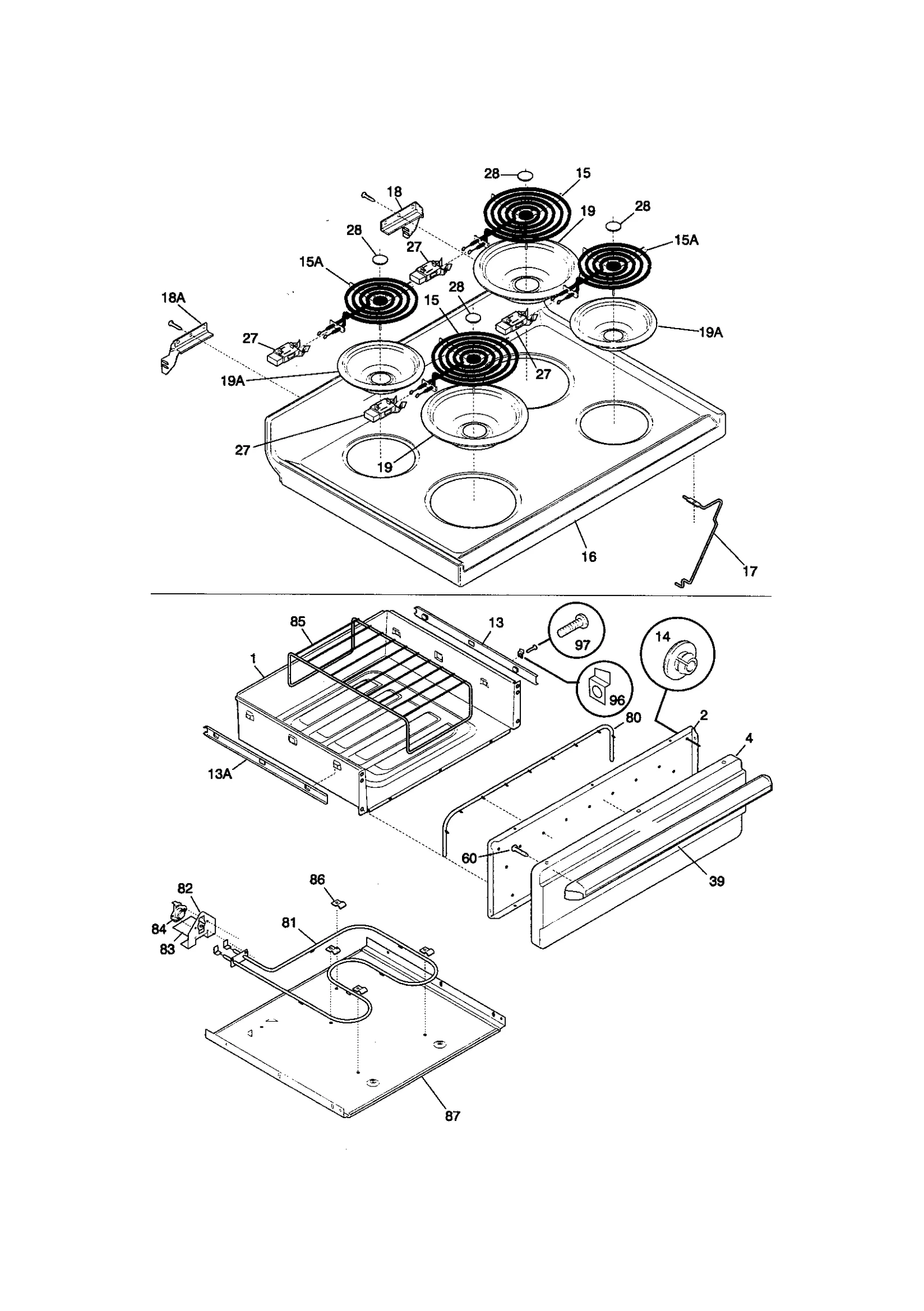

TOP/DRAWER
Common parts from model Electrolux 790.95722990 Electric Range (Kenmore 79095722990)
1
Plate WCI 316081601 Contact Us For Availability
1
Warming Drawer WCI 316094601 Contact Us For Availability
2
Backing Shield WCI 316015907 Contact Us For Availability
2
Liner WCI 316092901 Contact Us For Availability
3
Trim WCI 316067802 Contact Us For Availability
3A
Oven Door Trim WCI 316067803 Contact Us For Availability
3B
Drive Trim WCI 316067804 Contact Us For Availability
4
Glass-oven D WCI 316089000 Contact Us For Availability
4
Draw WCI 316056203 Contact Us For Availability
4A
Oven Door Glass WCI 316089004 Contact Us For Availability
4A
Drawer Panel WCI 316056201 Contact Us For Availability
4B
Glass-oven D WCI 316089005 Contact Us For Availability
4B
Drawer Panel WCI 316056202 Contact Us For Availability
5
Range Oven Door Inner Glass WCI 316088700 Contact Us For Availability
6
Shield WCI 316088401 Contact Us For Availability
7
Range Oven Door Hinge WCI 316007002 Contact Us For Availability
7
Insulation WCI 316076403 Contact Us For Availability
8
Range Oven Door Inner Glass WCI 316088600 Contact Us For Availability
9
Oven Door Inner Liner WCI 316066610 Contact Us For Availability
10
Blk Dr Handl WCI 316108802 Contact Us For Availability
11
Wrapper Trim WCI 316061851 Contact Us For Availability
11A
Wrapper Trim WCI 316061852 Contact Us For Availability
11B
Wrapper Trim WCI 316061853 Contact Us For Availability
14
Glide Button WCI 3206216 Contact Us For Availability
14
Glass WCI 5303208656 Contact Us For Availability
14B
Aluminum Foil WCI 3131361 Contact Us For Availability
15
Support WCI 316023108 Contact Us For Availability
15
Glass Bracket WCI 316081403 Contact Us For Availability
15A
Support WCI 316023109 Contact Us For Availability
16
Range Oven Door Middle Glass WCI 316085701 Contact Us For Availability
16A
Main WCI 316020908 Contact Us For Availability
18
Hinge Asy Rh WCI 5303273062 Contact Us For Availability
18A
Hinge Asy Lh WCI 5303273063 Contact Us For Availability
19
Control Panel WCI 316100505 Contact Us For Availability
19A
Control Panel WCI 316100507 Contact Us For Availability
19AA
Pan-white 6" WCI 316048408 Contact Us For Availability
19AB
Pan-almd 6" WCI 316048409 Contact Us For Availability
19B
Control Panel WCI 316100508 Contact Us For Availability
19B
Pan-white 8" WCI 316048411 Contact Us For Availability
19C
Pan-almd 8" WCI 316048412 Contact Us For Availability
20
Range Oven Control Board WCI 316101001 Contact Us For Availability
20A
Range Oven Control Overlay WCI 316101514 Contact Us For Availability
20B
Range Oven Control Overlay WCI 316101515 Contact Us For Availability
20C
Range Selection Button Overlay WCI 316101516 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
23
Bracket Clock WCI 316100300 Contact Us For Availability
24B
Rocker Switch WCI 316005608 Contact Us For Availability
31A
Range Warming Drawer Knob WCI 316109102 Contact Us For Availability
31AA
Oven Knob WCI 316109100 Contact Us For Availability
31AB
Range Warming Drawer Knob WCI 316109101 Contact Us For Availability
36
Range Surface Burner Knob WCI 316108902 Contact Us For Availability
36A
Range Surface Burner Knob WCI 316108900 Contact Us For Availability
36B
Range Surface Burner Knob WCI 316108901 Contact Us For Availability
39
Range Warming Drawer Handle (Black) WCI 316026105 Contact Us For Availability
39A
Oven Door Handle (White) WCI 316108800 Contact Us For Availability
39A
Warmer Handle WCI 316026106 Contact Us For Availability
39B
Range Oven Door Handle WCI 316108801 Contact Us For Availability
39B
Drawer Handle WCI 316026107 Contact Us For Availability
40
Manifold Panel WCI 316025800 Contact Us For Availability
40A
Manifold Panel WCI 316025808 Contact Us For Availability
40B
Manifold Panel WCI 316025809 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Cover WCI 3131570 Contact Us For Availability
52
Oven Shield WCI 316081301 Contact Us For Availability
52A
Oven Shield WCI 316081302 Contact Us For Availability
52B
Oven Shield WCI 316081303 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
69
Screw WCI 5303292005 Contact Us For Availability
80
Oven Door Seal WCI 316109700 Contact Us For Availability
81
Range Warming Drawer Element WCI 316093100 Contact Us For Availability
82
Range Warming Drawer Element Mounting Bracket WCI 316093200 Contact Us For Availability
83
Terminal Shield WCI 316093300 Contact Us For Availability
84
Thermostat Disc WCI 316093500 Contact Us For Availability
86
Range Warming Drawer Element Bracket WCI 316095800 Contact Us For Availability
87
Range Warming Drawer Base Panel WCI 316091900 Contact Us For Availability
88
Latch Rod WCI 316026400 Contact Us For Availability
89
Latch Motor WCI 316028103 Contact Us For Availability
96
Lock Clip WCI 316122000 Contact Us For Availability
97
Range Screw WCI 316003802 Contact Us For Availability
155
Drawer Shield WCI 316095201 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
× ![]()
