Model Electrolux 790.95718891 Electric Range (Kenmore 79095718891) – Common Parts & Diagrams

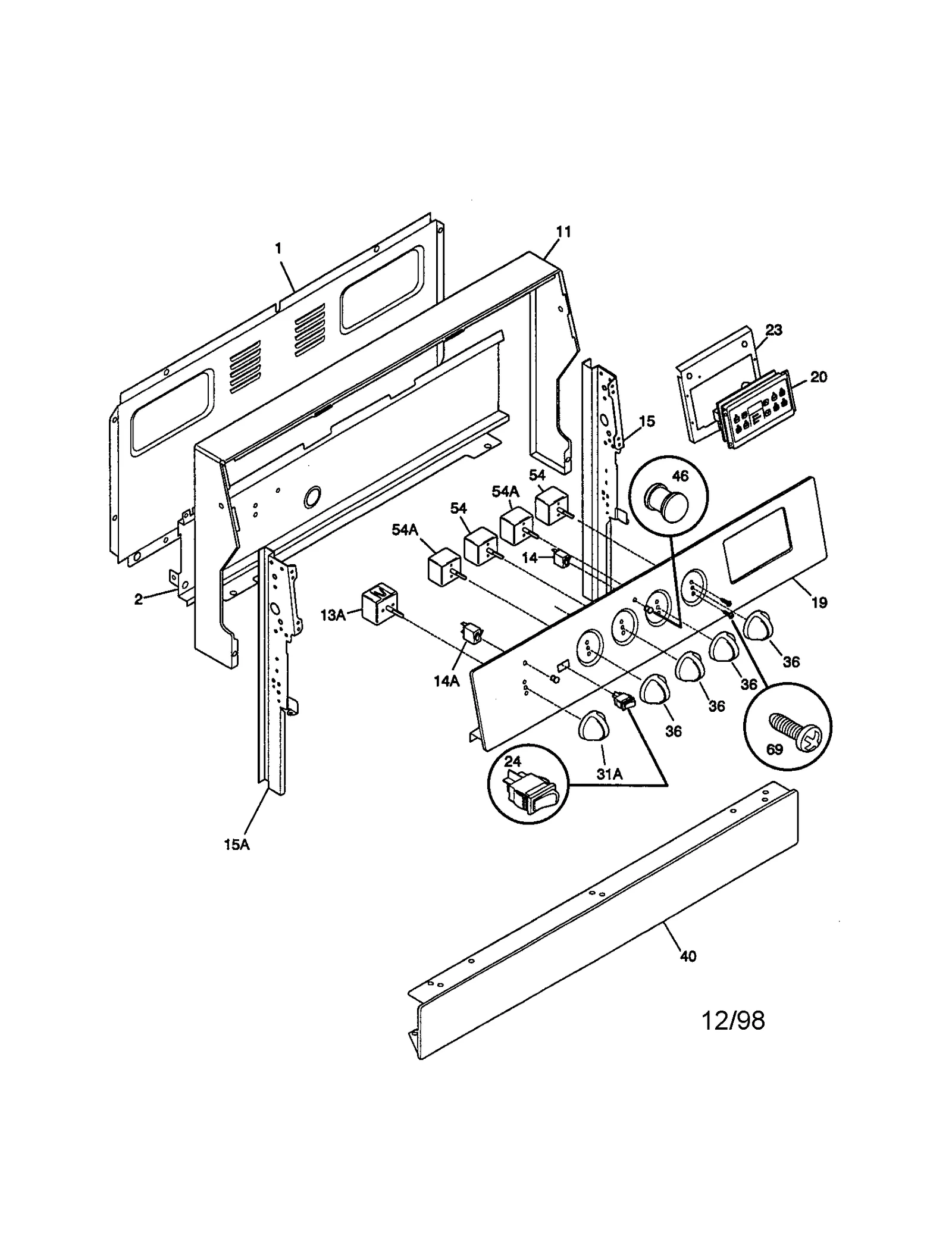

BACKGUARD
All Parts
DOOR
TOP/DRAWER
BODY
Common parts from model Electrolux 790.95718891 Electric Range (Kenmore 79095718891)
1
Warming Drawer WCI 316094601 Contact Us For Availability
1
Main WCI 316080804 Contact Us For Availability
2
Liner WCI 316092901 Contact Us For Availability
3
Body Panel WCI 316081028 Contact Us For Availability
3A
Body Panel WCI 316081030 Contact Us For Availability
3B
Body Panel WCI 316081029 Contact Us For Availability
3C
Body Panel WCI 316081031 Contact Us For Availability
4
Draw WCI 316056203 Contact Us For Availability
4
Burner Box WCI 5303271756 Contact Us For Availability
5
Range Oven Door Inner Glass WCI 316088700 Contact Us For Availability
5
Range Leveling Leg WCI 5303203397 Contact Us For Availability
5A
Anti-Tip Kit WCI 3934058 Contact Us For Availability
5C
Nut WCI 5303288460 Contact Us For Availability
7
Range Oven Door Hinge WCI 316007002 Contact Us For Availability
8
Range Oven Door Inner Glass WCI 316088600 Contact Us For Availability
8
Oven WCI 3203540 Contact Us For Availability
9
Broiler Pan WCI 316073800 Contact Us For Availability
10
Range Wafer Head Screw, #10-24 x 1-4/5-in WCI 316001002 Contact Us For Availability
10
Insert Broil WCI 3205234 Contact Us For Availability
12
Oven Switch WCI 316027701 Contact Us For Availability
13
Light Switch Rod WCI 316026800 Contact Us For Availability
13A
Drawer Channel WCI 316096500 Contact Us For Availability
13A
Drawer Rail WCI 316094901 Contact Us For Availability
13B
Drawer Rail WCI 316094900 Contact Us For Availability
13B
Drawer Channel WCI 316096501 Contact Us For Availability
14
Glide Button WCI 3206216 Contact Us For Availability
16A
Main WCI 316020908 Contact Us For Availability
18
Hinge Asy Rh WCI 5303273062 Contact Us For Availability
18
Door Latch WCI 316036300 Contact Us For Availability
18A
Hinge Asy Lh WCI 5303273063 Contact Us For Availability
18B
Hinge Main WCI 5303288420 Contact Us For Availability
20
Range Oven Control Board WCI 316101001 Contact Us For Availability
20A
Range Oven Control Overlay WCI 316101514 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
25A
Warmer Shield WCI 316092400 Contact Us For Availability
28
Medallion WCI 3017801 Contact Us For Availability
28
Range Wire Harness Retainer WCI 3011813 Contact Us For Availability
30
Hinge WCI 5303283574 Contact Us For Availability
30A
Hinge WCI 5303283575 Contact Us For Availability
31A
Range Warming Drawer Knob WCI 316109102 Contact Us For Availability
33A
Rear Shield WCI 316095301 Contact Us For Availability
39
Range Warming Drawer Handle (Black) WCI 316026105 Contact Us For Availability
39A
Draw Handle WCI 316094435 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Cover WCI 3131570 Contact Us For Availability
57
Access Cover WCI 316081101 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
58B
Insulation WCI 316054200 Contact Us For Availability
58C
Insul T Wrap WCI 3131304 Contact Us For Availability
59
Oven Ve Tube WCI 316073600 Contact Us For Availability
62
Terminal Block WCI 5603935061 Contact Us For Availability
63
Strap WCI 5301145190 Contact Us For Availability
71
Wire Shield WCI 316015805 Contact Us For Availability
72
Light Cover WCI 5303285692 Contact Us For Availability
80
Oven Door Seal WCI 316109700 Contact Us For Availability
81
Range Warming Drawer Element WCI 316093100 Contact Us For Availability
82
Range Warming Drawer Element Mounting Bracket WCI 316093200 Contact Us For Availability
82
Shield Insert WCI 5303289913 Contact Us For Availability
83
Terminal Shield WCI 316093300 Contact Us For Availability
84
Thermostat Disc WCI 316093500 Contact Us For Availability
86
Range Warming Drawer Element Bracket WCI 316095800 Contact Us For Availability
87
Range Warming Drawer Base Panel WCI 316091900 Contact Us For Availability
88
Latch Rod WCI 316026400 Contact Us For Availability
89
Latch Motor WCI 316028103 Contact Us For Availability
155
Drawer Shield WCI 316095201 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
× ![]()
