Model Electrolux 790.95718890 Electric Freestanding Range (Kenmore 79095718890) – Common Parts & Diagrams
TOP/DRAWER

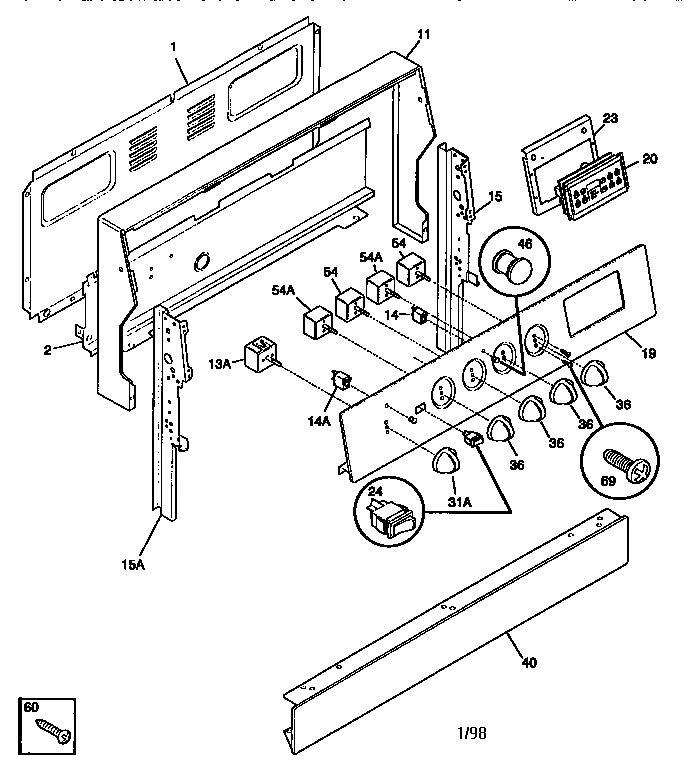

BACKGUARD
All Parts

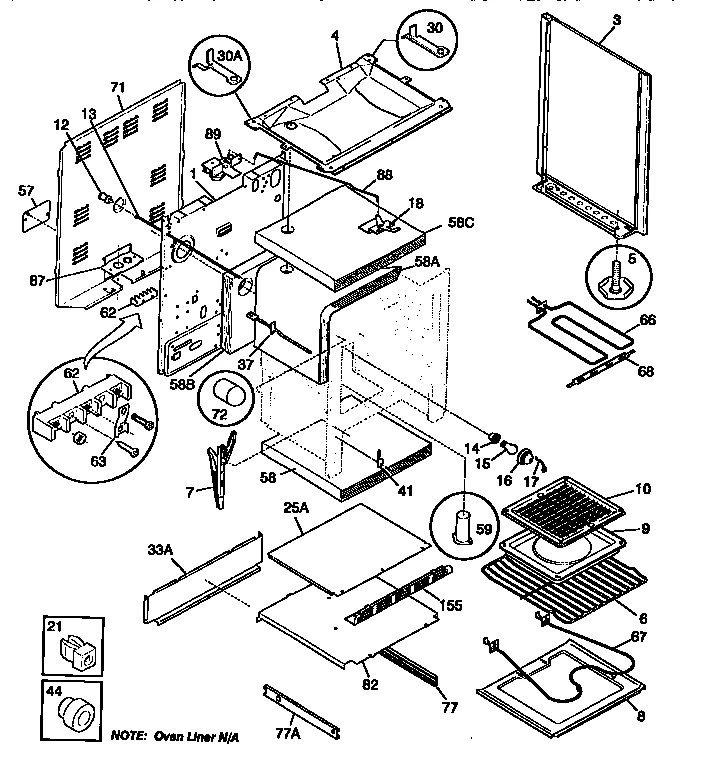

BODY

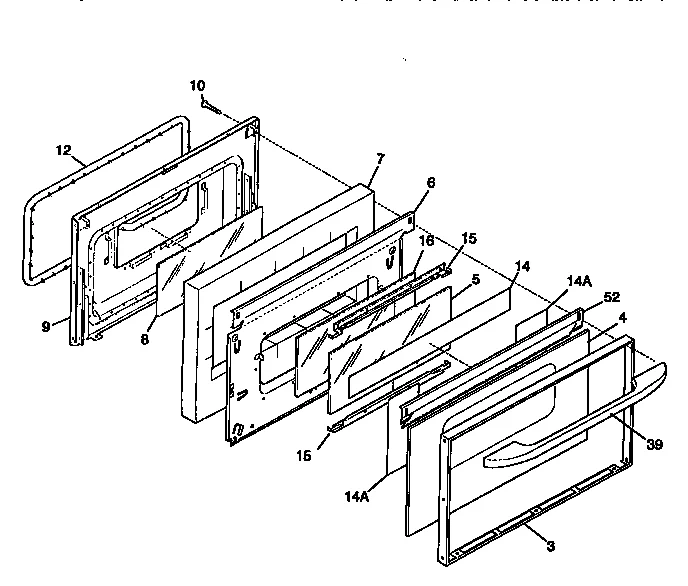

DOOR
Common parts from model Electrolux 790.95718890 Electric Freestanding Range (Kenmore 79095718890)
1
Main WCI 316080801 Contact Us For Availability
3
Body Panel WCI 316081030 Contact Us For Availability
3
Oven Door Trim WCI 316067803 Contact Us For Availability
3A
Body Panel WCI 316081031 Contact Us For Availability
4
Burner Box WCI 5303271756 Contact Us For Availability
4
Oven Door Glass WCI 316089004 Contact Us For Availability
5
Range Oven Door Inner Glass WCI 316088700 Contact Us For Availability
5
SCREW-LEVELING WCI 5303503397 Contact Us For Availability
5A
Anti-Tip Kit WCI 3934058 Contact Us For Availability
5C
Nut WCI 5303288460 Contact Us For Availability
6
Shield WCI 316088401 Contact Us For Availability
7
Range Oven Door Hinge WCI 316007002 Contact Us For Availability
7
Insulation WCI 316076403 Contact Us For Availability
8
Range Oven Door Inner Glass WCI 316088600 Contact Us For Availability
8
Oven WCI 3203540 Contact Us For Availability
9
Broiler Pan WCI 316073800 Contact Us For Availability
9
Oven Door Inner Liner WCI 316066610 Contact Us For Availability
10
Insert Broil WCI 3205234 Contact Us For Availability
10
Handle Screw WCI 316001008 Contact Us For Availability
12
Oven Switch WCI 316027701 Contact Us For Availability
13
Light Switch Rod WCI 316026800 Contact Us For Availability
14
Glide Button WCI 3206216 Contact Us For Availability
14
Aluminum Foil WCI 3131361 Contact Us For Availability
15
Glass Bracket WCI 316081401 Contact Us For Availability
16
Glass-oven D WCI 316085700 Contact Us For Availability
18
Door Latch WCI 316036300 Contact Us For Availability
20
Range Oven Control Board WCI 316101001 Contact Us For Availability
20A
Range Selection Button Overlay WCI 316101516 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
25A
Warmer Shield WCI 316092400 Contact Us For Availability
30
Hinge WCI 5303283574 Contact Us For Availability
30A
Hinge WCI 5303283575 Contact Us For Availability
33A
Rear Shield WCI 316095301 Contact Us For Availability
36
Range Control Knob WCI 316108904 Contact Us For Availability
39
Range Oven Door Handle WCI 316108801 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Cover WCI 3131570 Contact Us For Availability
52
Oven Shield WCI 316081302 Contact Us For Availability
57
Access Cover WCI 316081101 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
58B
Insulation WCI 316054200 Contact Us For Availability
58C
Insul T Wrap WCI 3131304 Contact Us For Availability
59
Oven Ve Tube WCI 316073600 Contact Us For Availability
63
Strap WCI 5301145190 Contact Us For Availability
69
Screw WCI 5303292005 Contact Us For Availability
71
Wire Shield WCI 316015805 Contact Us For Availability
72
Light Cover WCI 5303285692 Contact Us For Availability
77
Drawer Rail WCI 316094900 Contact Us For Availability
77A
Drawer Rail WCI 316094901 Contact Us For Availability
82
Shield Insert WCI 5303289913 Contact Us For Availability
88
Latch Rod WCI 316026400 Contact Us For Availability
89
Latch Motor WCI 316028103 Contact Us For Availability
155
Drawer Shield WCI 316095201 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Range Wire Harness Retainer WCI 3011813 Contact Us For Availability
NI
Range Owner's Manual WCI 316000931 Contact Us For Availability
NI
Wiring Harness WCI 316001388 Contact Us For Availability
NI
Wiring WCI 316001725 Contact Us For Availability
NI
Wiring Diagram WCI 316002657 Contact Us For Availability
NI
Installation Manual WCI 316003018 Contact Us For Availability
NI
Warming Plate WCI 316065304 Contact Us For Availability
NI
Rivet WCI 3203618 Contact Us For Availability
NI
Range Screw, #8-32 x 1-in WCI 5303212671 Contact Us For Availability
NI
Screw WCI 5303288574 Contact Us For Availability
NI
Parts List WCI 5995303194 Contact Us For Availability
× ![]()
