Model Electrolux 790.95715890 Electric Freestanding Range (Kenmore 79095715890) – Common Parts & Diagrams
BACKGUARD

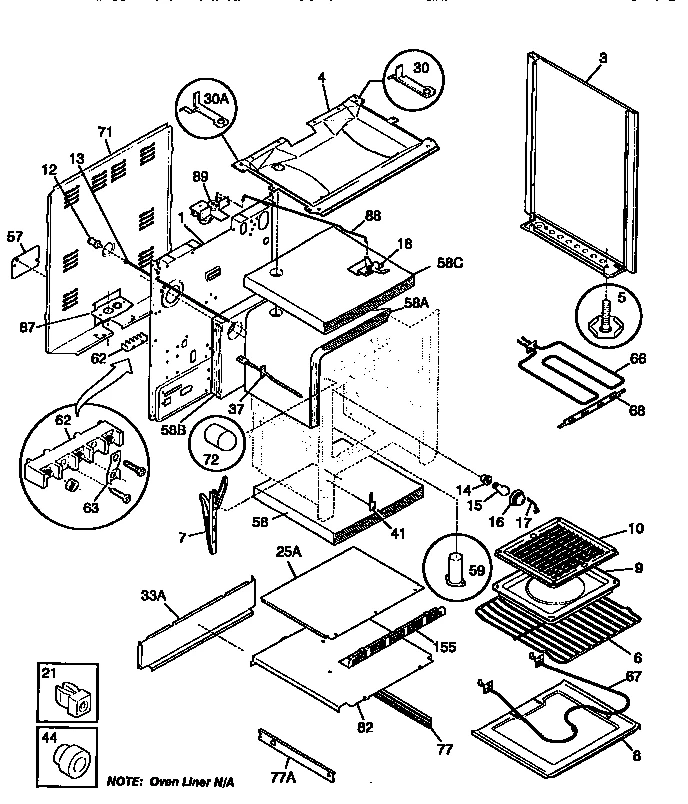

BODY

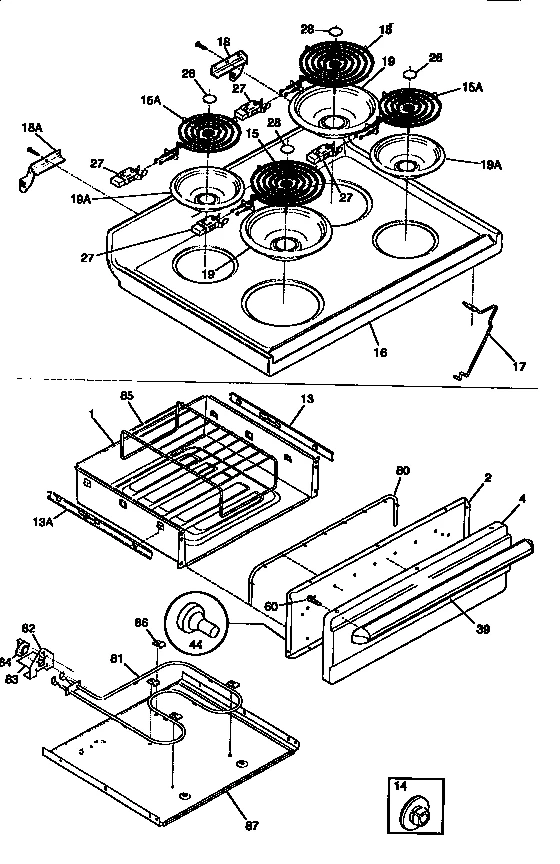

TOP/DRAWER
All Parts

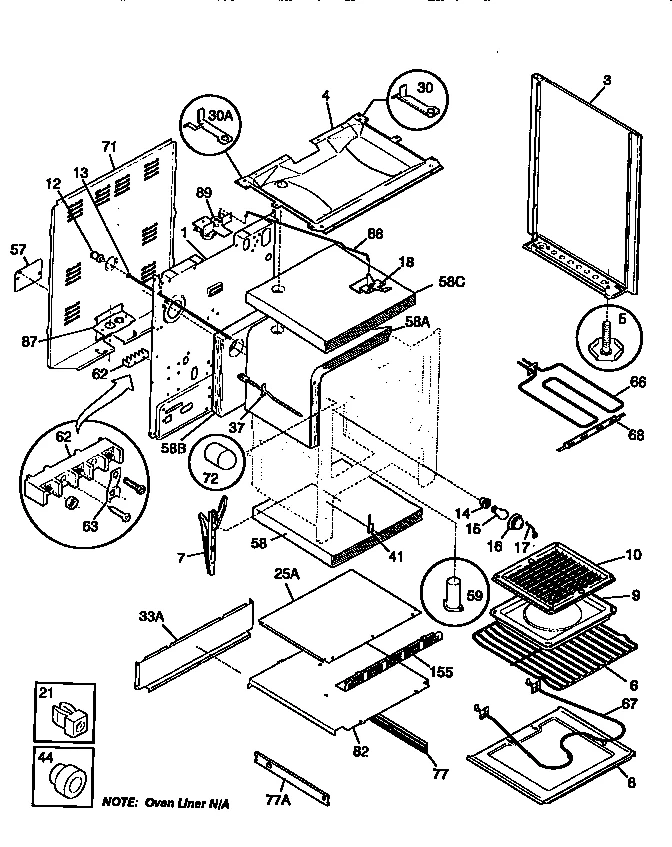

BODY

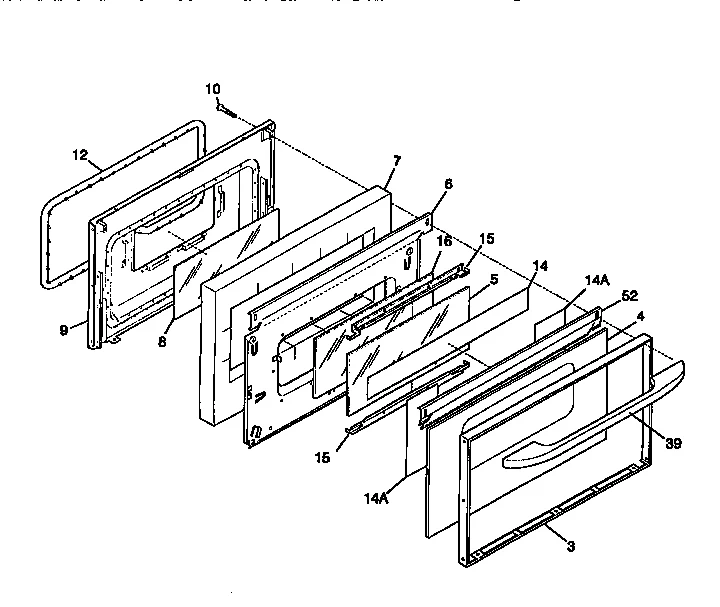

DOOR
Common parts from model Electrolux 790.95715890 Electric Freestanding Range (Kenmore 79095715890)
1
Warming Drawer WCI 316094601 Contact Us For Availability
2
Liner WCI 316092901 Contact Us For Availability
3
Trim WCI 316067802 Contact Us For Availability
4
Draw WCI 316056203 Contact Us For Availability
4
Glass-oven D WCI 316089000 Contact Us For Availability
5
Range Oven Door Inner Glass WCI 316088700 Contact Us For Availability
5
Range Leveling Leg WCI 5303203397 Contact Us For Availability
5A
Anti-Tip Kit WCI 3934058 Contact Us For Availability
6
Shield WCI 316088401 Contact Us For Availability
7
Range Oven Door Hinge WCI 316007002 Contact Us For Availability
7
Insulation WCI 316076403 Contact Us For Availability
8
Range Oven Door Inner Glass WCI 316088600 Contact Us For Availability
9
Oven Door Inner Liner WCI 316066610 Contact Us For Availability
10
Handle Screw WCI 316001008 Contact Us For Availability
13
Glide Rh WCI 316105600 Contact Us For Availability
14
Glide Button WCI 3206216 Contact Us For Availability
14
Glass WCI 5303208656 Contact Us For Availability
15
Glass Bracket WCI 316081401 Contact Us For Availability
16
Main WCI 316020908 Contact Us For Availability
16
Glass-oven D WCI 316085700 Contact Us For Availability
18
Hinge Asy Rh WCI 5303273062 Contact Us For Availability
18A
Hinge Asy Lh WCI 5303273063 Contact Us For Availability
19AA
Pan-white 8" WCI 316048411 Contact Us For Availability
19AB
Pan-white 6" WCI 316048408 Contact Us For Availability
19B
Pan-almd 8" WCI 316048412 Contact Us For Availability
19C
Pan-almd 6" WCI 316048409 Contact Us For Availability
20
Range Oven Control Board WCI 316101001 Contact Us For Availability
20A
Range Oven Control Overlay WCI 316101514 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
31A
Range Warming Drawer Knob WCI 316109102 Contact Us For Availability
39
Range Warming Drawer Handle (Black) WCI 316026105 Contact Us For Availability
39
Blk Dr Handl WCI 316108802 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Cover WCI 3131570 Contact Us For Availability
52
Oven Shield WCI 316081303 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
58B
Insulation WCI 316054200 Contact Us For Availability
58C
Insul T Wrap WCI 3131304 Contact Us For Availability
59
Oven Ve Tube WCI 316073600 Contact Us For Availability
63
Strap WCI 5301145190 Contact Us For Availability
71
Wire Shield WCI 316015805 Contact Us For Availability
72
Light Cover WCI 5303285692 Contact Us For Availability
77
Drawer Rail WCI 316094900 Contact Us For Availability
77A
Drawer Rail WCI 316094901 Contact Us For Availability
80
Oven Door Seal WCI 316109700 Contact Us For Availability
81
Range Warming Drawer Element WCI 316093100 Contact Us For Availability
82
Range Warming Drawer Element Mounting Bracket WCI 316093200 Contact Us For Availability
82
Shield Insert WCI 5303289913 Contact Us For Availability
83
Terminal Shield WCI 316093300 Contact Us For Availability
84
Thermostat Disc WCI 316093500 Contact Us For Availability
86
Range Warming Drawer Element Bracket WCI 316095800 Contact Us For Availability
87
Range Warming Drawer Base Panel WCI 316091900 Contact Us For Availability
88
Latch Rod WCI 316026400 Contact Us For Availability
89
Latch Motor WCI 316028103 Contact Us For Availability
155
Drawer Shield WCI 316095201 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Range Wire Harness Retainer WCI 3011813 Contact Us For Availability
NI
Range Owner's Manual WCI 316000931 Contact Us For Availability
NI
Wiring Harness WCI 316001388 Contact Us For Availability
NI
Wiring WCI 316001725 Contact Us For Availability
NI
Wiring Diagram WCI 316002657 Contact Us For Availability
NI
Installation Manual WCI 316003018 Contact Us For Availability
NI
Warming Plate WCI 316065304 Contact Us For Availability
NI
Rivet WCI 3203618 Contact Us For Availability
NI
Range Screw, #8-32 x 1-in WCI 5303212671 Contact Us For Availability
NI
Screw WCI 5303288574 Contact Us For Availability
NI
Parts List WCI 5995303194 Contact Us For Availability
× ![]()
