Model Electrolux 790.90102204 Electric Range (Kenmore 79090102204) – Common Parts & Diagrams
BODY

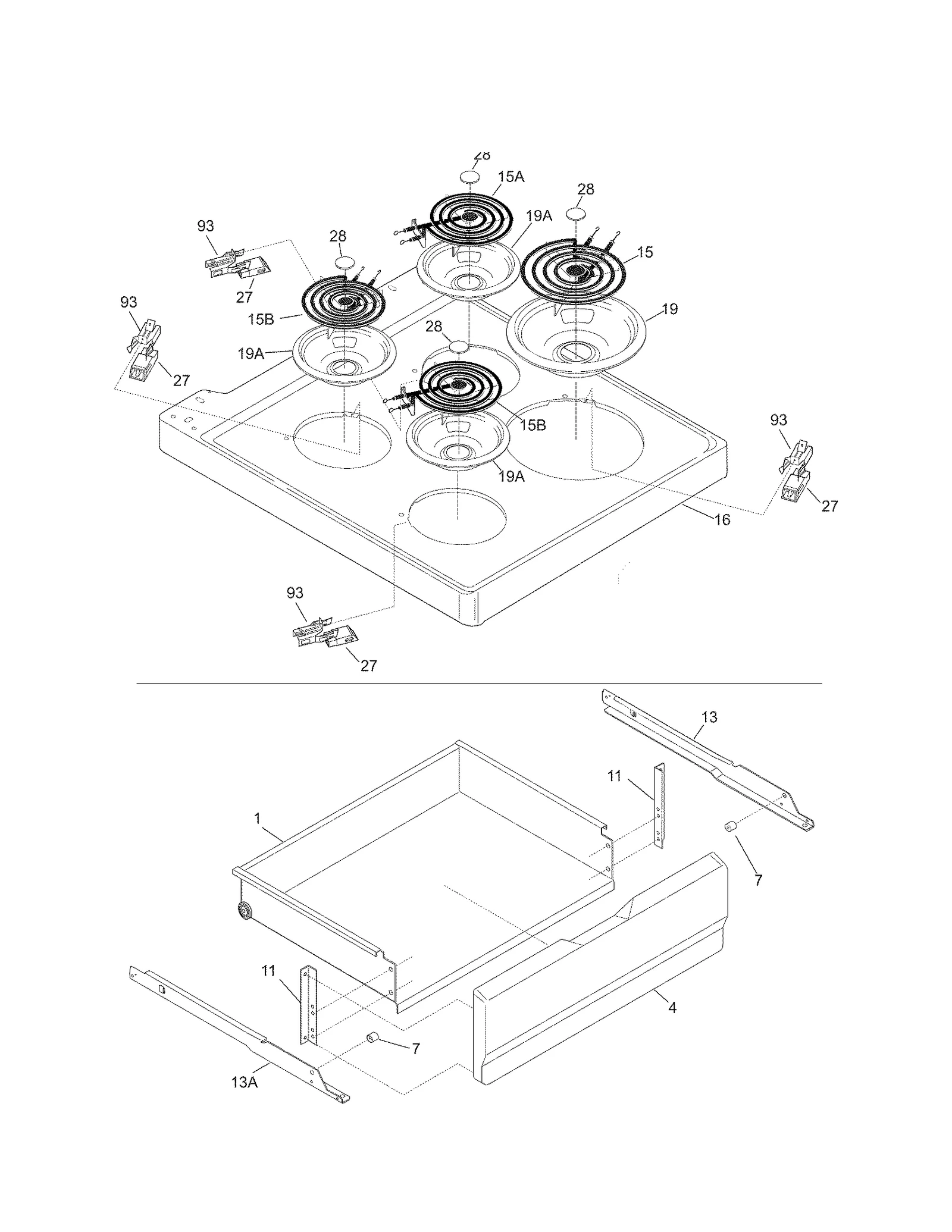

TOP/DRAWER

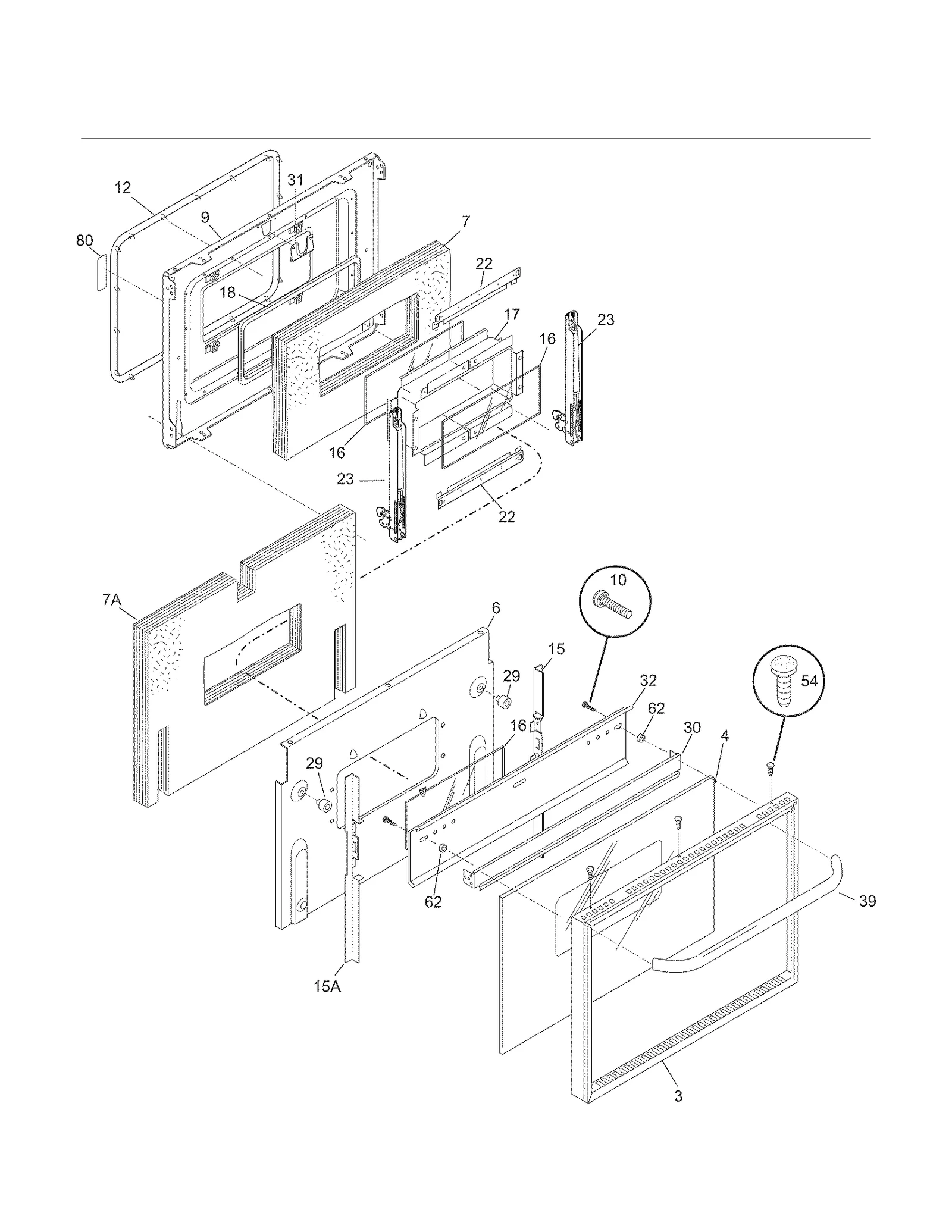

DOOR

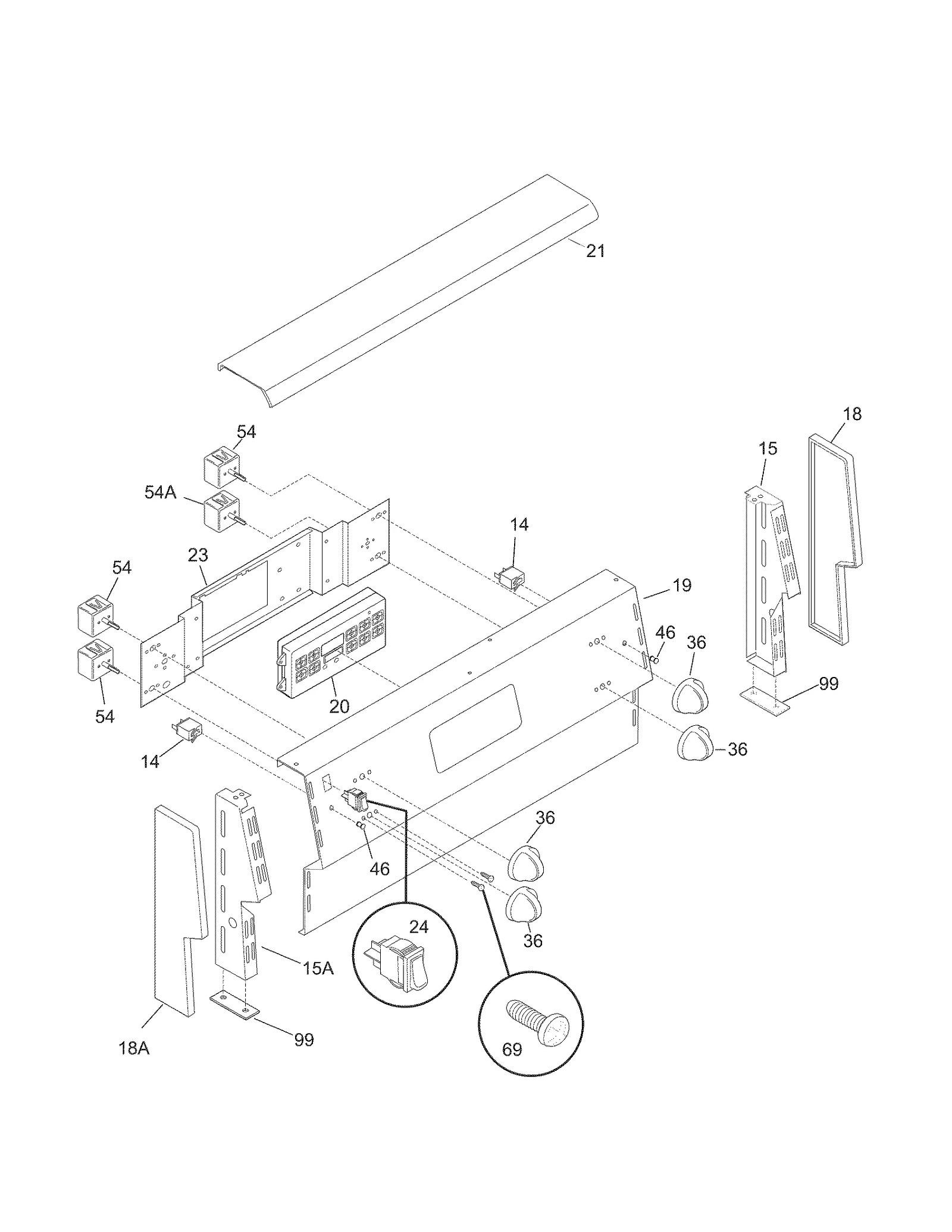

BACKGUARD
Common parts from model Electrolux 790.90102204 Electric Range (Kenmore 79090102204)
1
Drawer-utili WCI 5303325610 Contact Us For Availability
3
Range Trim WCI 318415501 Contact Us For Availability
4
Range Oven Door Outer Panel (White) WCI 5303325035 Contact Us For Availability
6
Range Oven Rack WCI 318345201 Contact Us For Availability
13
Range Broil Drawer Slide Rail, Right WCI 318018100 Contact Us For Availability
13A
Range Storage Drawer Support Track, Left WCI 318018101 Contact Us For Availability
15
Glass Bracket WCI 5303311153 Contact Us For Availability
15
Bracket WCI 5303304000 Contact Us For Availability
15A
Glass Bracket WCI 5303311154 Contact Us For Availability
15A
Bracket WCI 5303304001 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 5303310533 Contact Us For Availability
16
Top WCI 318120921 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
18
Gasket WCI 318293500 Contact Us For Availability
18
End Cap WCI 318254502 Contact Us For Availability
18A
End Cap WCI 318254503 Contact Us For Availability
19
Range Control Panel (White) WCI 318005480 Contact Us For Availability
20
Range Oven Control Board and Clock WCI 318185832 Contact Us For Availability
21
Range Control Panel Trim, Upper (White) WCI 318350801 Contact Us For Availability
23
Oven Hinge WCI 318567111 Contact Us For Availability
23
Bracket WCI 318015011 Contact Us For Availability
24
Light Switch WCI 318037513 Contact Us For Availability
29
Oven Bumper WCI 318147412 Contact Us For Availability
30
Handle Trim WCI 318014017 Contact Us For Availability
31
Range Oven Door Latch WCI 5303310536 Contact Us For Availability
32
Deflector WCI 318057203 Contact Us For Availability
36
Range Surface Element Knob (White) WCI 316109106 Contact Us For Availability
39
Cooking Appliance Oven Door Handle (White) WCI 318362820 Contact Us For Availability
54
Range Oven Light Housing WCI 318222400 Contact Us For Availability
62
Range Oven Door Handle Spacer WCI 5303310504 Contact Us For Availability
69
Screw WCI 5304453272 Contact Us For Availability
80
Range Anti-Tip Decal WCI 316221000 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
99
Range Control Panel End Cap Spacer WCI 5303304544 Contact Us For Availability
128
Range Latch Rod Bushing WCI 318563000 Contact Us For Availability
NI
Screw WCI 08016432 Contact Us For Availability
NI
Overlay WCI 318013317 Contact Us For Availability
NI
Range Installation WCI 318154301 Contact Us For Availability
NI
Wiring Diagram WCI 318198610 Contact Us For Availability
NI
Use and Care Guide WCI 318200510 Contact Us For Availability
NI
Cooking Appliance Wire and Terminal WCI 318232427 Contact Us For Availability
NI
Terminal Wire WCI 318232428 Contact Us For Availability
NI
Repair Parts List WCI 5995555124 Contact Us For Availability
× ![]()
