Model Electrolux 790.90102202 Electric Range (Kenmore 79090102202) – Common Parts & Diagrams

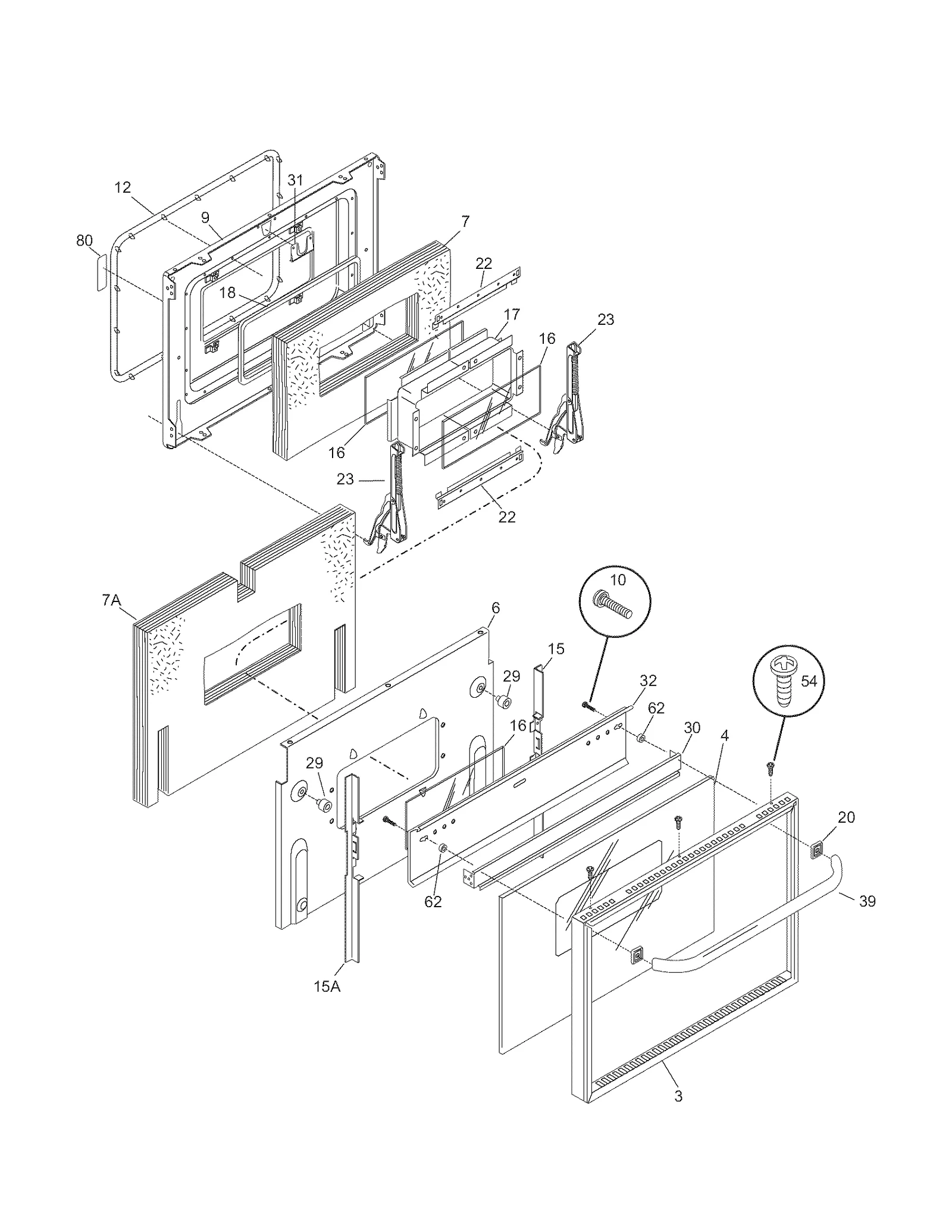

DOOR

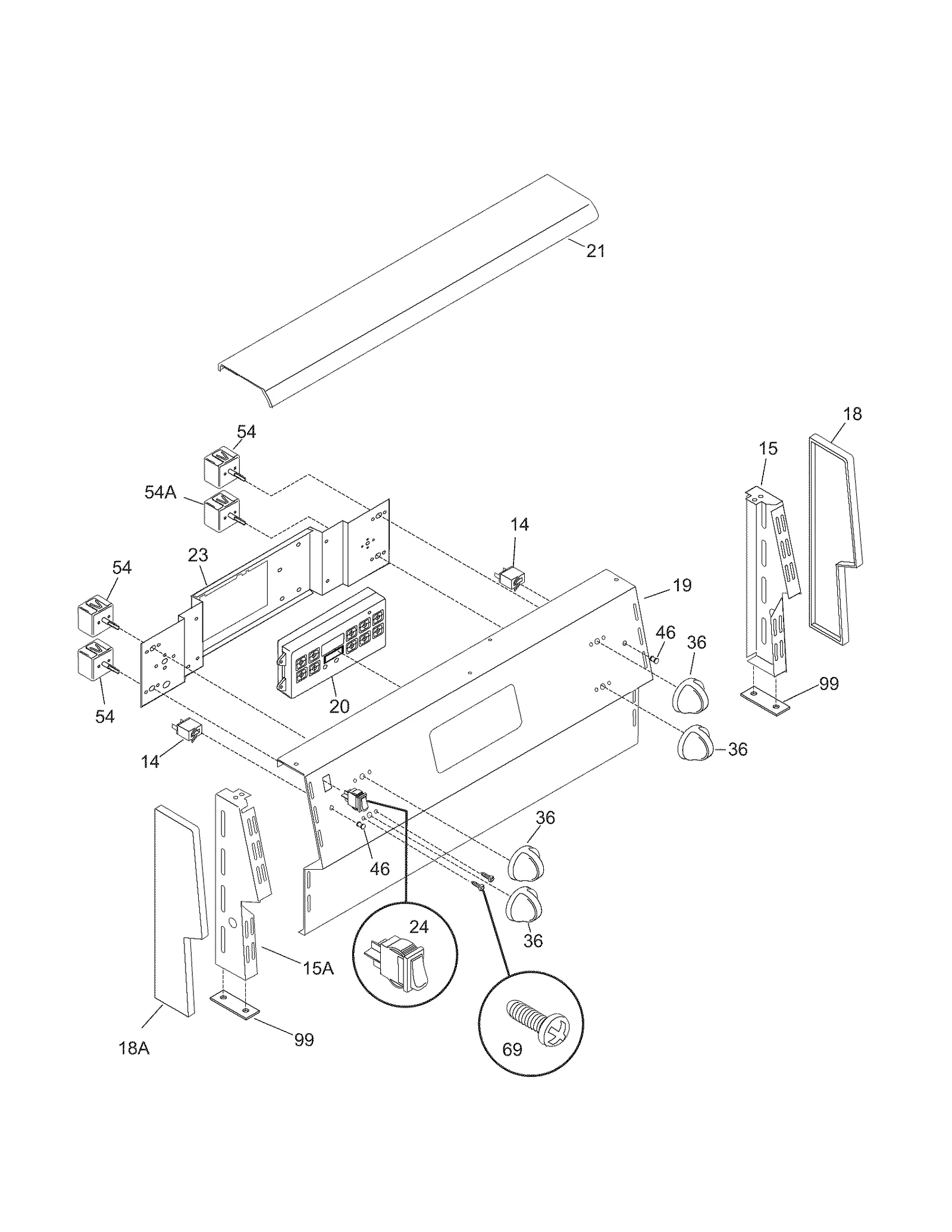

BACKGUARD

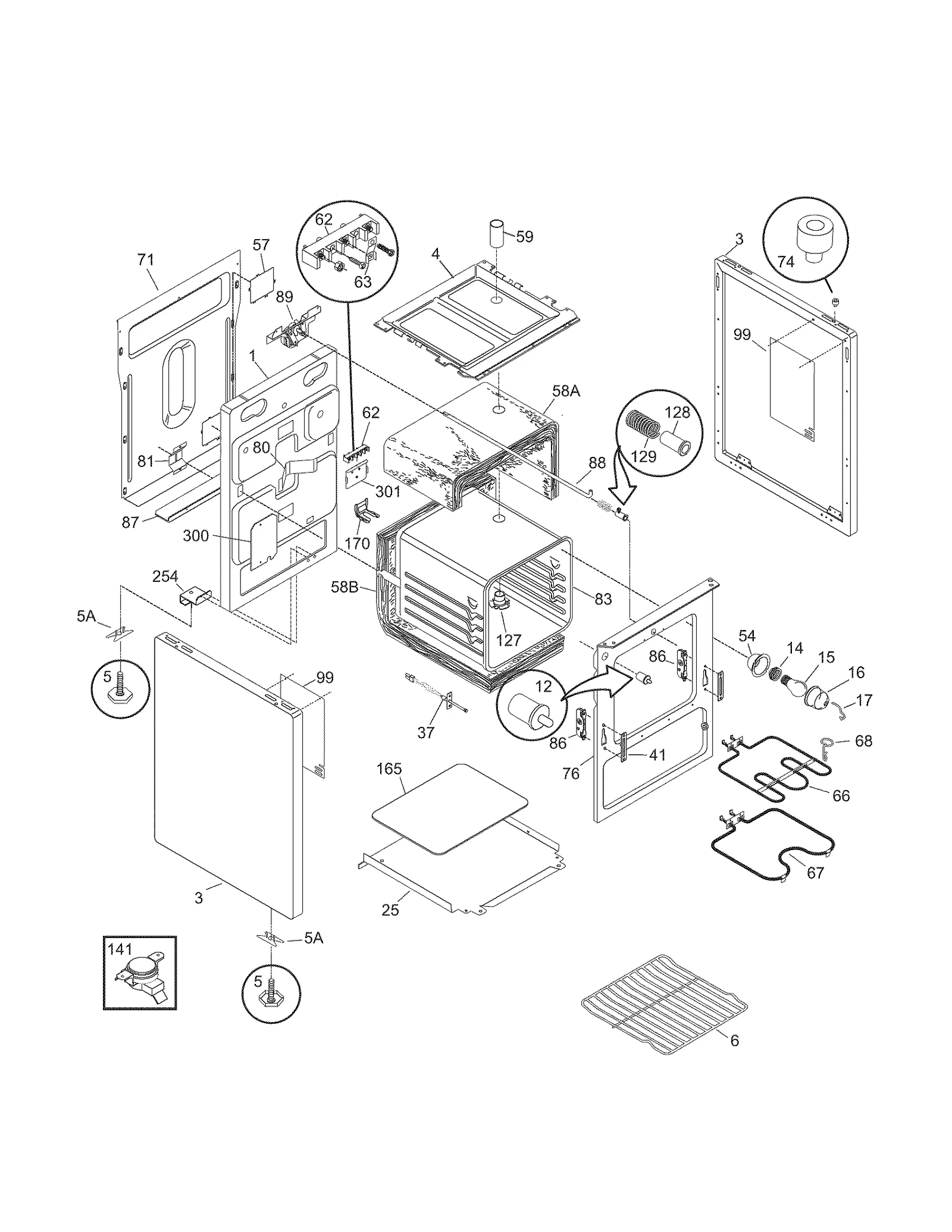

BODY

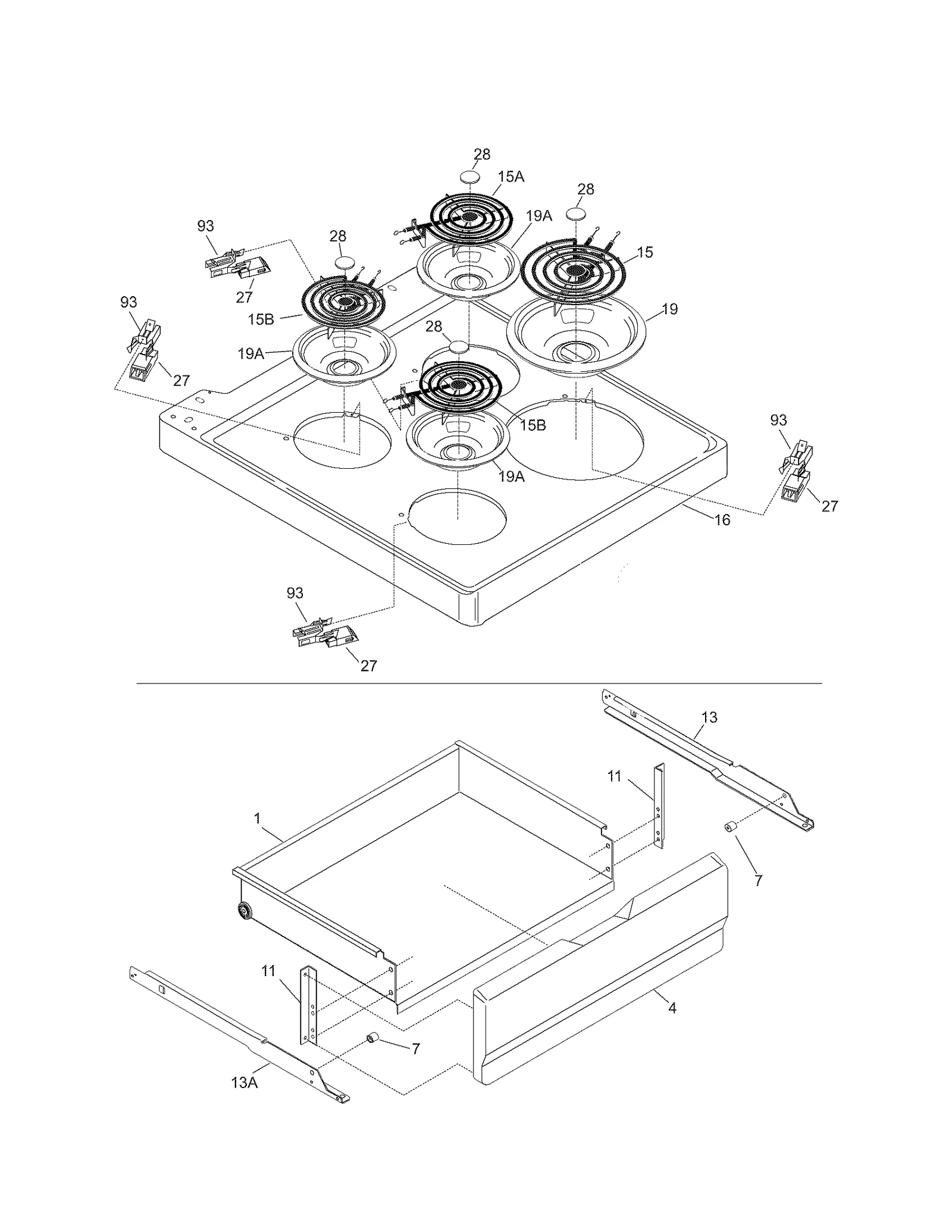

TOP/DRAWER
Common parts from model Electrolux 790.90102202 Electric Range (Kenmore 79090102202)
1
Drawer-utili WCI 5303325610 Contact Us For Availability
3
Panel WCI 318159711 Contact Us For Availability
4
Range Oven Door Outer Panel (White) WCI 5303325035 Contact Us For Availability
4
Insulation Shield WCI 5303325068 Contact Us For Availability
4
Panel WCI 318044221 Contact Us For Availability
5
Range Leveling Leg WCI 318175503 Contact Us For Availability
5A
Tee Nut, Sna WCI 08013303 Contact Us For Availability
6
Rack WCI 5303324869 Contact Us For Availability
7
Range Spacer WCI 318014800 Contact Us For Availability
11
Bracket WCI 5303324427 Contact Us For Availability
13
Range Broil Drawer Slide Rail, Right WCI 318018100 Contact Us For Availability
13A
Range Storage Drawer Support Track, Left WCI 318018101 Contact Us For Availability
15
Glass Bracket WCI 5303311153 Contact Us For Availability
15A
Glass Bracket WCI 5303311154 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 5303310533 Contact Us For Availability
16
Top WCI 318120921 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
18
Gasket WCI 318293500 Contact Us For Availability
20
Range Oven Control Board and Clock WCI 318185832 Contact Us For Availability
25
Shield WCI 5303325069 Contact Us For Availability
27
Terminal Block WCI 318223400 Contact Us For Availability
27
Terminal Block WCI 318223401 Contact Us For Availability
31
Range Oven Door Latch WCI 5303310536 Contact Us For Availability
36
Range Surface Element Knob (White) WCI 316109106 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
54
Range Oven Light Housing WCI 318222400 Contact Us For Availability
57
Inlet Cover WCI 5304413744 Contact Us For Availability
58A
Insulation WCI 318285019 Contact Us For Availability
58B
Insulation WCI 318285038 Contact Us For Availability
59
Tube WCI 318072543 Contact Us For Availability
71
Panel WCI 318086506 Contact Us For Availability
74
Oven Bumper WCI 318147412 Contact Us For Availability
76
Range Oven Front Frame WCI 318123103 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
83
Liner WCI 318089601 Contact Us For Availability
86
Hinge Channel WCI 5303310524 Contact Us For Availability
87
Plate WCI 318111810 Contact Us For Availability
88
Range Oven Door Lock Latch Rod WCI 5303311160 Contact Us For Availability
89
Oven Motor WCI 318095939 Contact Us For Availability
99
Panel WCI 5303324441 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
165
Plate WCI 318003101 Contact Us For Availability
170
Bracket WCI 5304413730 Contact Us For Availability
254
Support WCI 318175601 Contact Us For Availability
300
Plate WCI 318225000 Contact Us For Availability
301
Plate WCI 318161700 Contact Us For Availability
NI
Range Oven Door Lock Switch WCI 318120711 Contact Us For Availability
NI
Range Screw, #8-18 x 0.5-in WCI 5303323133 Contact Us For Availability
× ![]()
