Model Electrolux 790.90102200 Electric Range (Kenmore 79090102200) – Common Parts & Diagrams

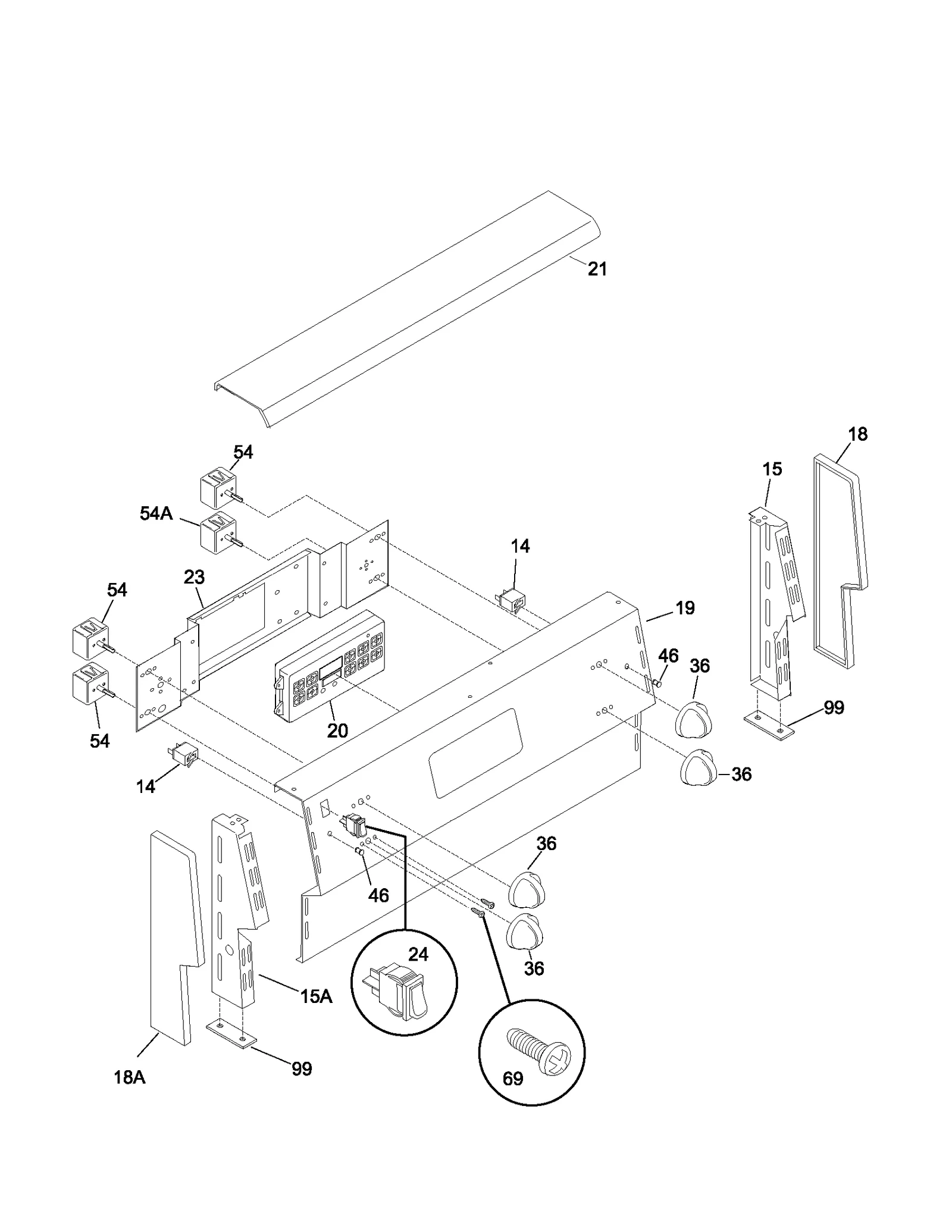

BACKGUARD

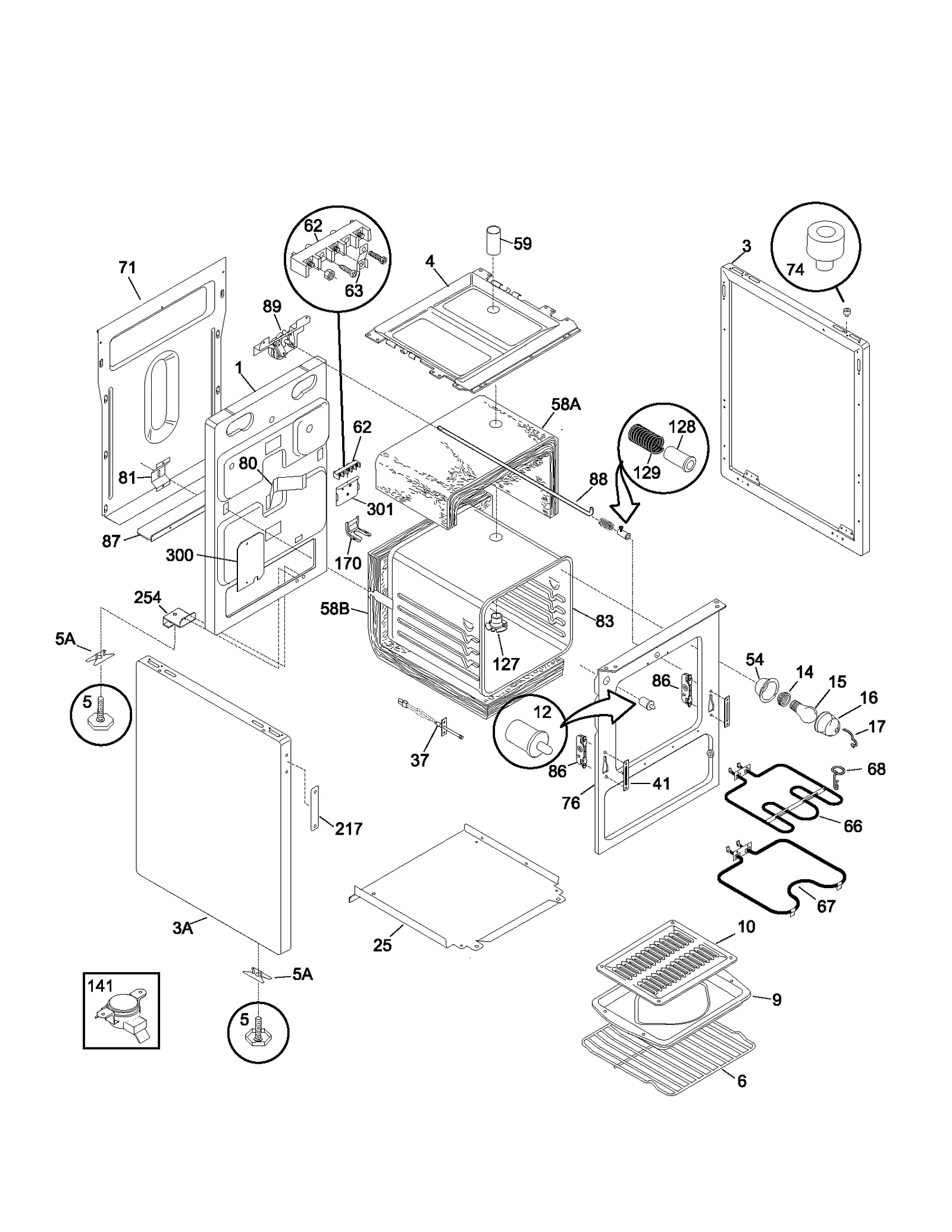

BODY
TOP/DRAWER

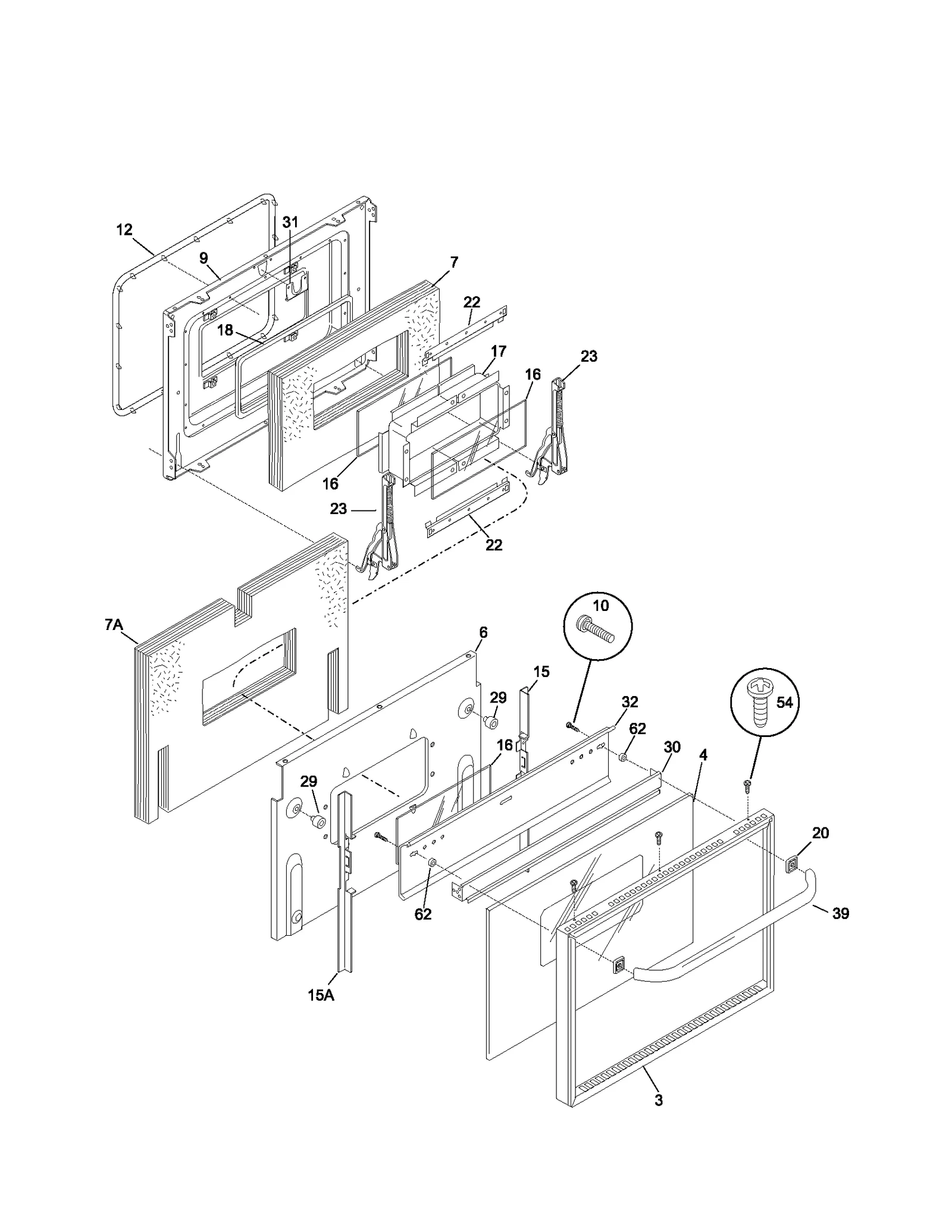

DOOR
Common parts from model Electrolux 790.90102200 Electric Range (Kenmore 79090102200)
1
Drawer-utili WCI 5303325610 Contact Us For Availability
3
Trim WCI 318176700 Contact Us For Availability
3
Trim-oven Do WCI 5303325088 Contact Us For Availability
3A
Panel WCI 318025522 Contact Us For Availability
3A
Panel WCI 318025523 Contact Us For Availability
4
Range Oven Door Outer Panel (White) WCI 5303325035 Contact Us For Availability
4
Insulation Shield WCI 5303325068 Contact Us For Availability
4
Panel WCI 318044221 Contact Us For Availability
4
**front Dr WCI 318044224 Contact Us For Availability
4
Oven Glass WCI 318051802 Contact Us For Availability
5
Range Leveling Leg WCI 318175503 Contact Us For Availability
5A
Tee Nut, Sna WCI 08013303 Contact Us For Availability
6
Rack WCI 5303324869 Contact Us For Availability
6
Oven Shield WCI 5303325079 Contact Us For Availability
7
Range Spacer WCI 318014800 Contact Us For Availability
7
Insulation WCI 318133708 Contact Us For Availability
7A
Insulation WCI 318133709 Contact Us For Availability
9
Broiler Pan WCI 5303317977 Contact Us For Availability
9
Oven Liner WCI 318156406 Contact Us For Availability
10
Insert Broil WCI 5303317976 Contact Us For Availability
11
Bracket WCI 5303324427 Contact Us For Availability
12
Oven Door Seal WCI 5303325040 Contact Us For Availability
13
Range Broil Drawer Slide Rail, Right WCI 318018100 Contact Us For Availability
13A
Range Storage Drawer Support Track, Left WCI 318018101 Contact Us For Availability
15
Glass Bracket WCI 5303311153 Contact Us For Availability
15A
Cooktop Coil Element, 6-in WCI 5303299749 Contact Us For Availability
15A
Glass Bracket WCI 5303311154 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 5303310533 Contact Us For Availability
16
Top WCI 318120921 Contact Us For Availability
16
Main WCI 318120924 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
17
Glass Spacer WCI 318139000 Contact Us For Availability
18
Seal-rope WCI 5303310531 Contact Us For Availability
20
Range Oven Door Handle Spacer (White) WCI 318014301 Contact Us For Availability
20
Spacer WCI 318014303 Contact Us For Availability
22
Range Oven Door Glass Retainer WCI 5303310511 Contact Us For Availability
23
Hinge Assembly WCI 318024700 Contact Us For Availability
25
Shield WCI 5303325069 Contact Us For Availability
27
Range Surface Element Terminal Block WCI 5303323704 Contact Us For Availability
28
Trim WCI 5303309002 Contact Us For Availability
29
Bumper Base WCI 318147410 Contact Us For Availability
30
Trim WCI 318014012 Contact Us For Availability
30
Trim WCI 318014015 Contact Us For Availability
31
Range Oven Door Latch WCI 5303310536 Contact Us For Availability
32
Deflector WCI 318057203 Contact Us For Availability
36
Range Surface Element Knob (White) WCI 316109106 Contact Us For Availability
39
Handle WCI 316091104 Contact Us For Availability
39
Door Handle WCI 316091125 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
54
Oven Housing WCI 5303310514 Contact Us For Availability
58A
Insulation WCI 318133701 Contact Us For Availability
58B
Insulation WCI 318133746 Contact Us For Availability
59
Tube WCI 5303324426 Contact Us For Availability
62
Range Oven Door Handle Spacer WCI 5303310504 Contact Us For Availability
71
Panel WCI 318086504 Contact Us For Availability
76
Range Oven Front Frame WCI 318123103 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
83
Liner WCI 318089601 Contact Us For Availability
86
Hinge Channel WCI 5303310524 Contact Us For Availability
87
Plate WCI 318111810 Contact Us For Availability
88
Range Oven Door Lock Latch Rod WCI 5303311160 Contact Us For Availability
89
Oven Motor WCI 318095939 Contact Us For Availability
93
Support WCI 5303324436 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
170
Support WCI 318170401 Contact Us For Availability
217
Plate WCI 318112102 Contact Us For Availability
254
Support WCI 318175600 Contact Us For Availability
NI
Range Oven Door Lock Switch WCI 318120711 Contact Us For Availability
NI
Plate WCI 318161700 Contact Us For Availability
NI
Plate WCI 318225000 Contact Us For Availability
NI
Ground Plate WCI 5303310517 Contact Us For Availability
NI
Range Screw, #8-18 x 0.5-in WCI 5303323133 Contact Us For Availability
× ![]()
