Model Electrolux 790.79913301 Gas Range (Kenmore 79079913301) – Common Parts & Diagrams
BODY

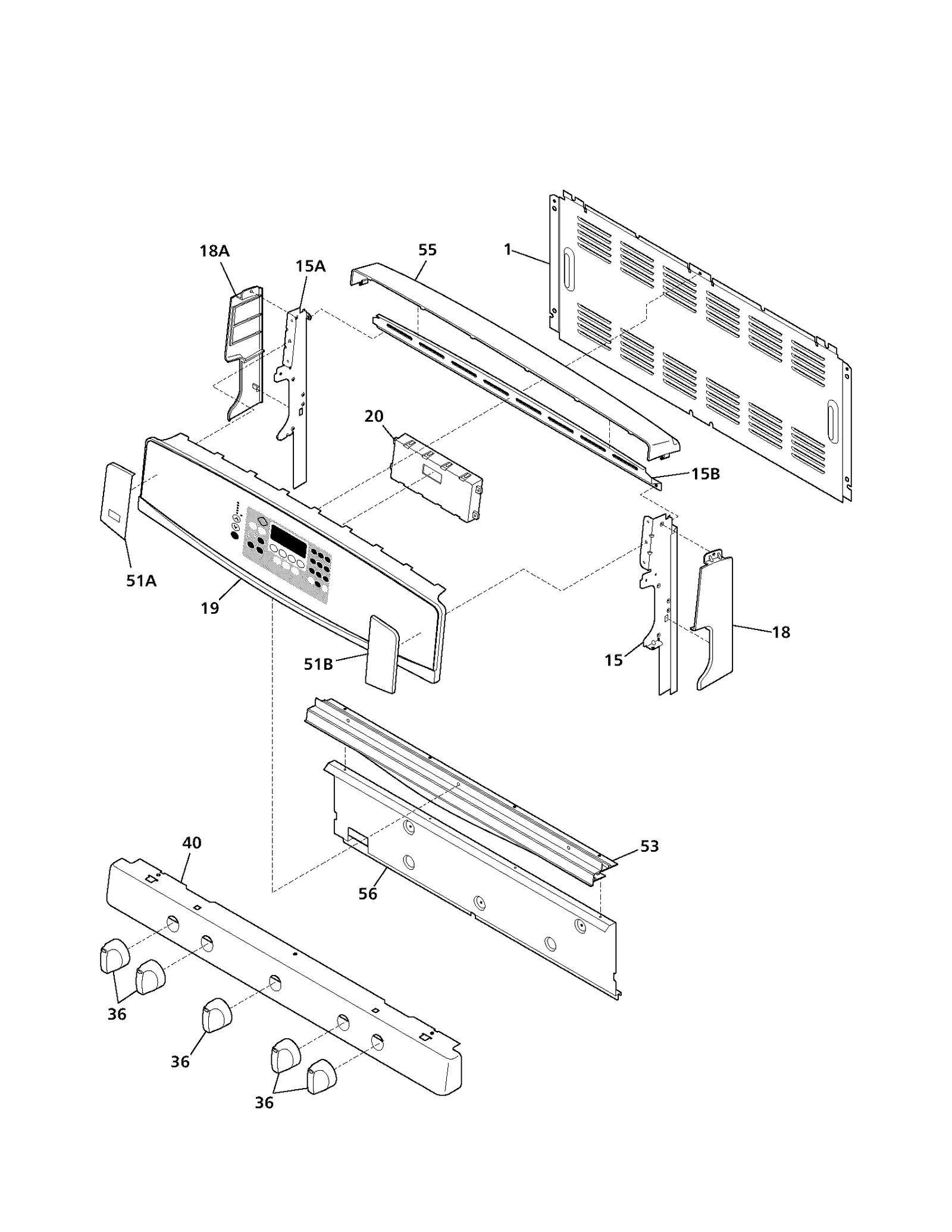

BACKGUARD

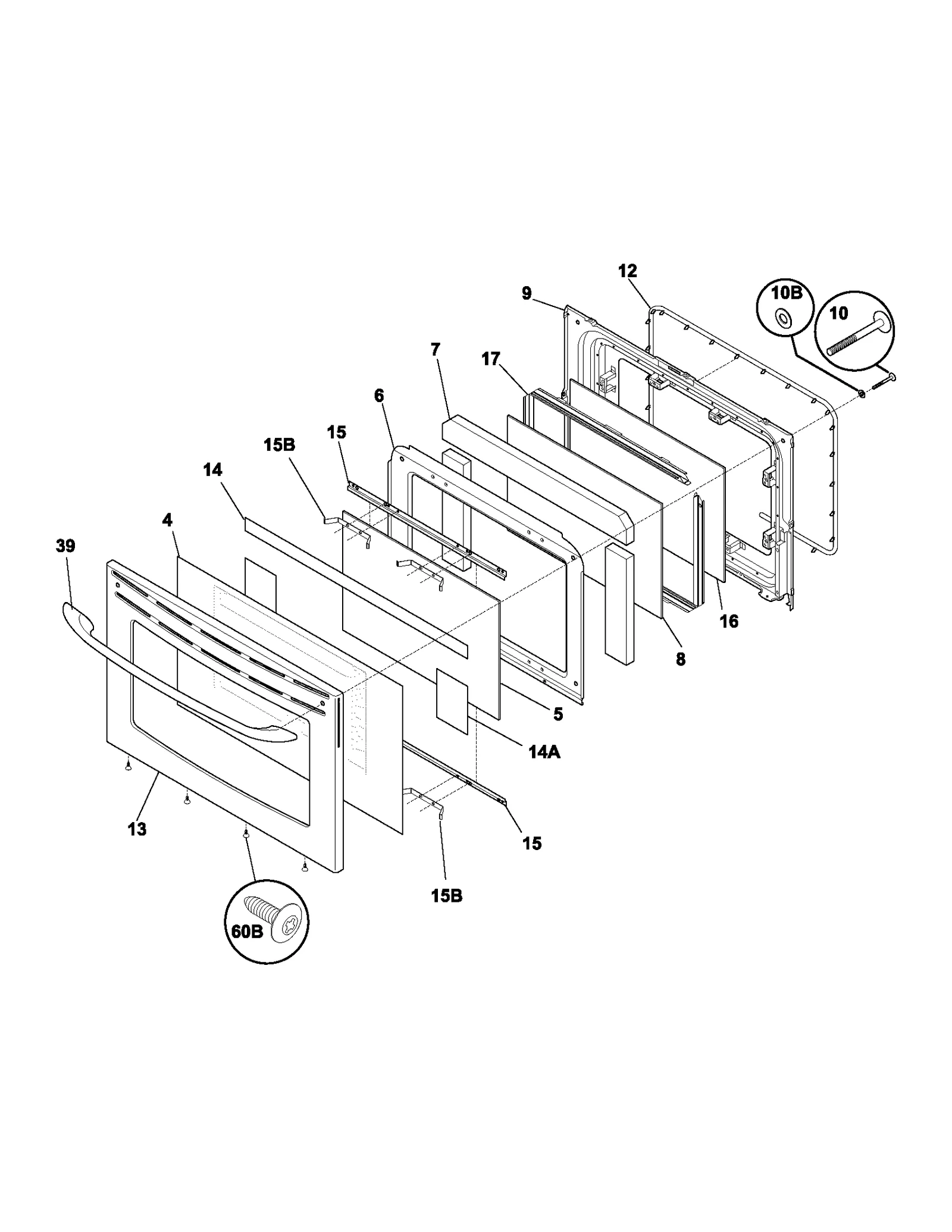

DOOR

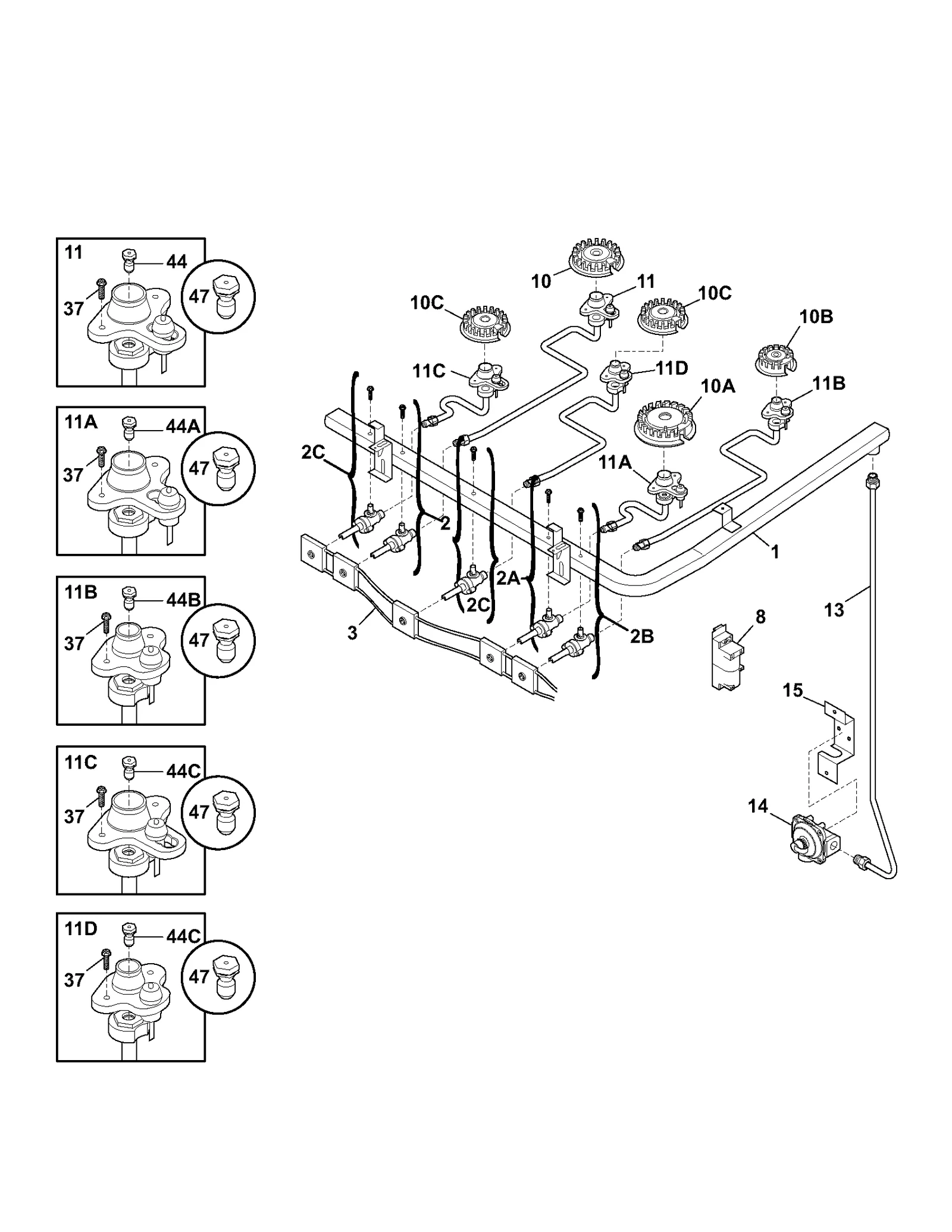

BURNER

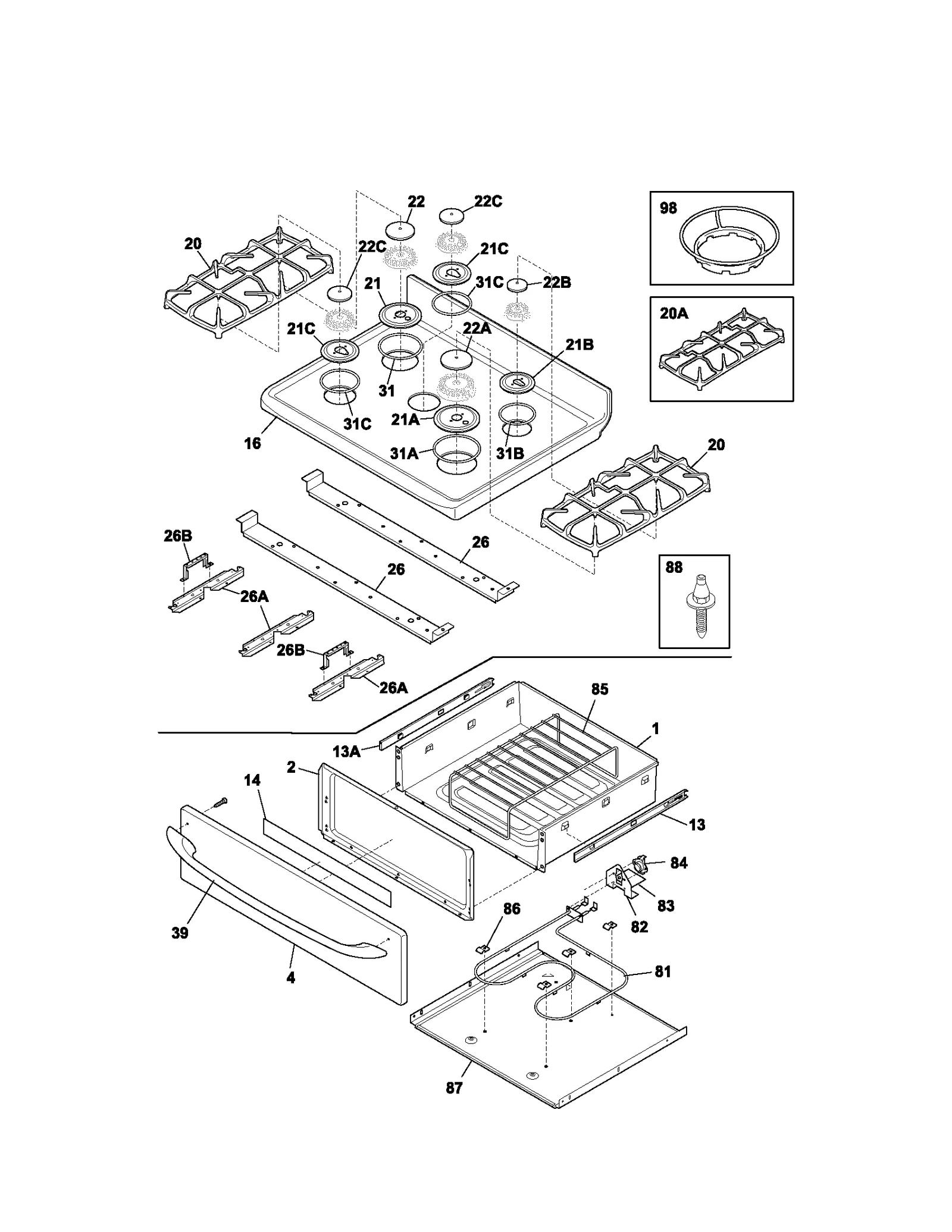

TOP/DRAWER
Common parts from model Electrolux 790.79913301 Gas Range (Kenmore 79079913301)
2A
Range Surface Burner Valve WCI 5303935233 Contact Us For Availability
2B
Range Surface Burner Valve WCI 5303935235 Contact Us For Availability
2C
Range Surface Burner Valve WCI 5303935234 Contact Us For Availability
3
Range Igniter Switch and Harness Assembly WCI 316219006 Contact Us For Availability
5
Range Leveling Leg WCI 316129200 Contact Us For Availability
7
Range Oven Door Insulation WCI 316236700 Contact Us For Availability
7A
Range Oven Door Hinge, Left WCI 316216501 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
10
Range Surface Burner Head WCI 316212300 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
10A
Range Surface Burner Head WCI 316223300 Contact Us For Availability
11C
Range Surface Burner Igniter and Orifice Hold WCI 316230300 Contact Us For Availability
12
Range Oven Door Switch WCI 316209903 Contact Us For Availability
13
Range Gas Supply Tube WCI 316207000 Contact Us For Availability
13
Drawer Glide WCI 316231700 Contact Us For Availability
13A
Drawer Glide WCI 316231701 Contact Us For Availability
14
Range Pressure Regulator WCI 318122700 No Longer Available
14
Aluminum Foil WCI 316102211 Contact Us For Availability
16
Range Main Top WCI 316250708 Contact Us For Availability
17
Glass Spacer WCI 316117701 Contact Us For Availability
18
Range Oven Door Latch WCI 316213900 Contact Us For Availability
20
Grate WCI 316249700 Contact Us For Availability
20A
Range Surface Burner Grate WCI 316271600 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
21
Cooktop Burner Skirt WCI 316241701 Contact Us For Availability
21A
Skirt WCI 316264801 Contact Us For Availability
21B
Cooktop Burner Skirt WCI 316241901 Contact Us For Availability
21C
Range Surface Burner Skirt WCI 316241801 Contact Us For Availability
22
Range Surface Burner Cap WCI 316242800 Contact Us For Availability
22A
Range Surface Burner Cap (Black) WCI 316219700 Contact Us For Availability
22B
Range Surface Burner Cap WCI 316206500 Contact Us For Availability
22C
Range Surface Burner Cap WCI 316242900 Contact Us For Availability
26
Channel WCI 316099102 Contact Us For Availability
26A
Channel WCI 316242501 Contact Us For Availability
26B
Bracket WCI 316116702 Contact Us For Availability
30
Range Main Top Right Hinge Pin WCI 316217700 Contact Us For Availability
36
Range Surface Burner Knob WCI 316121820 Contact Us For Availability
39
Range Oven Door Handle (Graphite) WCI 316268303 Contact Us For Availability
41
Range Oven Door Hinge Cover, Right WCI 316233400 Contact Us For Availability
44
Door Spacer WCI 316246500 Contact Us For Availability
44A
Range Surface Burner Orifice WCI 316237909 Contact Us For Availability
44B
Range Surface Burner Orifice Assembly WCI 316237903 Contact Us For Availability
82
Range Warming Drawer Element Mounting Bracket WCI 316093200 Contact Us For Availability
83
Terminal Shield WCI 316093300 Contact Us For Availability
84
Range Warming Drawer Safety Thermostat WCI 316093501 Contact Us For Availability
86
Range Warming Drawer Element Bracket WCI 316095800 Contact Us For Availability
87
Range Warming Drawer Base Panel WCI 316091900 Contact Us For Availability
98
Grate WCI 316241400 Contact Us For Availability
108
Range Convection Fan Motor WCI 316136300 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Wire Harness WCI 316253702 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Cleaner-cook WCI 316112100 Contact Us For Availability
NI
Range Surface Burner Grate Cleaner WCI 316119700 Contact Us For Availability
NI
Range Warming Drawer Wire Harness WCI 316253620 Contact Us For Availability
NI
Harness WCI 316253624 Contact Us For Availability
× ![]()
