Model Electrolux 790.79212302 Gas Range (Kenmore 79079212302) – Common Parts & Diagrams

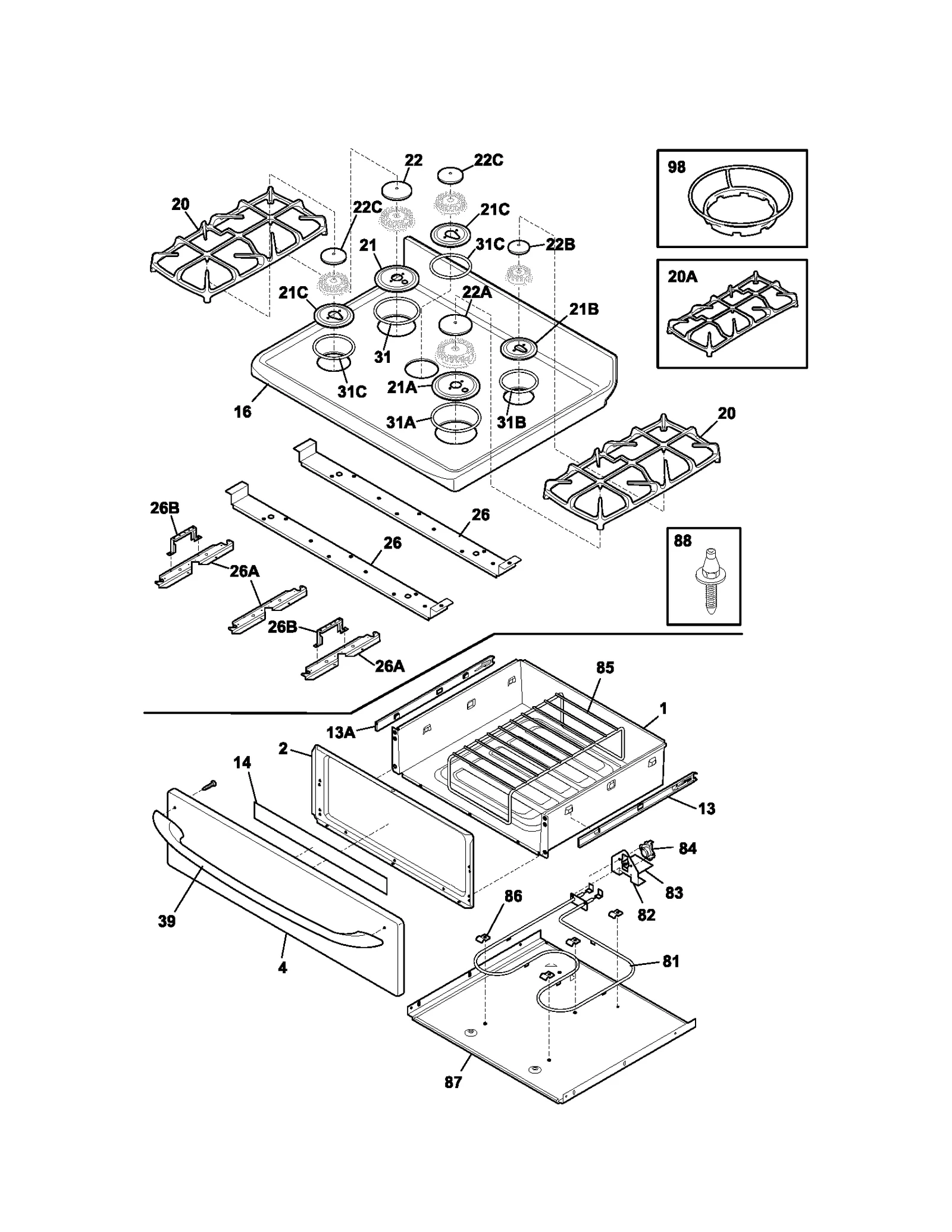

TOP/DRAWER
TOP/DRAWER

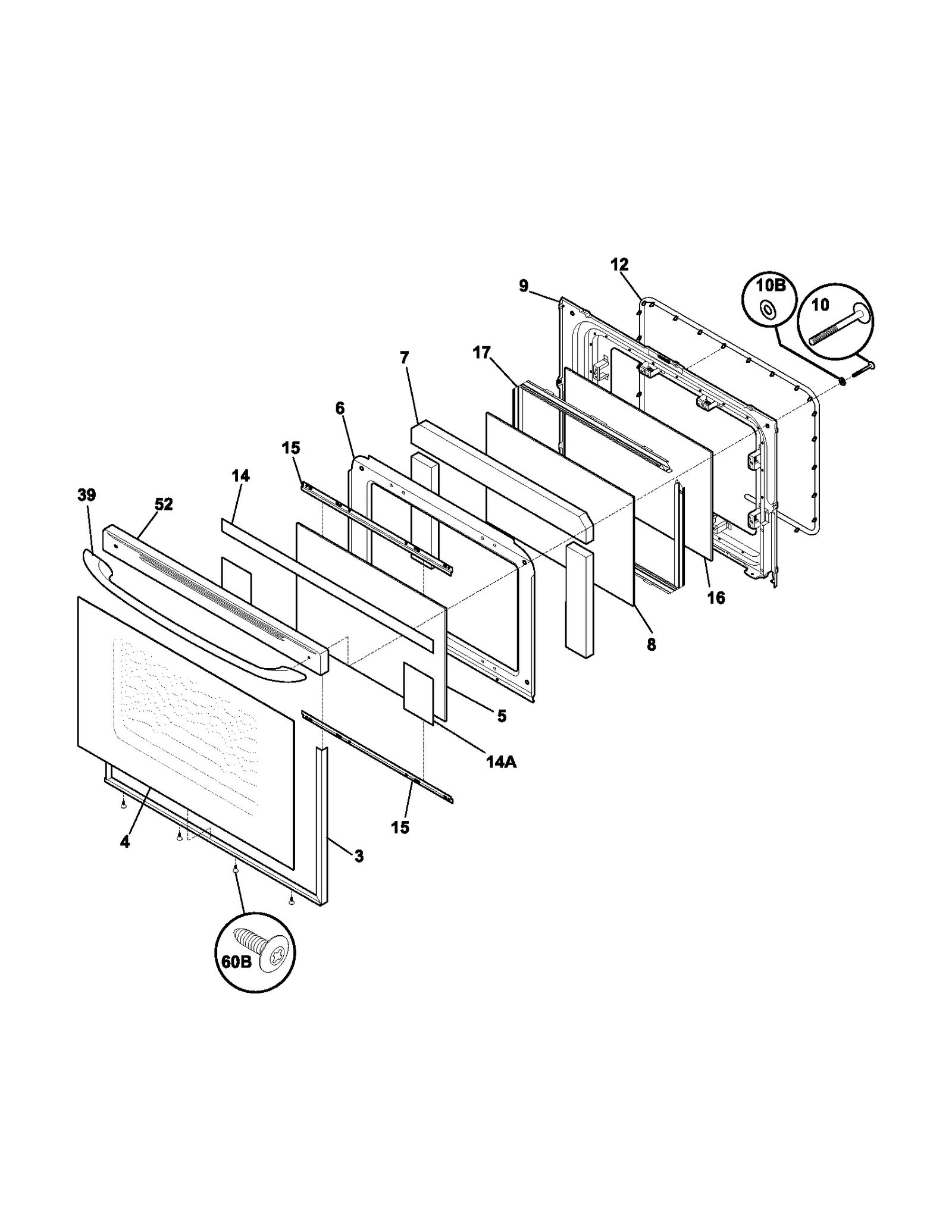

DOOR
DOOR

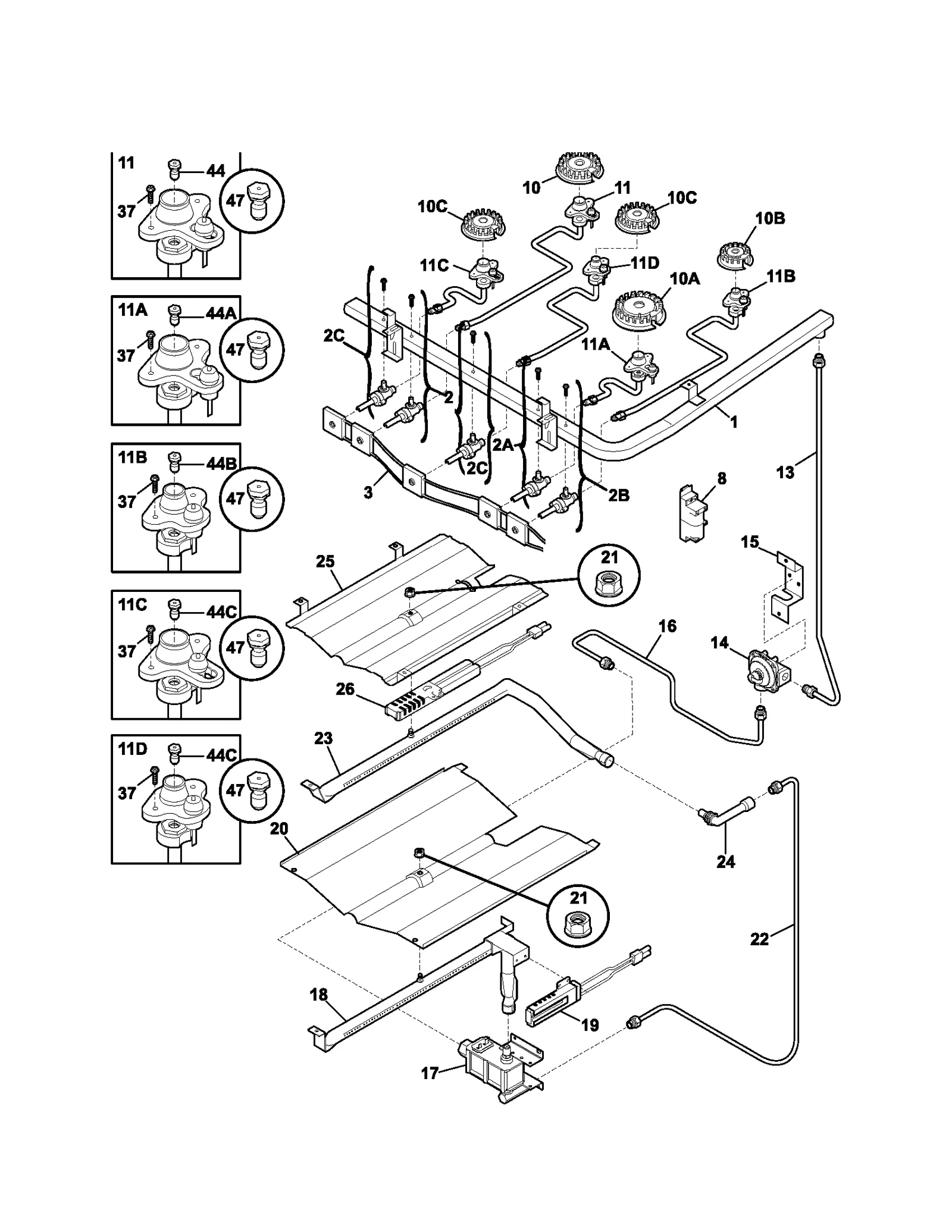

BURNER
BURNER

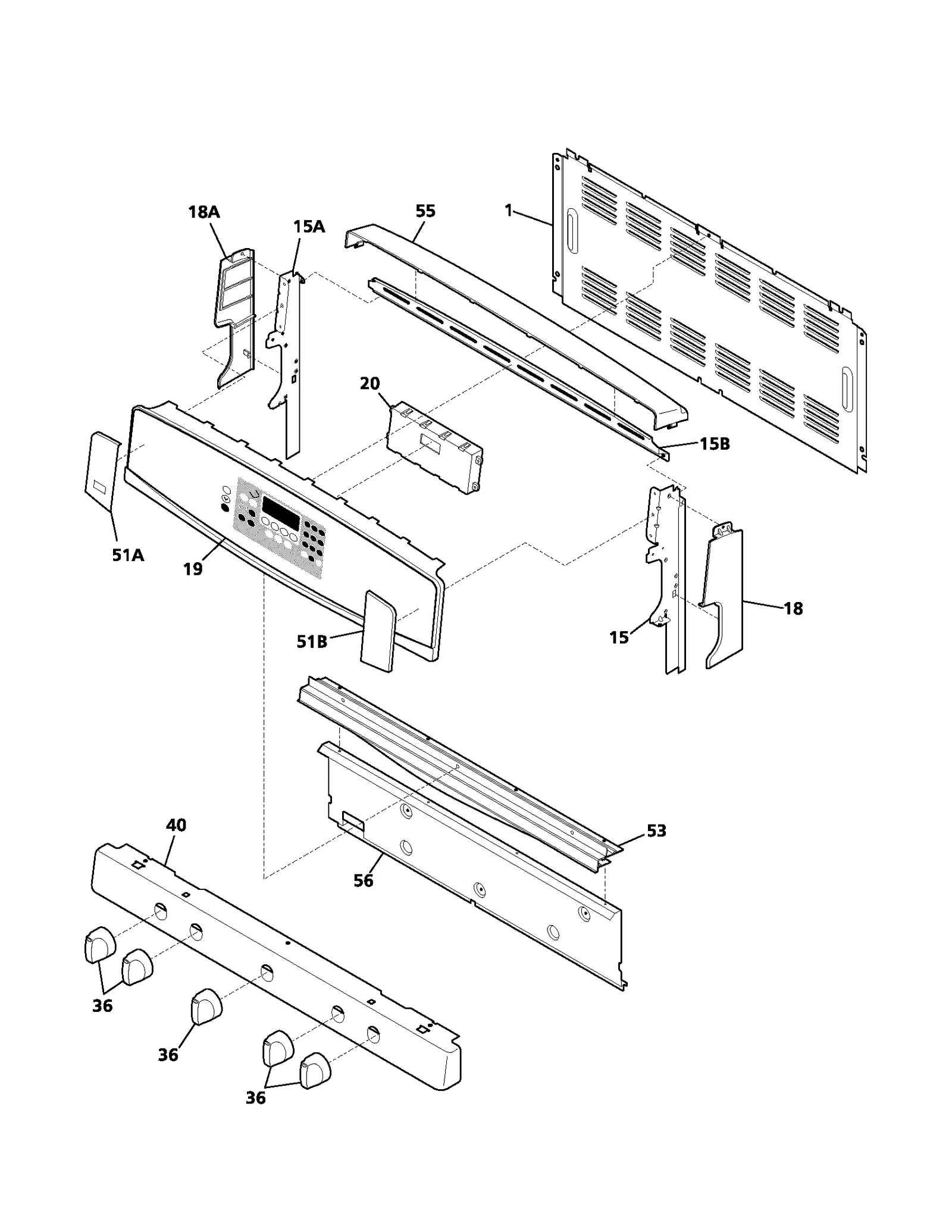

BACKGUARD
BACKGUARD

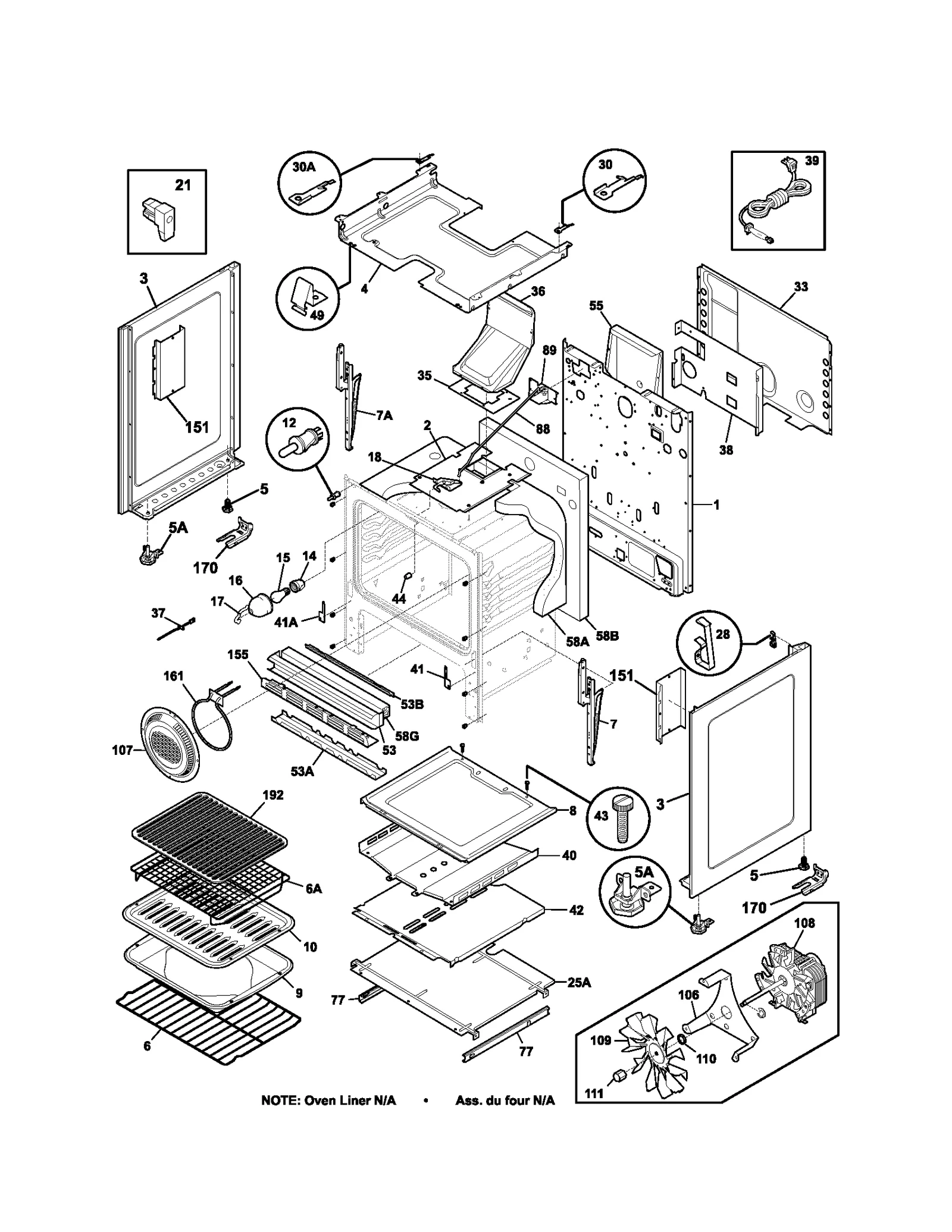

BODY
BODY
Common parts from model Electrolux 790.79212302 Gas Range (Kenmore 79079212302)
1
Shield WCI 316239902 Contact Us For Availability
1
Panel WCI 316029416 Contact Us For Availability
2
Shield WCI 3131314 Contact Us For Availability
2A
Range Surface Burner Valve WCI 5303935233 Contact Us For Availability
2B
Range Surface Burner Valve WCI 5303935235 Contact Us For Availability
2C
Range Surface Burner Valve WCI 5303935234 Contact Us For Availability
3
Range Igniter Switch and Harness Assembly WCI 316219006 Contact Us For Availability
3
Range Oven Door Trim Kit WCI 5303935191 Contact Us For Availability
3
Range Oven Door Trim Kit (White) WCI 5303935192 Contact Us For Availability
3
Panel WCI 316400106 Contact Us For Availability
3
Panel WCI 316400107 Contact Us For Availability
4
Range Oven Door Outer Panel and Foil Tape (Bl WCI 5303935216 Contact Us For Availability
4
Burner Box WCI 316067208 Contact Us For Availability
5
Range Leveling Leg WCI 316129200 Contact Us For Availability
6
Range Oven Rack Assembly WCI 316216001 Contact Us For Availability
6A
Shelf WCI 318219500 Contact Us For Availability
7
Range Oven Door Insulation WCI 316236700 Contact Us For Availability
7A
Range Oven Door Hinge, Left WCI 316216501 Contact Us For Availability
8
Ov Btm Pnl WCI 5303300701 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
10
Range Surface Burner Head WCI 316212300 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
10A
Range Surface Burner Head WCI 316223300 Contact Us For Availability
11C
Range Surface Burner Igniter and Orifice Hold WCI 316230300 Contact Us For Availability
12
Range Oven Door Switch WCI 316209903 Contact Us For Availability
13
Range Gas Supply Tube WCI 316207000 Contact Us For Availability
13
Drawer Glide WCI 316231700 Contact Us For Availability
13A
Drawer Glide WCI 316231701 Contact Us For Availability
15
Channel WCI 316267500 Contact Us For Availability
15A
Channel WCI 316267501 Contact Us For Availability
15B
Shield WCI 316267701 Contact Us For Availability
17
Glass Spacer WCI 316117701 Contact Us For Availability
18
Range Bake Burner WCI 316269000 Contact Us For Availability
18
Range Oven Door Latch WCI 316213900 Contact Us For Availability
18
End Cap WCI 316267201 Contact Us For Availability
18
End Cap WCI 316267202 Contact Us For Availability
18
End Cap WCI 316267203 Contact Us For Availability
18A
End Cap WCI 316267205 Contact Us For Availability
18A
End Cap WCI 316267206 Contact Us For Availability
18A
End Cap WCI 316267207 Contact Us For Availability
19
Range Touch Control Panel WCI 5303935220 Contact Us For Availability
19
Range Panel WCI 5303935222 Contact Us For Availability
19
Panel WCI 5303935223 Contact Us For Availability
20
Range Oven Control Board WCI 316272700 Contact Us For Availability
21
Cooktop Burner Skirt WCI 316241701 Contact Us For Availability
21A
Range Surface Burner Skirt, 17,000-BTU WCI 316264804 Contact Us For Availability
21B
Cooktop Burner Skirt WCI 316241901 Contact Us For Availability
21C
Range Surface Burner Skirt WCI 316241801 Contact Us For Availability
22
Range Oven Burner Tube WCI 316065002 Contact Us For Availability
22
Range Surface Burner Cap WCI 316242800 Contact Us For Availability
22B
Range Surface Burner Cap WCI 316206500 Contact Us For Availability
22C
Range Surface Burner Cap WCI 316242900 Contact Us For Availability
23
Range Broil Burner WCI 08067935 Contact Us For Availability
25A
Warmer Shield WCI 316092300 Contact Us For Availability
28
Wire Clip WCI 316045000 Contact Us For Availability
30
Range Main Top Right Hinge Pin WCI 316217700 Contact Us For Availability
30A
Range High Bracket WCI 316217701 Contact Us For Availability
33
Rear Shield WCI 316232800 Contact Us For Availability
36
Range Surface Burner Knob WCI 316121800 Contact Us For Availability
36
Knob (Black) WCI 316121801 Contact Us For Availability
36
Range Surface Burner Knob WCI 316121815 Contact Us For Availability
38
Shield WCI 316051700 Contact Us For Availability
40
Manifold Panel WCI 316204969 Contact Us For Availability
40
Panel,manifold ,black WCI 316204970 Contact Us For Availability
40
Wht Manifold WCI 316204968 Contact Us For Availability
40
Shield WCI 3200836 Contact Us For Availability
41
Range Oven Door Hinge Cover, Right WCI 316233400 Contact Us For Availability
41A
Range Oven Door Hinge Cover, Left WCI 316233500 Contact Us For Availability
42
Bake Shield WCI 5303288578 Contact Us For Availability
44
Door Spacer WCI 316246500 Contact Us For Availability
44A
Range Surface Burner Orifice WCI 316237909 Contact Us For Availability
44B
Range Surface Burner Orifice Assembly WCI 316237903 Contact Us For Availability
49
Spring Clip WCI 316234200 Contact Us For Availability
51A
Cap Trim, Left WCI 316267805 Contact Us For Availability
51A
Cap Trim, Left WCI 316267806 Contact Us For Availability
51A
Range Control Panel Trim, Left (Bisque) WCI 316267807 Contact Us For Availability
51B
Cap Trim, Right WCI 316267801 Contact Us For Availability
51B
Cap Trim, Right WCI 316267802 Contact Us For Availability
51B
Trim WCI 316267803 Contact Us For Availability
53
Trim WCI 316268207 Contact Us For Availability
53
Trim WCI 316268208 Contact Us For Availability
53
Shield WCI 5303288579 Contact Us For Availability
53A
Shield WCI 08067992 Contact Us For Availability
53B
Air Bracket WCI 316211100 Contact Us For Availability
55
Range Trim WCI 316267101 Contact Us For Availability
55
Range Trim WCI 316267102 Contact Us For Availability
55
Trim WCI 316267103 Contact Us For Availability
56
Deflector WCI 316267601 Contact Us For Availability
58A
Insulation WCI 316047705 Contact Us For Availability
58B
Insulation WCI 316218304 Contact Us For Availability
84
Range Warming Drawer Safety Thermostat WCI 316093501 Contact Us For Availability
106
Bracket WCI 316026600 Contact Us For Availability
108
Range Convection Fan Assembly WCI 316234601 Contact Us For Availability
151
Shield WCI 316404600 Contact Us For Availability
155
Drawer Shield WCI 316095201 Contact Us For Availability
NI
Bisq Paint WCI 5304414035 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Wire Harness WCI 316253702 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Service Data Sheet WCI 316218522 Contact Us For Availability
NI
Wiring Diagram WCI 316255227 Contact Us For Availability
NI
Range Owner's Manual WCI 316258037 Contact Us For Availability
NI
Installation WCI 316259331 Contact Us For Availability
NI
Parts List WCI 5995406336 Contact Us For Availability
NI
Sleeve WCI 316244300 Contact Us For Availability
NI
Range Wire Harness WCI 316253419 Contact Us For Availability
× ![]()
