Model Electrolux 790.79114201 Gas Range (Kenmore 79079114201) – Common Parts & Diagrams
BACKGUARD

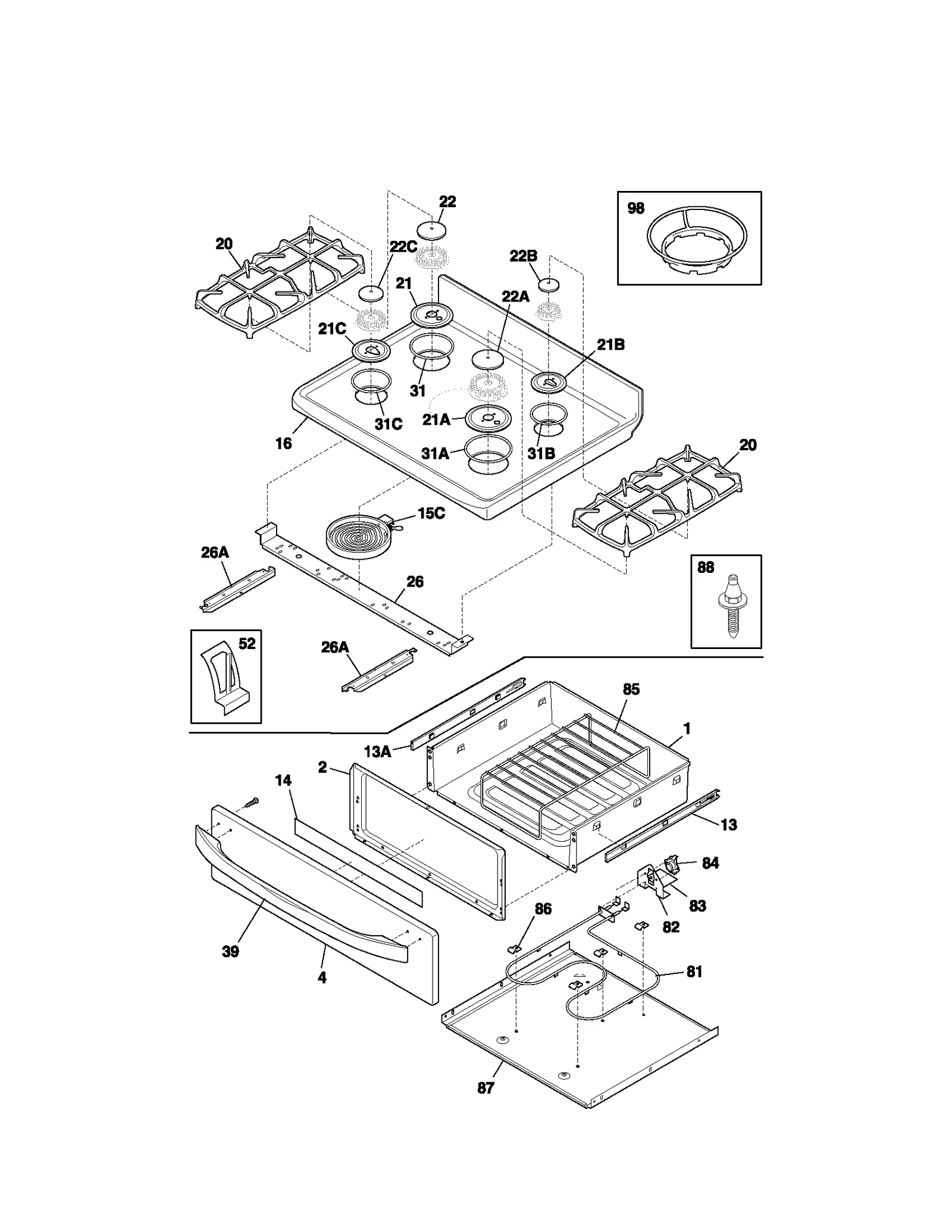

TOP/DRAWER

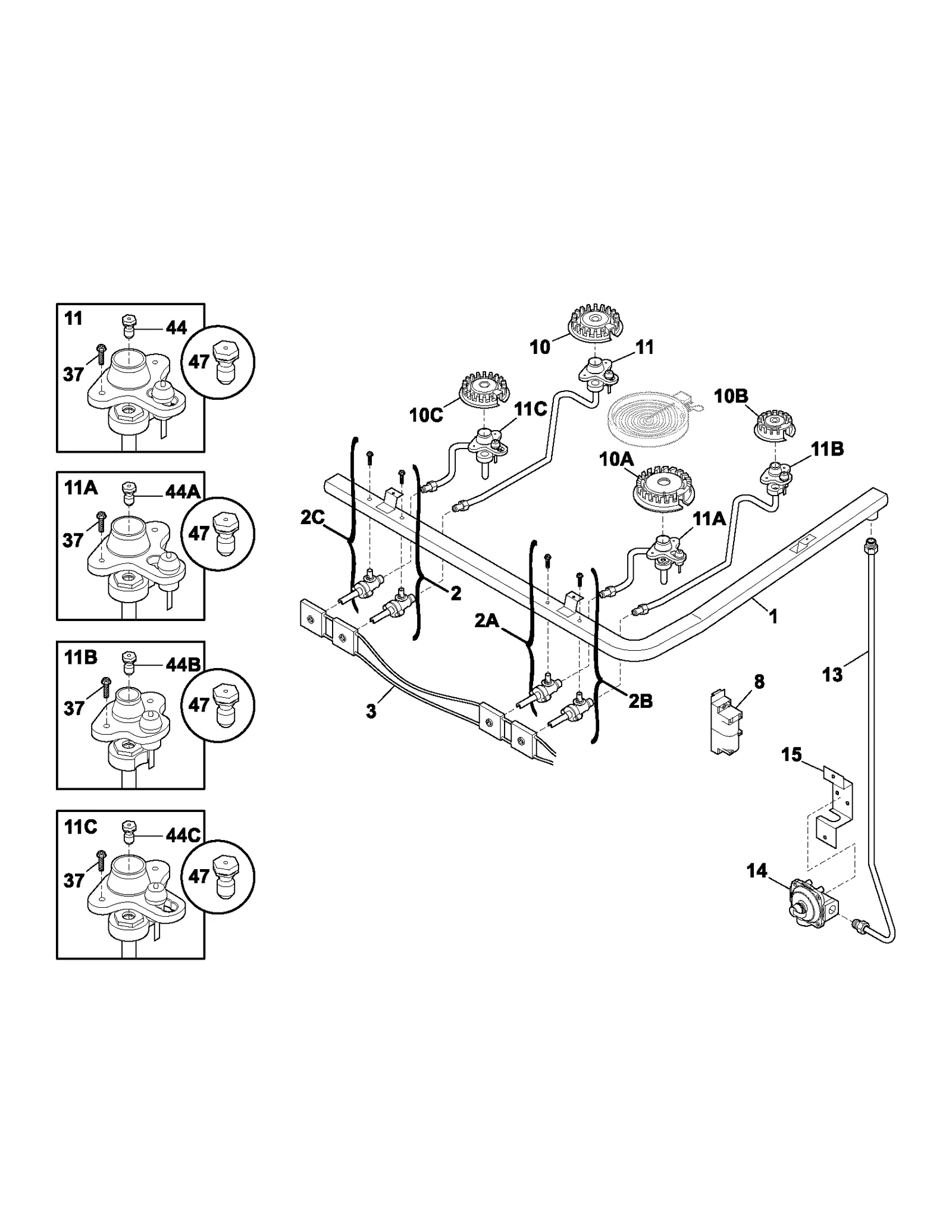

BURNER

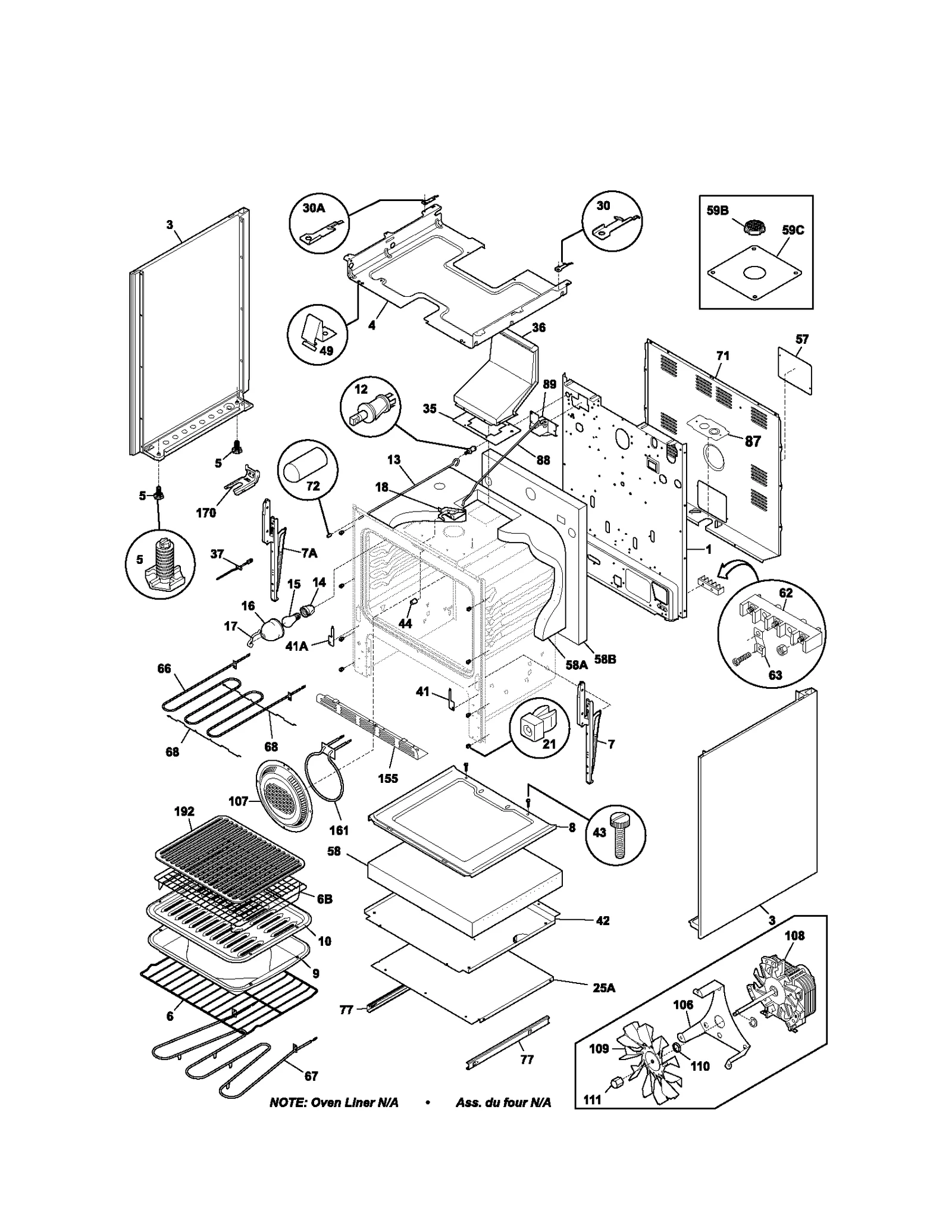

BODY

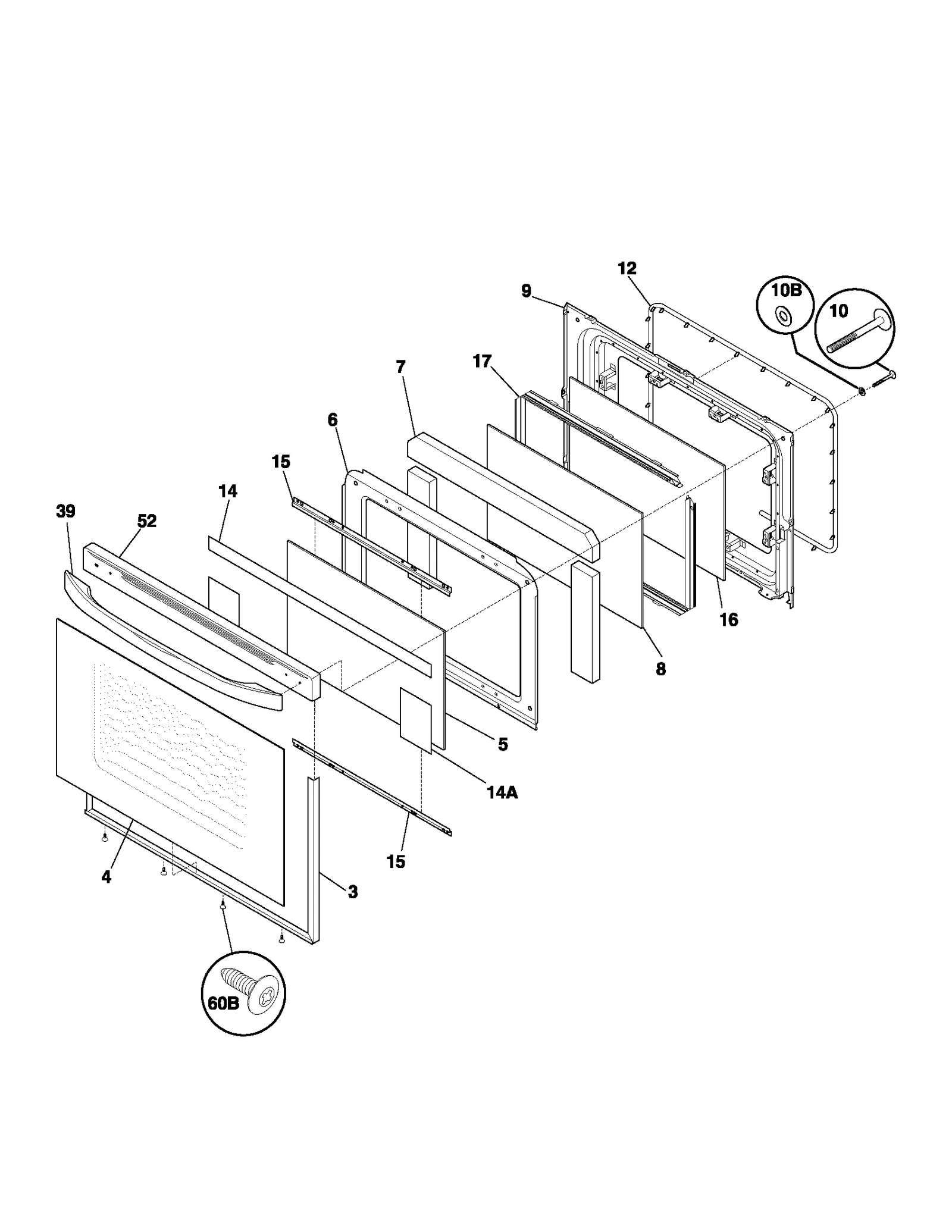

DOOR
Common parts from model Electrolux 790.79114201 Gas Range (Kenmore 79079114201)
2
Range Surface Burner Valve, 12,000-BTU WCI 5303935210 Contact Us For Availability
2A
Range Surface Burner Valve, 14,000-BTU WCI 5303935211 Contact Us For Availability
2B
Valve WCI 5303935212 Contact Us For Availability
2C
Valve WCI 5303935213 Contact Us For Availability
3
Range Oven Door Trim Kit WCI 5303935191 Contact Us For Availability
3
Range Oven Door Trim Kit (White) WCI 5303935192 Contact Us For Availability
3
Panel WCI 316230118 Contact Us For Availability
3
Panel WCI 316230119 Contact Us For Availability
3
Range Oven Door Trim Kit (Bisque) WCI 5303935193 Contact Us For Availability
4
Range Oven Door Outer Panel and Foil Tape (Wh WCI 5303935201 Contact Us For Availability
4
Oven Door Glass WCI 5303935202 Contact Us For Availability
4
Burner Box WCI 316067208 Contact Us For Availability
5
Range Leveling Leg WCI 316129200 Contact Us For Availability
5
Oven Door Glass WCI 316237000 Contact Us For Availability
6
Wool Cover Shield WCI 316222707 Contact Us For Availability
6B
Shelf WCI 318219500 Contact Us For Availability
7
Range Oven Door Insulation WCI 316236700 Contact Us For Availability
7A
Hinge WCI 316212901 Contact Us For Availability
8
Oven WCI 3203540 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
9
Door Liner WCI 316230605 Contact Us For Availability
10
Range Surface Burner Head WCI 316212300 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
11C
Range Surface Burner Igniter and Orifice Hold WCI 316230300 Contact Us For Availability
12
Oven Switch WCI 316027700 Contact Us For Availability
13
Range Gas Supply Tube WCI 316207000 Contact Us For Availability
13
Drawer Glide WCI 316231700 Contact Us For Availability
13
Light Rod WCI 316238800 Contact Us For Availability
13A
Drawer Glide WCI 316231701 Contact Us For Availability
14
Range Pressure Regulator WCI 318122700 No Longer Available
14A
Range Oven Door Foil Tape, 4 x 5-1/2-in WCI 316102202 Contact Us For Availability
15
Glass Bracket WCI 316237201 Contact Us For Availability
15C
Range Warmer Zone Surface Element WCI 316098202 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 316117501 Contact Us For Availability
17
Glass Spacer WCI 316117701 Contact Us For Availability
18
Range Oven Door Latch WCI 316213900 Contact Us For Availability
20A
Range Oven Control Overlay WCI 316246900 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
21
Cooktop Burner Skirt WCI 316241701 Contact Us For Availability
21A
Cooktop Burner Skirt WCI 316241601 Contact Us For Availability
21A
Cooktop Burner Skirt WCI 316241600 Contact Us For Availability
21B
Cooktop Burner Skirt WCI 316241901 Contact Us For Availability
21C
Range Surface Burner Skirt WCI 316241801 Contact Us For Availability
22
Range Surface Burner Cap WCI 316242800 Contact Us For Availability
22A
Cooktop Burner Cap (Black) WCI 316242700 Contact Us For Availability
22B
Range Surface Burner Cap WCI 316206500 Contact Us For Availability
22B
Range Surface Burner Cap (Gray) WCI 316206501 Contact Us For Availability
22C
Range Surface Burner Cap WCI 316242900 Contact Us For Availability
22C
Range Surface Burner Cap (Gray) WCI 316242901 Contact Us For Availability
25A
Warmer Shield WCI 316092400 Contact Us For Availability
30
Range Main Top Right Hinge Pin WCI 316217700 Contact Us For Availability
30A
Range High Bracket WCI 316217701 Contact Us For Availability
31
Range Surface Burner Knob WCI 316121600 Contact Us For Availability
31
Range Surface Burner Knob (Biscuit) WCI 316121603 Contact Us For Availability
36
Fluebox-up E WCI 316133002 Contact Us For Availability
39
Range Oven Door Handle (Black) WCI 316241105 Contact Us For Availability
39
Handle WCI 316241106 Contact Us For Availability
39
Oven Handle WCI 316241108 Contact Us For Availability
41
Range Oven Door Hinge Cover, Right WCI 316233400 Contact Us For Availability
41A
Range Oven Door Hinge Cover, Left WCI 316233500 Contact Us For Availability
42
Shield Insert WCI 5303289913 Contact Us For Availability
44
Door Spacer WCI 316246500 Contact Us For Availability
44A
Range Surface Burner Orifice WCI 316237900 Contact Us For Availability
44B
Range Surface Burner Orifice Assembly WCI 316237903 Contact Us For Availability
47
Range LP Conversion Kit WCI 316243709 Contact Us For Availability
49
Spring Clip WCI 316234200 Contact Us For Availability
52
Range Surface Element Mounting Spring WCI 316099400 Contact Us For Availability
52
Cap-door T WCI 316201003 Contact Us For Availability
52
Cap-door T WCI 316201005 Contact Us For Availability
52
Cap-door T WCI 316201009 Contact Us For Availability
57
Access Cover WCI 316081100 Contact Us For Availability
58B
Oven Insulation WCI 316240102 Contact Us For Availability
59C
Plate WCI 316211700 Contact Us For Availability
63
Strap WCI 5301145190 Contact Us For Availability
71
Shield WCI 316015814 Contact Us For Availability
72
Range Oven Light Switch Rod End Cap WCI 316234500 Contact Us For Availability
84
Range Warming Drawer Safety Thermostat WCI 316093501 Contact Us For Availability
106
Bracket WCI 316026600 Contact Us For Availability
108
Range Convection Fan Motor WCI 316136300 Contact Us For Availability
155
Drawer Shield WCI 316095201 Contact Us For Availability
NI
Bisq Paint WCI 5304414035 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Screw WCI 316021131 Contact Us For Availability
NI
Screw WCI 316021133 Contact Us For Availability
NI
Wire Clip WCI 316045000 Contact Us For Availability
NI
Range Terminal Block Insulator WCI 316085600 Contact Us For Availability
NI
Sleeve WCI 316244300 Contact Us For Availability
NI
Plate Weight WCI 316249200 Contact Us For Availability
NI
Wiring Harness WCI 316253220 Contact Us For Availability
NI
Warming Plate WCI 316065304 Contact Us For Availability
NI
Rivet WCI 316209000 Contact Us For Availability
× ![]()
