Model Electrolux 790.79113201 Gas Range (Kenmore 79079113201) – Common Parts & Diagrams
TOP/DRAWER

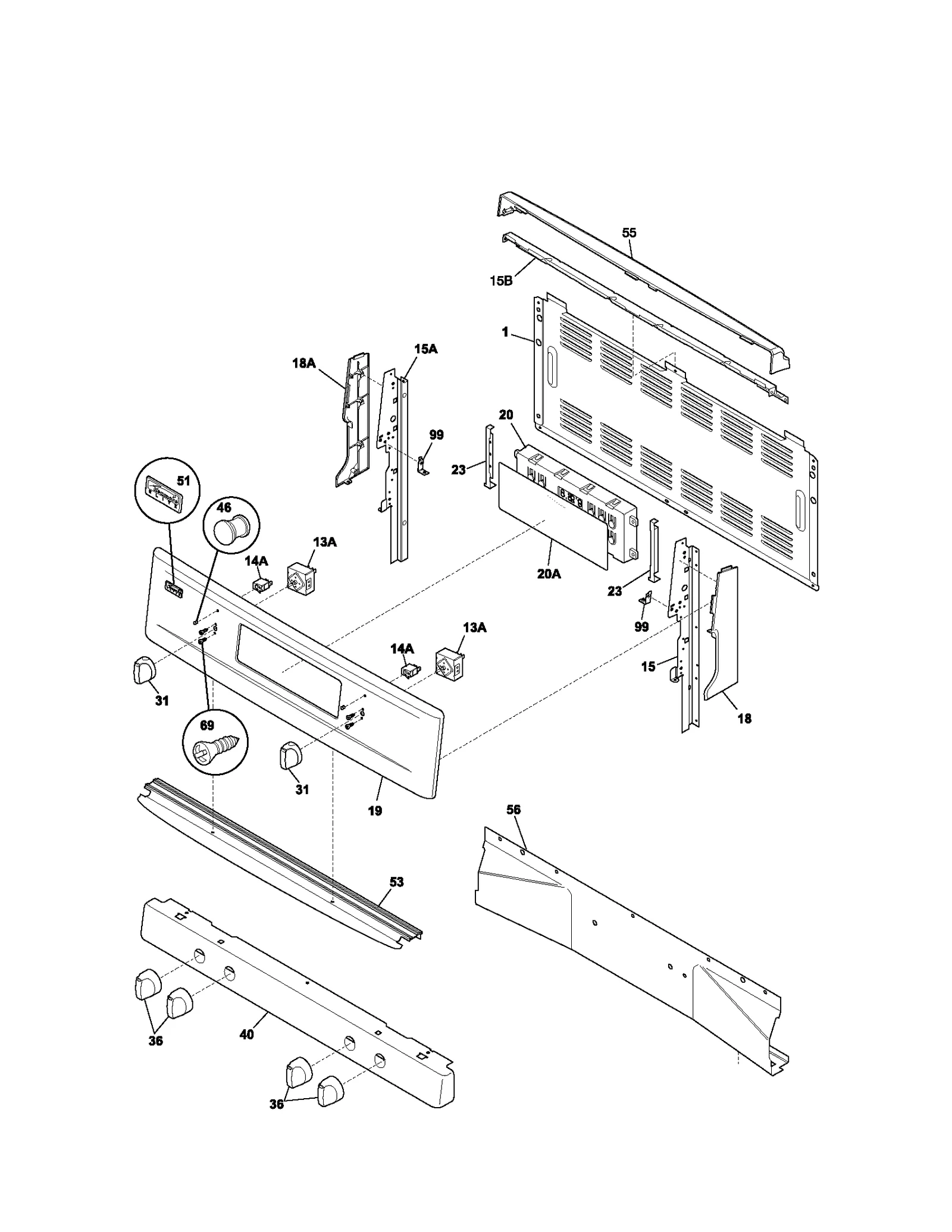

BACKGUARD

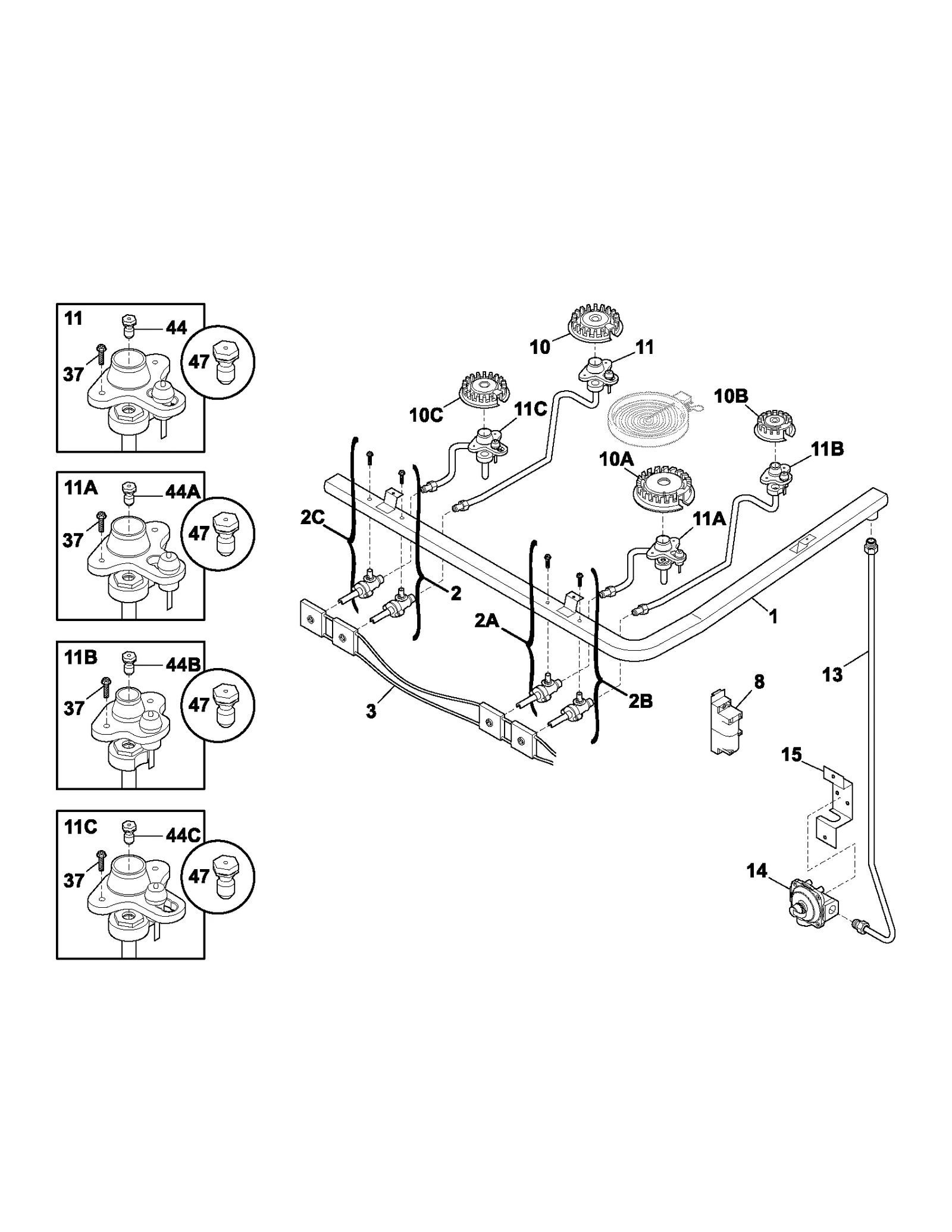

BURNER

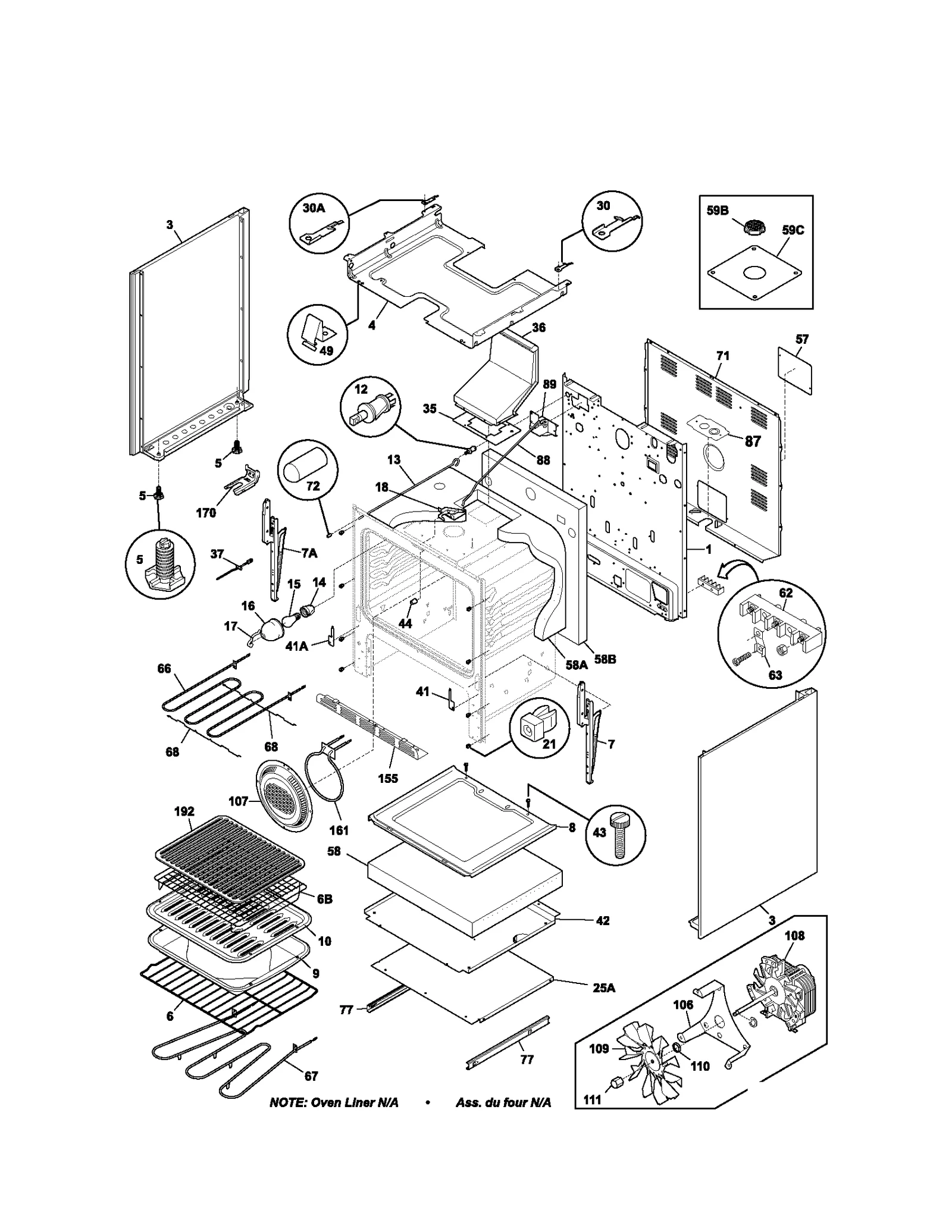

BODY

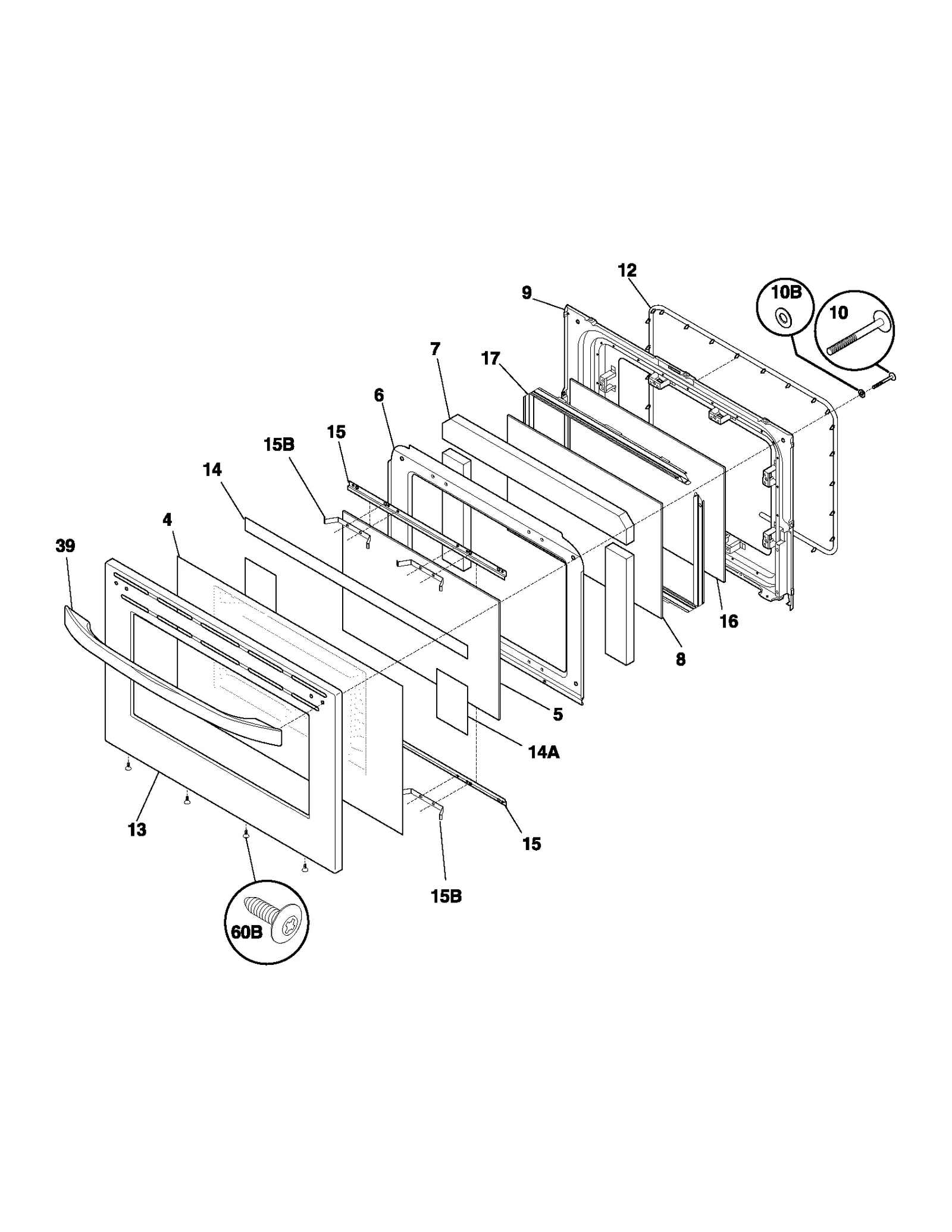

DOOR
Common parts from model Electrolux 790.79113201 Gas Range (Kenmore 79079113201)
2
Range Surface Burner Valve, 12,000-BTU WCI 5303935210 Contact Us For Availability
2A
Range Surface Burner Valve, 14,000-BTU WCI 5303935211 Contact Us For Availability
2B
Valve WCI 5303935212 Contact Us For Availability
2C
Valve WCI 5303935213 Contact Us For Availability
4
Range Oven Door Outer Panel WCI 316240000 Contact Us For Availability
5
Range Leveling Leg WCI 316129200 Contact Us For Availability
5
Oven Door Glass WCI 316237000 Contact Us For Availability
6
Wool Cover Shield WCI 316222707 Contact Us For Availability
7
Range Oven Door Insulation WCI 316236700 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
9
Door Liner WCI 316230605 Contact Us For Availability
10
Range Surface Burner Head WCI 316212300 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
10
Screw WCI 316001006 Contact Us For Availability
11C
Range Surface Burner Igniter and Orifice Hold WCI 316230300 Contact Us For Availability
13
Range Gas Supply Tube WCI 316207000 Contact Us For Availability
13
Drawer Glide WCI 316231700 Contact Us For Availability
13
Oven Door Panel WCI 316209401 Contact Us For Availability
13A
Drawer Glide WCI 316231701 Contact Us For Availability
14
Range Pressure Regulator WCI 318122700 No Longer Available
15
Glass Bracket WCI 316237201 Contact Us For Availability
15B
Bracket Support WCI 316085501 Contact Us For Availability
15C
Range Warmer Zone Surface Element WCI 316098202 Contact Us For Availability
17
Glass Spacer WCI 316117701 Contact Us For Availability
18
Range Oven Door Latch WCI 316213900 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
21
Cooktop Burner Skirt WCI 316241701 Contact Us For Availability
21A
Cooktop Burner Skirt WCI 316241601 Contact Us For Availability
21B
Cooktop Burner Skirt WCI 316241901 Contact Us For Availability
21C
Range Surface Burner Skirt WCI 316241801 Contact Us For Availability
22
Range Surface Burner Cap WCI 316242800 Contact Us For Availability
22A
Cooktop Burner Cap (Black) WCI 316242700 Contact Us For Availability
22B
Range Surface Burner Cap WCI 316206500 Contact Us For Availability
22C
Range Surface Burner Cap WCI 316242900 Contact Us For Availability
30
Range Main Top Right Hinge Pin WCI 316217700 Contact Us For Availability
36
Range Surface Burner Knob WCI 316121820 Contact Us For Availability
39
Range Oven Door Handle (Stainless) WCI 316079500 Contact Us For Availability
41
Range Oven Door Hinge Cover, Right WCI 316233400 Contact Us For Availability
44
Door Spacer WCI 316246500 Contact Us For Availability
44A
Range Surface Burner Orifice WCI 316237900 Contact Us For Availability
44B
Range Surface Burner Orifice Assembly WCI 316237903 Contact Us For Availability
47
Range LP Conversion Kit WCI 316243709 Contact Us For Availability
52
Range Surface Element Mounting Spring WCI 316099400 Contact Us For Availability
84
Range Warming Drawer Safety Thermostat WCI 316093501 Contact Us For Availability
106
Bracket WCI 316026600 Contact Us For Availability
108
Range Convection Fan Motor WCI 316136300 Contact Us For Availability
155
Drawer Shield WCI 316095201 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Range Terminal Block Insulator WCI 316085600 Contact Us For Availability
NI
Sleeve WCI 316244300 Contact Us For Availability
NI
Plate Weight WCI 316249200 Contact Us For Availability
NI
Wiring Harness WCI 316253220 Contact Us For Availability
NI
Warming Plate WCI 316065304 Contact Us For Availability
NI
Rivet WCI 316209000 Contact Us For Availability
× ![]()
