Model Electrolux 790.75903990 Gas Range (Kenmore 79075903990) – Common Parts & Diagrams

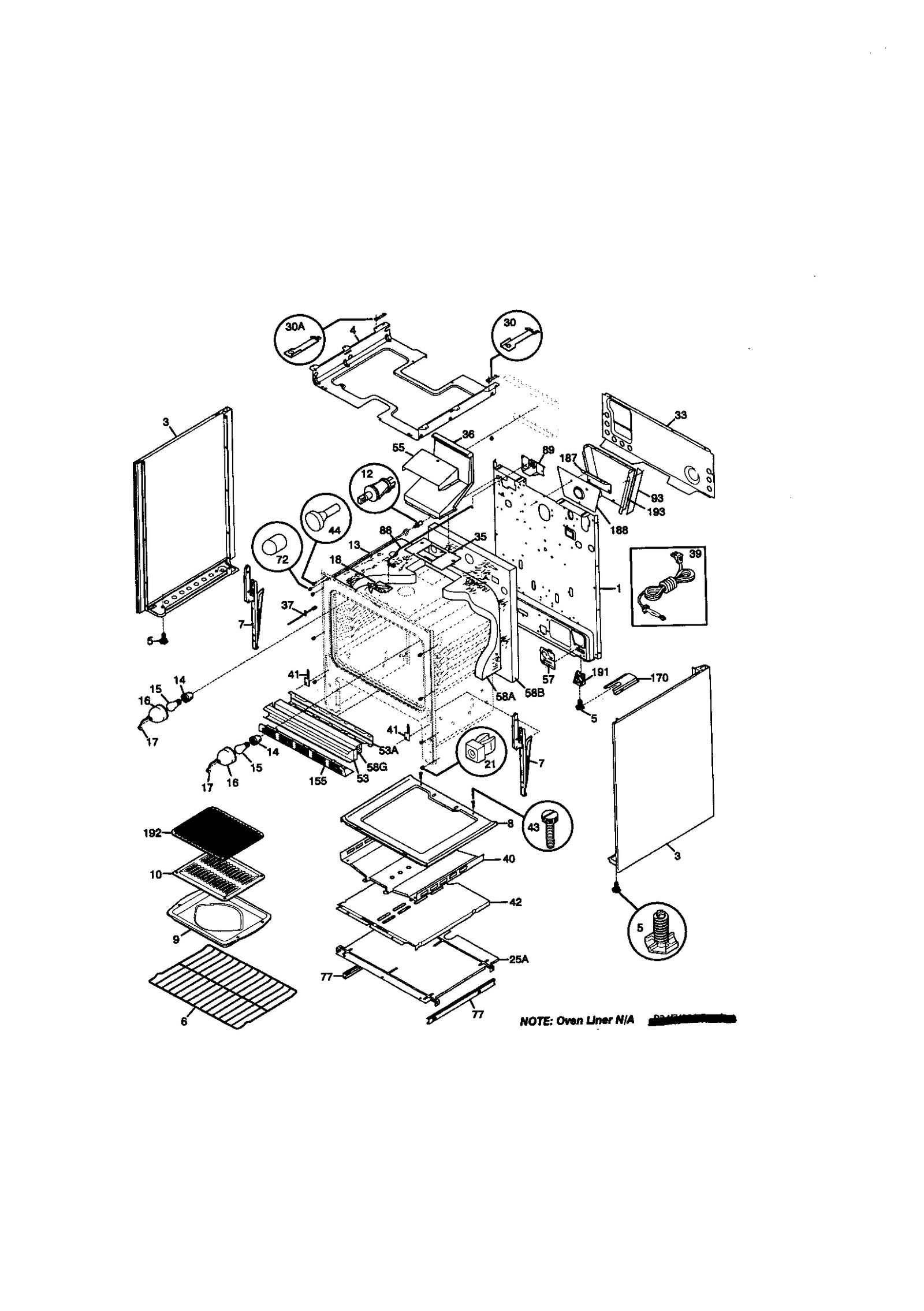

BODY
All Parts
BURNER
BACKGUARD
DOOR
TOP/DRAWER
Common parts from model Electrolux 790.75903990 Gas Range (Kenmore 79075903990)
(NI)
HARNESS-IGNITOR WCI 31601822 Contact Us For Availability
1
Manifold Pipe WCI 316118600 Contact Us For Availability
1
Backing Shield WCI 316028701 Contact Us For Availability
1
Warming Drawer WCI 316115903 Contact Us For Availability
2
Range Surface Burner Valve and Screw WCI 5303935158 Contact Us For Availability
2
Backing Shield WCI 316051600 Contact Us For Availability
2
Liner WCI 316092901 Contact Us For Availability
2A
Range Surface Burner Valve, 11,000-BTU WCI 5303935159 Contact Us For Availability
2A
Shield-top I WCI 316123200 Contact Us For Availability
2B
Burner Valve WCI 5303935160 Contact Us For Availability
2C
Valve Screw WCI 316123500 Contact Us For Availability
3
Igniter Switch WCI 316103602 Contact Us For Availability
4
Burner Tube WCI 316059616 Contact Us For Availability
4
Glass WCI 316128903 Contact Us For Availability
4
Drawer Panel WCI 316079403 Contact Us For Availability
5
Burner Tube WCI 316059617 Contact Us For Availability
5
Range Oven Door Middle Glass WCI 316117600 Contact Us For Availability
6
Burner Tube WCI 316059618 Contact Us For Availability
6
Shield WCI 316091404 Contact Us For Availability
7
Burner Tube WCI 316059619 Contact Us For Availability
7
Insulation WCI 316118000 Contact Us For Availability
8A
Range Spark Module Wire Harness WCI 5303289034 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
9
Liner-oven D WCI 316066617 Contact Us For Availability
9
Broiler Pan WCI 316073800 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
10
Insert Broil WCI 3205234 Contact Us For Availability
10A
Sealed Burner WCI 5303935165 Contact Us For Availability
10B
Burner Assembly WCI 5303935166 Contact Us For Availability
10C
Range Surface Burner, 9,000-BTU WCI 5303935164 Contact Us For Availability
13
Manifold Tube WCI 316119000 Contact Us For Availability
13
Door Oven Panel WCI 316129000 Contact Us For Availability
13B
Range Surface Burner Valve Mounting Screw WCI 316048200 Contact Us For Availability
14
Glide Button WCI 3206216 Contact Us For Availability
14
Reg Gas WCI 316091710 Contact Us For Availability
14
Door Reflector WCI 316102203 Contact Us For Availability
14A
Range Oven Door Foil Tape, 4 x 5-1/2-in WCI 316102202 Contact Us For Availability
15
Channel-bg S WCI 316049110 Contact Us For Availability
15
Glass Bracket WCI 316081405 Contact Us For Availability
15A
Channel-bg S WCI 316049111 Contact Us For Availability
15B
SUPPORT-BACKGUARD, TOP WCI 316121502 Contact Us For Availability
15B
Bracket Support WCI 316085501 Contact Us For Availability
15C
Warming Element WCI 316098201 Contact Us For Availability
16
Range Oven Burner Tube WCI 316065003 Contact Us For Availability
16
Glass Main Top WCI 316098158 Contact Us For Availability
17
Glass Spacer WCI 316117701 Contact Us For Availability
17
Safety Valve WCI 316123000 Contact Us For Availability
18
Oven Burner WCI 3131290 Contact Us For Availability
18
End Cap WCI 316120108 Contact Us For Availability
18A
End Cap WCI 316120109 Contact Us For Availability
19
Control Panel WCI 316128003 Contact Us For Availability
19
Range Drip Pan WCI 318066911 Contact Us For Availability
19A
Pan Burner WCI 318066901 Contact Us For Availability
19B
Adhesive WCI 316065903 Contact Us For Availability
20
Range Oven Control Board and Overlay WCI 316127903 Contact Us For Availability
20
Oven Baffle WCI 3131284 Contact Us For Availability
20
Cooktop Burner Grate WCI 316119201 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
21
Lg Blk Trim WCI 318050505 Contact Us For Availability
21A
Sm Blk Trim WCI 318050605 Contact Us For Availability
22
Burner Cap (Black) WCI 316122100 Contact Us For Availability
22A
Range Surface Burner Cap (Black) WCI 316098505 Contact Us For Availability
22B
Range Surface Burner Cap (Black) WCI 316118800 Contact Us For Availability
23
Broil Burner WCI 316119600 Contact Us For Availability
23
Electronic Oven Control Bracket WCI 316121700 Contact Us For Availability
23A
Electronic Oven Control Bracket WCI 316121701 Contact Us For Availability
26
Igniter WCI 316126400 Contact Us For Availability
26
Channel Support WCI 316099101 Contact Us For Availability
26A
Burner Channel WCI 316119901 Contact Us For Availability
26B
Burner Bracket WCI 316119801 Contact Us For Availability
31
Range Warming Drawer Knob (Black) WCI 316121604 Contact Us For Availability
36
Range Surface Burner Knob WCI 316121820 Contact Us For Availability
39
Door Handle WCI 316118304 Contact Us For Availability
40
Manifold Panel WCI 316086875 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Cover WCI 3131570 Contact Us For Availability
44
Range Surface Burner Orifice, 9,000-BTU WCI 316010805 Contact Us For Availability
44A
Range Surface Burner Orifice, 11,000-BTU WCI 316010806 Contact Us For Availability
44B
Range Surface Burner Orifice WCI 316010807 Contact Us For Availability
45
Igniter Screw WCI 316011100 Contact Us For Availability
47
LP Convection Kit WCI 316039608 Contact Us For Availability
47A
Range LP Conversion Kit Installation Instruct WCI 316105819 Contact Us For Availability
51
Nameplate-ke WCI 316126200 Contact Us For Availability
52
Range Surface Element Mounting Spring WCI 316099400 Contact Us For Availability
53
Extrusion WCI 316118400 Contact Us For Availability
55
Top Cap Trim WCI 316118504 Contact Us For Availability
55
Tape-foam 1" WCI 316079900 Contact Us For Availability
56
Deflector WCI 316074907 Contact Us For Availability
60
Screw WCI 316001011 Contact Us For Availability
60A
Range Screw WCI 5303280311 Contact Us For Availability
61
Shield-flue WCI 316121201 Contact Us For Availability
72
Infrared Tub WCI 316119100 Contact Us For Availability
73
Cover Broil WCI 316120700 Contact Us For Availability
74
Igniter Plate WCI 316120900 Contact Us For Availability
75
KIT-CHOKE, BURNER, NAT GAS WCI 5303935167 Contact Us For Availability
80
Oven Door Seal WCI 316109700 Contact Us For Availability
81
Range Warming Drawer Element WCI 316093100 Contact Us For Availability
82
Range Warming Drawer Element Mounting Bracket WCI 316093200 Contact Us For Availability
83
Terminal Shield WCI 316093300 Contact Us For Availability
84
Thermostat Disc WCI 316093500 Contact Us For Availability
86
Range Warming Drawer Element Bracket WCI 316095800 Contact Us For Availability
87
BASE-WARMER BOTTOM WCI 316091904 Contact Us For Availability
98
Channel-flue WCI 316120801 Contact Us For Availability
98
Wok WCI 316121900 Contact Us For Availability
99
Clip-l WCI 316121300 Contact Us For Availability
189
Anti Tip Asm WCI 316112002 Contact Us For Availability
190
Template WCI 316112501 Contact Us For Availability
191
Bracket WCI 316122400 Contact Us For Availability
193
Air Duct WCI 316122201 Contact Us For Availability
NI
Range Owner's Manual WCI 316000954 Contact Us For Availability
NI
Harness WCI 316001473 Contact Us For Availability
NI
Harness-chas WCI 316001641 Contact Us For Availability
NI
Warm Harness WCI 316001754 Contact Us For Availability
NI
Igniter Harness WCI 316001822 Contact Us For Availability
NI
Range Warming Drawer Wire Harness WCI 316001917 Contact Us For Availability
NI
Wiring Diagram WCI 316002178 Contact Us For Availability
NI
Repair Parts List WCI 316003493 Contact Us For Availability
NI
Warming Plate WCI 316065304 Contact Us For Availability
NI
Edge Gasket WCI 316071902 Contact Us For Availability
NI
Installation WCI 316105818 Contact Us For Availability
NI
Cleaner-cook WCI 316112100 Contact Us For Availability
NI
Range Surface Burner Grate Cleaner WCI 316119700 Contact Us For Availability
NI
Flat Washer WCI 316128700 Contact Us For Availability
NI
Rivet WCI 3203618 Contact Us For Availability
× ![]()
