Model Electrolux 790.75754100 Range (Kenmore 79075754100) – Common Parts & Diagrams
BACKGUARD

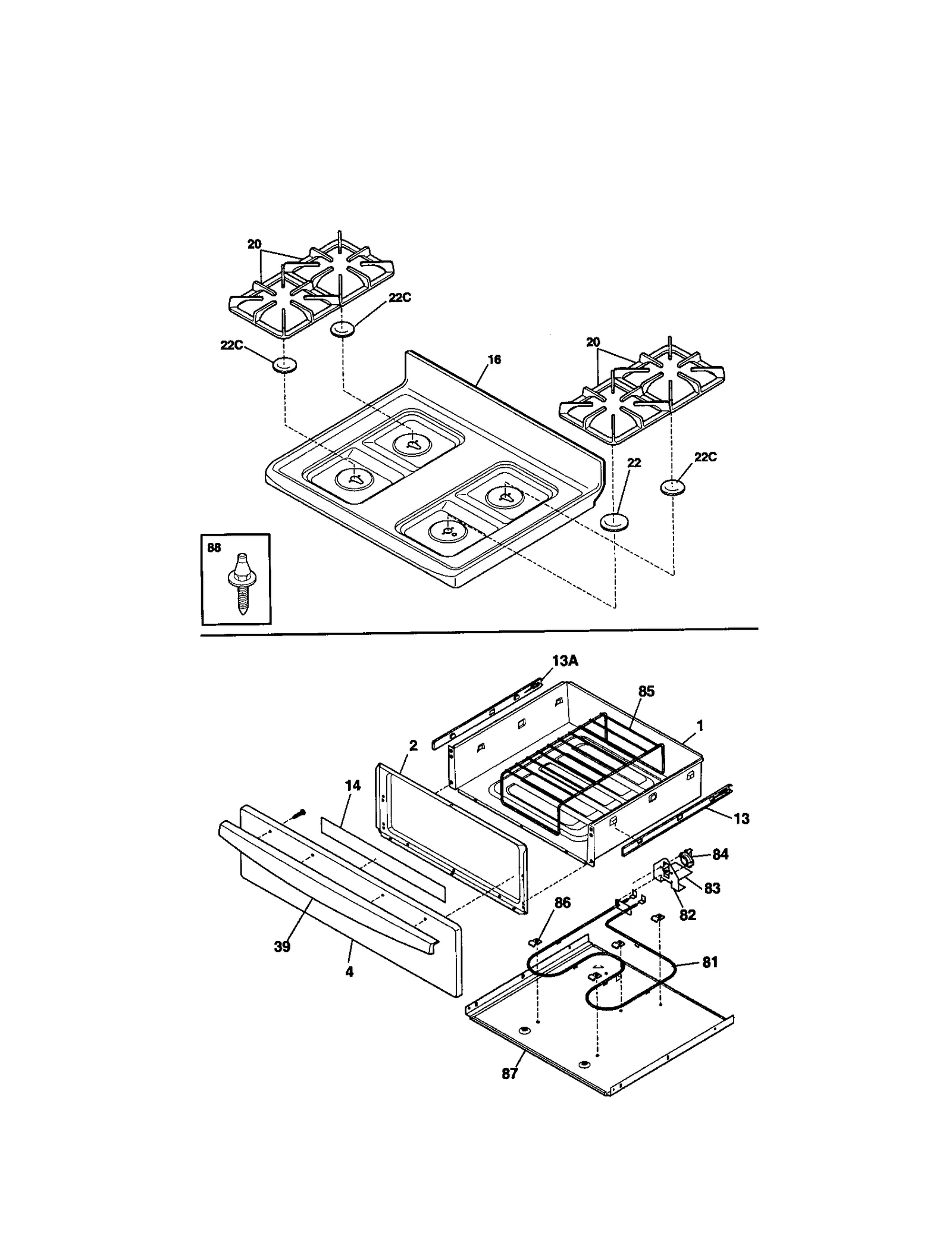

TOP/DRAWER

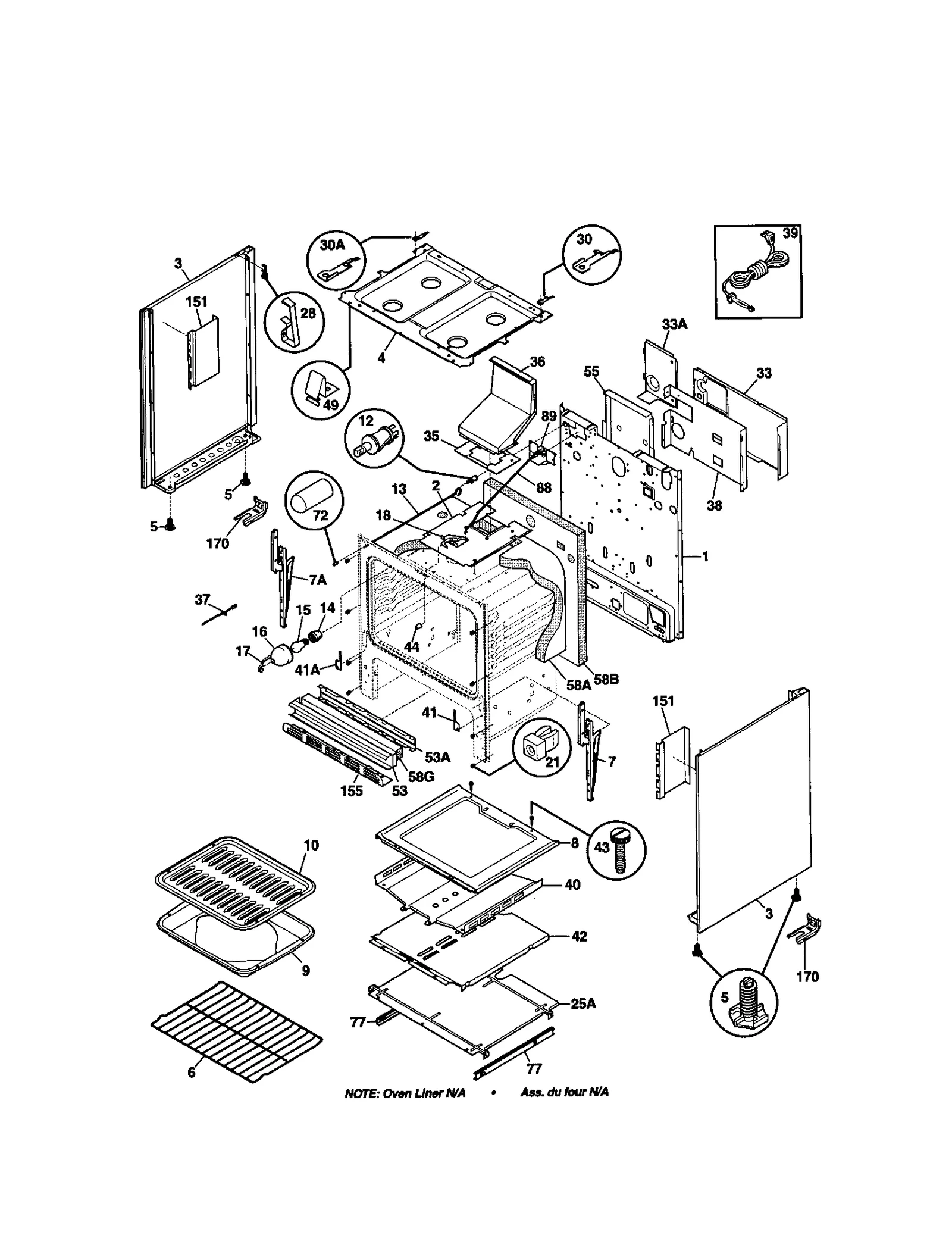

BODY
All Parts

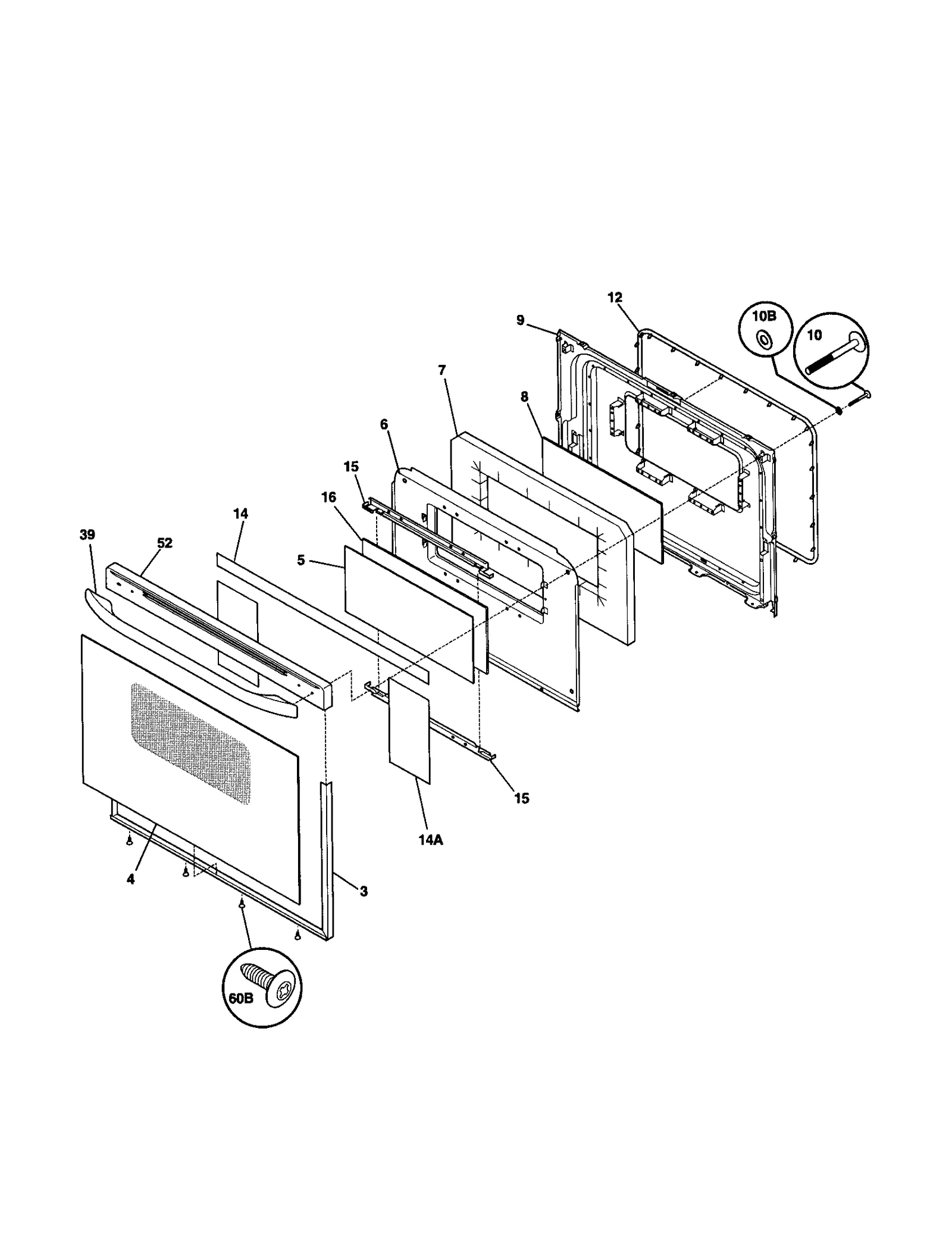

DOOR

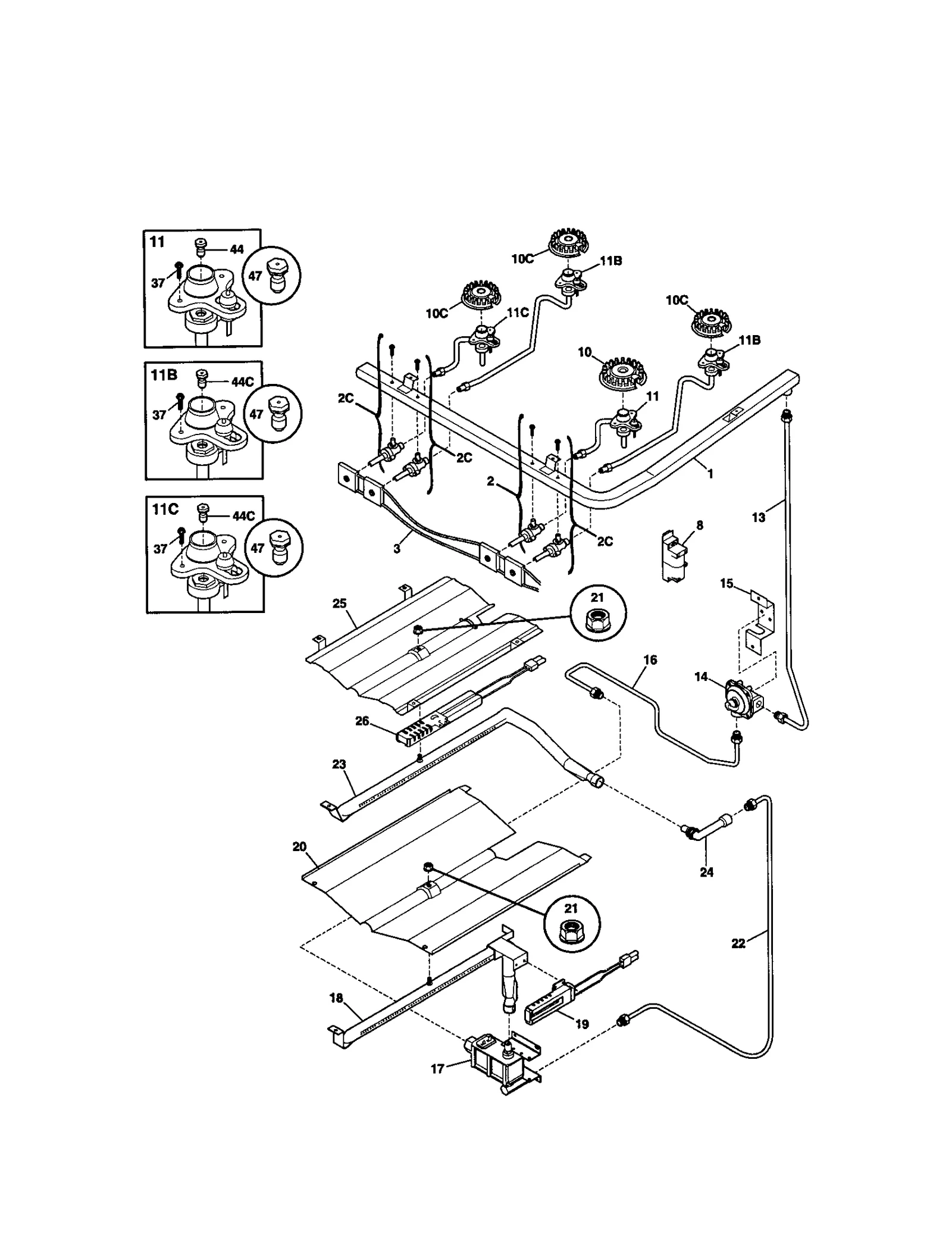

BURNER
Common parts from model Electrolux 790.75754100 Range (Kenmore 79075754100)
1
Pipe WCI 316204000 Contact Us For Availability
2
Range Surface Burner Valve, 12,000-BTU WCI 5303935210 Contact Us For Availability
2C
Valve WCI 5303935213 Contact Us For Availability
3
Range Oven Door Trim Kit WCI 5303935191 Contact Us For Availability
3A
Range Oven Door Trim Kit (White) WCI 5303935192 Contact Us For Availability
3B
Range Oven Door Trim Kit (Bisque) WCI 5303935193 Contact Us For Availability
4B
Range Oven Door Outer Panel and Foil Tape (Bi WCI 5303935205 Contact Us For Availability
5
Range Leveling Leg WCI 316129200 Contact Us For Availability
5
Range Oven Door Inner Glass WCI 316088700 Contact Us For Availability
6
Wool Cover Shield WCI 316222706 Contact Us For Availability
7
Insulation WCI 316236800 Contact Us For Availability
8
Range Oven Door Inner Glass WCI 316088600 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
9
Door Liner WCI 316230604 Contact Us For Availability
10
Range Surface Burner Head WCI 316212300 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
11
Range Surface Burner Igniter and Orifice Hold WCI 316237801 Contact Us For Availability
12
Range Oven Door Seal WCI 316230900 Contact Us For Availability
13
Range Gas Supply Tube WCI 316207000 Contact Us For Availability
13
Drawer Glide WCI 316231700 Contact Us For Availability
13A
Drawer Glide WCI 316231701 Contact Us For Availability
15
Glass Bracket WCI 316081403 Contact Us For Availability
16
Range Oven Door Middle Glass WCI 316085701 Contact Us For Availability
16
Range Oven Burner Tube WCI 316065003 Contact Us For Availability
18
Range Oven Door Latch WCI 316213900 Contact Us For Availability
18
Oven Burner WCI 3131290 Contact Us For Availability
20
Oven Baffle WCI 3131284 Contact Us For Availability
20B
Range Surface Burner Grate WCI 316213803 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
22
Range Surface Burner Cap, 12,000-BTU (Black) WCI 316213600 Contact Us For Availability
22
Range Oven Burner Tube WCI 316065002 Contact Us For Availability
22A
Range Surface Burner Cap (Gray) WCI 316213601 Contact Us For Availability
22B
Range Surface Burner Cap, 12,000-BTU (Brown) WCI 316213603 Contact Us For Availability
22CA
Range Surface Burner Cap (Gray) WCI 316213501 Contact Us For Availability
22CB
Range Surface Burner Cap, 9,500-BTU (Brown) WCI 316213503 Contact Us For Availability
23
Range Broil Burner WCI 08067935 Contact Us For Availability
24
Range Mixer Elbow WCI 316070400 Contact Us For Availability
24A
Spacer Broil WCI 316113400 Contact Us For Availability
25
Range Broil Burner Baffle WCI 5303210379 Contact Us For Availability
30
Range Main Top Right Hinge Pin WCI 316217700 Contact Us For Availability
31A
Range Surface Burner Knob (White) WCI 316240800 Contact Us For Availability
31B
Range Surface Burner Knob WCI 316240803 Contact Us For Availability
36
Range Burner Control Knob WCI 316240702 Contact Us For Availability
36A
Range Surface Burner Knob WCI 316240700 Contact Us For Availability
38
Shield WCI 316051700 Contact Us For Availability
38A
Insulator WCI 316097100 Contact Us For Availability
39
Door Handle WCI 316235500 Contact Us For Availability
39B
Range Oven Door Handle (Bisque) WCI 316235503 Contact Us For Availability
40
Shield WCI 3200836 Contact Us For Availability
40A
Screw-heat S WCI 5303288570 Contact Us For Availability
41
Range Oven Door Hinge Cover, Right WCI 316233400 Contact Us For Availability
41A
Range Oven Door Hinge Cover, Left WCI 316233500 Contact Us For Availability
42
Bake Shield WCI 5303288578 Contact Us For Availability
44
Door Spacer WCI 316246500 Contact Us For Availability
49
Spring Clip WCI 316234200 Contact Us For Availability
52
Cap-door T WCI 316201005 Contact Us For Availability
52A
Cap-door T WCI 316201003 Contact Us For Availability
52B
Cap-door T WCI 316201009 Contact Us For Availability
53
Shield WCI 5303288579 Contact Us For Availability
53A
Shield WCI 08067992 Contact Us For Availability
55
Shield-flue WCI 316107800 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
58B
Insulation WCI 316218300 Contact Us For Availability
72
Range Oven Light Switch Rod End Cap WCI 316234500 Contact Us For Availability
151
Shield Body WCI 316239300 Contact Us For Availability
155
Drawer Shield WCI 316095201 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Range Warming Drawer Wire Harness WCI 316001917 Contact Us For Availability
NI
Warming Plate WCI 316065304 Contact Us For Availability
NI
Range Surface Burner Grate Cleaner WCI 316119700 Contact Us For Availability
NI
Wiring Harness WCI 316253405 Contact Us For Availability
NI
Wiring Diagram WCI 316255208 Contact Us For Availability
NI
Range Owner's Manual WCI 316258006 Contact Us For Availability
NI
Instructions WCI 316259304 Contact Us For Availability
NI
Rivet WCI 3203618 Contact Us For Availability
NI
Parts List WCI 5995351441 Contact Us For Availability
× ![]()
