Model Electrolux 790.75716890 Gas Range (Kenmore 79075716890) – Common Parts & Diagrams
All Parts

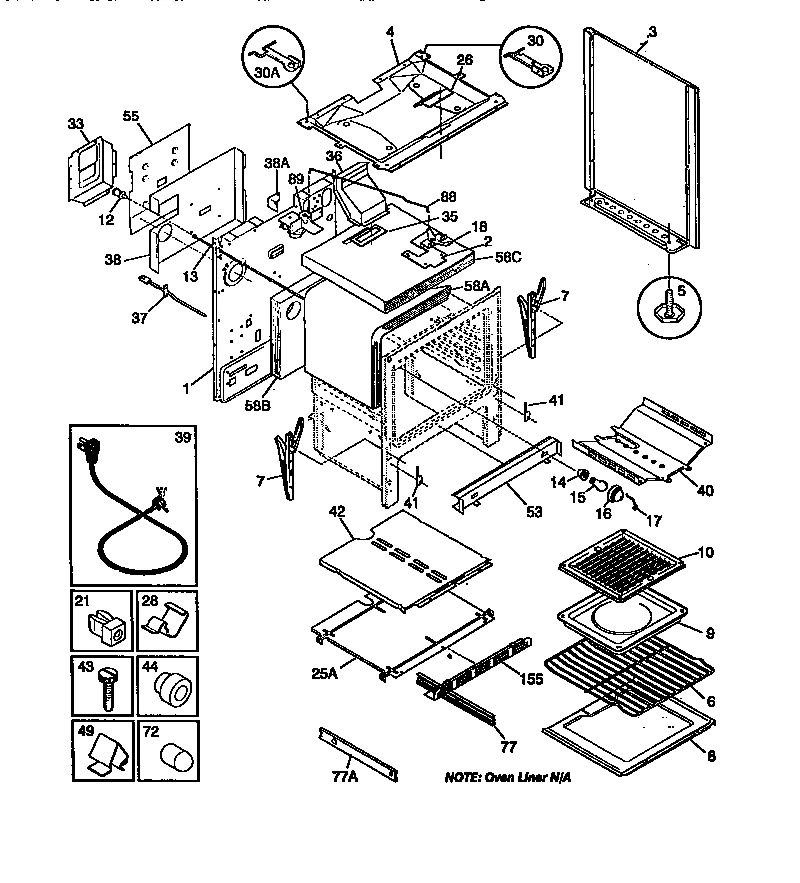

BODY

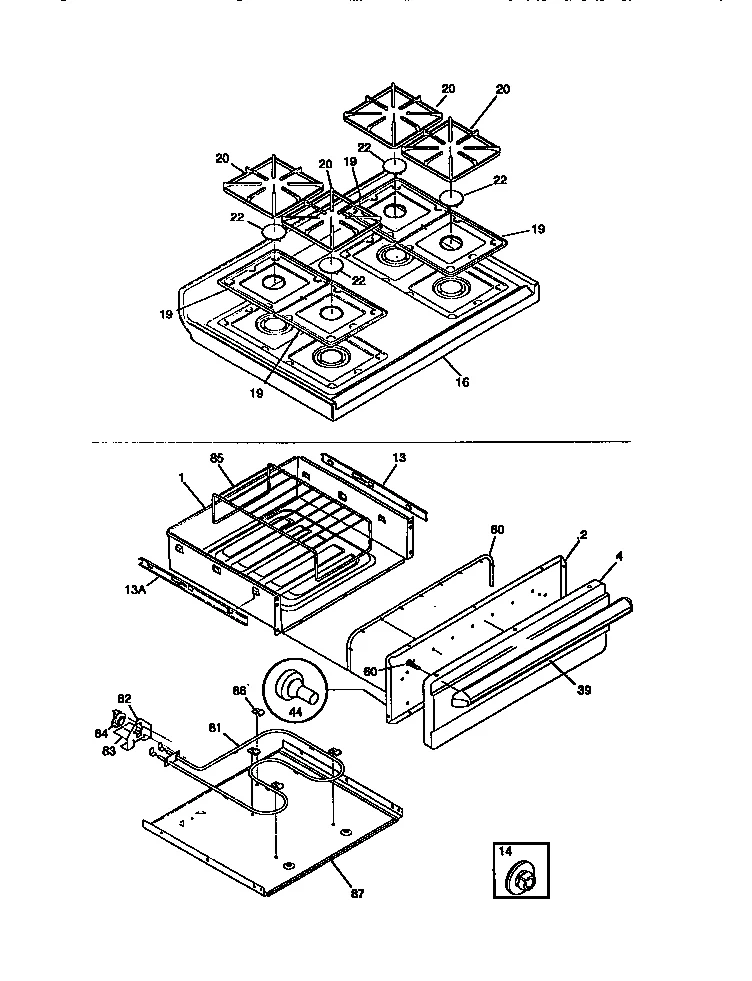

TOP/DRAWER

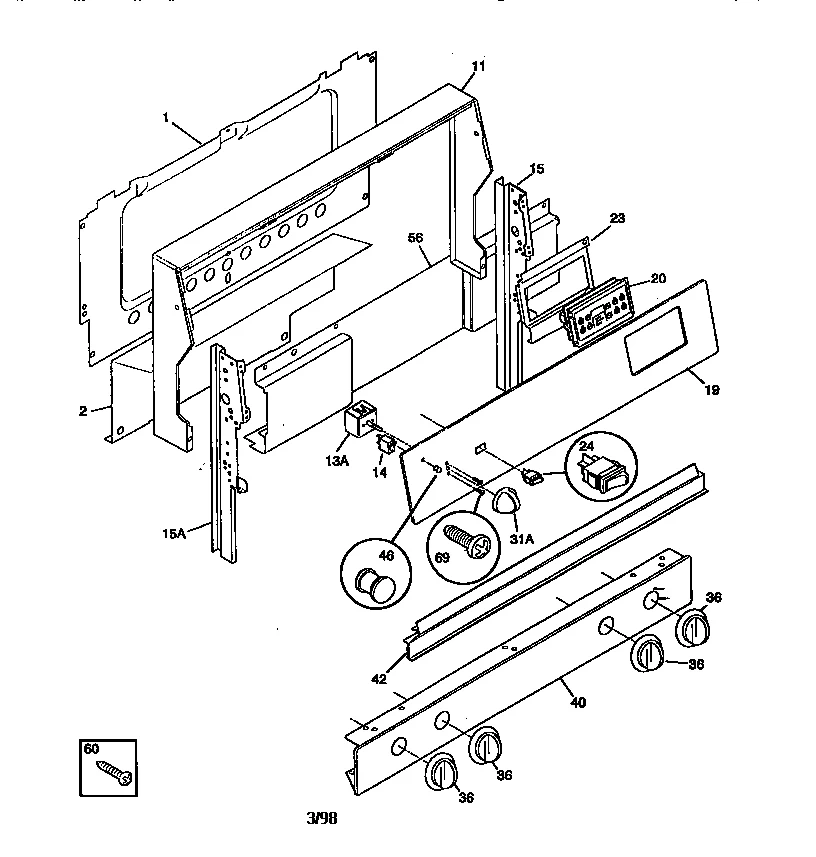

BACKGUARD

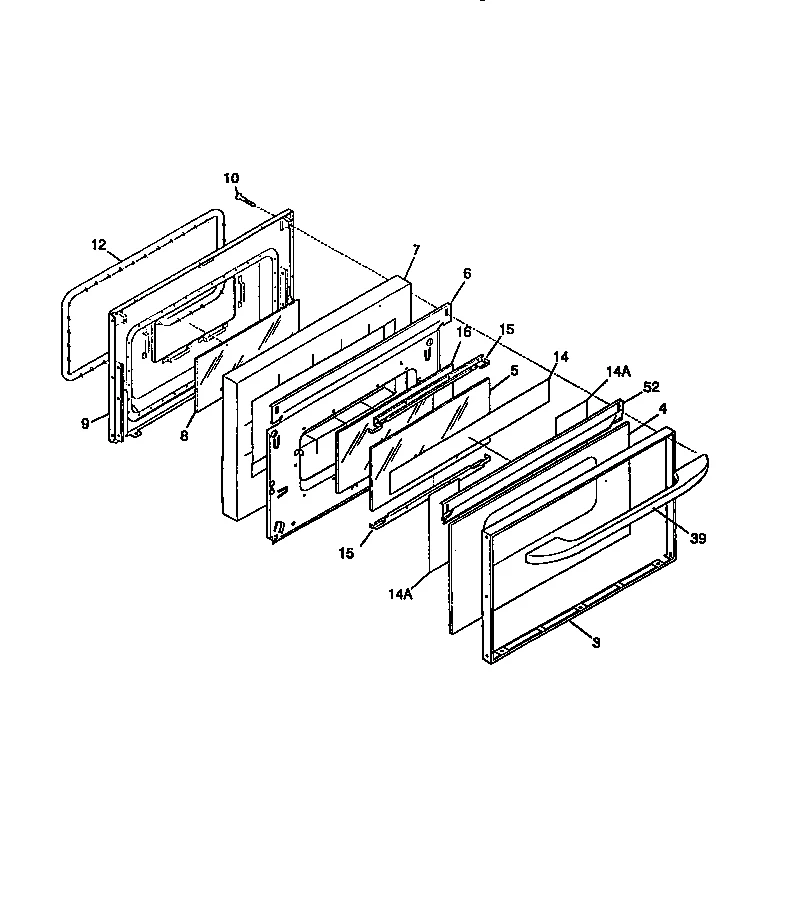

DOOR

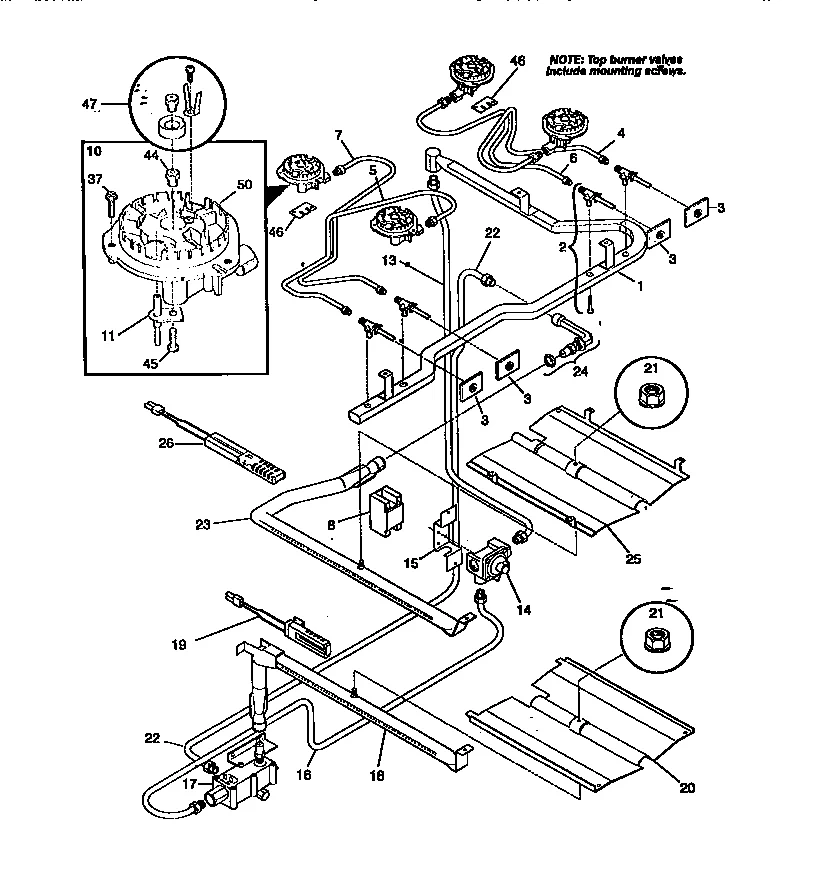

BURNER
Common parts from model Electrolux 790.75716890 Gas Range (Kenmore 79075716890)
1
Warming Drawer WCI 316094601 Contact Us For Availability
1
Backing Shield WCI 316028701 Contact Us For Availability
1
Manifold Pipe WCI 316066201 Contact Us For Availability
2
Range Surface Burner Valve WCI 5303935130 Contact Us For Availability
2
Liner WCI 316092901 Contact Us For Availability
2
Backing Shield WCI 316051600 Contact Us For Availability
2A
Range Surface Burner Valve Mounting Screw WCI 316048200 Contact Us For Availability
3
Drive Trim WCI 316067804 Contact Us For Availability
3
Switch WCI 316103600 Contact Us For Availability
4
Range Surface Burner Tube, Right Front (Red) WCI 316059612 Contact Us For Availability
4
Drawer Panel WCI 316056201 Contact Us For Availability
4
Glass-oven D WCI 316089005 Contact Us For Availability
5
Range Oven Door Inner Glass WCI 316088700 Contact Us For Availability
5
Range Leveling Leg WCI 5303203397 Contact Us For Availability
5
Range Surface Burner Tube, Left Front (Green) WCI 316059613 Contact Us For Availability
5A
Anti-Tip Kit WCI 3934058 Contact Us For Availability
6
Range Surface Burner Tube, Right Rear WCI 316059614 Contact Us For Availability
6
Shield WCI 316088401 Contact Us For Availability
7
Range Oven Door Hinge WCI 316007002 Contact Us For Availability
7
Range Surface Burner Supply Tube, Left Rear WCI 316059615 Contact Us For Availability
7
Insulation WCI 316076403 Contact Us For Availability
8
Range Oven Door Inner Glass WCI 316088600 Contact Us For Availability
8A
Range Spark Module Wire Harness WCI 5303289034 Contact Us For Availability
9
Oven Door Inner Liner WCI 316066610 Contact Us For Availability
10
Handle Screw WCI 316001008 Contact Us For Availability
10
Range Sealed Surface Burner WCI 5303935025 Contact Us For Availability
11
Wrapper Trim WCI 316061847 Contact Us For Availability
13
Tube WCI 316065005 Contact Us For Availability
13
Glide Rh WCI 316105600 Contact Us For Availability
14
Glide Button WCI 3206216 Contact Us For Availability
14
Aluminum Foil WCI 3131361 Contact Us For Availability
15
Support WCI 316023108 Contact Us For Availability
15
Glass Bracket WCI 316081401 Contact Us For Availability
15A
Support WCI 316023109 Contact Us For Availability
16
Main Top-whi WCI 5303301546 Contact Us For Availability
16
Glass-oven D WCI 316085700 Contact Us For Availability
16
Range Oven Burner Tube WCI 316065003 Contact Us For Availability
18
Oven Burner WCI 3131290 Contact Us For Availability
19
Range Drip Pan WCI 316011409 Contact Us For Availability
19
Range Control Panel WCI 316082646 Contact Us For Availability
19A
Pnl Cntl Wh WCI 316082647 Contact Us For Availability
20
Grate (Gray) WCI 316085205 Contact Us For Availability
20
Range Main Control Board with Digital Clock WCI 316101000 Contact Us For Availability
20
Oven Baffle WCI 3131284 Contact Us For Availability
20A
Range Oven Control Overlay WCI 316101515 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
22
Range Oven Burner Tube WCI 316065002 Contact Us For Availability
22A
Cooktop Burner Cap WCI 316010904 Contact Us For Availability
22B
Range Surface Burner Cap (Gray) WCI 316010905 Contact Us For Availability
23
Bracket Clock WCI 316100400 Contact Us For Availability
23
Broil Burner WCI 316087900 Contact Us For Availability
24
Range Mixer Elbow WCI 316070400 Contact Us For Availability
25
Range Broil Burner Baffle WCI 5303210379 Contact Us For Availability
31A
Oven Knob WCI 316109100 Contact Us For Availability
36
Knob WCI 316109000 Contact Us For Availability
39
Warmer Handle WCI 316026106 Contact Us For Availability
39
Oven Door Handle (White) WCI 316108800 Contact Us For Availability
40
Manifold Panel WCI 316086838 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Cover WCI 3131570 Contact Us For Availability
42
Vent Trim WCI 316083300 Contact Us For Availability
44
Cooktop Burner Orifice WCI 5303210090 Contact Us For Availability
45
Igniter Screw WCI 316011100 Contact Us For Availability
46
Range Surface Burner Head Bracket WCI 316074700 Contact Us For Availability
47
Lp-conversio WCI 316039602 Contact Us For Availability
50
Burner WCI 5303935026 Contact Us For Availability
52
Oven Shield WCI 316081301 Contact Us For Availability
53
Shield WCI 5303288579 Contact Us For Availability
55
Shield-flue WCI 316052601 Contact Us For Availability
56
Deflector WCI 316074907 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
58B
Insulation WCI 316054200 Contact Us For Availability
58C
Insul T Wrap WCI 3131304 Contact Us For Availability
72
Light Cover WCI 5303285692 Contact Us For Availability
77
Drawer Rail WCI 316094900 Contact Us For Availability
77A
Drawer Rail WCI 316094901 Contact Us For Availability
80
Oven Door Seal WCI 316109700 Contact Us For Availability
81
Range Warming Drawer Element WCI 316093100 Contact Us For Availability
82
Range Warming Drawer Element Mounting Bracket WCI 316093200 Contact Us For Availability
83
Terminal Shield WCI 316093300 Contact Us For Availability
84
Thermostat Disc WCI 316093500 Contact Us For Availability
86
Range Warming Drawer Element Bracket WCI 316095800 Contact Us For Availability
87
Range Warming Drawer Base Panel WCI 316091900 Contact Us For Availability
88
Latch Rod WCI 316026400 Contact Us For Availability
89
Latch Motor WCI 316028103 Contact Us For Availability
155
Drawer Shield WCI 316095201 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
× ![]()
