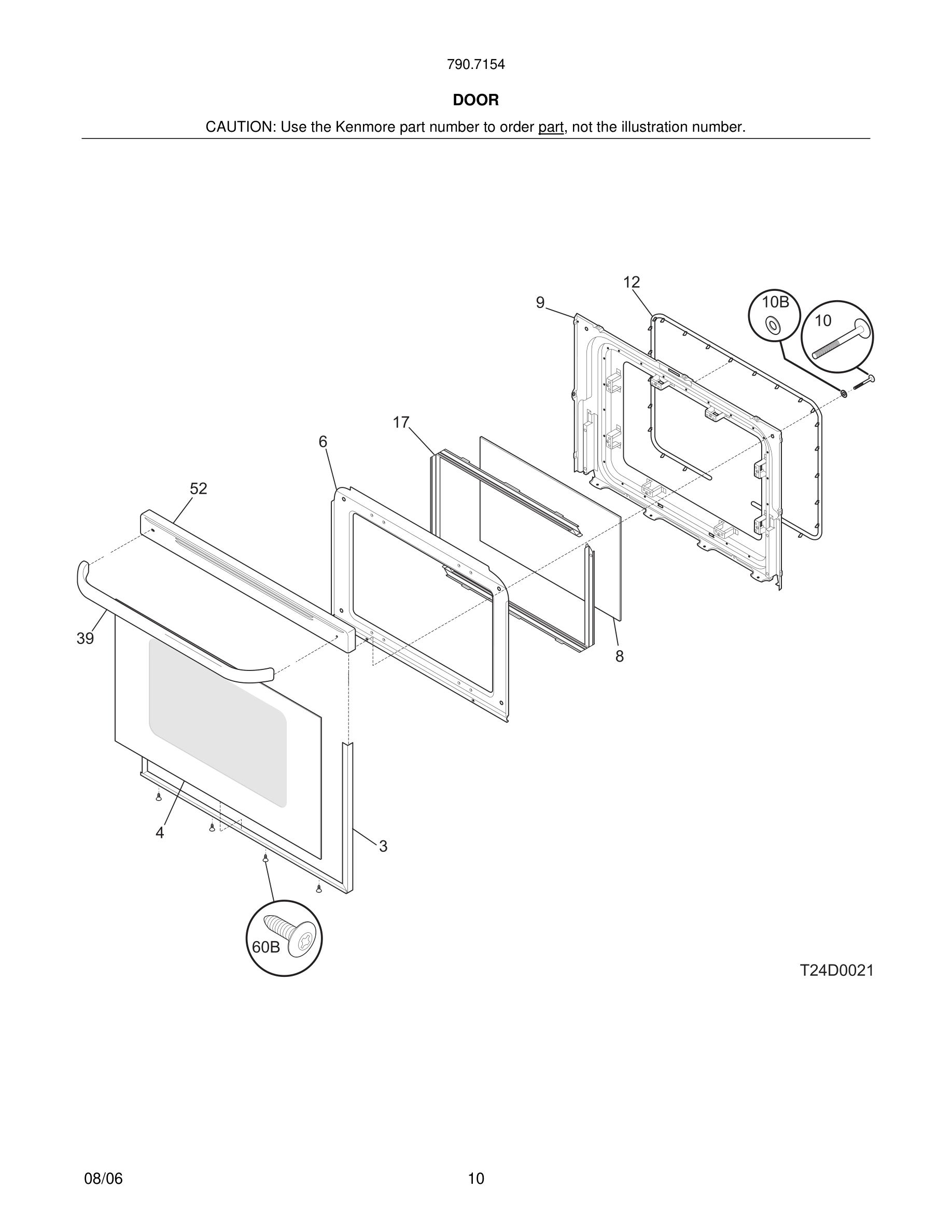

Model Kenmore 790.71544601 RANGE – Common Parts & Diagrams

*
Screw, cup pt, 8-18 x 0.375, chrome
Screw, cup pt, 8-18 x 0.375, chrome WCI 316021108 Contact Us For Availability
View on Model
*#
Wiring Harness, ignitor module
Wiring Harness, ignitor module WCI 316253700 Contact Us For Availability
View on Model
*#
Harness, main
Harness, main WCI 316253308 Contact Us For Availability
View on Model
1
Carriage, low broil
Carriage, low broil WCI 316110201 Contact Us For Availability
View on Model
2
Liner, low broil
Liner, low broil WCI 316236401 Contact Us For Availability
View on Model
2B#
Valve, 5K burner, w/mtg screw
Valve, 5K burner, w/mtg screw WCI 5303935235 Contact Us For Availability
View on Model
2C#
Valve, 9.5K burner, w/mtg screw
Valve, 9.5K burner, w/mtg screw WCI 5303935234 Contact Us For Availability
View on Model
4
Panel, drawer, bisque
Panel, drawer, bisque WCI 316231214 Contact Us For Availability
View on Model
4
Glass, door kit, bisque, outer, w/foil tape
Glass, door kit, bisque, outer, w/foil tape WCI 5303935202 Contact Us For Availability
View on Model
5
Fastener, push-in nut, nylon, spacer
Fastener, push-in nut, nylon, spacer WCI 316129100 Contact Us For Availability
View on Model
8
Panel,, oven bottom
Panel,, oven bottom WCI 316495901 Contact Us For Availability
View on Model
9
Pan, broiler
Pan, broiler WCI 316081900 Contact Us For Availability
View on Model
9
Liner, oven door
Liner, oven door WCI 316230623 Contact Us For Availability
View on Model
10
Insert, broiler pan
Insert, broiler pan WCI 316082000 Contact Us For Availability
View on Model
10#
Burner, sealed, 12K
Burner, sealed, 12K WCI 316212300 Contact Us For Availability
View on Model
13B
Glide, low broil, outer
Glide, low broil, outer WCI 316111501 Contact Us For Availability
View on Model
17
Spacer, door glass, (2)
Spacer, door glass, (2) WCI 316117701 Contact Us For Availability
View on Model
19
Pan, burner, brown, 12K
Pan, burner, brown, 12K WCI 316202518 Contact Us For Availability
View on Model
19B
Pan, burner, brown, 5K
Pan, burner, brown, 5K WCI 316202516 Contact Us For Availability
View on Model
19C
Pan, burner, brown, 9.5K
Pan, burner, brown, 9.5K WCI 316202517 Contact Us For Availability
View on Model
20
Baffle, oven burner
Baffle, oven burner WCI 316496001 Contact Us For Availability
View on Model
20
Grate, brown
Grate, brown WCI 316202403 Contact Us For Availability
View on Model
22
Cap, 12K burner, brown
Cap, 12K burner, brown WCI 316213603 Contact Us For Availability
View on Model
22C
Cap, 9.5K burner, brown
Cap, 9.5K burner, brown WCI 316213503 Contact Us For Availability
View on Model
23
Bracket, clock mtg
Bracket, clock mtg WCI 316441500 Contact Us For Availability
View on Model
30
Bracket, hinge, RH, main top
Bracket, hinge, RH, main top WCI 316217700 Contact Us For Availability
View on Model
34
Plate, cover
Plate, cover WCI 3018607 Contact Us For Availability
View on Model
36
Knob, top valve, bisque
Knob, top valve, bisque WCI 316442502 Contact Us For Availability
View on Model
39
Handle, oven door, bisque
Handle, oven door, bisque WCI 316456902 Contact Us For Availability
View on Model
41
Cover, hinge cutout, RH
Cover, hinge cutout, RH WCI 316233400 Contact Us For Availability
View on Model
44B
Orifice, top burner, 5K
Orifice, top burner, 5K WCI 316237903 Contact Us For Availability
View on Model
47#
LP Conversion Kit, blue
LP Conversion Kit, blue WCI 316243702 Contact Us For Availability
View on Model
58A
Insulation, oven wrapper
Insulation, oven wrapper WCI 3017142 Contact Us For Availability
View on Model
73
Base, low broil
Base, low broil WCI 316109902 Contact Us For Availability
View on Model
85
Rack, low broil
Rack, low broil WCI 316115600 Contact Us For Availability
View on Model
