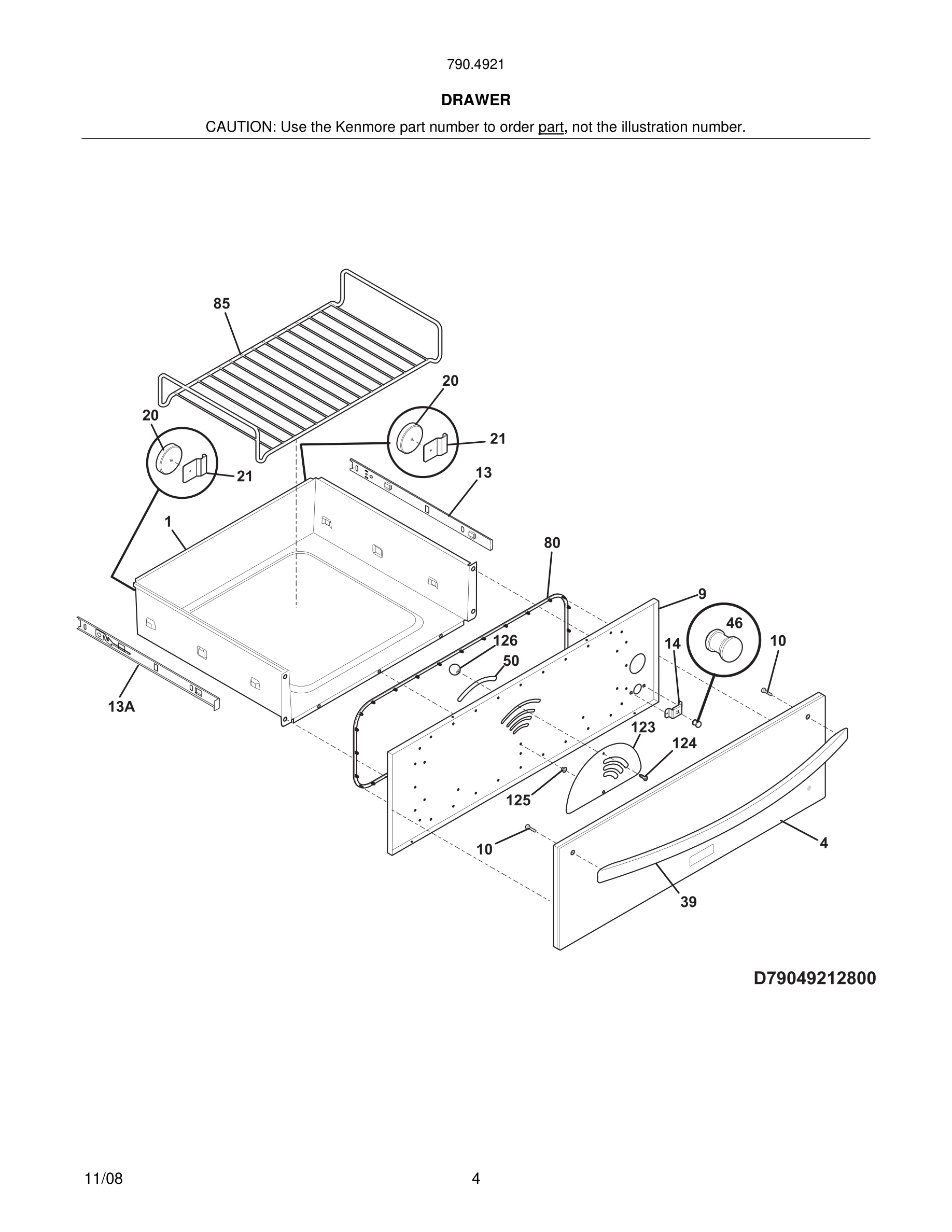

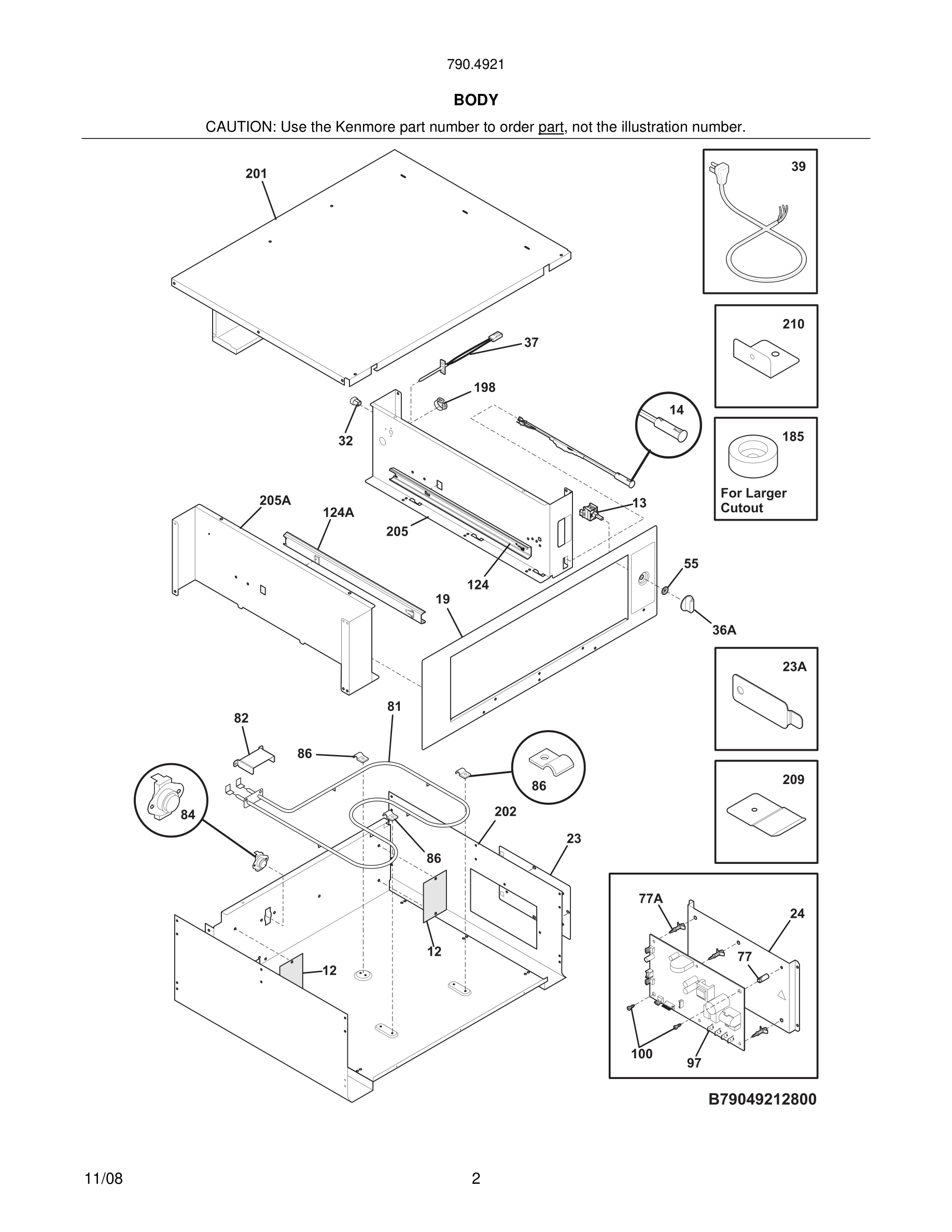

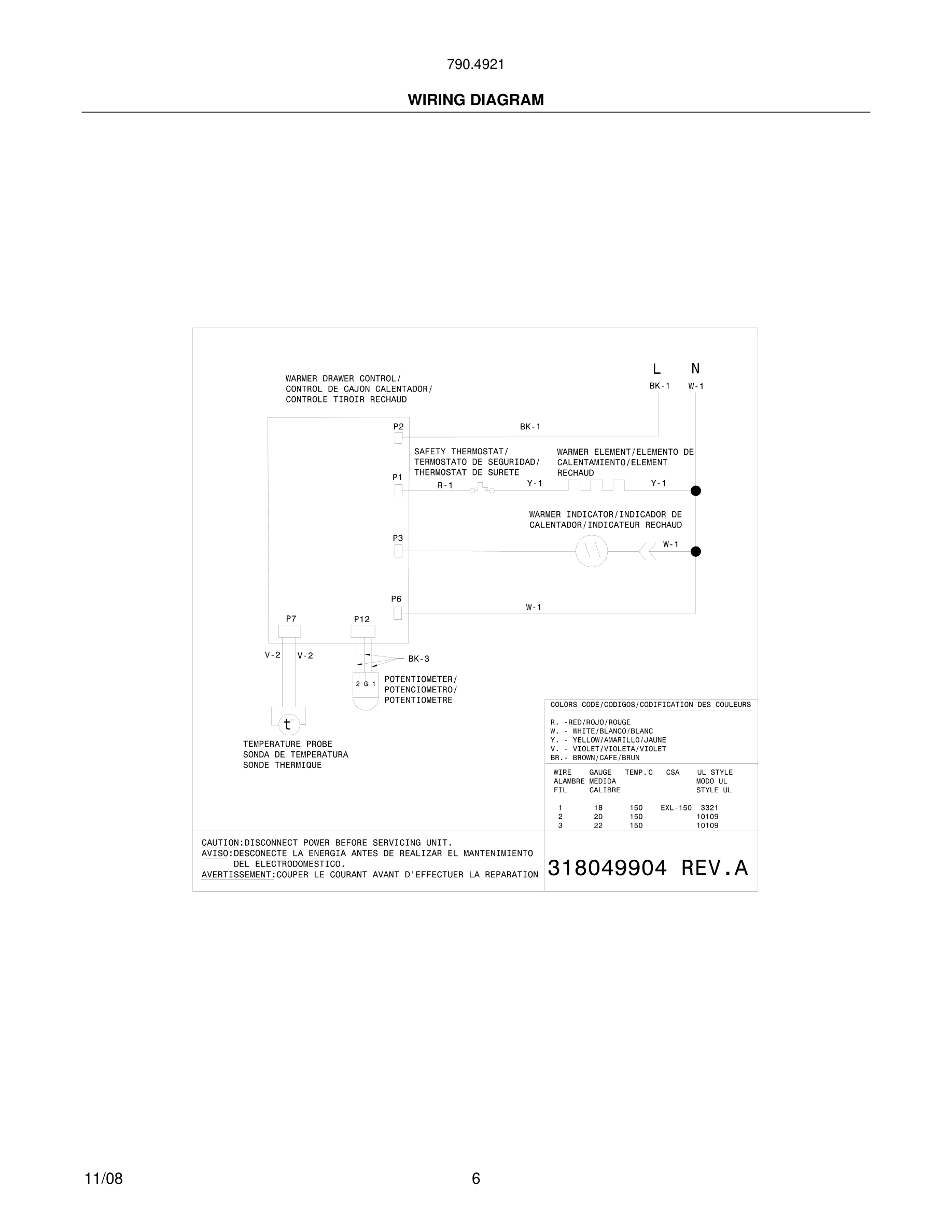

Model Kenmore 790.49212800 WARMER DRAWER – Common Parts & Diagrams

*
Screw, mounting, 8-18 x 0.25, chrome, (7)
Screw, mounting, 8-18 x 0.25, chrome, (7) WCI 5304437021 Contact Us For Availability
View on Model
*
Screw, #8-15 x 1/2, (6)
Screw, #8-15 x 1/2, (6) WCI 5304465874 Contact Us For Availability
View on Model
1
Drawer, warmer
Drawer, warmer WCI 318314614 Contact Us For Availability
View on Model
4
Panel Assembly, drawer front, glass/steel, wh
Panel Assembly, drawer front, glass/steel, wh WCI 318284028 Contact Us For Availability
View on Model
4
Panel Assembly, drawer front, glass/steel, bl
Panel Assembly, drawer front, glass/steel, bl WCI 318284029 Contact Us For Availability
View on Model
9
Panel, drawer, black, interior
Panel, drawer, black, interior WCI 318281629 Contact Us For Availability
View on Model
13
Channel, drawer, RH, inner
Channel, drawer, RH, inner WCI 318259410 Contact Us For Availability
View on Model
13A
Channel, drawer, LH, inner
Channel, drawer, LH, inner WCI 318259411 Contact Us For Availability
View on Model
14
Bracket, lens
Bracket, lens WCI 318378103 Contact Us For Availability
View on Model
14*
Clip, (3)
Clip, (3) WCI 318531900 Contact Us For Availability
View on Model
19
Control Panel, assembly, w/deco plate
Control Panel, assembly, w/deco plate WCI 318387604 Contact Us For Availability
View on Model
20
Magnet, drawer, (2)
Magnet, drawer, (2) WCI 318373201 Contact Us For Availability
View on Model
21
Bracket, magnet mtg, (2)
Bracket, magnet mtg, (2) WCI 318378002 Contact Us For Availability
View on Model
23
Panel, service
Panel, service WCI 318310109 Contact Us For Availability
View on Model
23A
Panel, cover
Panel, cover WCI 318310110 Contact Us For Availability
View on Model
32
Strain relief
Strain relief WCI 318228100 Contact Us For Availability
View on Model
36A
Knob, control, black
Knob, control, black WCI 318280900 Contact Us For Availability
View on Model
39
Handle, door, white, w/spacer
Handle, door, white, w/spacer WCI 318372416 Contact Us For Availability
View on Model
39
Handle, door, black, w/spacer
Handle, door, black, w/spacer WCI 318372417 Contact Us For Availability
View on Model
39
Cord, service
Cord, service WCI 318144005 Contact Us For Availability
View on Model
46
Lens, light
Lens, light WCI 318378201 Contact Us For Availability
View on Model
50
Insert, control, humidity
Insert, control, humidity WCI 318284400 Contact Us For Availability
View on Model
80
Gasket, warmer drawer
Gasket, warmer drawer WCI 318254408 Contact Us For Availability
View on Model
82
Guard, element
Guard, element WCI 318388600 Contact Us For Availability
View on Model
84#
Thermostat
Thermostat WCI 318005114 Contact Us For Availability
View on Model
86
Clip, hold down, warmer element
Clip, hold down, warmer element WCI 316095800 Contact Us For Availability
View on Model
97#
Board, timer, ES060
Board, timer, ES060 WCI 316518000 Contact Us For Availability
View on Model
123
Panel, control, black, humidity
Panel, control, black, humidity WCI 318247110 Contact Us For Availability
View on Model
124
Channel, drawer, RH, outer
Channel, drawer, RH, outer WCI 318259310 Contact Us For Availability
View on Model
124A
Channel, drawer, LH, outer
Channel, drawer, LH, outer WCI 318259311 Contact Us For Availability
View on Model
198
Bushing, nylon, snap
Bushing, nylon, snap WCI 08008009 Contact Us For Availability
View on Model
201
Wrapper, upper
Wrapper, upper WCI 318281506 Contact Us For Availability
View on Model
202
Wrapper, lower
Wrapper, lower WCI 318281021 Contact Us For Availability
View on Model
205
Panel, side, black, RH
Panel, side, black, RH WCI 318281213 Contact Us For Availability
View on Model
205A
Panel, side, black, LH
Panel, side, black, LH WCI 318281313 Contact Us For Availability
View on Model
209
Bracket, wall
Bracket, wall WCI 318247402 Contact Us For Availability
View on Model
210
Bracket, front support, (2)
Bracket, front support, (2) WCI 318262300 Contact Us For Availability
View on Model
