Model Kenmore 790.48763900 OVEN – Common Parts & Diagrams

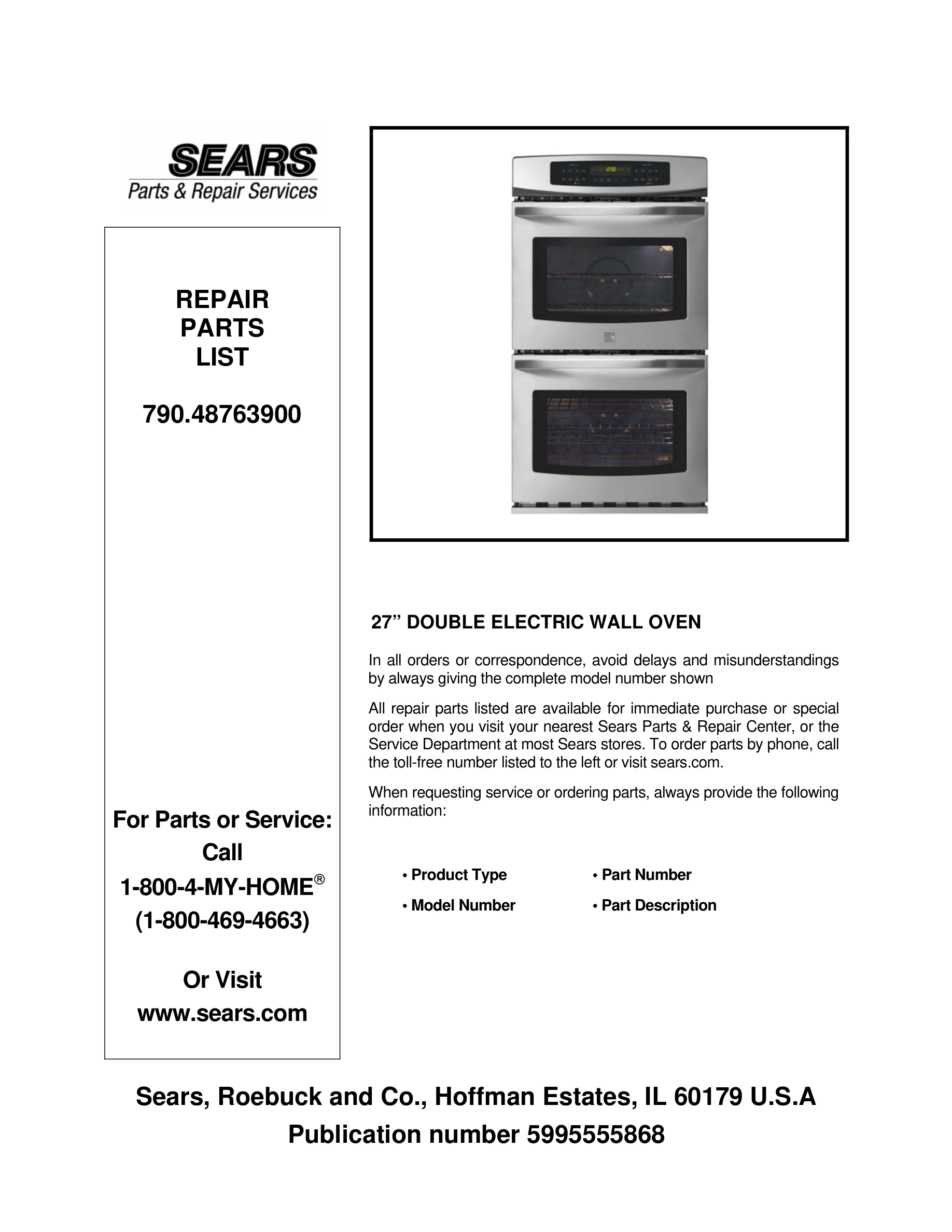

01 - COVER
03 - CONTROL PANEL
05 - UPPER OVEN
07 - LOWER OVEN
12 - WIRING DIAGRAM
Common parts from model Kenmore 790.48763900 OVEN
8
Cover, element WCI 318262011 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
20#
Control, electronic, ES615W2, dual oven WCI 316443847 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
54*
Seal, housing, flat washer WCI 318368501 Contact Us For Availability
54*
Insulation, oven light WCI 318268099 Contact Us For Availability
56A
Trim, side filler, black, LH WCI 318903605 Contact Us For Availability
58A
Insulation, rear & bottom, oven wrapper WCI 318285060 Contact Us For Availability
58B
Insulation, oven wrapper WCI 318386110 Contact Us For Availability
58D
Insulation, 1/2" thick, 43 x 9.5 WCI 318372006 Contact Us For Availability
59A
Bracket, vent tube WCI 318261600 Contact Us For Availability
70
Shield, insulation, sides, (2) WCI 318259105 Contact Us For Availability
71
Panel, rear box WCI 318260001 Contact Us For Availability
76
Front, oven WCI 318056224 Contact Us For Availability
80
Plate, oven mtg WCI 5303320846 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
82
Shield, insulation, lower WCI 318258768 Contact Us For Availability
83
Liner, oven assy WCI 318261501 Contact Us For Availability
87
Bracket, cable mtg. WCI 318260623 Contact Us For Availability
90
Trim, base, stainless WCI 318259845 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
× ![]()
