Model Kenmore 790.48122800 OVEN – Common Parts & Diagrams

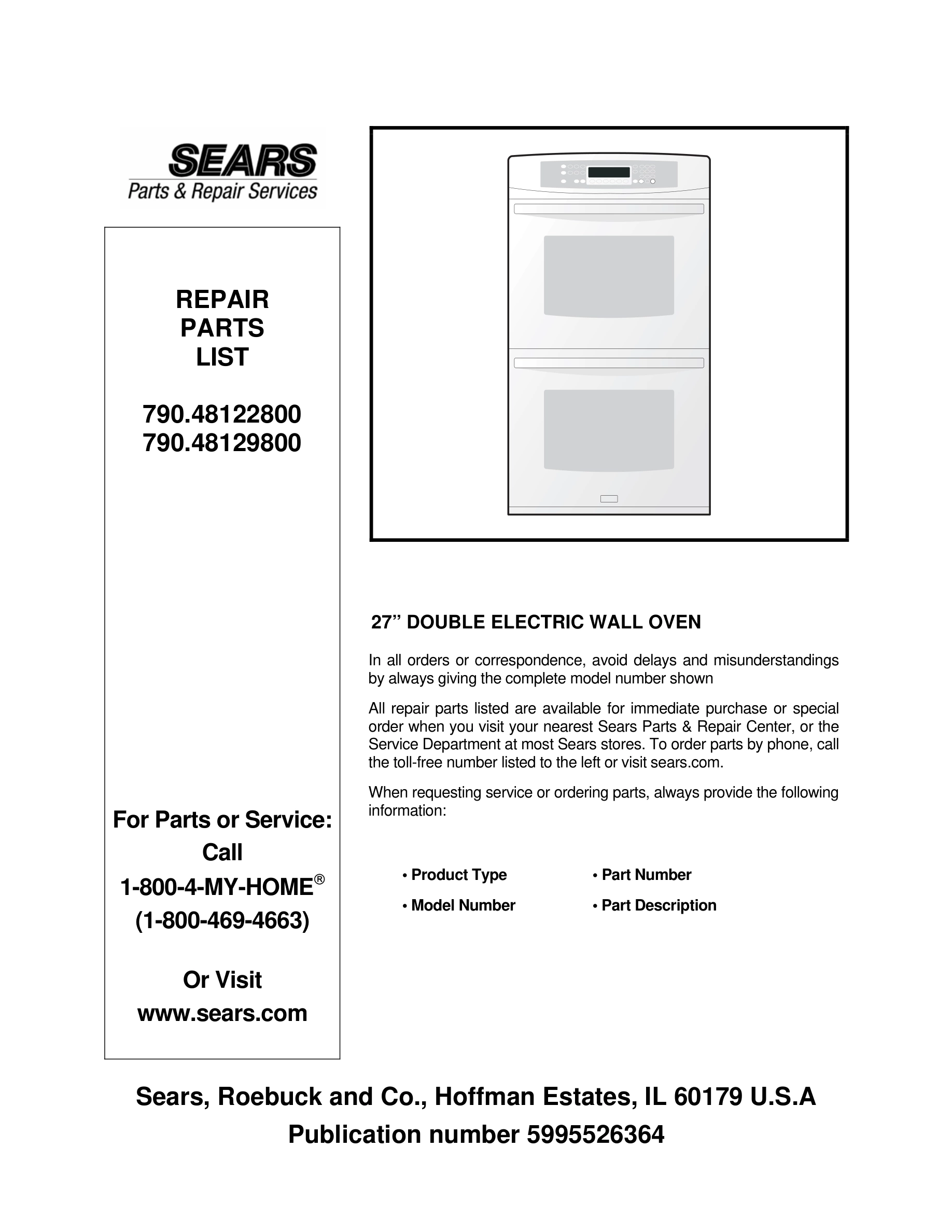

01 - COVER

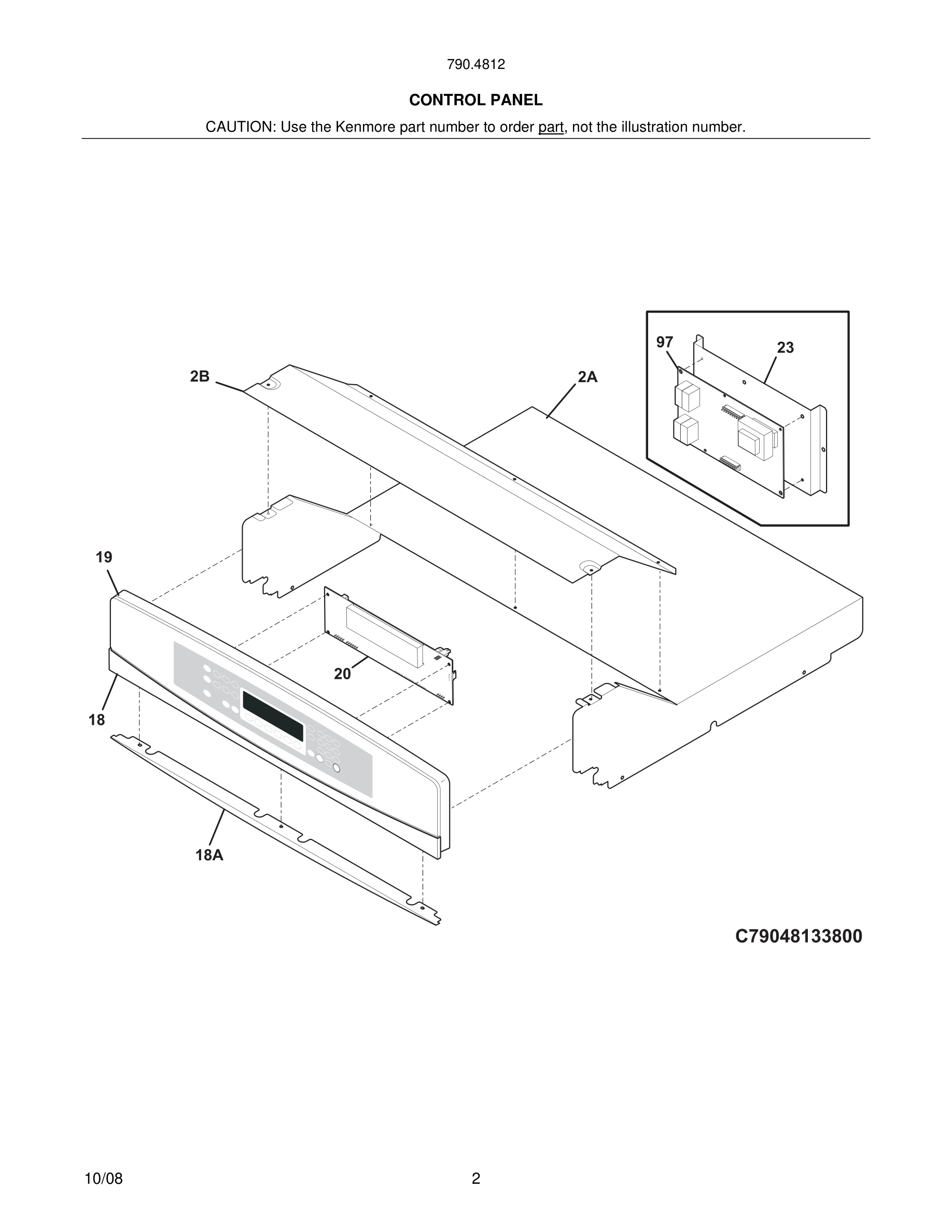

03 - CONTROL PANEL
05 - UPPER OVEN

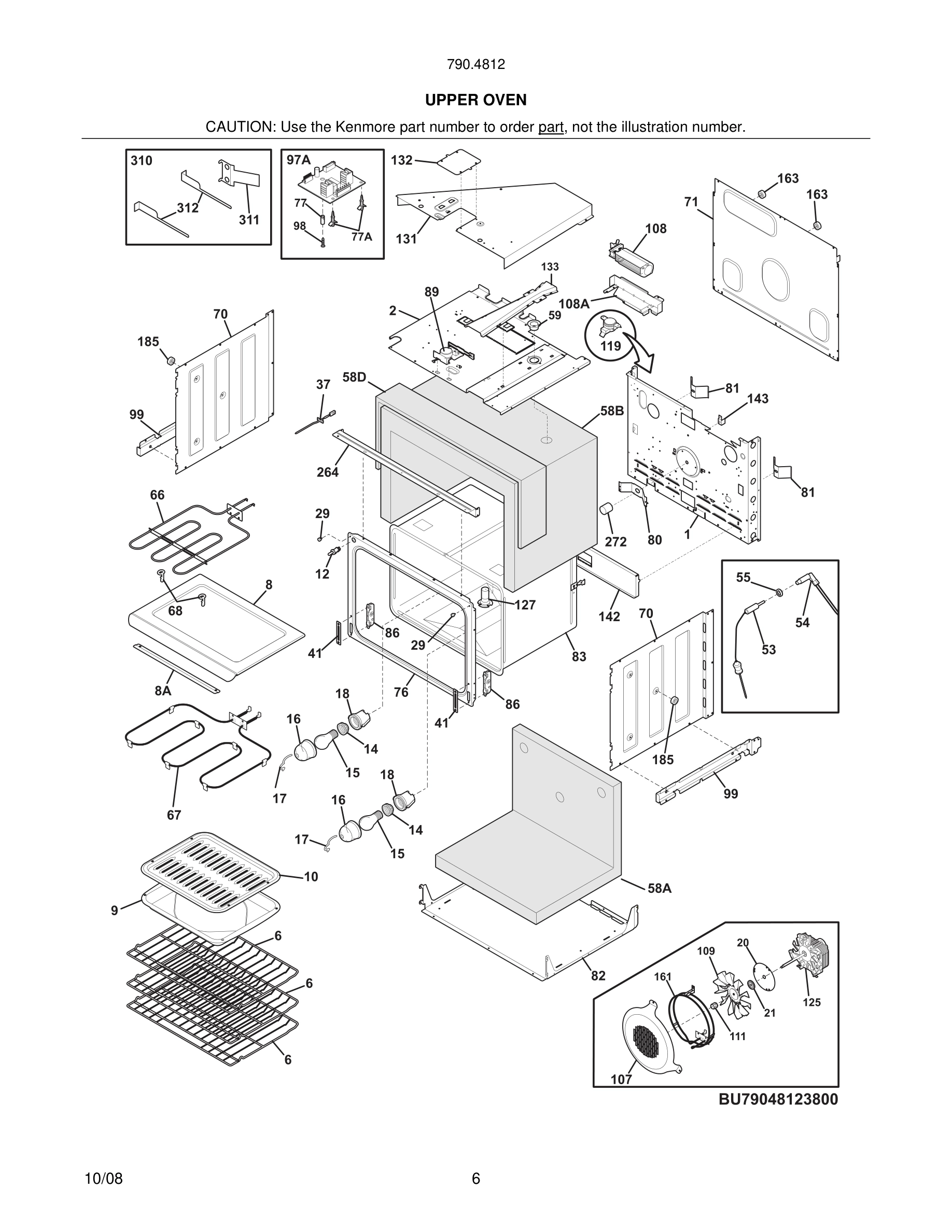

07 - UPPER OVEN
09 - LOWER OVEN

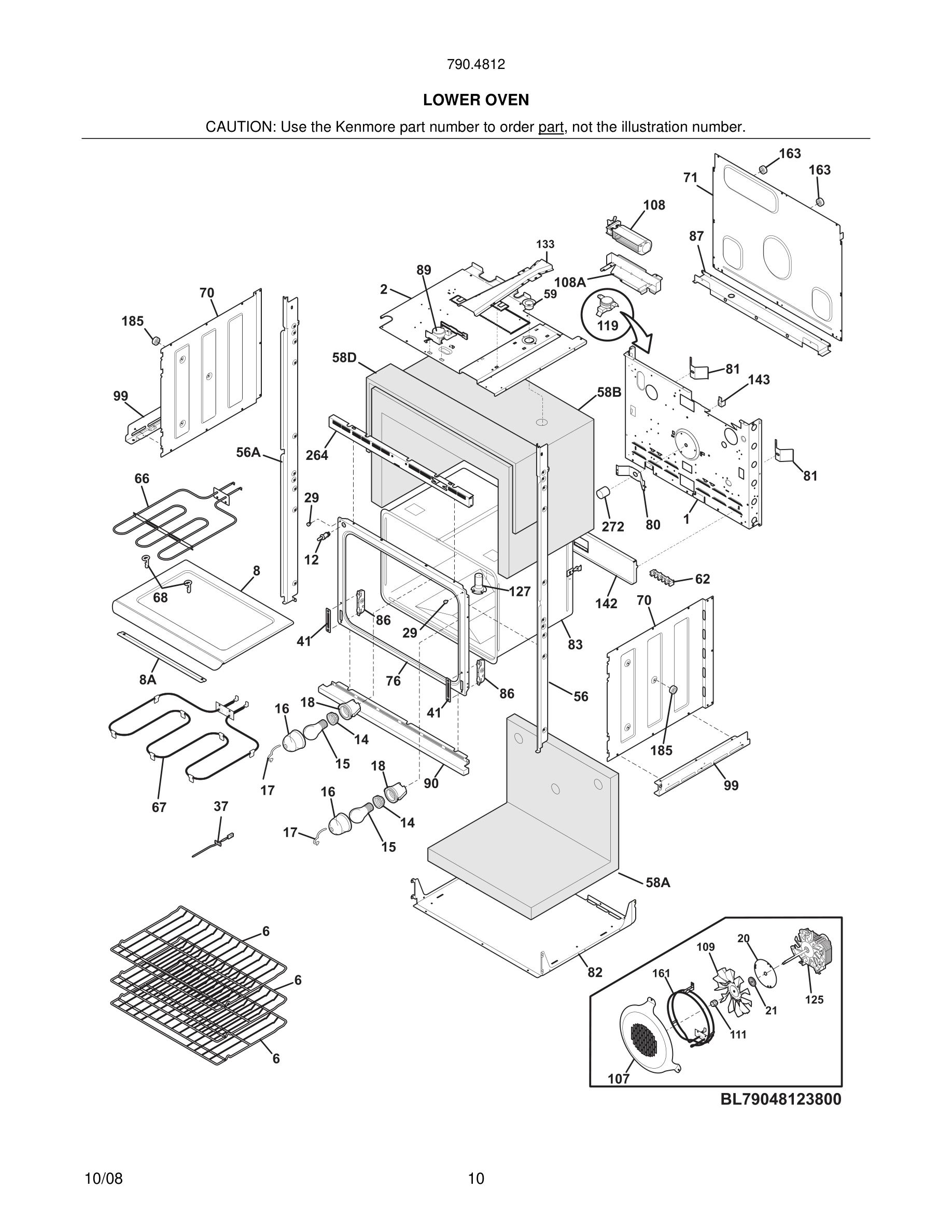

11 - LOWER OVEN

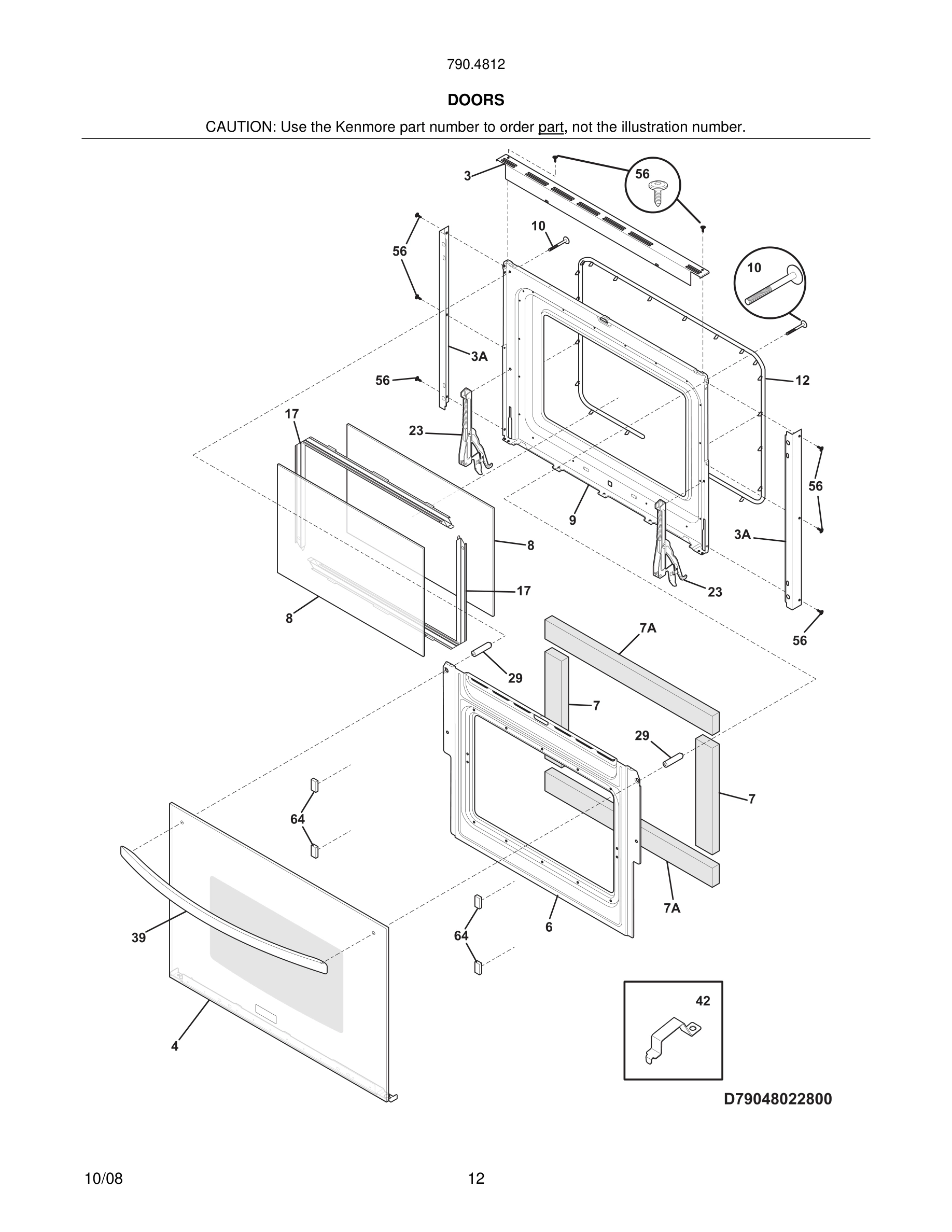

13 - DOORS

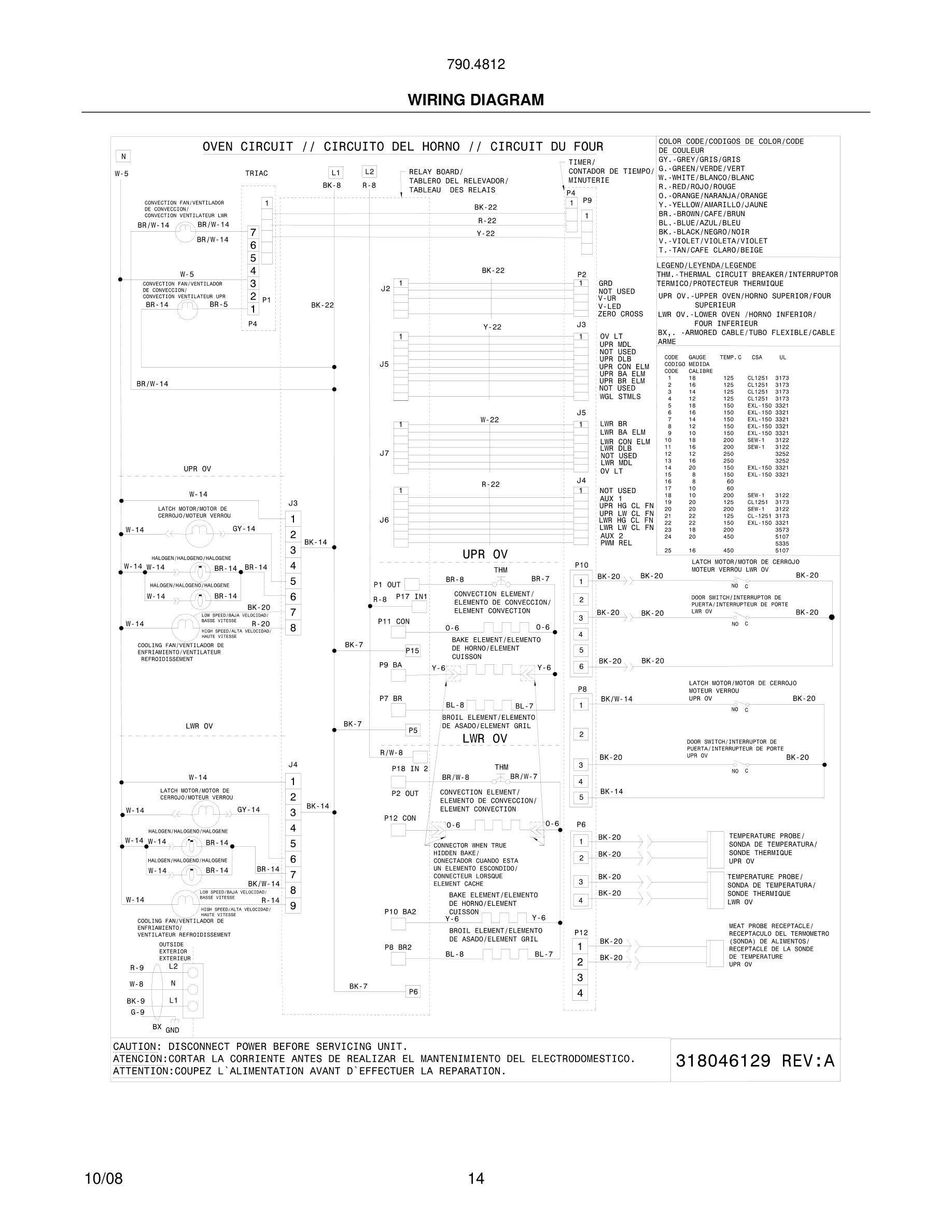

14 - WIRING DIAGRAM
Common parts from model Kenmore 790.48122800 OVEN
*
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
*#
Harness, wiring, main WCI 318532158 Contact Us For Availability
3
Trim, oven door, black, upper WCI 318260211 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
4
Glass Assy., door, white, outer, w/trim & bad WCI 318299517 Contact Us For Availability
4
Glass Assy., door, white, outer, w/trim WCI 318299518 Contact Us For Availability
4
Glass Assy., door, black, outer, w/trim & bad WCI 318299515 Contact Us For Availability
4
Glass Assy., door, black, outer, w/trim WCI 318299516 Contact Us For Availability
6
Baffle, door WCI 318260510 Contact Us For Availability
8
Glass, oven door, heat barrier WCI 318212200 Contact Us For Availability
8
Cover, element WCI 318262011 Contact Us For Availability
9
Liner, oven door, upper WCI 318259611 Contact Us For Availability
12
Gasket, oven door seal WCI 318053126 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
17
Spacer, glass, (2) WCI 318264700 Contact Us For Availability
18
Housing, oven light WCI 318222400 Contact Us For Availability
20
Plate, retainer WCI 318389400 Contact Us For Availability
23
Hinge, door, (2) WCI 318024748 Contact Us For Availability
29
Spacer, door WCI 318014402 Contact Us For Availability
37*
Bracket, receptacle, temp probe WCI 318373001 Contact Us For Availability
39
Handle, door, white, w/spacer WCI 318372421 Contact Us For Availability
39
Handle, door, black, w/spacer WCI 318372422 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
80
Plate, oven mtg WCI 5303320846 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
82
Shield, insulation, lower WCI 318258710 Contact Us For Availability
83
Liner, oven WCI 318261808 Contact Us For Availability
86
Receptacle, hinge WCI 318342400 Contact Us For Availability
87
Bracket, cable mtg. WCI 318260601 Contact Us For Availability
90
Trim, oven front, black, bottom WCI 318259711 Contact Us For Availability
90
Trim, oven front, white, bottom WCI 318259710 Contact Us For Availability
97A#
Board, relay, convection WCI 316519203 Contact Us For Availability
107
Cover, fan WCI 318219405 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
125*
Insulation, 3.81 x 3.13 WCI 5303316994 Contact Us For Availability
127
Adapter Assembly, w/vent tube, and catalyst WCI 318357001 Contact Us For Availability
133
Chimney WCI 318347800 Contact Us For Availability
142
Deflector WCI 318123910 Contact Us For Availability
143
Support, wire WCI 318172904 Contact Us For Availability
163
Spacer, (2) WCI 318531703 Contact Us For Availability
264
Trim, oven, black, front WCI 318257811 Contact Us For Availability
272
Tube, protector WCI 318249403 Contact Us For Availability
310
Cabinet Mounting Kit WCI 5304440067 Contact Us For Availability
311
Bracket, cabinet mtg, (2) WCI 318246010 Contact Us For Availability
× ![]()
