Model Kenmore 790.47903605 OVEN – Common Parts & Diagrams

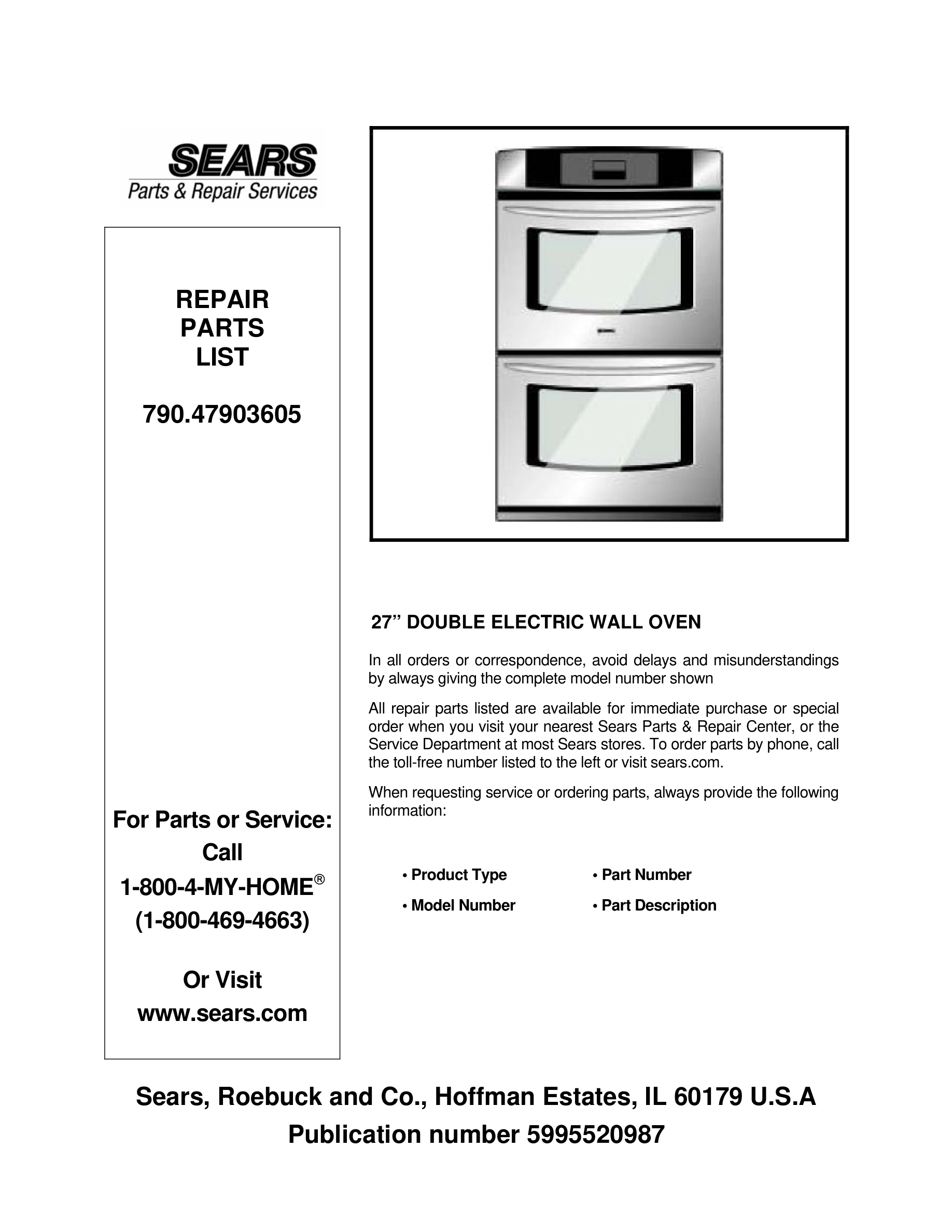

01 - COVER

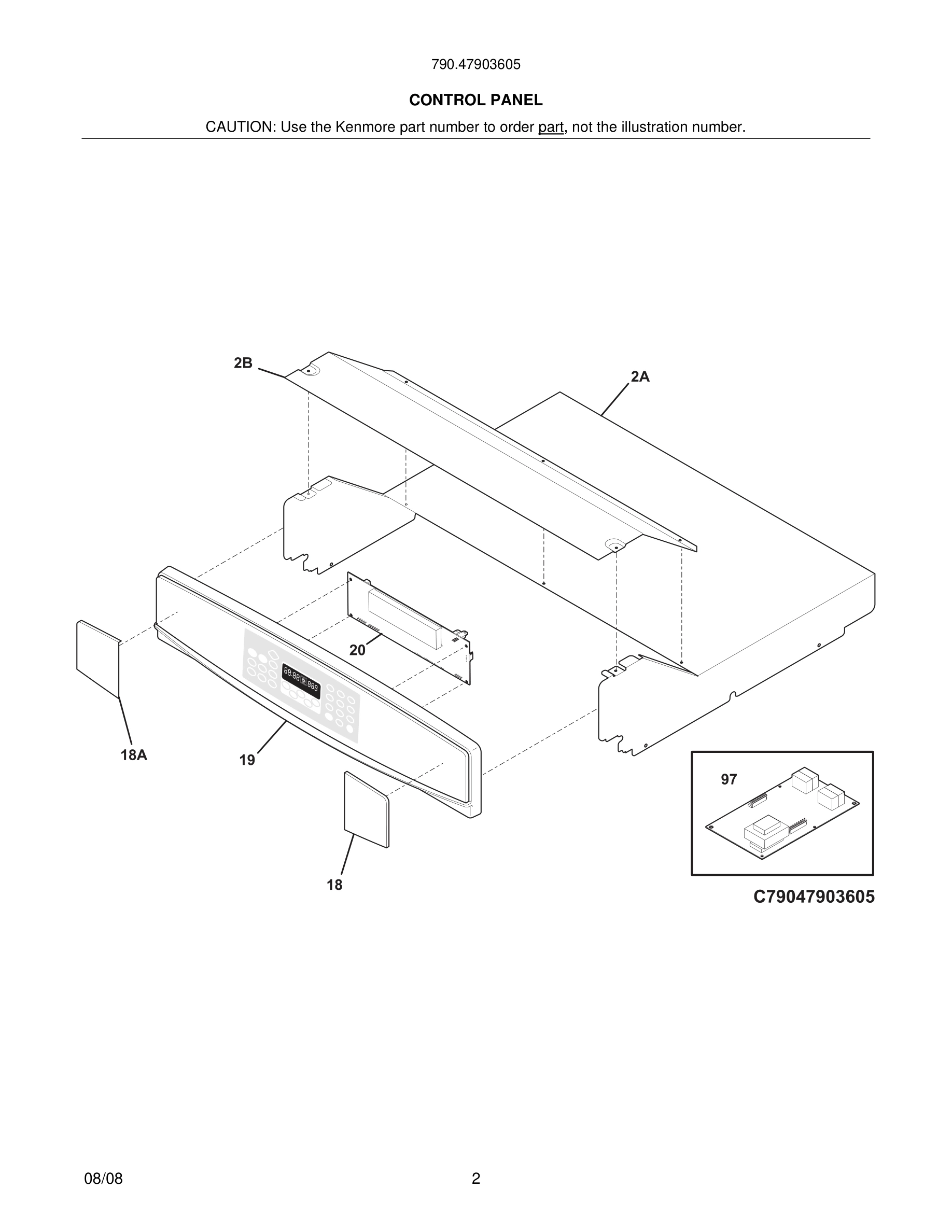

03 - CONTROL PANEL

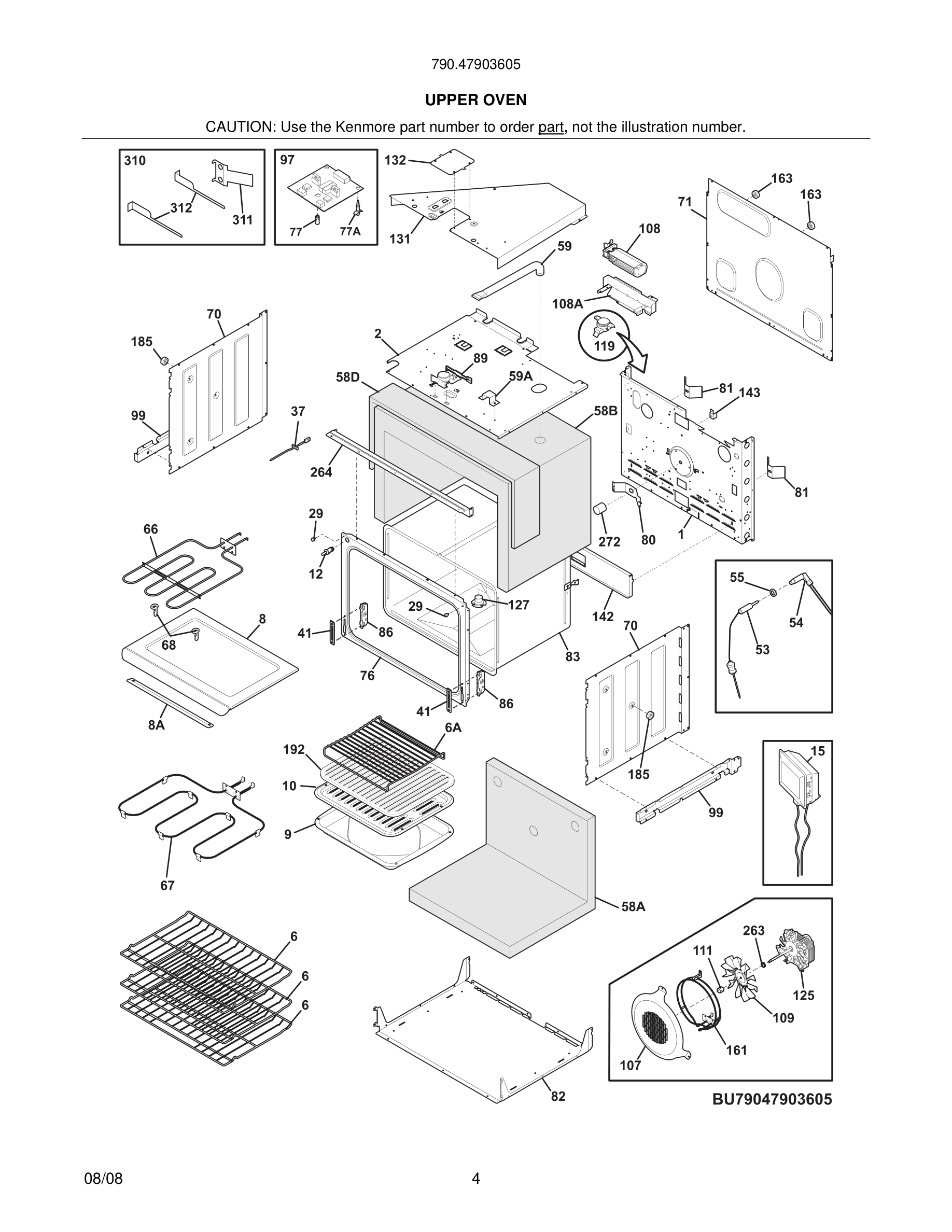

05 - UPPER OVEN
07 - UPPER OVEN

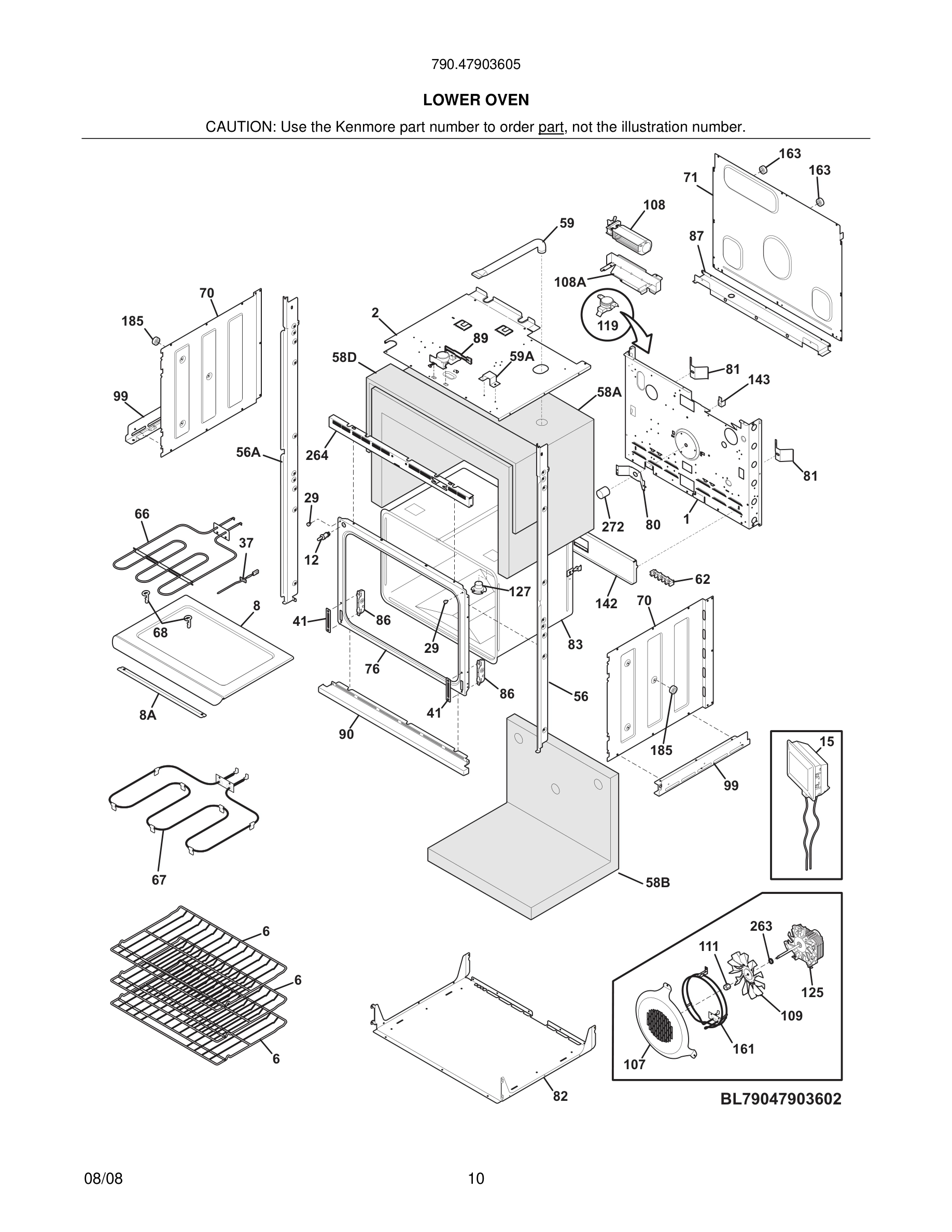

09 - LOWER OVEN
11 - LOWER OVEN

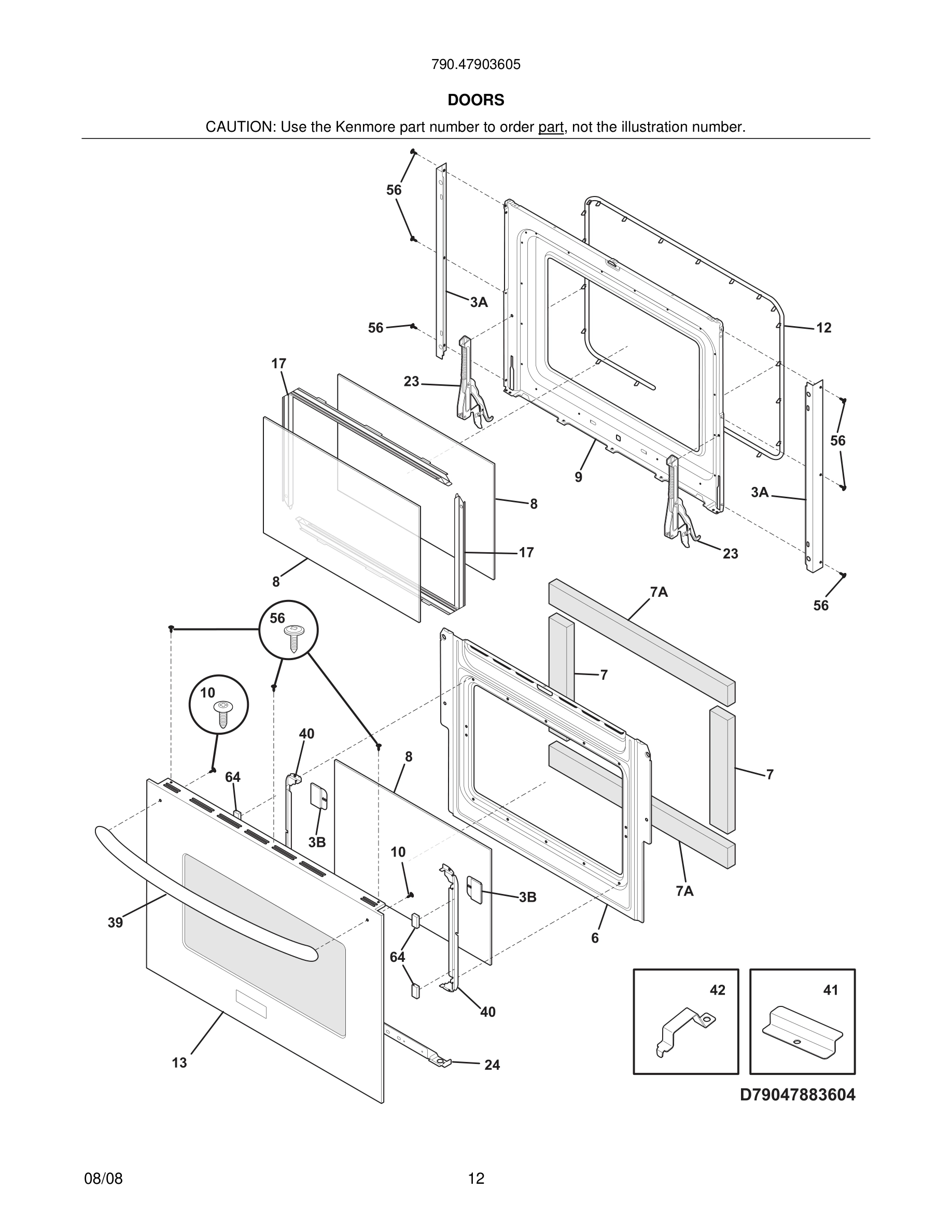

13 - DOORS

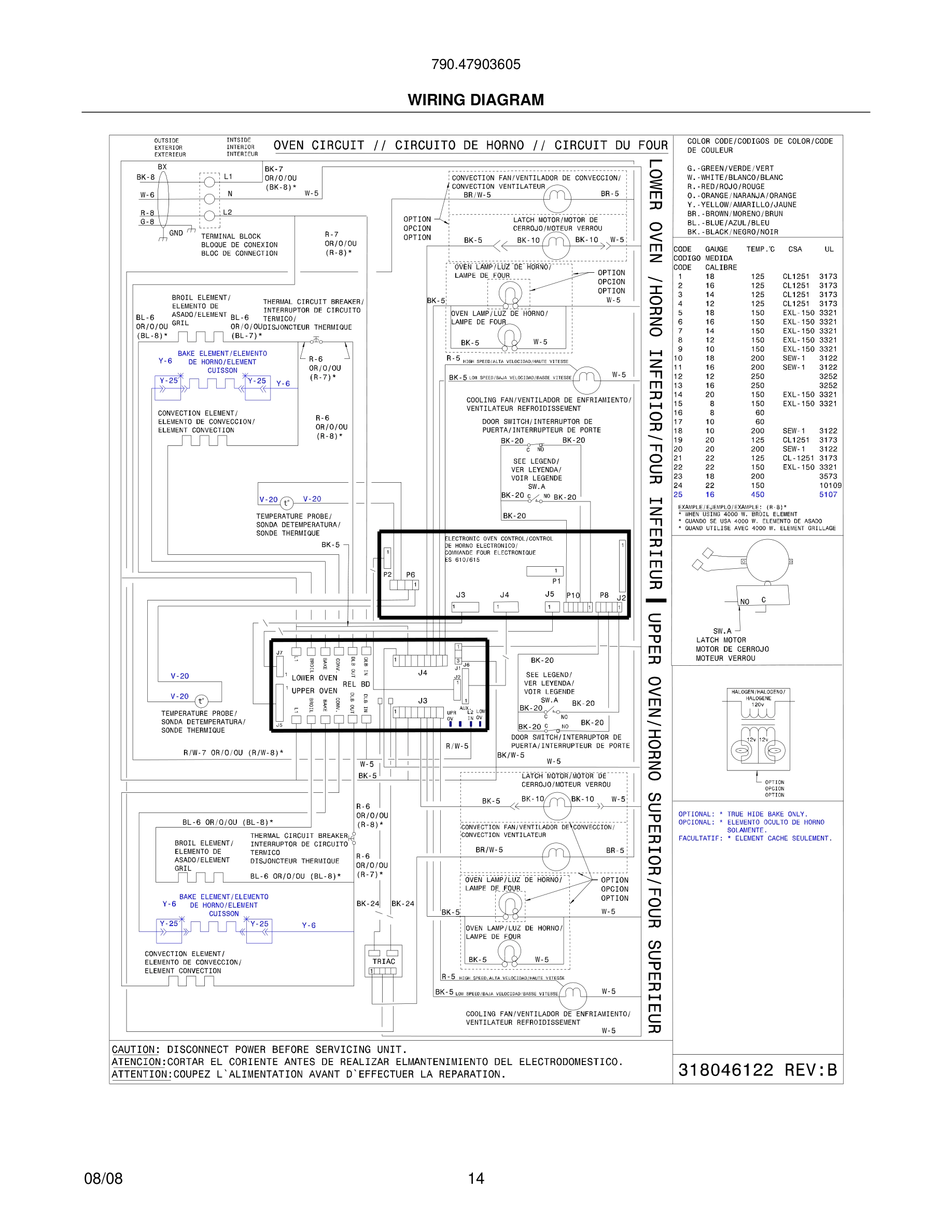

14 - WIRING DIAGRAM
Common parts from model Kenmore 790.47903605 OVEN
*
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
*
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
*#
Harness, wiring, main WCI 318402204 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
6
Baffle, door WCI 318260510 Contact Us For Availability
6A
Rack, broiler pan WCI 318365800 Contact Us For Availability
8
Glass, oven door, heat barrier WCI 318212200 Contact Us For Availability
8
Cover, element WCI 318262011 Contact Us For Availability
9
Liner, upper door WCI 318259615 Contact Us For Availability
12
Seal, door WCI 318053125 Contact Us For Availability
13
Door Assy, stainless steel, outer, w/tape & f WCI 318272191 Contact Us For Availability
13
Door Assy, w/nameplate, stainless steel, door WCI 318272192 Contact Us For Availability
17
Spacer, glass, (2) WCI 318264700 Contact Us For Availability
20#
Control, electronic, ES615W5, dual oven WCI 316443822 Contact Us For Availability
23
Hinge, door, upper, (2) WCI 318024722 Contact Us For Availability
24
Trim, door, black, lower WCI 318260311 Contact Us For Availability
37*
Bracket, receptacle, temp probe WCI 318373001 Contact Us For Availability
39
Handle, door, stainless WCI 318361200 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
70
Shield, insulation, sides, (2) WCI 318259100 Contact Us For Availability
71
Panel, rear box WCI 318260001 Contact Us For Availability
71*
Bracket, insul. panel WCI 318340201 Contact Us For Availability
76
Front, oven WCI 318056222 Contact Us For Availability
80
Plate, oven mtg WCI 5303320846 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
82
Shield, insulation, lower WCI 318258710 Contact Us For Availability
83
Liner, oven assy WCI 318261505 Contact Us For Availability
86
Receptacle, hinge WCI 318328010 Contact Us For Availability
87
Bracket, cable mtg. WCI 318260601 Contact Us For Availability
90
Trim, oven front, black, bottom WCI 318259711 Contact Us For Availability
107
Cover, fan WCI 318219405 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
125*
Insulation, 3.81 x 3.13 WCI 5303316994 Contact Us For Availability
142
Deflector WCI 318123910 Contact Us For Availability
143
Support, wire WCI 318172904 Contact Us For Availability
163
Spacer, (2) WCI 318531703 Contact Us For Availability
264
Trim, oven, black, front WCI 318257811 Contact Us For Availability
272
Tube, protector WCI 318249403 Contact Us For Availability
310
Cabinet Mounting Kit WCI 5304440067 Contact Us For Availability
311
Bracket, cabinet mtg, (2) WCI 318246010 Contact Us For Availability
× ![]()
