Model Electrolux 790.47879404 Electric Oven (Kenmore 79047879404) – Common Parts & Diagrams

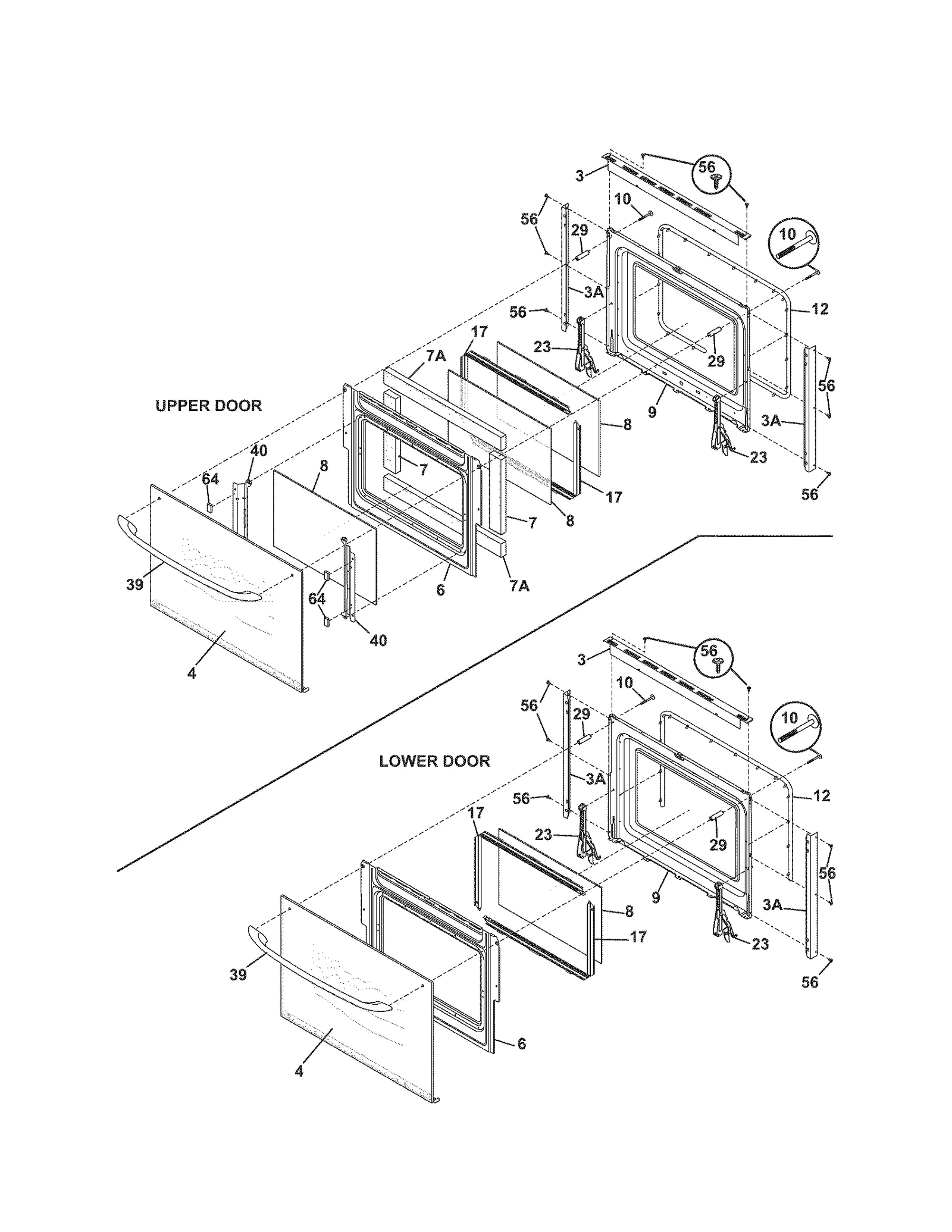

DOOR

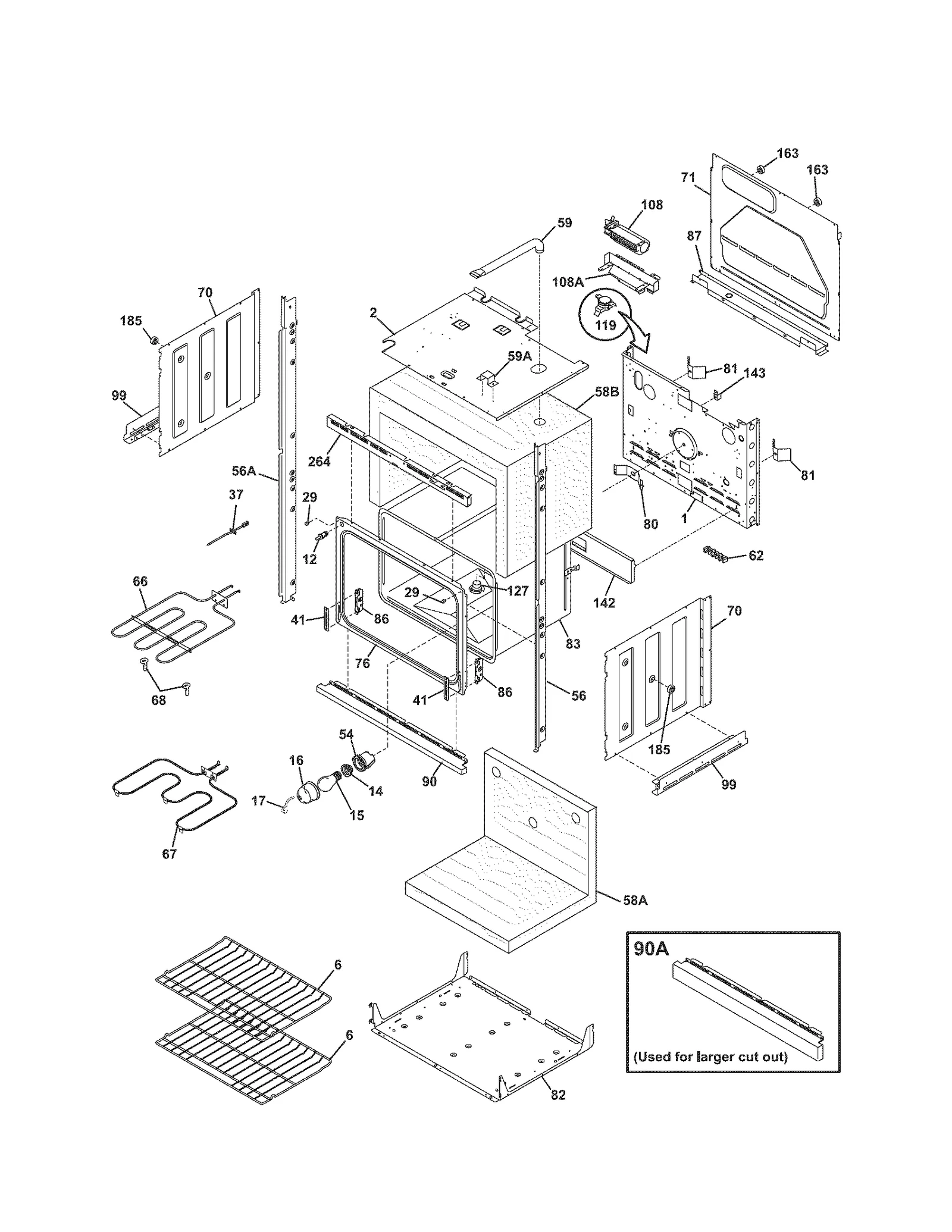

LOWER OVEN

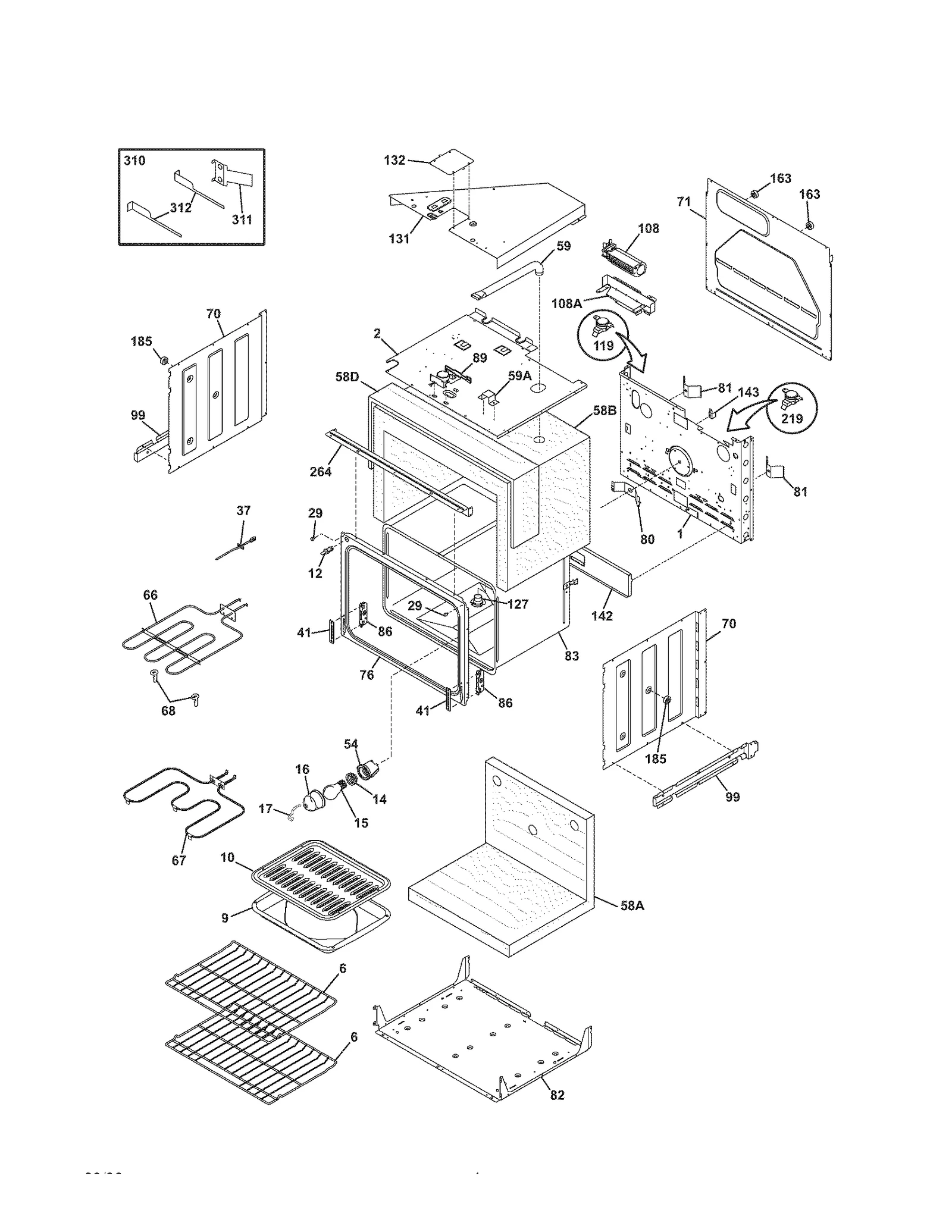

UPPER OVEN

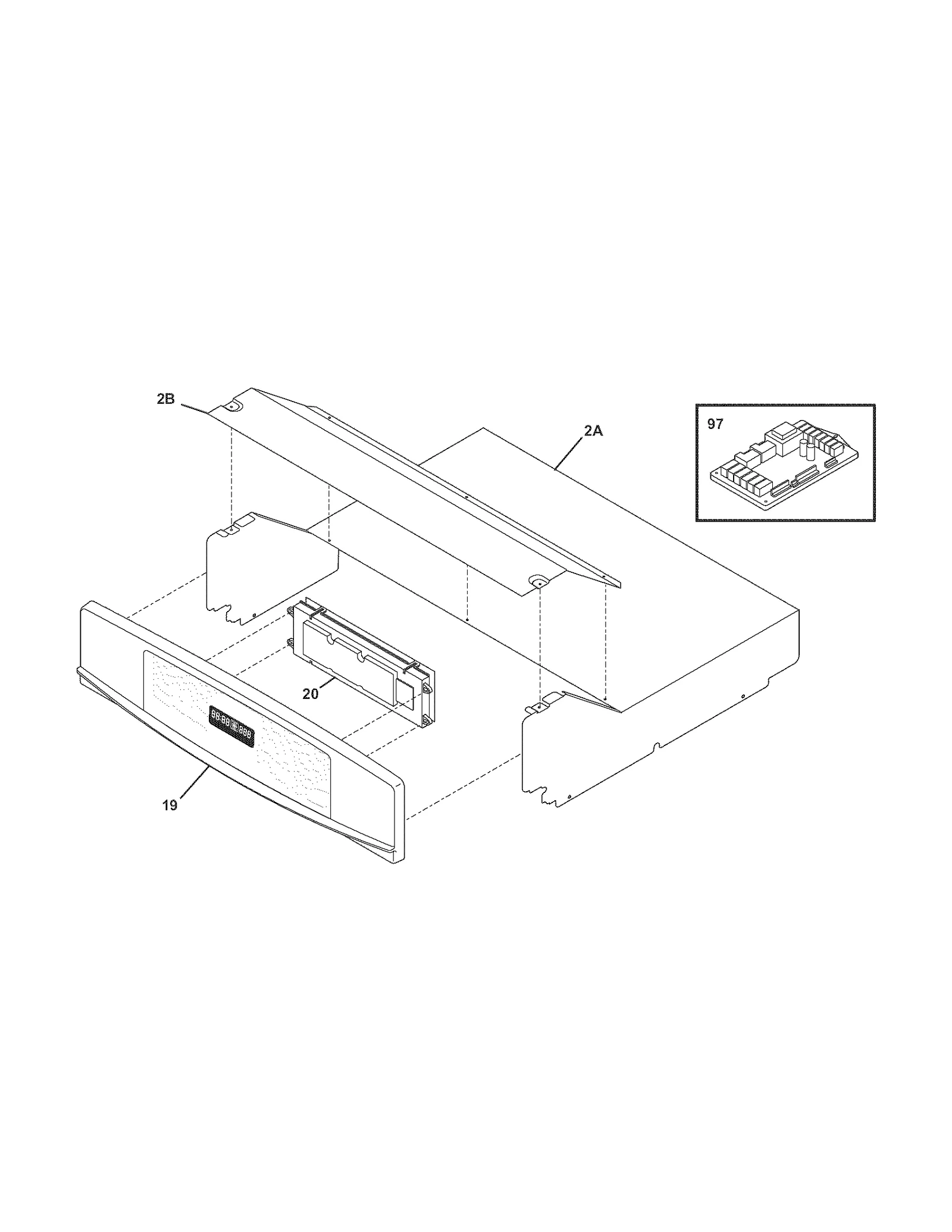

CONTROL PANEL
Common parts from model Electrolux 790.47879404 Electric Oven (Kenmore 79047879404)
2A
Wall Oven Top Heat Shield WCI 318257300 Contact Us For Availability
2B
Oven Cover WCI 318260100 Contact Us For Availability
3
Crosley Range Oven Door Trim WCI 318260201 Contact Us For Availability
3A
Range Oven Door Trim WCI 318260401 Contact Us For Availability
4
Range Oven Door Outer Panel Assembly (White) WCI 318261356 Contact Us For Availability
12
Range Oven Door Seal WCI 318053325 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
19
Range Control Panel (White) WCI 318343103 Contact Us For Availability
19
Control Panel WCI 318343104 Contact Us For Availability
19
Range Control Panel and Overlay (Black) WCI 318343105 Contact Us For Availability
20
Wall Oven Dual-Oven Control Board WCI 316443820 Contact Us For Availability
20
Control WCI 316443810 Contact Us For Availability
39
Range Oven Door Handle WCI 316443602 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
54
Range Oven Light Housing WCI 318222400 Contact Us For Availability
58A
Insulation WCI 318285055 Contact Us For Availability
58B
Oven Insulation WCI 318285056 Contact Us For Availability
58D
Oven Insulation WCI 318285058 Contact Us For Availability
59A
Bracket WCI 318261600 Contact Us For Availability
70
Shield WCI 318259100 Contact Us For Availability
71
Range Rear Panel WCI 318260007 Contact Us For Availability
76
Front WCI 318056217 Contact Us For Availability
80
Wall Oven Rear Panel Spacer Bracket WCI 5303320846 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
82
Shield WCI 318258707 Contact Us For Availability
83
Oven Liner WCI 318261403 Contact Us For Availability
86
Hinge Channel WCI 5303310524 Contact Us For Availability
90
Wall Oven Bottom Trim (Black) WCI 318259701 Contact Us For Availability
90
Wall Oven Trim, Lower (White) WCI 318259700 Contact Us For Availability
90A
Wall Oven Trim, Lower WCI 318259704 Contact Us For Availability
99
Support WCI 318252800 Contact Us For Availability
108
Range Convection Fan Motor Support Bracket WCI 318251300 Contact Us For Availability
127
Adapter WCI 318317000 Contact Us For Availability
131
Box WCI 318272900 Contact Us For Availability
132
Crosley Plate WCI 318003000 Contact Us For Availability
142
Deflector WCI 318123910 Contact Us For Availability
143
Stiffener WCI 318172904 Contact Us For Availability
163
Spacer WCI 318014111 Contact Us For Availability
264
Wall Oven Vent Trim (Black) WCI 318257701 Contact Us For Availability
310
Wall Oven Mounting Kit WCI 5304440067 Contact Us For Availability
311
Wall Oven Installation Bracket WCI 318246010 Contact Us For Availability
NI
Wall Oven Control Relay Wire Harness WCI 318231751 Contact Us For Availability
NI
Harness WCI 318231758 Contact Us For Availability
NI
Insulation WCI 318268099 Contact Us For Availability
NI
Oven Owner's Manual WCI 318205102 Contact Us For Availability
NI
Repair Parts List WCI 5995472015 Contact Us For Availability
× ![]()
