Model Electrolux 790.47854408 Wall Oven/Microwave Combo (Kenmore 79047854408) – Common Parts & Diagrams

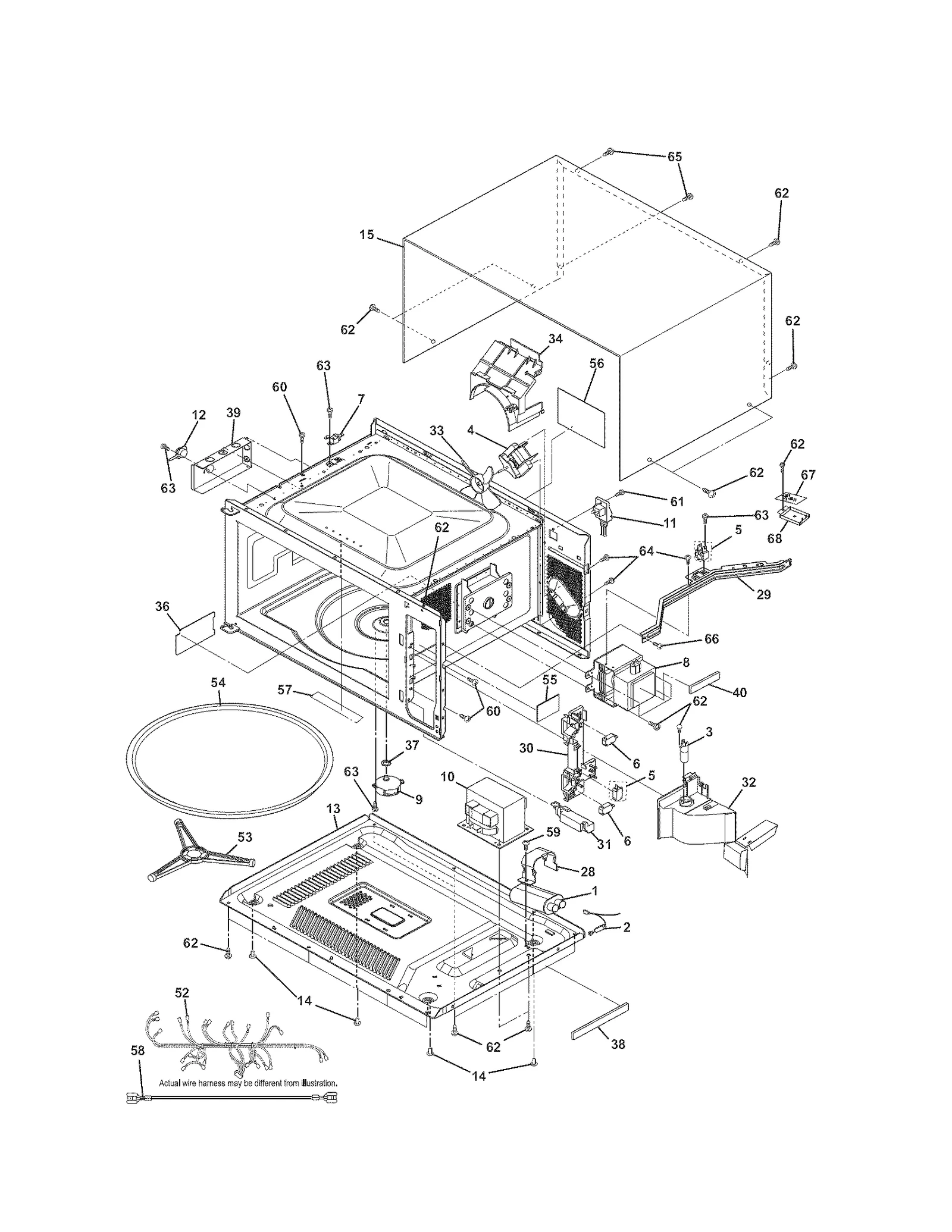

MICROWAVE

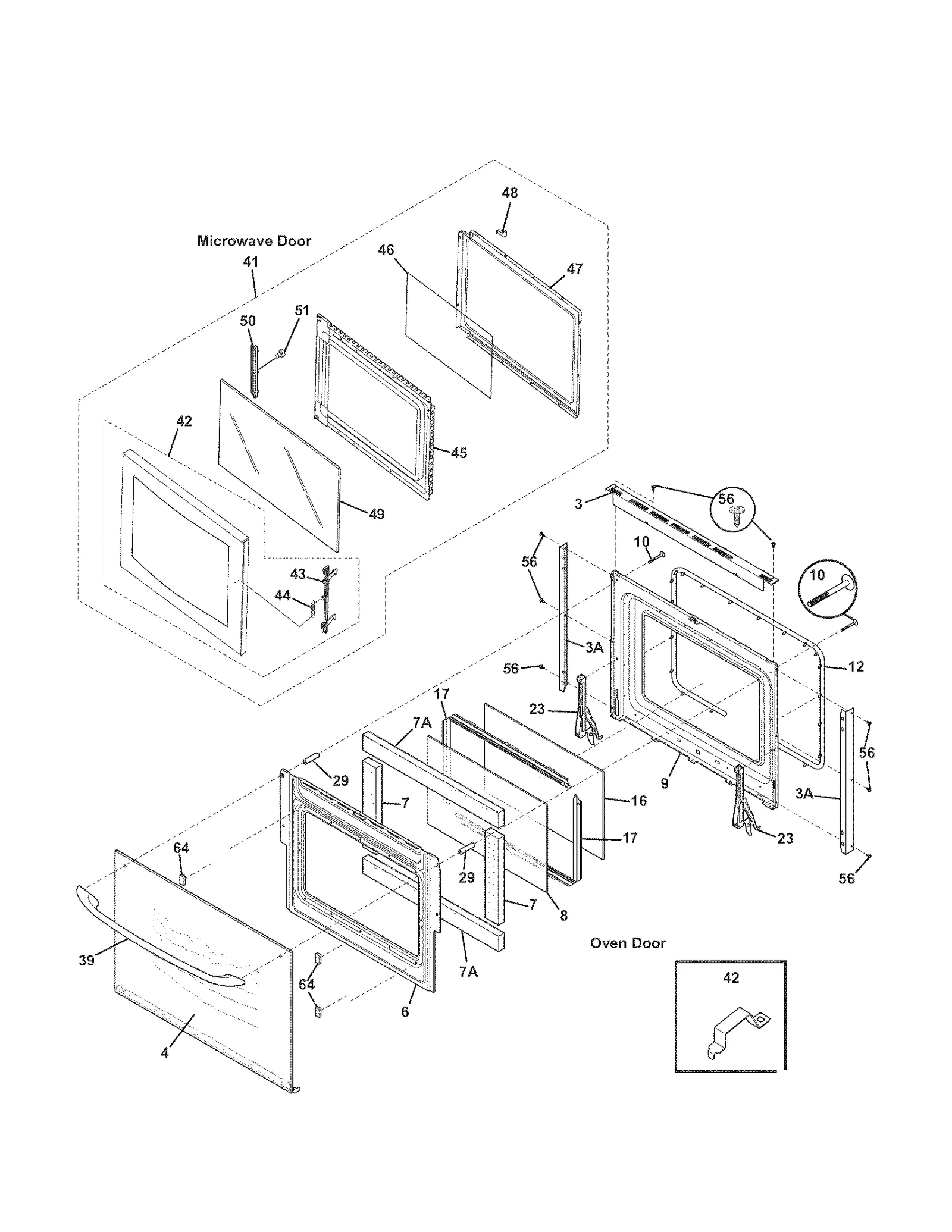

DOORS

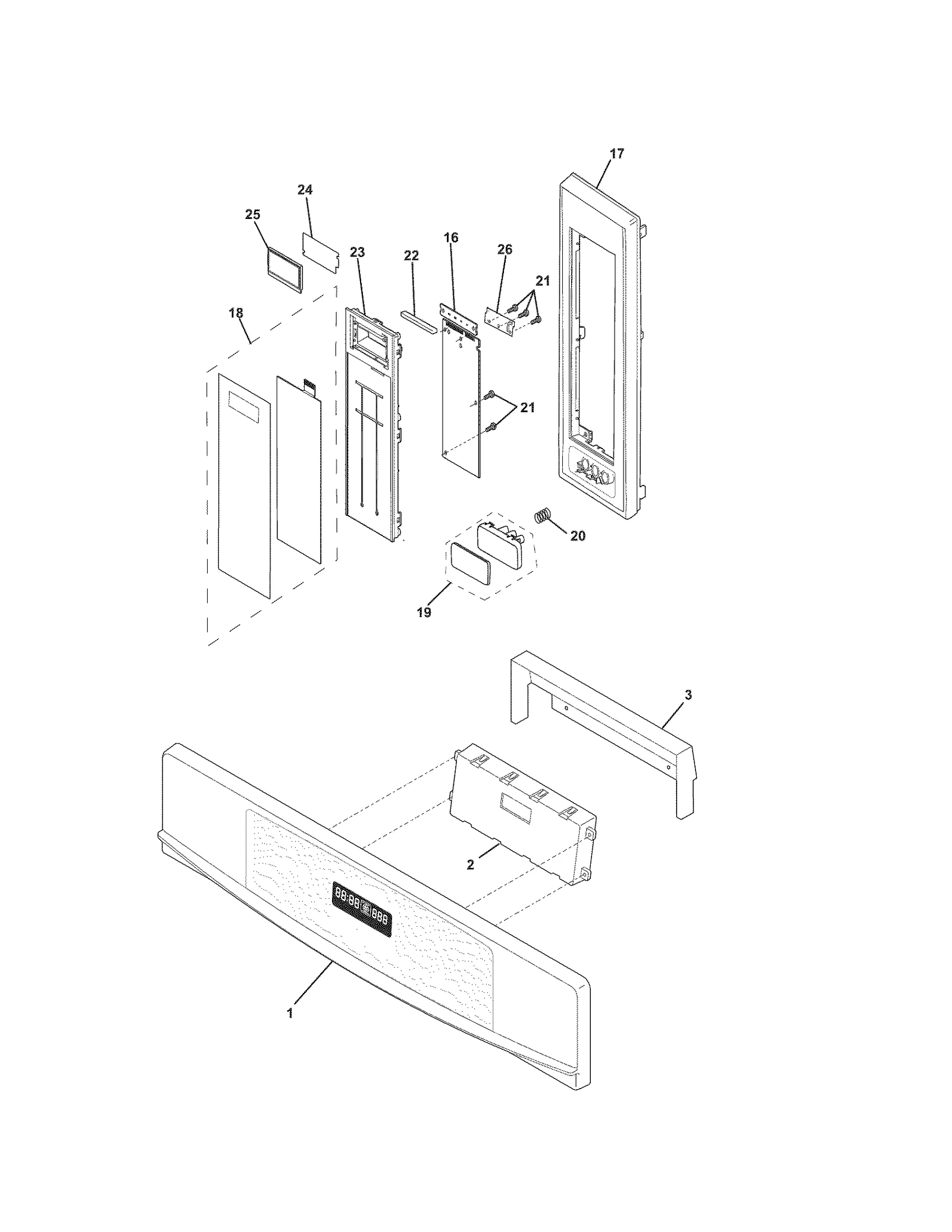

CONTROL PANEL

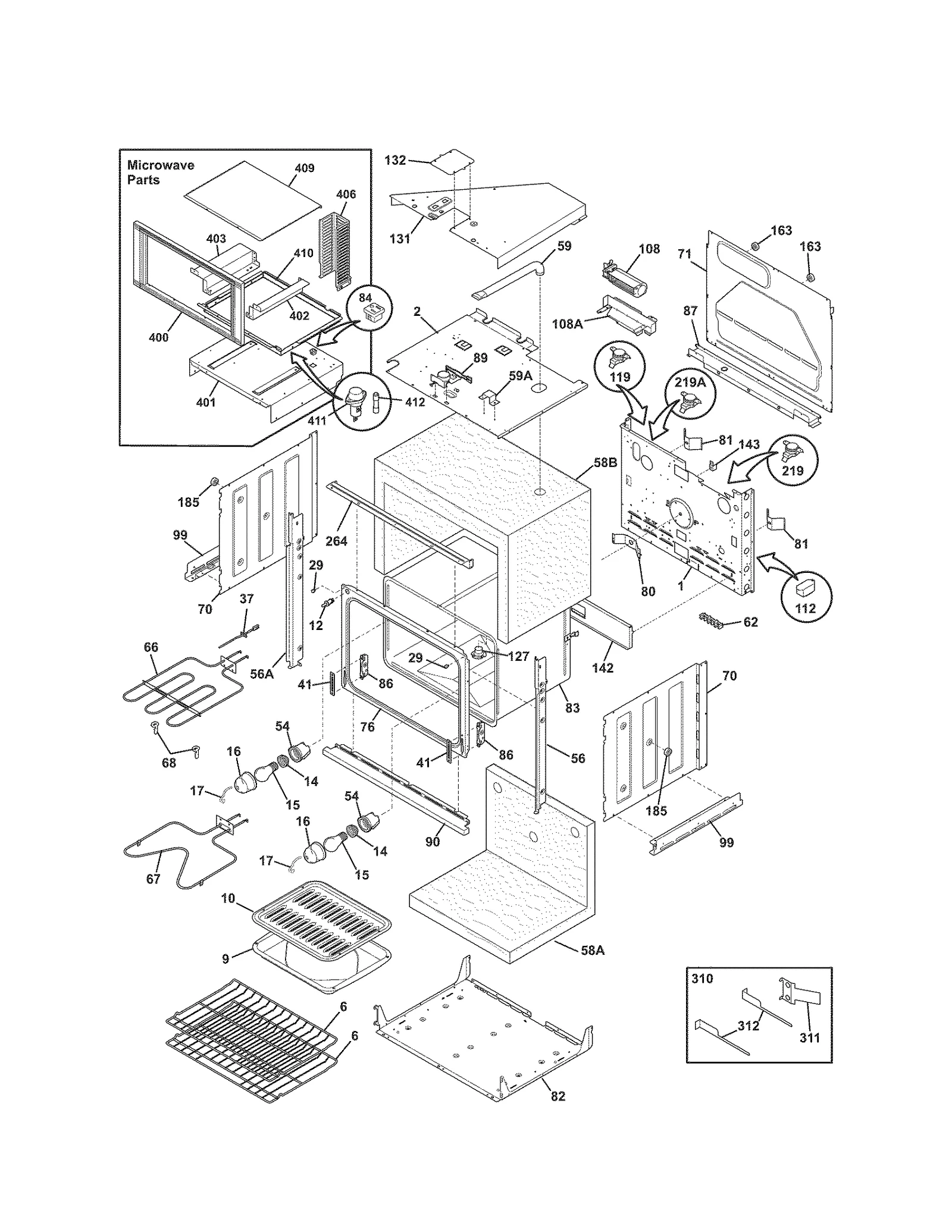

LOWER OVEN
Common parts from model Electrolux 790.47854408 Wall Oven/Microwave Combo (Kenmore 79047854408)
1
Oven Control Panel WCI 318277502 Contact Us For Availability
1
Range Rear Panel WCI 318259220 Contact Us For Availability
2
Wall Oven Control Board WCI 316418576 Contact Us For Availability
2
Range Oven Insulation Shield, Upper WCI 318258902 Contact Us For Availability
3
Crosley Range Oven Door Trim WCI 318260201 Contact Us For Availability
3A
Range Oven Door Trim WCI 318260401 Contact Us For Availability
4
Range Oven Door Outer Panel Assembly (White) WCI 318261356 Contact Us For Availability
6
Oven Rack WCI 318262500 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 318212210 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
19
Microwave Door Release Button (Black) WCI 5304440827 Contact Us For Availability
19
Microwave Door Release Button (White) WCI 5304442133 Contact Us For Availability
22
Microwave Electronic Control Board Seal WCI 5304440832 Contact Us For Availability
25
Microwave Display Board WCI 5304440835 Contact Us For Availability
26
Wall Oven Microwave Electronic Control Board WCI 5304440836 Contact Us For Availability
37
Bushing WCI 5304440288 Contact Us For Availability
39
Range Oven Door Handle WCI 316443602 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
48
Door Stop WCI 5304442145 Contact Us For Availability
54
Range Oven Light Housing WCI 318222400 Contact Us For Availability
56
Trim WCI 318276312 Contact Us For Availability
56
Trim WCI 318276316 Contact Us For Availability
56A
Oven Trim WCI 318276313 Contact Us For Availability
56A
Left-Hand Filler Trim WCI 318276315 Contact Us For Availability
56A
Trim WCI 318276317 Contact Us For Availability
58A
Insulation WCI 318285055 Contact Us For Availability
58B
Insulation WCI 318133791 Contact Us For Availability
59A
Bracket WCI 318261600 Contact Us For Availability
70
Shield WCI 318259100 Contact Us For Availability
71
Range Rear Panel WCI 318260007 Contact Us For Availability
76
Front WCI 318056217 Contact Us For Availability
80
Wall Oven Rear Panel Spacer Bracket WCI 5303320846 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
82
Shield WCI 318258707 Contact Us For Availability
83
Oven Liner WCI 318261402 Contact Us For Availability
84
Wall Oven Microwave Electrical Receptacle WCI 318146833 Contact Us For Availability
86
Range Oven Door Hinge Receiver WCI 318342400 Contact Us For Availability
87
Bracket WCI 318260600 Contact Us For Availability
90
Wall Oven Bottom Trim (Black) WCI 318259701 Contact Us For Availability
90
Wall Oven Trim, Lower (White) WCI 318259700 Contact Us For Availability
90
Oven Trim WCI 318259702 Contact Us For Availability
108
Range Convection Fan Motor Support Bracket WCI 318251300 Contact Us For Availability
112
Range Control Panel Cooling Fan Relay WCI 318112703 Contact Us For Availability
131
Box WCI 318272901 Contact Us For Availability
132
Crosley Plate WCI 318003000 Contact Us For Availability
142
Deflector WCI 318123910 Contact Us For Availability
143
Stiffener WCI 318172904 Contact Us For Availability
163
Cooking Appliance Spacer WCI 318531703 Contact Us For Availability
264
Wall Oven Vent Trim (Black) WCI 318257701 Contact Us For Availability
310
Wall Oven Mounting Kit WCI 5304440067 Contact Us For Availability
311
Wall Oven Installation Bracket WCI 318246010 Contact Us For Availability
400
Oven Trim WCI 318275700 Contact Us For Availability
400
Oven Trim WCI 318275701 Contact Us For Availability
400
Trim WCI 318275702 Contact Us For Availability
401
Plate WCI 318297207 Contact Us For Availability
402
Bracket WCI 318276202 Contact Us For Availability
403
Bracket WCI 318276203 Contact Us For Availability
406
Shield WCI 318277201 Contact Us For Availability
409
Bracket WCI 318295301 Contact Us For Availability
410
Flue WCI 318297111 Contact Us For Availability
NI
Wiring Diagram WCI 318046253 Contact Us For Availability
NI
Service Data Sheet WCI 318047417 Contact Us For Availability
NI
Instructions WCI 318201518 Contact Us For Availability
NI
Repair Parts List WCI 5995550091 Contact Us For Availability
NI
Screw WCI 08016432 Contact Us For Availability
NI
Harness WCI 318231754 Contact Us For Availability
NI
Insulation WCI 318268099 Contact Us For Availability
NI
Wiring Harness WCI 318370375 Contact Us For Availability
× ![]()
