Model Electrolux 790.47849408 Wall Oven/Microwave Combo (Kenmore 79047849408) – Common Parts & Diagrams

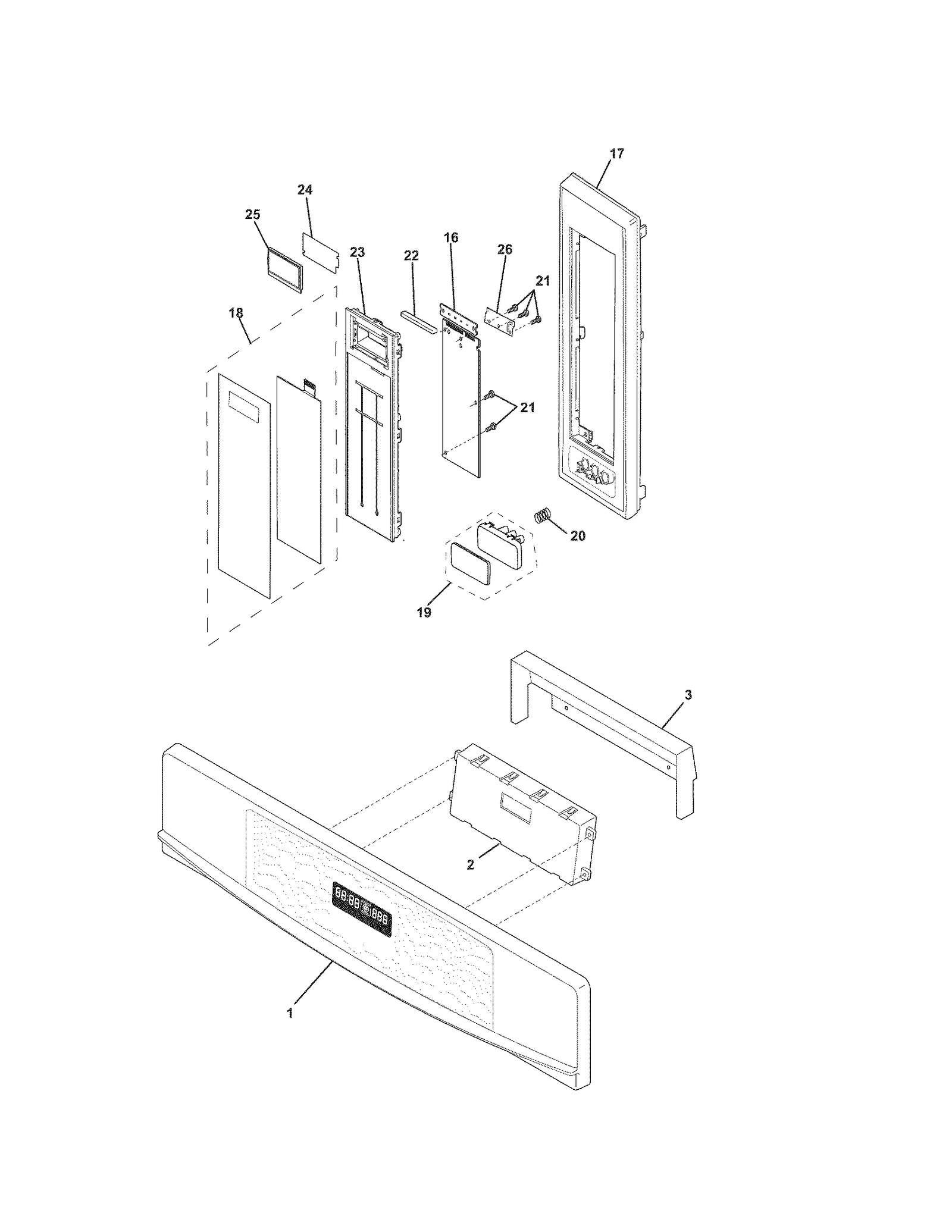

CONTROL PANEL
MICROWAVE
LOWER OVEN
DOORS
Common parts from model Electrolux 790.47849408 Wall Oven/Microwave Combo (Kenmore 79047849408)
1
Wall Oven Control Panel Assembly WCI 318277100 Contact Us For Availability
3
Wall Oven Door Vent Trim (Black) WCI 318260211 Contact Us For Availability
3A
Range Oven Door Trim WCI 318260401 Contact Us For Availability
4
Wall Oven Door Outer Panel Assembly (Black) WCI 318261361 Contact Us For Availability
4
Glass Assembly WCI 318261359 Contact Us For Availability
4
Glass Assembly WCI 318261360 Contact Us For Availability
6
Baffle WCI 318260510 Contact Us For Availability
8
Wall Oven Door Inner Glass WCI 318212200 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
9
Oven Liner WCI 318259611 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
12
Seal WCI 318053125 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
17
Wall Oven Door Glass Retainer WCI 318264700 Contact Us For Availability
19
Microwave Door Release Button (Black) WCI 5304440827 Contact Us For Availability
19
Microwave Door Release Button (White) WCI 5304442133 Contact Us For Availability
22
Microwave Electronic Control Board Seal WCI 5304440832 Contact Us For Availability
23
Hinge WCI 318024724 Contact Us For Availability
25
Microwave Display Board WCI 5304440835 Contact Us For Availability
29
Spacer WCI 318014402 Contact Us For Availability
37
Bushing WCI 5304440288 Contact Us For Availability
39
Handle WCI 318264400 Contact Us For Availability
39
Wall Oven Door Handle (White) WCI 318264401 Contact Us For Availability
39
Handle WCI 318264402 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
41
Oven Door WCI 5304442136 Contact Us For Availability
41
Door WCI 5304442137 Contact Us For Availability
41
Oven Door WCI 5304442138 Contact Us For Availability
42
Door WCI 5304442140 Contact Us For Availability
42
Door WCI 5304442141 Contact Us For Availability
42
Door WCI 5304442142 Contact Us For Availability
45
Wall Oven Microwave Door Inner Panel (Black) WCI 5304440857 Contact Us For Availability
45
Panel WCI 5304440859 Contact Us For Availability
45
Panel WCI 5304442144 Contact Us For Availability
46
Microwave Door Film WCI 5304440860 Contact Us For Availability
48
Door Stop WCI 5304442145 Contact Us For Availability
49
Oven Glass WCI 5304442146 Contact Us For Availability
49
Glass WCI 5304442147 Contact Us For Availability
49
Glass WCI 5304442148 Contact Us For Availability
50
Stop WCI 5304440862 Contact Us For Availability
51
Screw WCI 5304440866 Contact Us For Availability
54
Range Oven Light Housing WCI 318222400 Contact Us For Availability
59A
Bracket WCI 318261600 Contact Us For Availability
70
Shield WCI 318259100 Contact Us For Availability
71
Panel WCI 318260001 Contact Us For Availability
76
Wall Oven Front Frame WCI 318056222 Contact Us For Availability
80
Wall Oven Rear Panel Spacer Bracket WCI 5303320846 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
82
Shield WCI 318258710 Contact Us For Availability
83
Liner WCI 318261501 Contact Us For Availability
84
Wall Oven Microwave Electrical Receptacle WCI 318146833 Contact Us For Availability
86
Range Oven Door Hinge Receiver WCI 318342400 Contact Us For Availability
87
Bracket WCI 318260601 Contact Us For Availability
90
Wall Oven Base Trim WCI 318259711 Contact Us For Availability
90
Wall Oven Vent, Lower (White) WCI 318259710 Contact Us For Availability
90
Oven Trim WCI 318259712 Contact Us For Availability
108
Range Convection Fan Motor Support Bracket WCI 318251300 Contact Us For Availability
112
Range Control Panel Cooling Fan Relay WCI 318112703 Contact Us For Availability
131
Box WCI 318272901 Contact Us For Availability
132
Crosley Plate WCI 318003000 Contact Us For Availability
142
Deflector WCI 318123910 Contact Us For Availability
143
Stiffener WCI 318172904 Contact Us For Availability
163
Cooking Appliance Spacer WCI 318531703 Contact Us For Availability
264
Wall Oven Vent Trim (Black) WCI 318257711 Contact Us For Availability
310
Wall Oven Mounting Kit WCI 5304440067 Contact Us For Availability
311
Wall Oven Installation Bracket WCI 318246010 Contact Us For Availability
400
Oven Trim WCI 318275600 Contact Us For Availability
400
Oven Trim WCI 318275601 Contact Us For Availability
400
Trim WCI 318275602 Contact Us For Availability
401
Plate WCI 318297206 Contact Us For Availability
402
Bracket WCI 318276202 Contact Us For Availability
403
Bracket WCI 318276203 Contact Us For Availability
406
Shield WCI 318277201 Contact Us For Availability
409
Bracket WCI 318295301 Contact Us For Availability
410
Flue WCI 318297111 Contact Us For Availability
NI
Screw WCI 08016432 Contact Us For Availability
NI
Harness WCI 318231754 Contact Us For Availability
NI
Insulation WCI 318268099 Contact Us For Availability
NI
Wiring Harness WCI 318370375 Contact Us For Availability
× ![]()
