Model Electrolux 790.47779404 Electric Oven (Kenmore 79047779404) – Common Parts & Diagrams

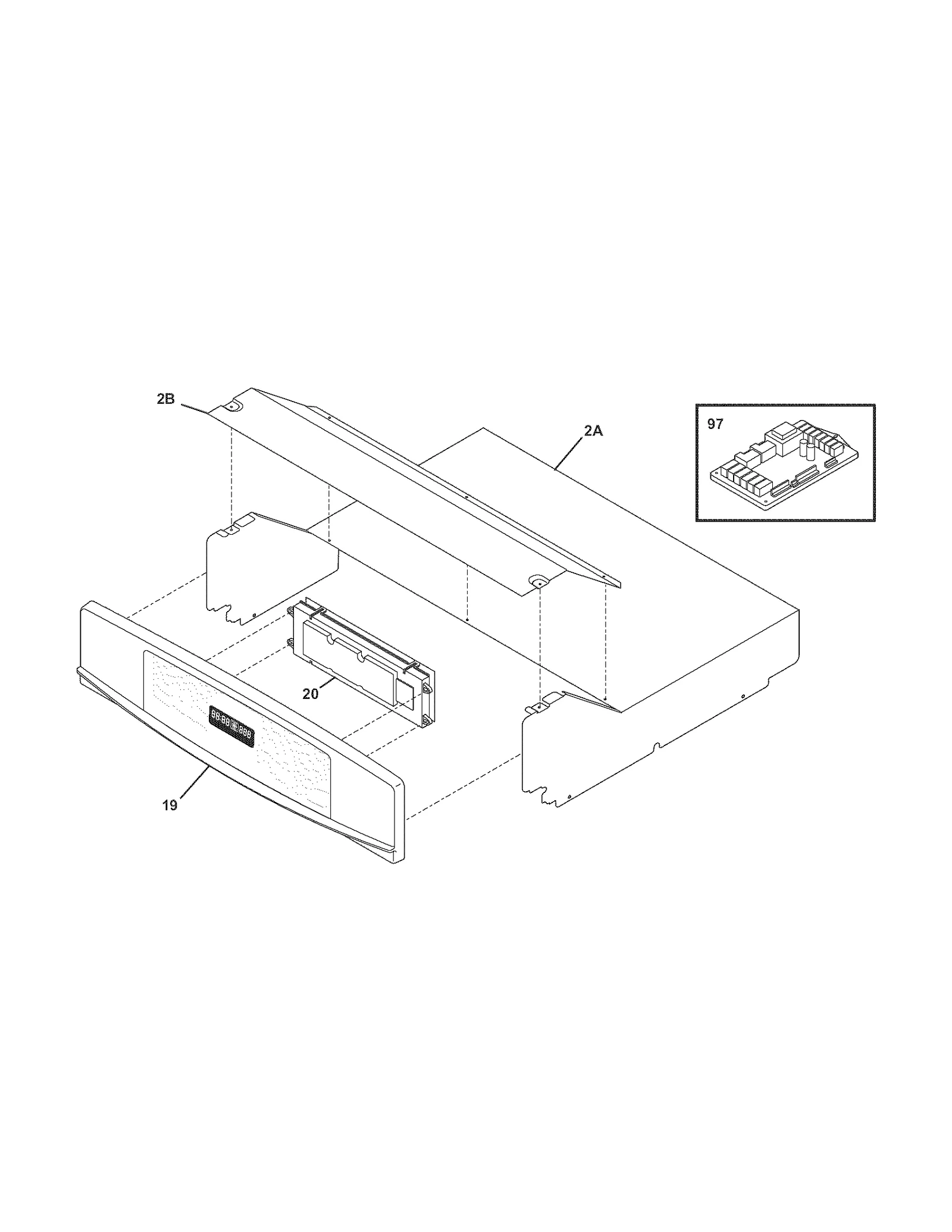

CONTROL PANEL

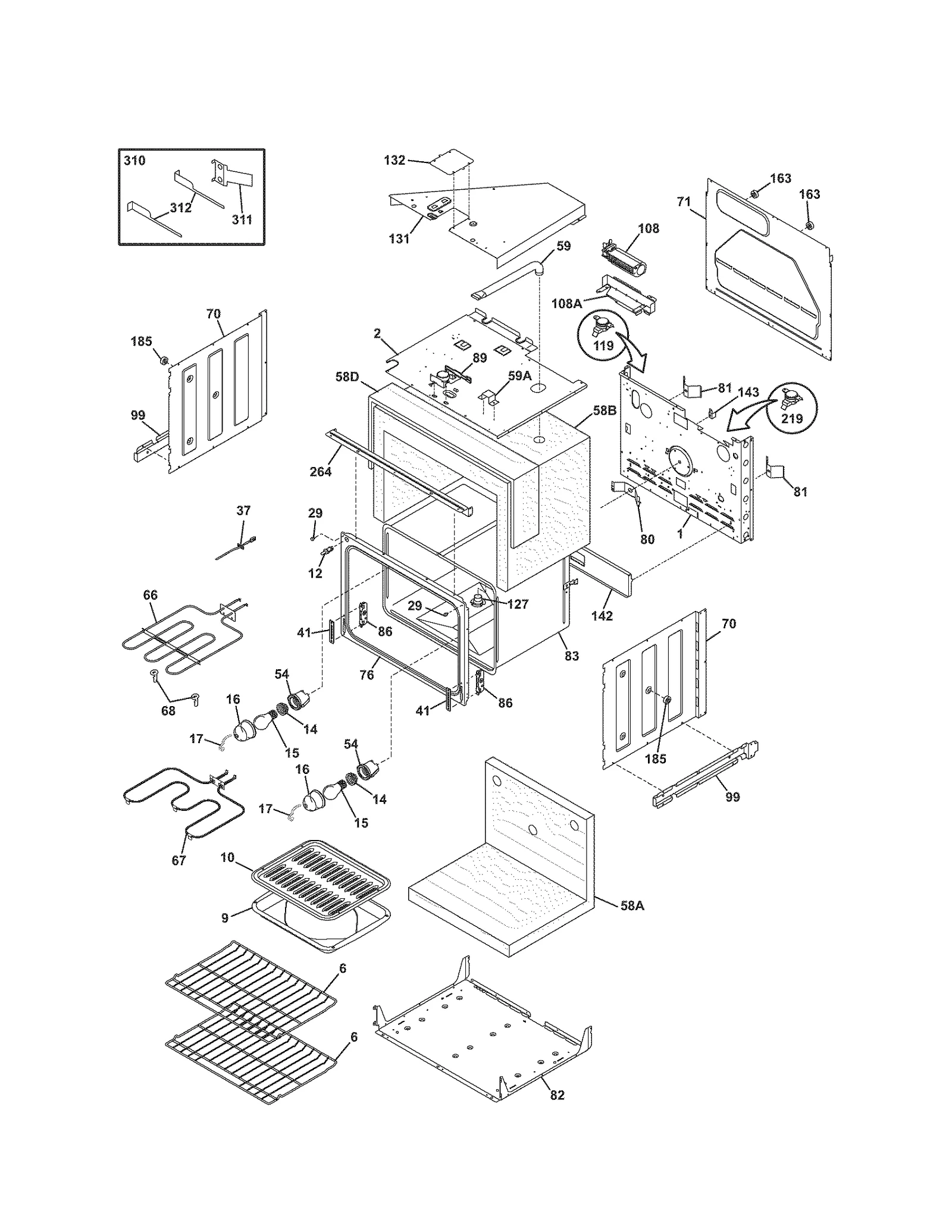

UPPER OVEN

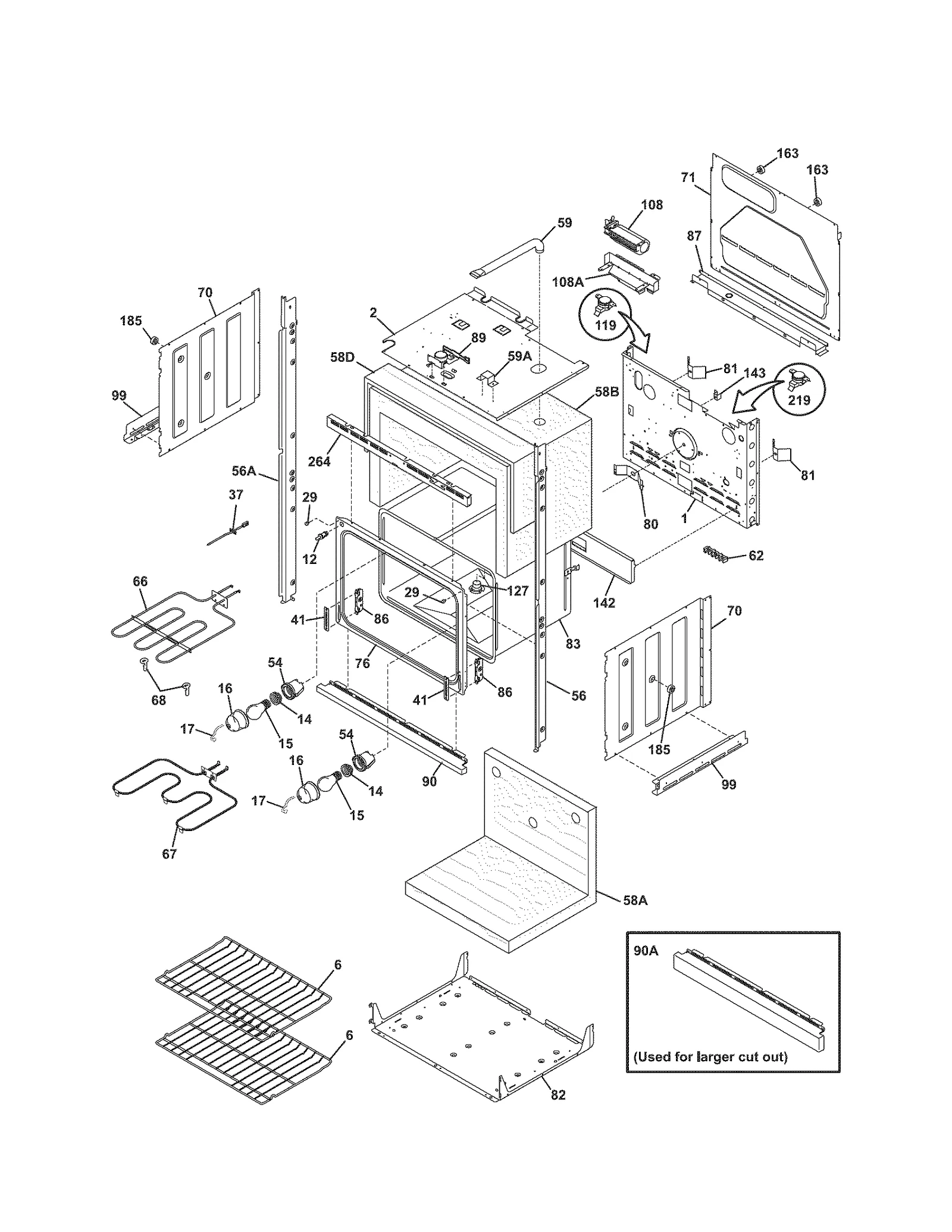

LOWER OVEN

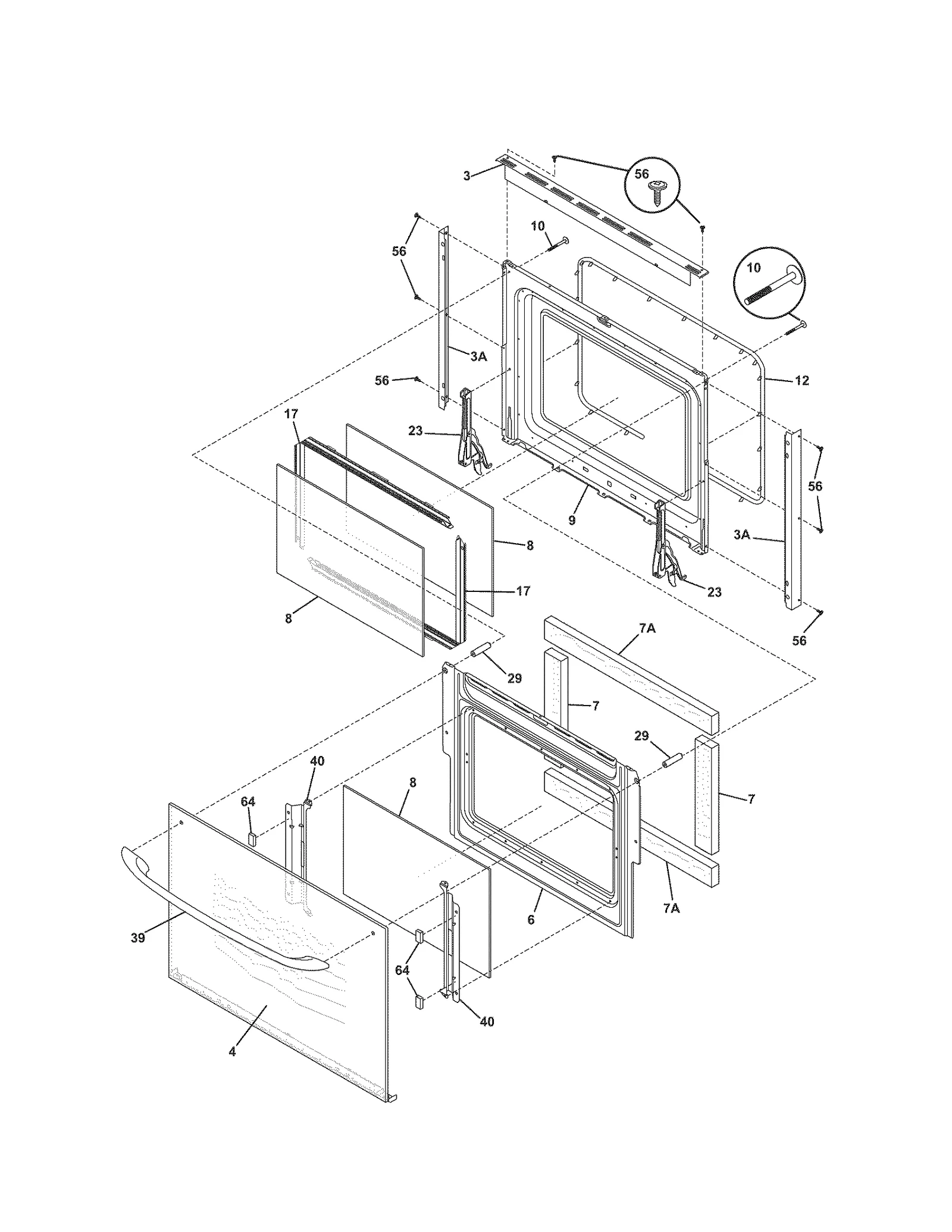

DOORS
Common parts from model Electrolux 790.47779404 Electric Oven (Kenmore 79047779404)
2B
Oven Cover WCI 318260100 Contact Us For Availability
3
Crosley Range Oven Door Trim WCI 318260201 Contact Us For Availability
3A
Range Oven Door Trim WCI 318260401 Contact Us For Availability
4
Range Oven Door Outer Panel Assembly (White) WCI 318261356 Contact Us For Availability
4
Range Oven Door Outer Panel (Bisque) WCI 318261357 Contact Us For Availability
6
Baffle WCI 318260520 Contact Us For Availability
9
Liner WCI 318259601 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
20
Wall Oven Control Board WCI 316443819 Contact Us For Availability
23
Hinge WCI 318024722 Contact Us For Availability
29
Spacer WCI 318014402 Contact Us For Availability
39
Range Oven Door Handle WCI 316443602 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
54
Range Oven Light Housing WCI 318222400 Contact Us For Availability
70
Shield WCI 318259100 Contact Us For Availability
71
Range Rear Panel WCI 318260007 Contact Us For Availability
76
Front WCI 318056217 Contact Us For Availability
80
Wall Oven Rear Panel Spacer Bracket WCI 5303320846 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
82
Shield WCI 318258707 Contact Us For Availability
83
Oven Liner WCI 318261402 Contact Us For Availability
86
Hinge Channel WCI 5303310524 Contact Us For Availability
87
Bracket WCI 318260600 Contact Us For Availability
90
Wall Oven Bottom Trim (Black) WCI 318259701 Contact Us For Availability
90
Wall Oven Trim, Lower (White) WCI 318259700 Contact Us For Availability
90
Oven Trim WCI 318259702 Contact Us For Availability
90A
Wall Oven Trim, Lower WCI 318259704 Contact Us For Availability
90A
Oven Trim WCI 318259703 Contact Us For Availability
90A
Oven Trim WCI 318259705 Contact Us For Availability
108
Range Convection Fan Motor Support Bracket WCI 318251300 Contact Us For Availability
142
Deflector WCI 318123910 Contact Us For Availability
143
Stiffener WCI 318172904 Contact Us For Availability
163
Spacer WCI 318014111 Contact Us For Availability
264
Wall Oven Vent Trim (Black) WCI 318257701 Contact Us For Availability
264
Oven Trim WCI 318257801 Contact Us For Availability
310
Wall Oven Mounting Kit WCI 5304440067 Contact Us For Availability
311
Wall Oven Installation Bracket WCI 318246010 Contact Us For Availability
NI
Wall Oven Wire Harness WCI 318199744 Contact Us For Availability
NI
Wall Oven Wire Harness WCI 318199746 Contact Us For Availability
NI
Harness WCI 318231750 Contact Us For Availability
NI
Insulation WCI 318268099 Contact Us For Availability
NI
Bracket WCI 318340200 Contact Us For Availability
NI
Range Wire Harness WCI 318370302 Contact Us For Availability
× ![]()
