Model Electrolux 790.47779400 Electric Oven (Kenmore 79047779400) – Common Parts & Diagrams

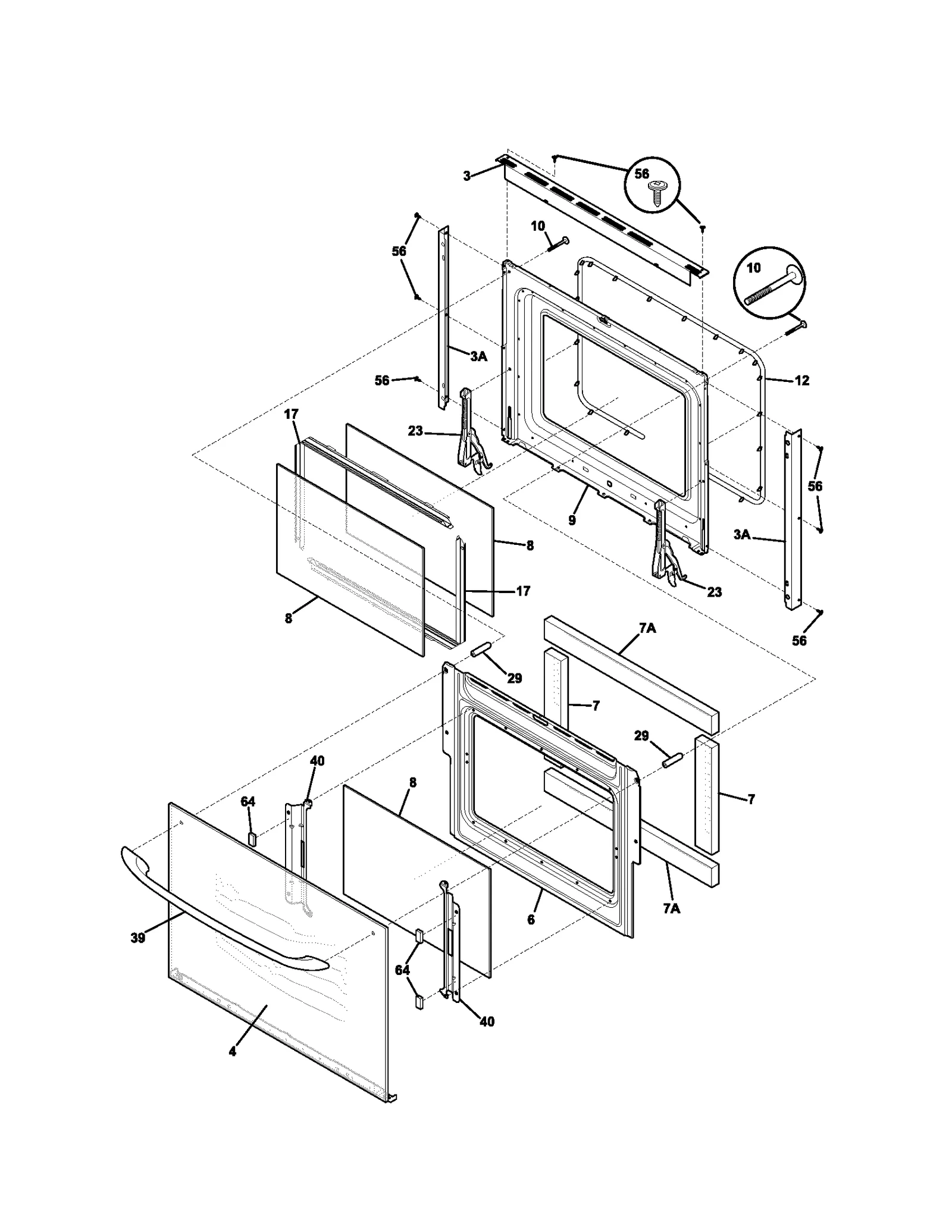

DOORS

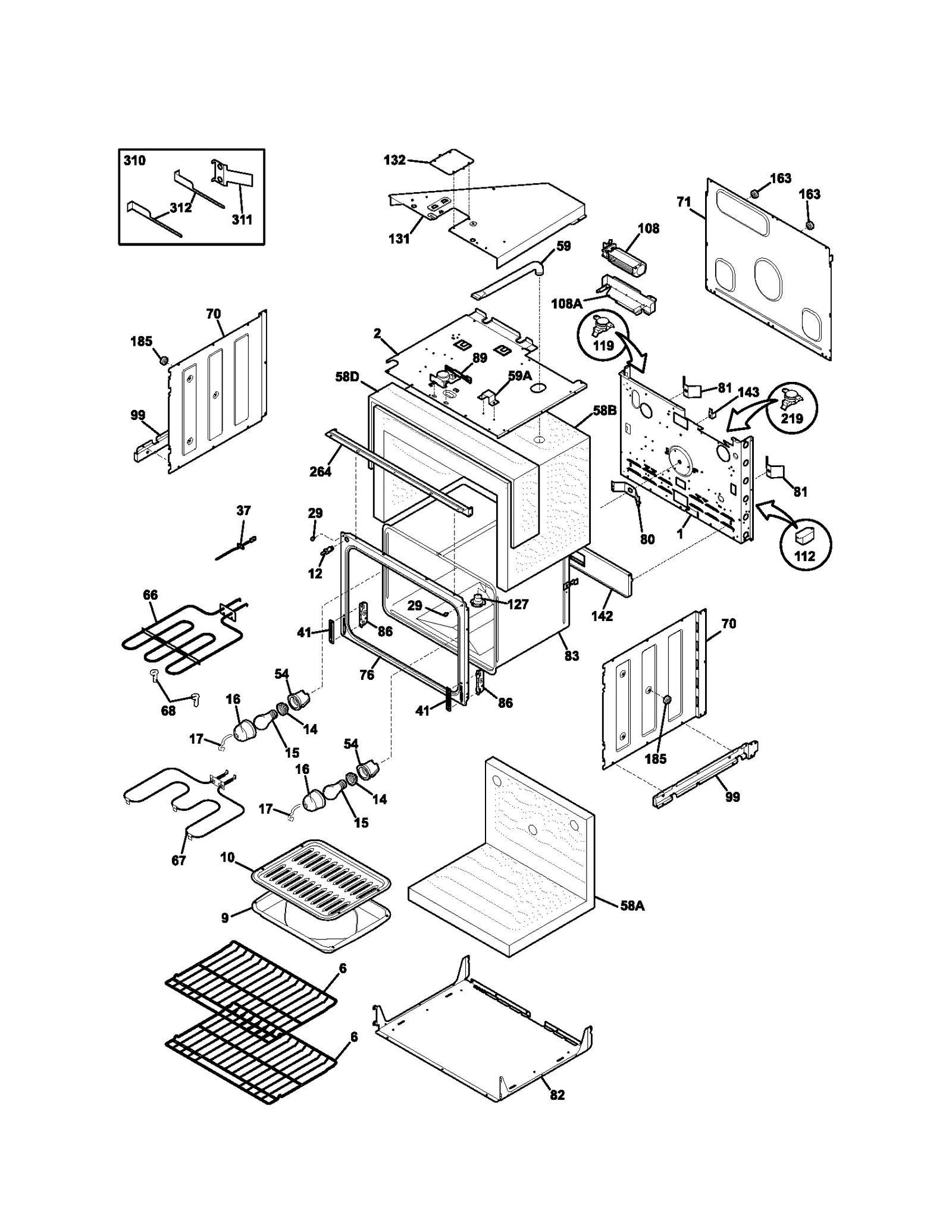

UPPER OVEN

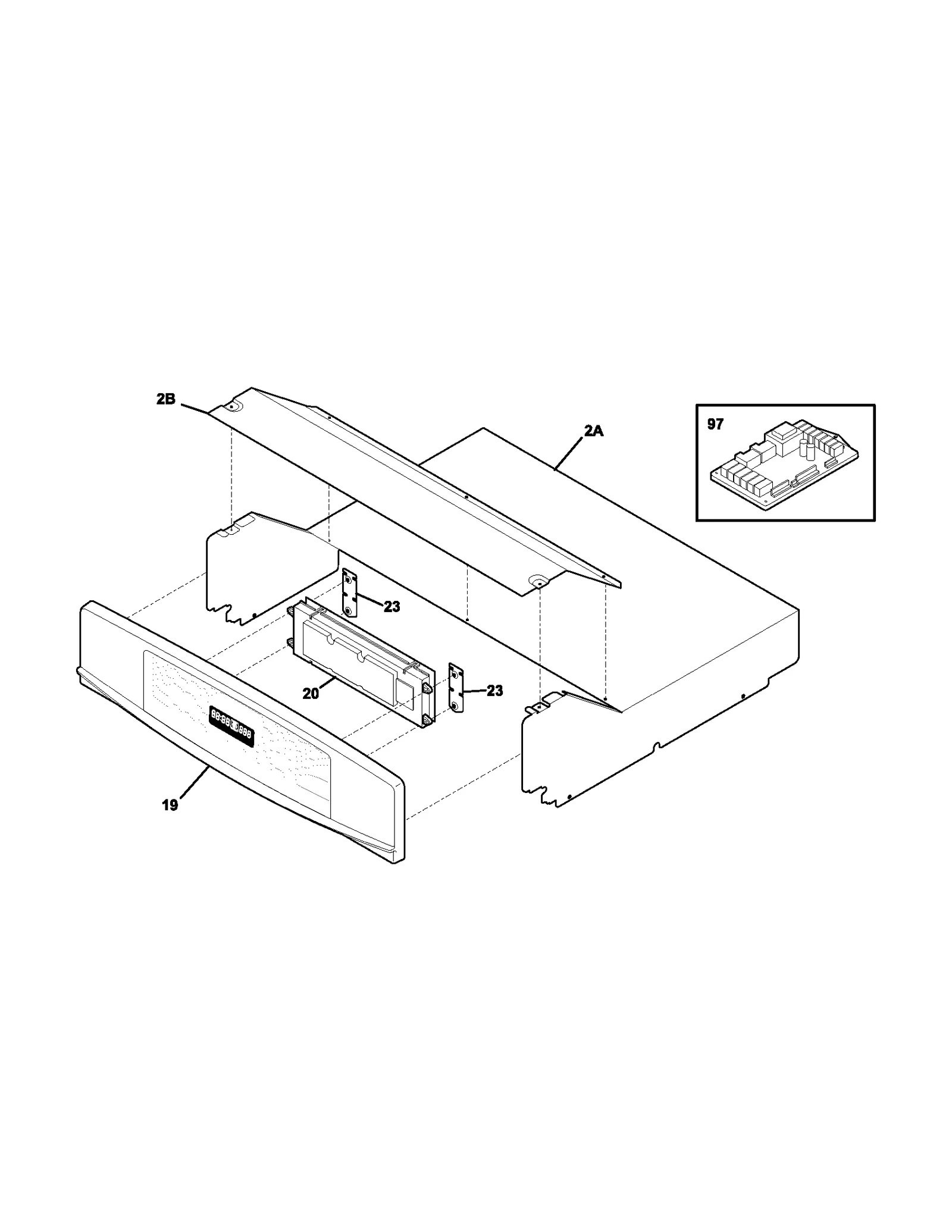

CONTROL PANEL
LOWER OVEN
Common parts from model Electrolux 790.47779400 Electric Oven (Kenmore 79047779400)
2B
Oven Cover WCI 318260100 Contact Us For Availability
3
Crosley Range Oven Door Trim WCI 318260201 Contact Us For Availability
3A
Range Oven Door Trim WCI 318260401 Contact Us For Availability
4
Range Oven Door Outer Panel Assembly (Bisque) WCI 318261306 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
20
Range Oven Control Board WCI 316429708 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
54
Range Oven Light Housing WCI 318222400 Contact Us For Availability
56A
Trim WCI 318259913 Contact Us For Availability
56A
Trim WCI 318259915 Contact Us For Availability
56A
Oven Trim WCI 318259917 Contact Us For Availability
58A
Insulation WCI 318133791 Contact Us For Availability
58B
Insulation WCI 318133790 Contact Us For Availability
58D
Insulation WCI 318133793 Contact Us For Availability
59A
Bracket WCI 318261600 Contact Us For Availability
70
Shield WCI 318259100 Contact Us For Availability
71
Panel WCI 318260000 Contact Us For Availability
76
Front WCI 318056217 Contact Us For Availability
80
Wall Oven Rear Panel Spacer Bracket WCI 5303320846 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
82
Shield WCI 318258700 Contact Us For Availability
83
Oven Liner WCI 318261402 Contact Us For Availability
86
Hinge Channel WCI 5303310524 Contact Us For Availability
87
Bracket WCI 318260600 Contact Us For Availability
90
Wall Oven Bottom Trim (Black) WCI 318259701 Contact Us For Availability
90
Wall Oven Trim, Lower (White) WCI 318259700 Contact Us For Availability
90
Oven Trim WCI 318259702 Contact Us For Availability
90A
Wall Oven Trim, Lower WCI 318259704 Contact Us For Availability
90A
Oven Trim WCI 318259703 Contact Us For Availability
90A
Oven Trim WCI 318259705 Contact Us For Availability
97
Frigidaire Wall Oven Relay Control Board WCI 316429800 Contact Us For Availability
108
Range Convection Fan Motor Support Bracket WCI 318251300 Contact Us For Availability
112
Range Cooling Fan Relay WCI 318112701 Contact Us For Availability
142
Deflector WCI 318123910 Contact Us For Availability
143
Stiffener WCI 318172904 Contact Us For Availability
163
Spacer WCI 318014111 Contact Us For Availability
219
Wall Oven Safety Thermostat WCI 318003606 Contact Us For Availability
264
Wall Oven Vent Trim (Black) WCI 318257701 Contact Us For Availability
264
Oven Trim WCI 318257801 Contact Us For Availability
310
Wall Oven Mounting Kit WCI 5304440067 Contact Us For Availability
310
Cabinet Mounting Plate WCI 5304440068 Contact Us For Availability
311
Wall Oven Installation Bracket WCI 318246010 Contact Us For Availability
NI
Clip WCI 3015722 Contact Us For Availability
NI
Range Screw, 8 x 5/8-in WCI 3131048 Contact Us For Availability
NI
Wall Oven Wire Harness WCI 318231705 Contact Us For Availability
NI
Harness WCI 318231708 Contact Us For Availability
× ![]()
