Model Electrolux 790.47774403 Electric Oven (Kenmore 79047774403) – Common Parts & Diagrams

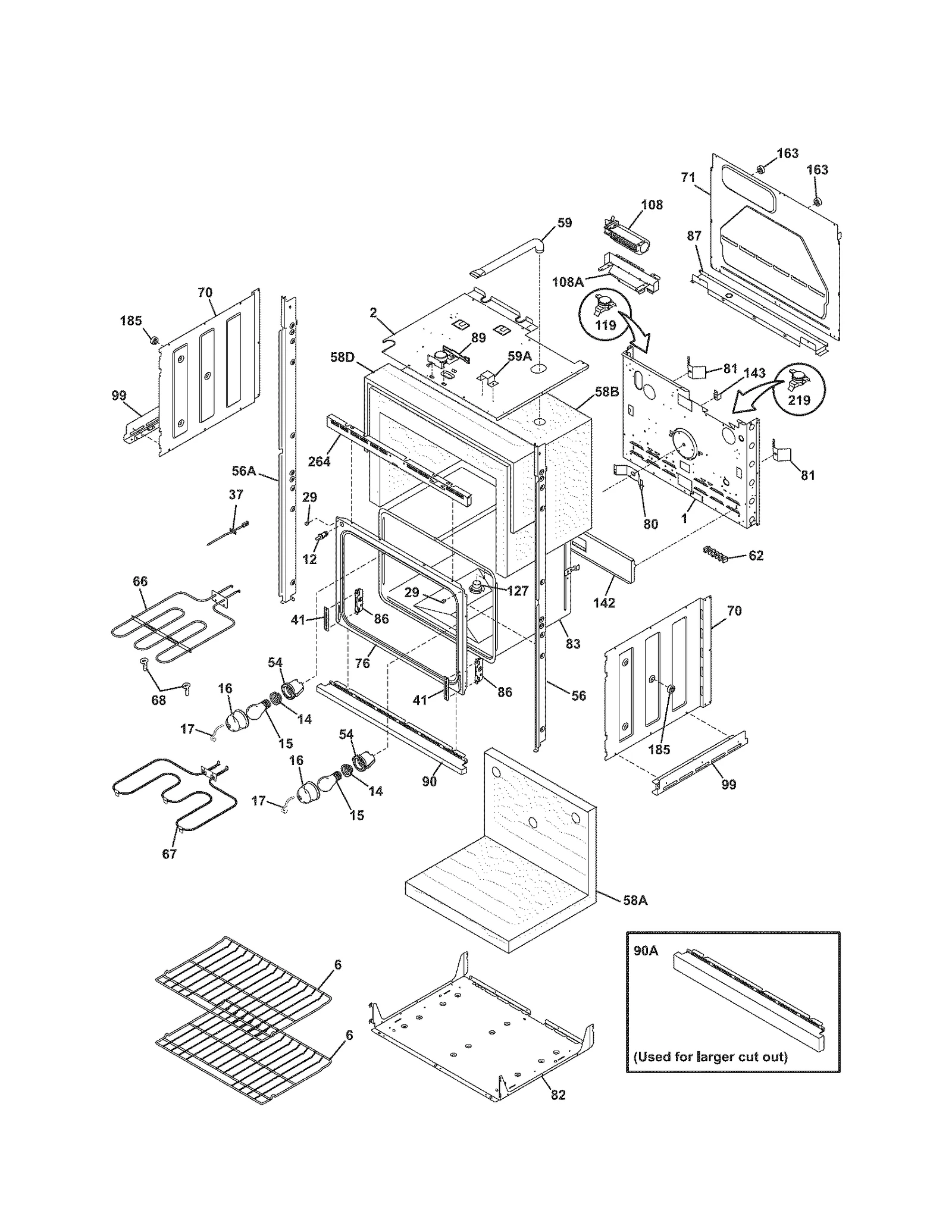

LOWER OVEN
LOWER OVEN
DOORS
CONTROL PANEL
UPPER OVEN
Common parts from model Electrolux 790.47774403 Electric Oven (Kenmore 79047774403)
1
Back WCI 318259202 Contact Us For Availability
2
Range Oven Insulation Shield, Upper WCI 318258902 Contact Us For Availability
2A
Wall Oven Top Heat Shield WCI 318257300 Contact Us For Availability
2B
Oven Cover WCI 318260100 Contact Us For Availability
3
Crosley Range Oven Door Trim WCI 318260201 Contact Us For Availability
3A
Range Oven Door Trim WCI 318260401 Contact Us For Availability
4
Range Oven Door Outer Panel Assembly (White) WCI 318261356 Contact Us For Availability
4
Range Oven Door Outer Panel (Bisque) WCI 318261357 Contact Us For Availability
6
Baffle WCI 318260500 Contact Us For Availability
6
Oven Rack WCI 318262500 Contact Us For Availability
9
Liner WCI 318259601 Contact Us For Availability
9
Broiler Pan WCI 5303317977 Contact Us For Availability
10
Insert Broil WCI 5303317976 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
19
Oven Control Panel WCI 318275008 Contact Us For Availability
19
Control Panel WCI 318275009 Contact Us For Availability
19
Oven Control Panel WCI 318275010 Contact Us For Availability
20
Range Oven Control Board WCI 316429708 Contact Us For Availability
23
Hinge-oven D WCI 5303310828 Contact Us For Availability
23
Bracket WCI 318262900 Contact Us For Availability
29
Spacer WCI 318014402 Contact Us For Availability
39
Range Oven Door Handle WCI 316443602 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
54
Range Oven Light Housing WCI 318222400 Contact Us For Availability
58A
Insulation WCI 318285055 Contact Us For Availability
58B
Oven Insulation WCI 318285056 Contact Us For Availability
58D
Oven Insulation WCI 318285058 Contact Us For Availability
59A
Bracket WCI 318261600 Contact Us For Availability
70
Shield WCI 318259100 Contact Us For Availability
71
Range Rear Panel WCI 318260007 Contact Us For Availability
76
Front WCI 318056217 Contact Us For Availability
80
Wall Oven Rear Panel Spacer Bracket WCI 5303320846 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
82
Shield WCI 318258707 Contact Us For Availability
83
Oven Liner WCI 318261402 Contact Us For Availability
86
Hinge Channel WCI 5303310524 Contact Us For Availability
90
Wall Oven Bottom Trim (Black) WCI 318259701 Contact Us For Availability
90
Wall Oven Trim, Lower (White) WCI 318259700 Contact Us For Availability
90A
Wall Oven Trim, Lower WCI 318259704 Contact Us For Availability
97
Frigidaire Wall Oven Relay Control Board WCI 316429800 Contact Us For Availability
99
Support WCI 318252800 Contact Us For Availability
108
Range Convection Fan Motor Support Bracket WCI 318251300 Contact Us For Availability
131
Box WCI 318272900 Contact Us For Availability
132
Crosley Plate WCI 318003000 Contact Us For Availability
142
Deflector WCI 318123910 Contact Us For Availability
143
Stiffener WCI 318172904 Contact Us For Availability
163
Spacer WCI 318014111 Contact Us For Availability
264
Wall Oven Vent Trim (Black) WCI 318257701 Contact Us For Availability
310
Wall Oven Mounting Kit WCI 5304440067 Contact Us For Availability
311
Wall Oven Installation Bracket WCI 318246010 Contact Us For Availability
NI
Wall Oven Wire Harness WCI 318199744 Contact Us For Availability
NI
Wall Oven Wire Harness WCI 318231705 Contact Us For Availability
NI
Harness WCI 318231740 Contact Us For Availability
NI
Insulation WCI 318268099 Contact Us For Availability
NI
Bracket WCI 318340200 Contact Us For Availability
NI
Wiring Label WCI 318046119 Contact Us For Availability
NI
Service Data Sheet WCI 318047305 Contact Us For Availability
NI
Oven Use and Care Guide WCI 318200928 Contact Us For Availability
NI
Wall Oven Control Relay Wire Harness WCI 318231704 Contact Us For Availability
NI
Repair Parts List WCI 5995461547 Contact Us For Availability
× ![]()
