Model Kenmore 790.47763405 OVEN – Common Parts & Diagrams
01 - COVER

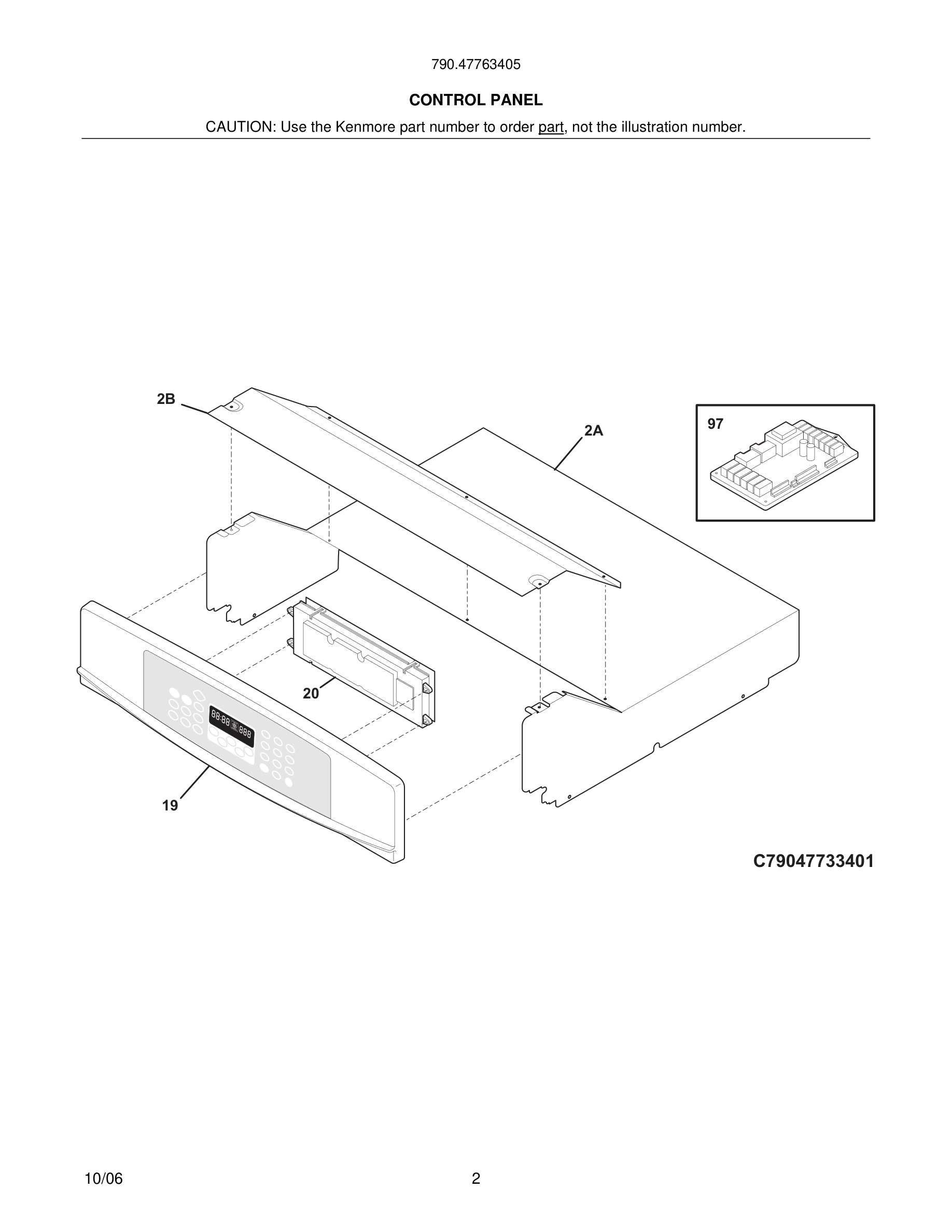

03 - CONTROL PANEL

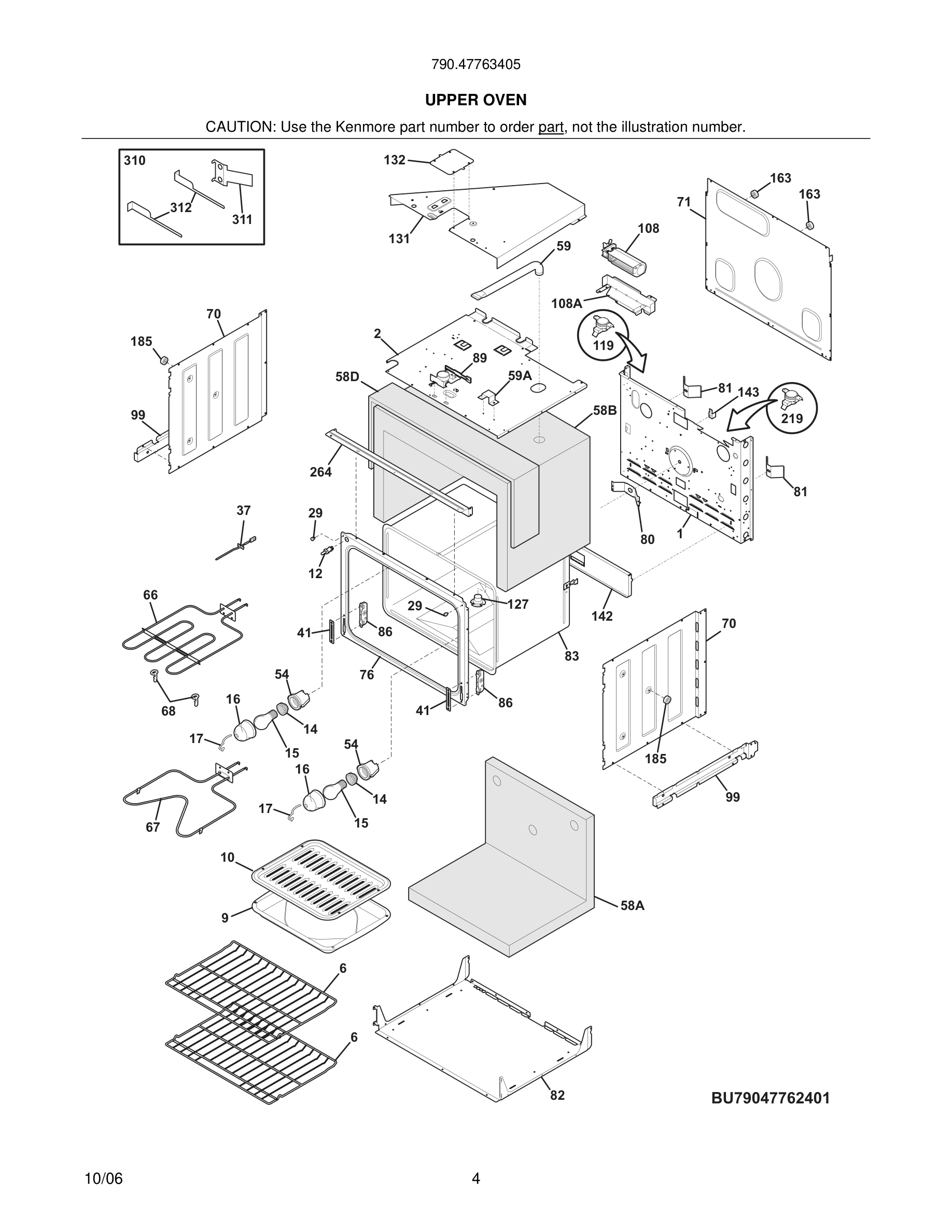

05 - UPPER OVEN

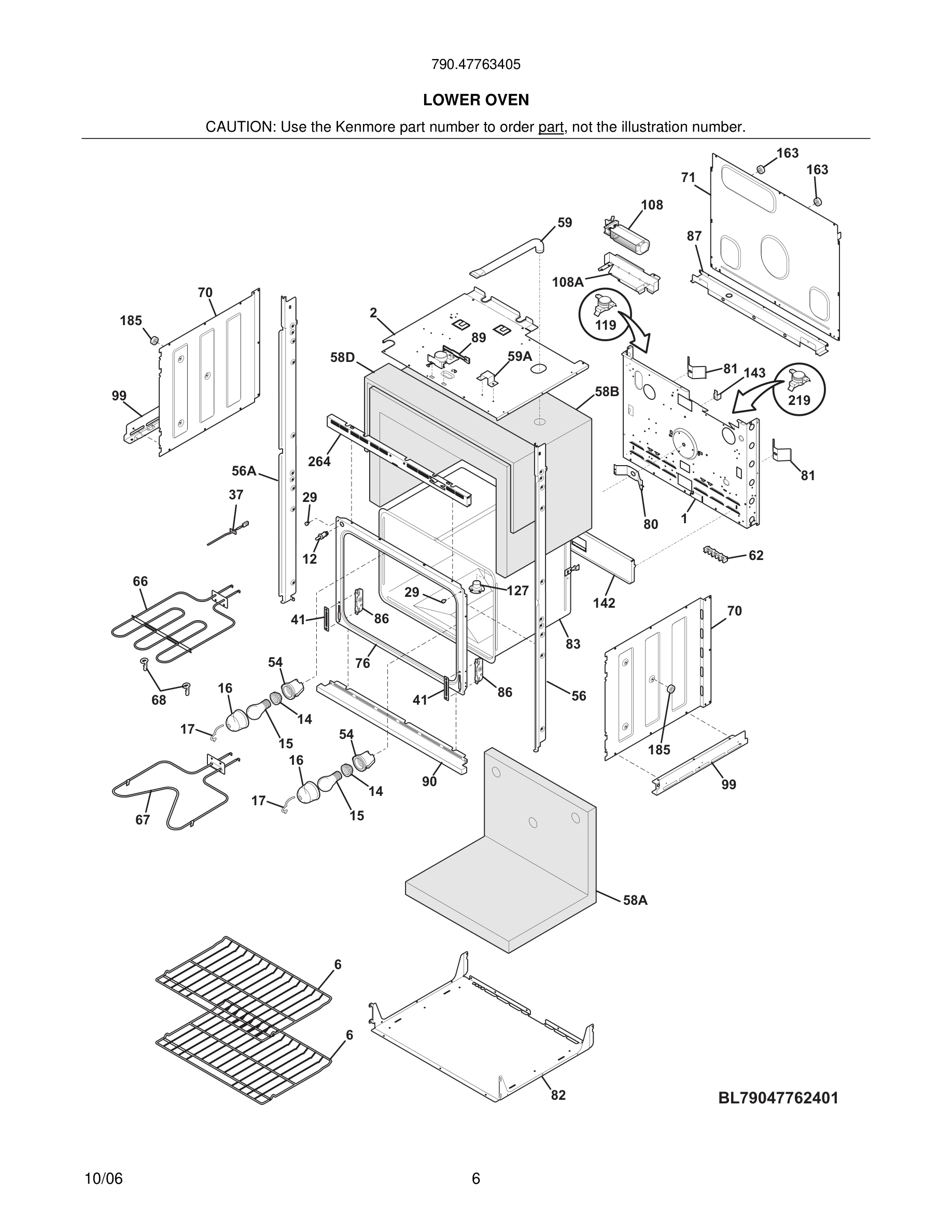

07 - LOWER OVEN

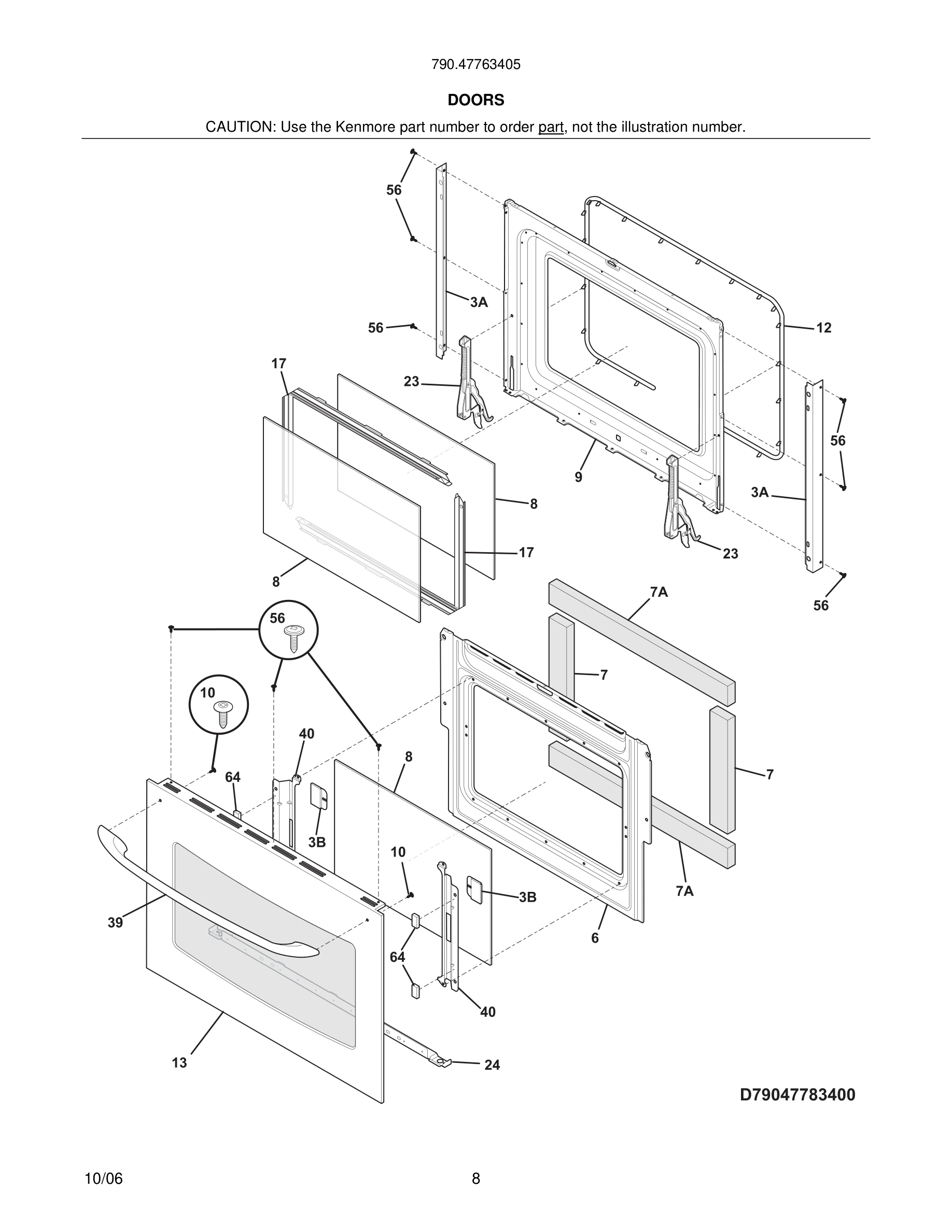

09 - DOORS

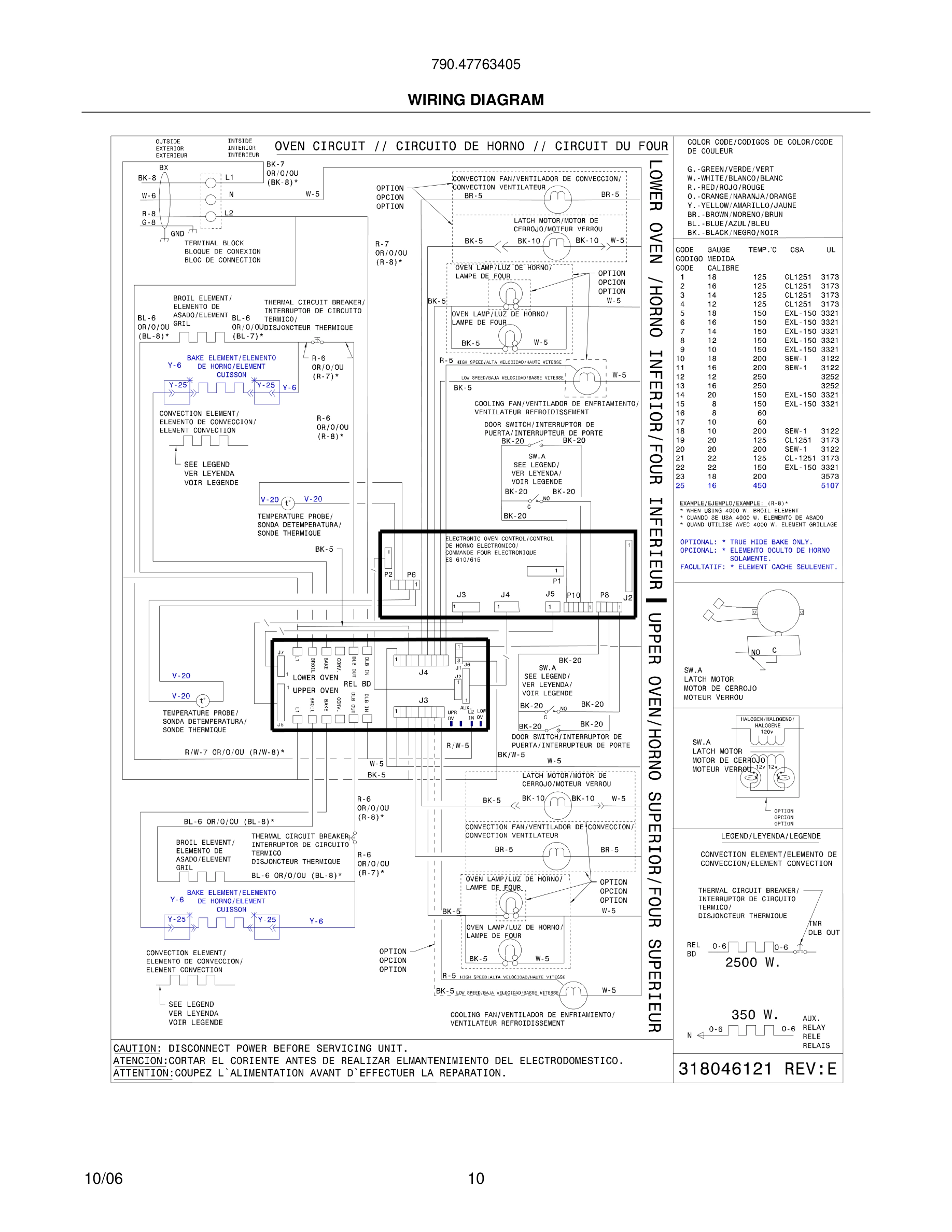

10 - WIRING DIAGRAM
Common parts from model Kenmore 790.47763405 OVEN
*
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
*#
Wiring Harness, latch, NO BAS WCI 318199746 Contact Us For Availability
*#
Wriring Harness, main WCI 318370302 Contact Us For Availability
1
Back, main WCI 318259212 Contact Us For Availability
2
Shield, insulation, upper WCI 318258910 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
6
Baffle, door WCI 318260510 Contact Us For Availability
8
Glass, oven door, heat barrier WCI 318212200 Contact Us For Availability
9
Liner, upper door WCI 318259615 Contact Us For Availability
12
Seal, oven door, upper WCI 318053135 Contact Us For Availability
13
Door Assy, stainless steel, outer, w/tape & f WCI 318272108 Contact Us For Availability
14*
Insulation, oven light WCI 318268099 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
17
Spacer, glass, (2) WCI 318264700 Contact Us For Availability
23
Hinge, door, upper, (2) WCI 318024722 Contact Us For Availability
24
Trim, door, black, lower WCI 318260301 Contact Us For Availability
39
Handle, door, black, oven WCI 318264400 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
56A
Trim, side filler, black, LH WCI 318259915 Contact Us For Availability
58A
Insulation, rear & bottom, oven wrapper WCI 318285060 Contact Us For Availability
58B
Insulation, top & sides, oven wrapper WCI 318285059 Contact Us For Availability
58D
Insulation, 1/2" thick, 43 x 9.5 WCI 318285058 Contact Us For Availability
59A
Bracket, vent tube WCI 318261600 Contact Us For Availability
70
Shield, insulation, sides, (2) WCI 318259100 Contact Us For Availability
71
Panel, rear box WCI 318260001 Contact Us For Availability
76
Front, oven WCI 318056222 Contact Us For Availability
80
Plate, oven mtg WCI 5303320846 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
82
Shield, insulation, lower WCI 318258710 Contact Us For Availability
83
Liner, oven assy WCI 318261501 Contact Us For Availability
86
Receptacle, hinge WCI 5303310524 Contact Us For Availability
87
Bracket, cable mtg. WCI 318260601 Contact Us For Availability
90
Trim, oven front, black, bottom WCI 318259711 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
142
Deflector WCI 318123910 Contact Us For Availability
143
Support, wire WCI 318172904 Contact Us For Availability
163
Spacer WCI 318014111 Contact Us For Availability
264
Trim, oven, black, front WCI 318257811 Contact Us For Availability
310
Cabinet Mounting Kit WCI 5304440067 Contact Us For Availability
311
Bracket, cabinet mtg, (2) WCI 318246010 Contact Us For Availability
× ![]()
