Model Kenmore 790.47172401 OVEN – Common Parts & Diagrams

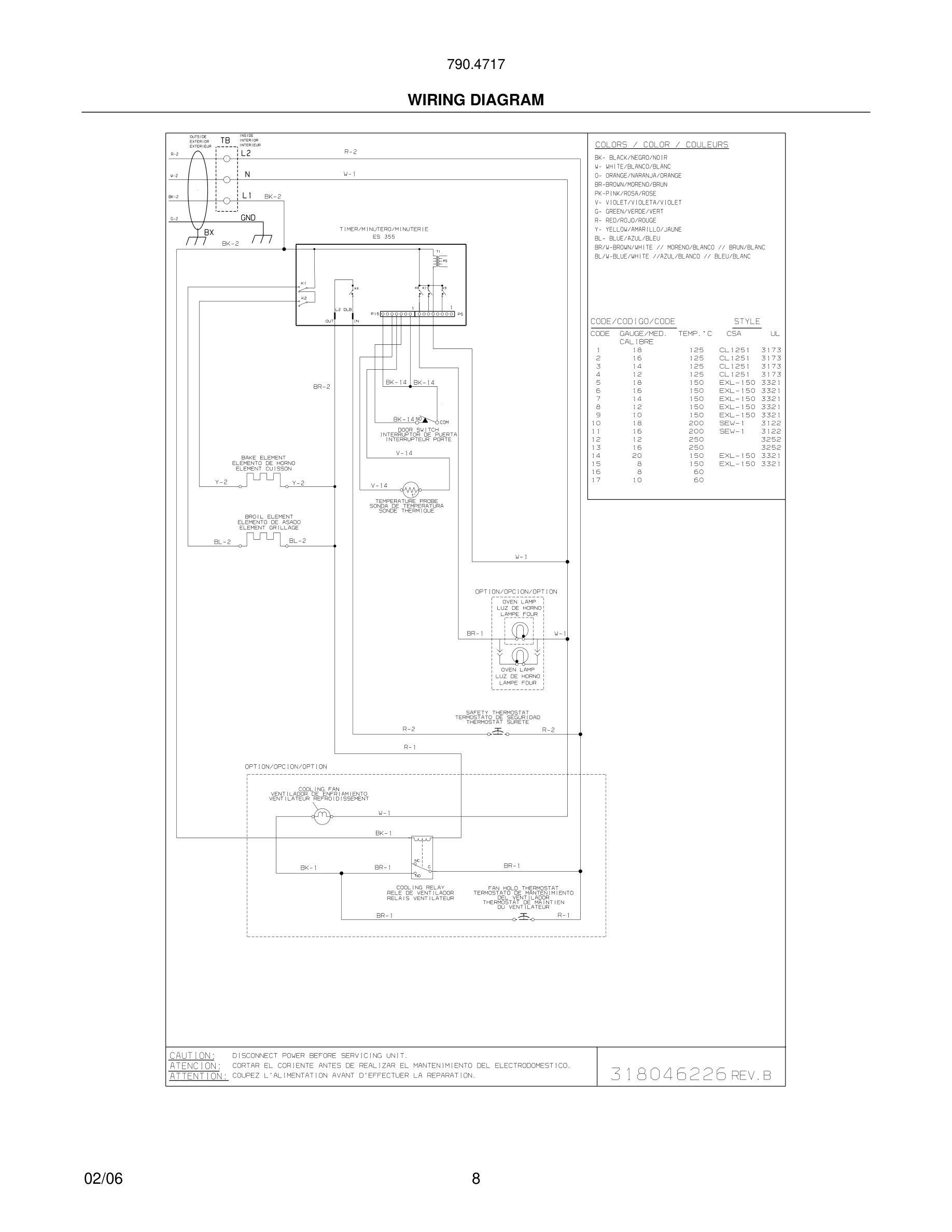

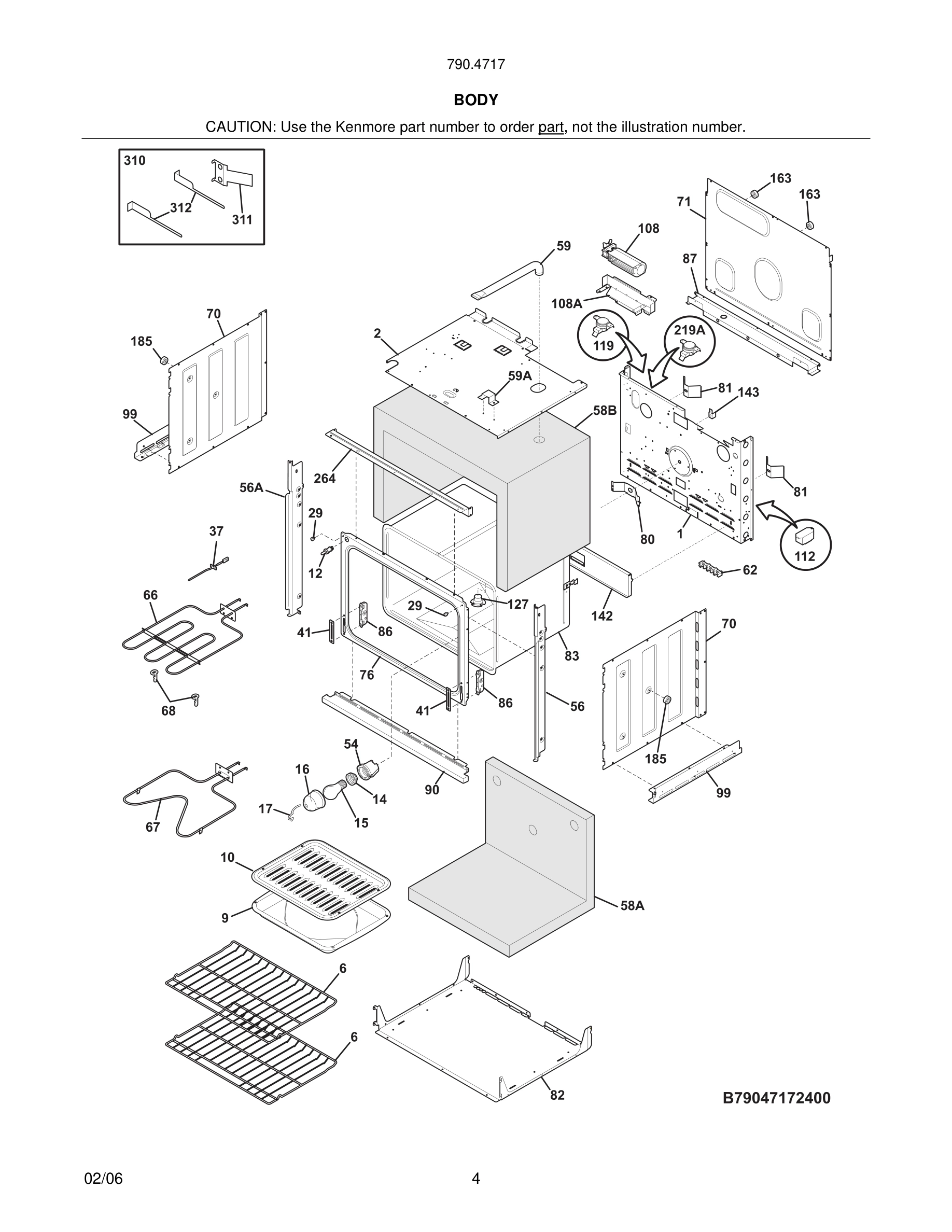

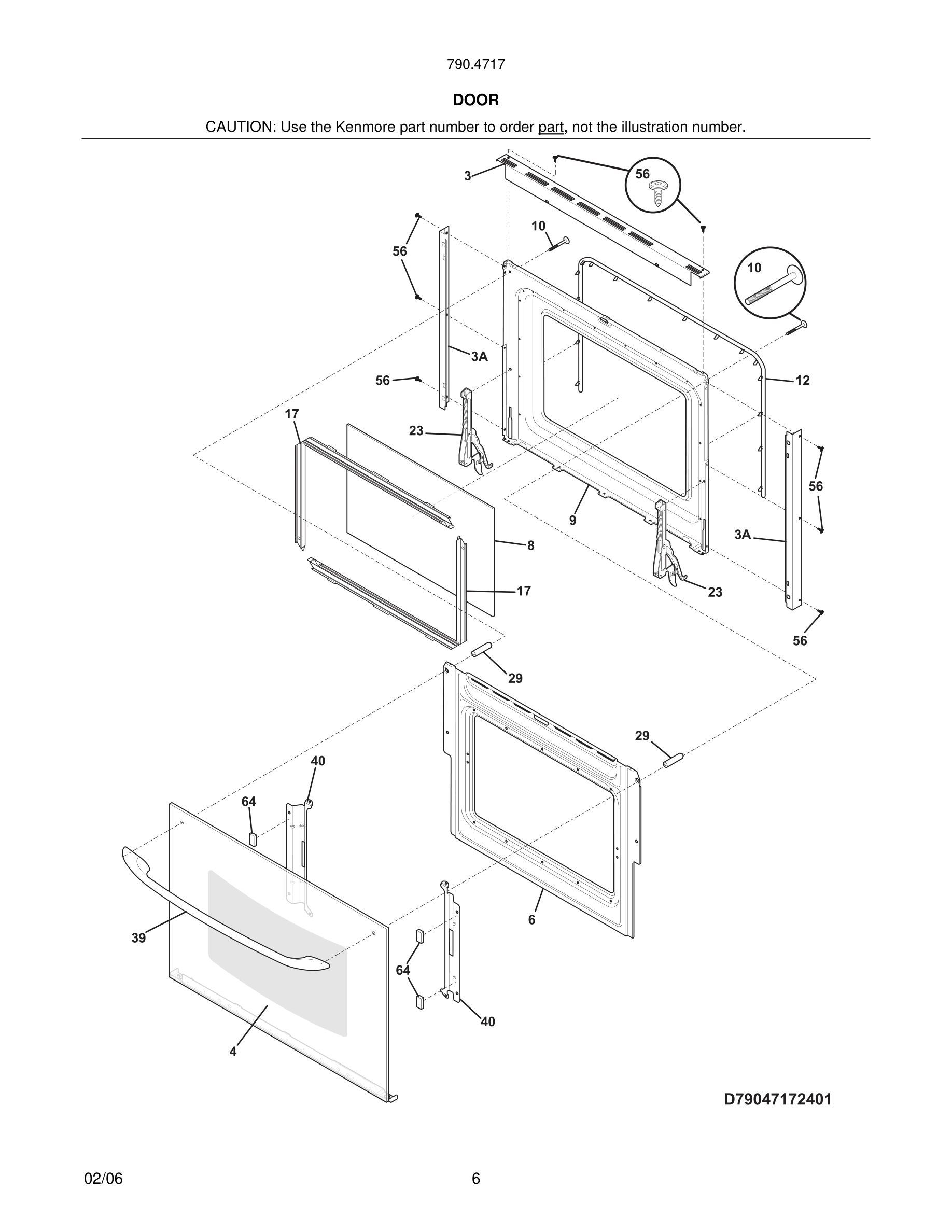

3
Trim, oven door, black, upper
Trim, oven door, black, upper WCI 318260211 Contact Us For Availability
View on Model
3A
Trim, oven door, side, (2)
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
View on Model
4
Glass Assy., oven door, black, outer, w/trim
Glass Assy., oven door, black, outer, w/trim WCI 318261361 Contact Us For Availability
View on Model
4
Glass Assy., oven door, white, outer, w/trim
Glass Assy., oven door, white, outer, w/trim WCI 318261359 Contact Us For Availability
View on Model
6
Baffle, door
Baffle, door WCI 318260510 Contact Us For Availability
View on Model
8
Glass, oven door, heat barrier
Glass, oven door, heat barrier WCI 318212200 Contact Us For Availability
View on Model
9
Liner, oven door, lower
Liner, oven door, lower WCI 318259613 Contact Us For Availability
View on Model
12
Seal, lower door
Seal, lower door WCI 318053324 Contact Us For Availability
View on Model
17
Retainer, light cover
Retainer, light cover WCI 5304400195 Contact Us For Availability
View on Model
17
Spacer, glass, (2)
Spacer, glass, (2) WCI 318264700 Contact Us For Availability
View on Model

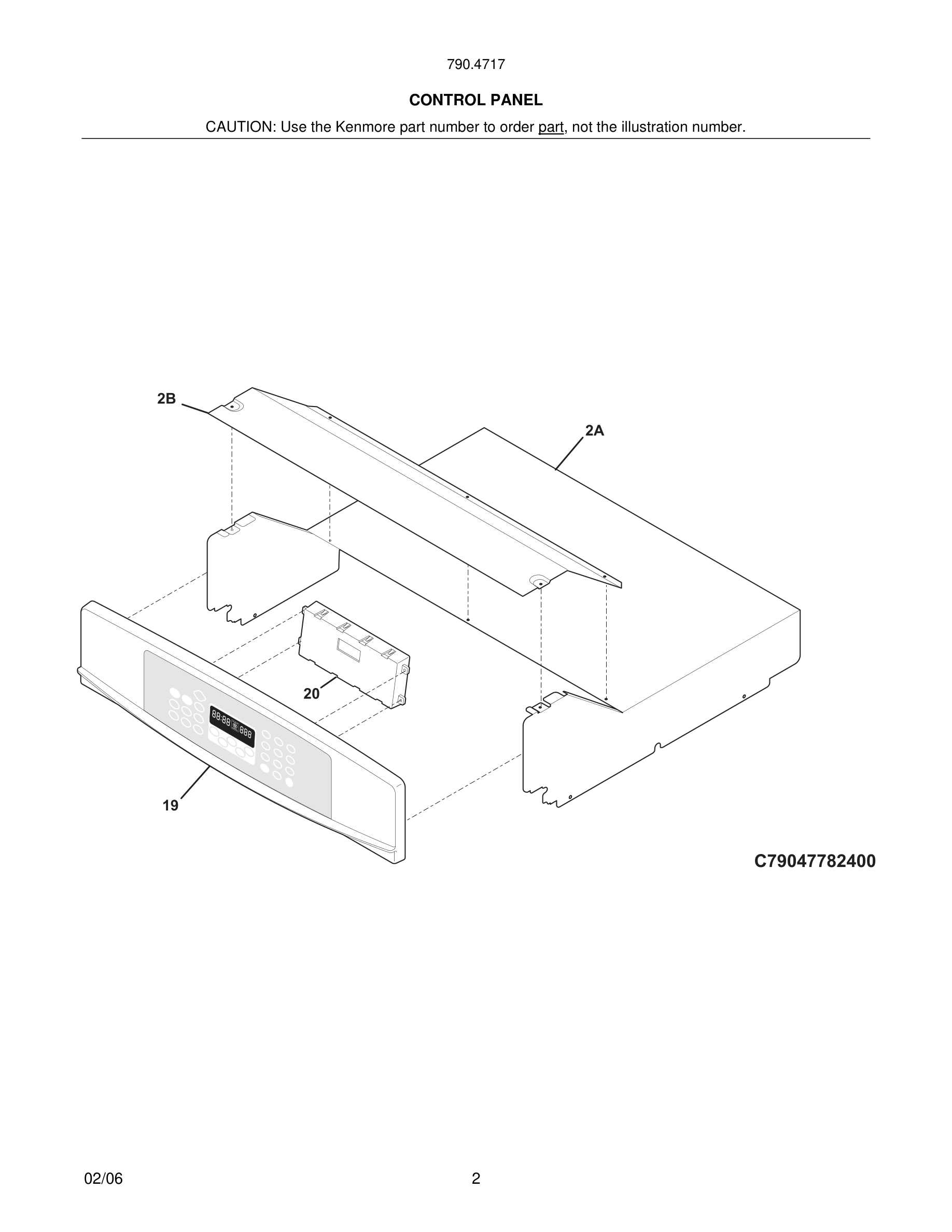

20#
Clock/Timer, electronic, ES355W1
Clock/Timer, electronic, ES355W1 WCI 316418555 Contact Us For Availability
View on Model
23
Hinge, lower door, (2)
Hinge, lower door, (2) WCI 318024723 Contact Us For Availability
View on Model
29
Spacer, door
Spacer, door WCI 318014402 Contact Us For Availability
View on Model
39
Handle, door, black, oven
Handle, door, black, oven WCI 318264400 Contact Us For Availability
View on Model
39
Handle, door, white, oven
Handle, door, white, oven WCI 318264401 Contact Us For Availability
View on Model
41
Cover, hinge cutout
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
View on Model
54
Housing, oven light
Housing, oven light WCI 318222400 Contact Us For Availability
View on Model
71
Panel, rear box
Panel, rear box WCI 318260001 Contact Us For Availability
View on Model
76
Front, oven
Front, oven WCI 318056222 Contact Us For Availability
View on Model
80
Plate, oven mtg
Plate, oven mtg WCI 5303320846 Contact Us For Availability
View on Model
81
Spring, oven
Spring, oven WCI 318192400 Contact Us For Availability
View on Model
82
Shield, insulation, lower
Shield, insulation, lower WCI 318258710 Contact Us For Availability
View on Model
83
Liner, oven assy
Liner, oven assy WCI 318261502 Contact Us For Availability
View on Model
86
Receptacle, hinge
Receptacle, hinge WCI 5303310524 Contact Us For Availability
View on Model
87
Bracket, cable mtg.
Bracket, cable mtg. WCI 318260601 Contact Us For Availability
View on Model
90
Trim, oven front, black, bottom
Trim, oven front, black, bottom WCI 318259711 Contact Us For Availability
View on Model
90
Trim, oven front, white, bottom
Trim, oven front, white, bottom WCI 318259710 Contact Us For Availability
View on Model
108A
Bracket, fan support
Bracket, fan support WCI 318251300 Contact Us For Availability
View on Model
112#
Relay
Relay WCI 318112701 Contact Us For Availability
View on Model
127
Adapter, vent tube
Adapter, vent tube WCI 318317000 Contact Us For Availability
View on Model
142
Deflector
Deflector WCI 318123910 Contact Us For Availability
View on Model
143
Support, wire
Support, wire WCI 318172904 Contact Us For Availability
View on Model
163
Spacer
Spacer WCI 318014111 Contact Us For Availability
View on Model
264
Trim, oven, black, front
Trim, oven, black, front WCI 318257711 Contact Us For Availability
View on Model
310
Cabinet Mounting Kit
Cabinet Mounting Kit WCI 5304440067 Contact Us For Availability
View on Model
311
Bracket, cabinet mtg, (2)
Bracket, cabinet mtg, (2) WCI 318246010 Contact Us For Availability
View on Model
