Model Electrolux 790.46254400 Electric Range (Kenmore 79046254400) – Common Parts & Diagrams
TOP/DRAWER

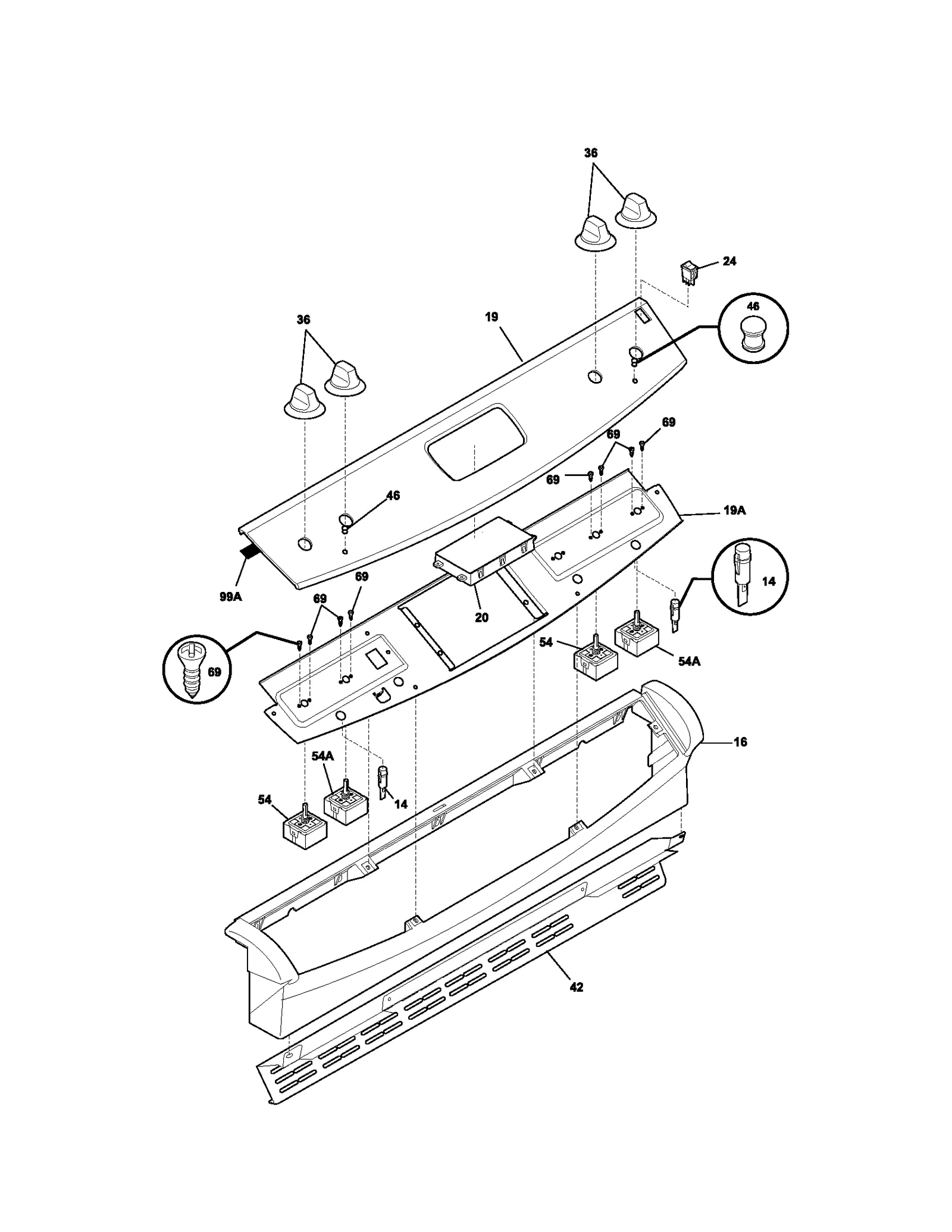

BACKGUARD

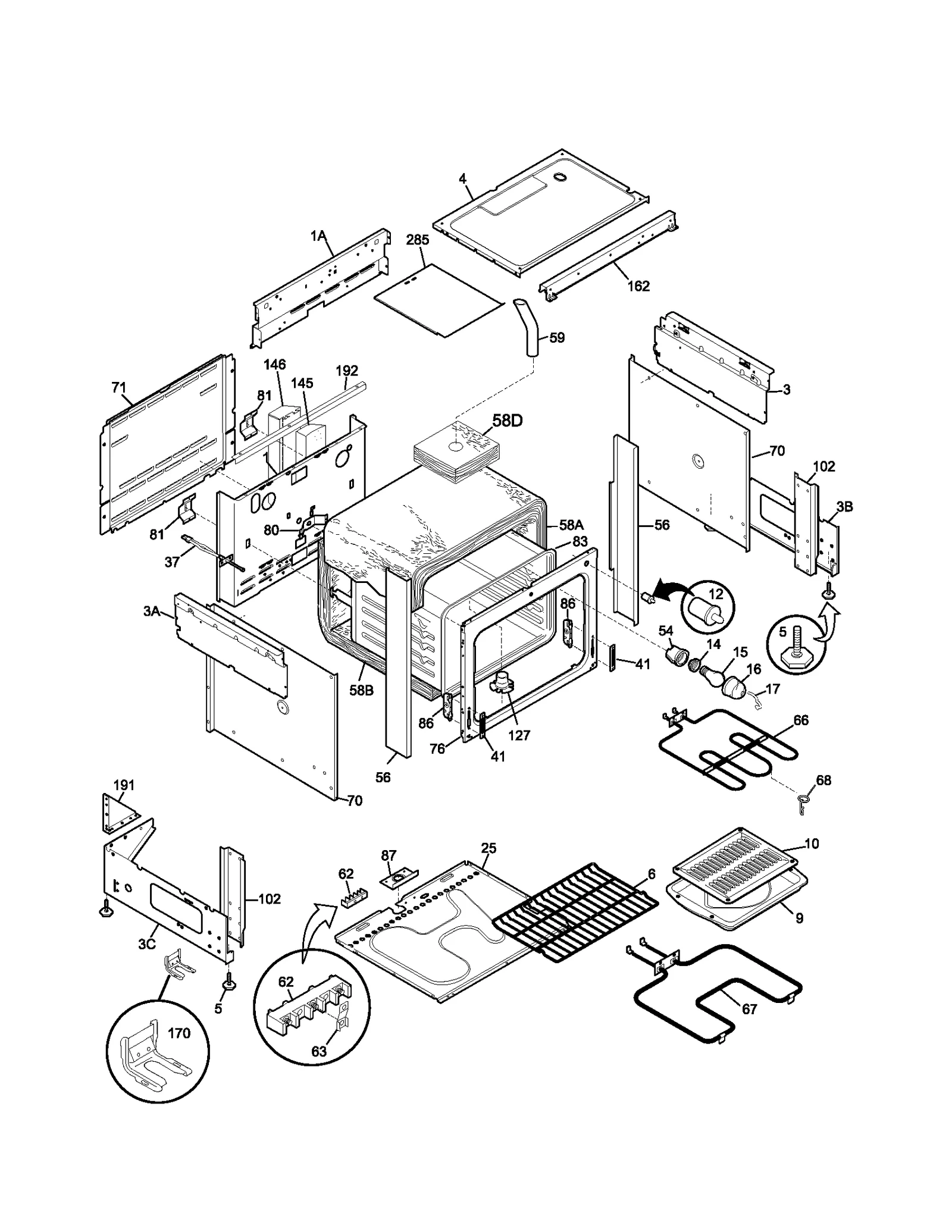

BODY

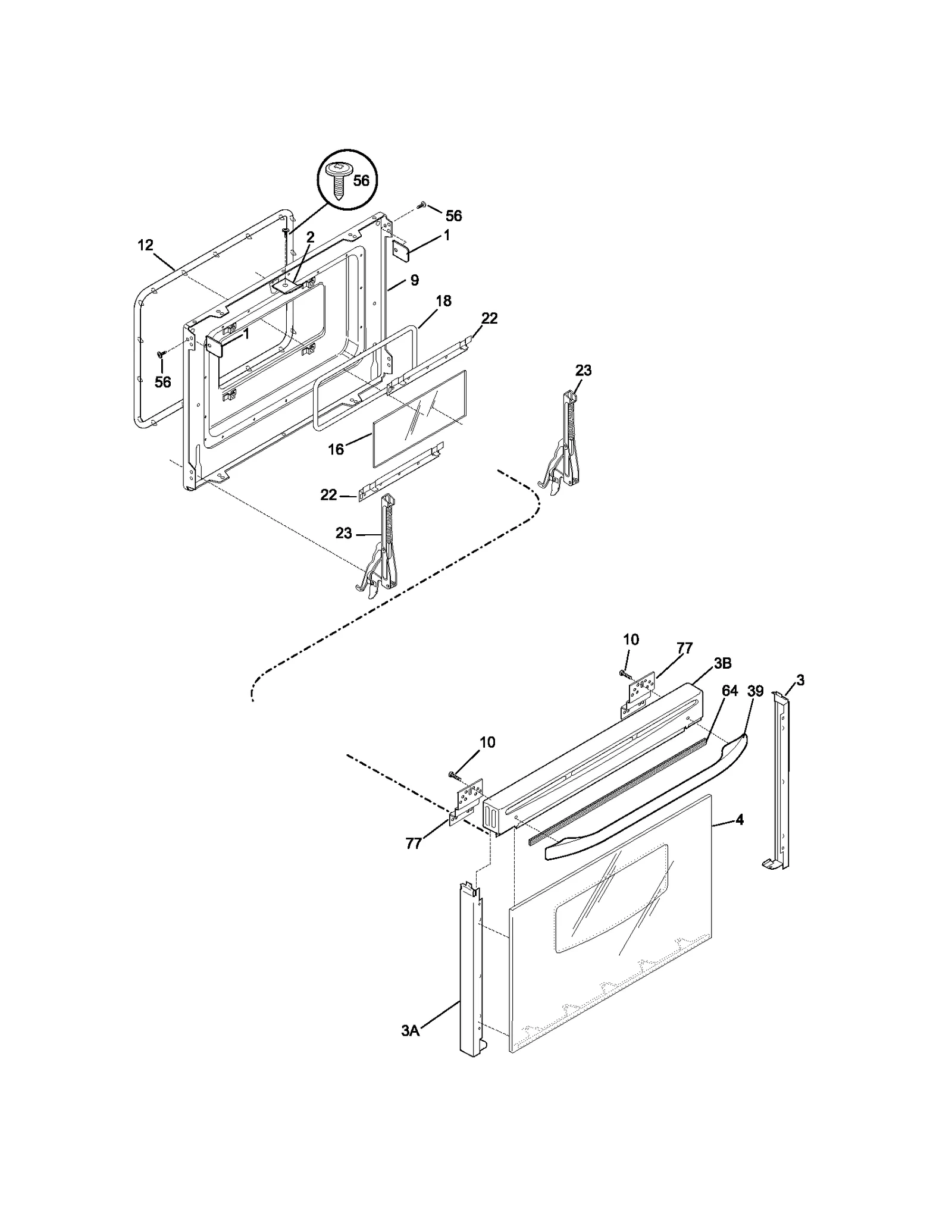

DOOR
Common parts from model Electrolux 790.46254400 Electric Range (Kenmore 79046254400)
1
Main WCI 318066402 Contact Us For Availability
1
Bracket WCI 318180310 Contact Us For Availability
1A
Panel WCI 318225100 Contact Us For Availability
2
Bracket WCI 318180312 Contact Us For Availability
3
Panel WCI 318225200 Contact Us For Availability
3
Trim WCI 318178322 Contact Us For Availability
3
TRIM,DOOR,BI WCI 318178328 Contact Us For Availability
3A
Panel WCI 318225201 Contact Us For Availability
3A
Trim WCI 318178323 Contact Us For Availability
3A
TRIM,DOOR,BI WCI 318178329 Contact Us For Availability
3B
Rh Panel WCI 318160010 Contact Us For Availability
3B
Door Trim To WCI 318176646 Contact Us For Availability
3B
Trim WCI 318176648 Contact Us For Availability
3C
Lh Lo Panel WCI 318160011 Contact Us For Availability
4
Range Oven Door Outer Panel (White) WCI 318187724 Contact Us For Availability
4
Panel WCI 318073902 Contact Us For Availability
4
Panel WCI 318187725 Contact Us For Availability
5
Range Leveling Leg WCI 318175503 Contact Us For Availability
6
Rack WCI 318025308 Contact Us For Availability
9
Broiler Pan WCI 5303317977 Contact Us For Availability
9
Door Liner WCI 318157017 Contact Us For Availability
10
Insert Broil WCI 5303317976 Contact Us For Availability
12
Crosley Gasket WCI 318053320 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 5303310533 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
18
Range Oven Door Inner Glass Gasket WCI 318053203 Contact Us For Availability
22
Retainer WCI 318119001 Contact Us For Availability
23
Hinge Assembly WCI 5303310506 Contact Us For Availability
25
PANEL, HEAT SHIELD, SM OVEN BOTTOM WCI 318179107 Contact Us For Availability
27
Terminal Block WCI 318223414 Contact Us For Availability
36
Range Surface Burner Knob WCI 316208112 Contact Us For Availability
36
Range Surface Burner Knob WCI 316208114 Contact Us For Availability
39
Oven Door Handle WCI 316209702 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
42
Trim WCI 318224311 Contact Us For Availability
46
Lens WCI 318228300 Contact Us For Availability
54
Range Oven Light Housing WCI 318222400 Contact Us For Availability
56
Trim WCI 318225901 Contact Us For Availability
56
Trim WCI 318225903 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 318133700 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 318133747 Contact Us For Availability
58D
Insulation WCI 3008673 Contact Us For Availability
59
Tube WCI 318072541 Contact Us For Availability
63
Plate WCI 316208500 Contact Us For Availability
64
Tape WCI 5304417120 Contact Us For Availability
70
Shield WCI 318194400 Contact Us For Availability
71
Wiring Cover WCI 5303310515 Contact Us For Availability
76
Front WCI 318225301 Contact Us For Availability
77
Range Oven Door Handle Mounting Bracket WCI 318043100 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
83
Oven Liner WCI 318089613 Contact Us For Availability
86
Hinge Channel WCI 5303310524 Contact Us For Availability
87
Mounting Plate WCI 318111803 Contact Us For Availability
102
Oven Support WCI 5303311142 Contact Us For Availability
127
Adapter WCI 318230000 Contact Us For Availability
145
Weight WCI 5303311108 Contact Us For Availability
146
Cover WCI 318038502 Contact Us For Availability
162
Box,extension WCI 318225800 Contact Us For Availability
170
Bracket WCI 5304405243 Contact Us For Availability
191
Bracket WCI 5303304030 Contact Us For Availability
192
Plate WCI 318042600 Contact Us For Availability
285
Shield WCI 318236200 Contact Us For Availability
NI
Range Surface Burner Knob Support WCI 318183101 Contact Us For Availability
NI
Range Surface Burner Knob Support (Bisque) WCI 318183102 Contact Us For Availability
NI
Wiring Diagram WCI 318045099 Contact Us For Availability
NI
Service Data Sheet WCI 318127016 Contact Us For Availability
NI
Use and Care Guide WCI 318200847 Contact Us For Availability
NI
Instructions WCI 318201609 Contact Us For Availability
NI
Parts List WCI 5995406518 Contact Us For Availability
NI
Screw WCI 08016432 Contact Us For Availability
NI
Range Anti-Tip Decal WCI 316221000 Contact Us For Availability
× ![]()
