Model Kenmore 790.46252400 RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

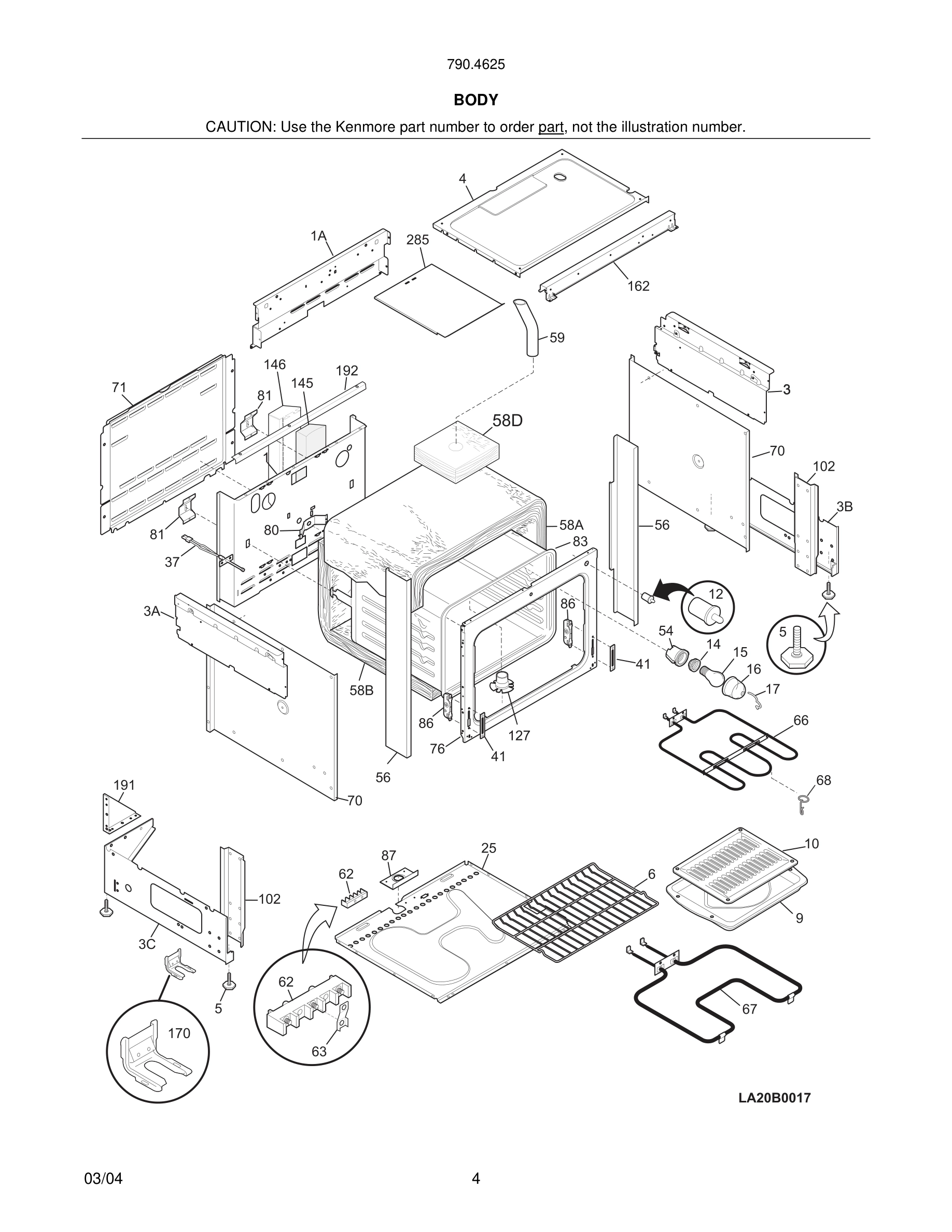

05 - BODY

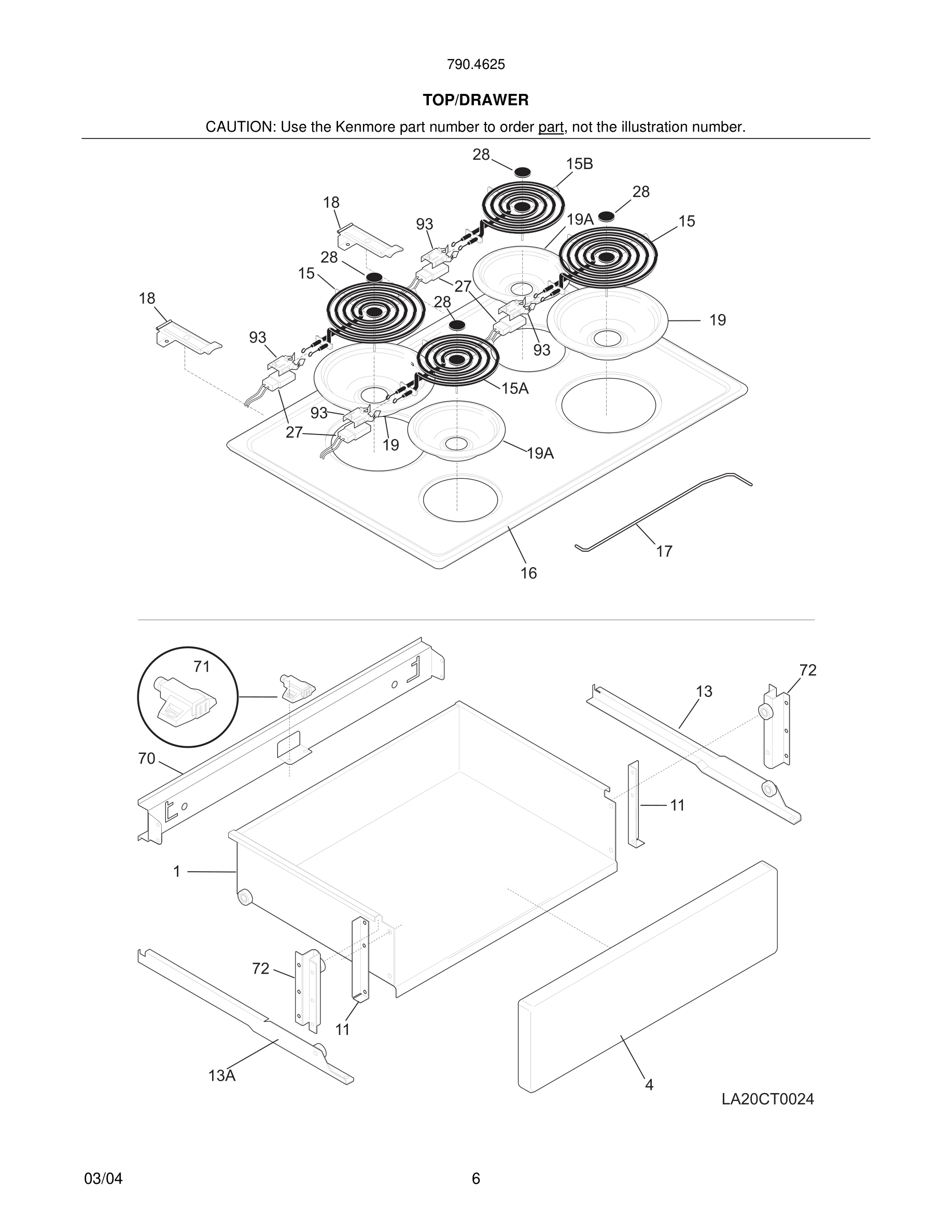

07 - TOP/DRAWER

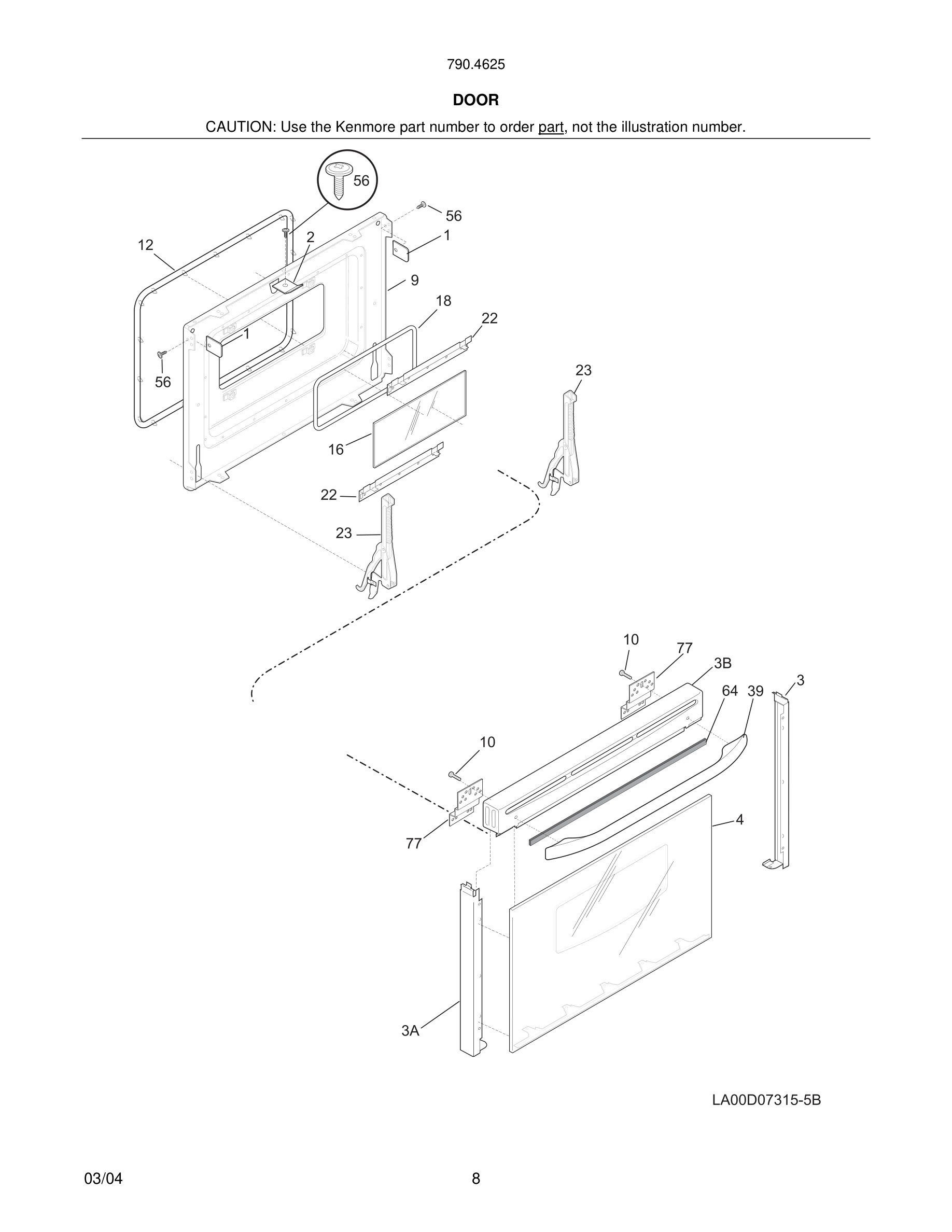

09 - DOOR
10 - WIRING DIAGRAM
Common parts from model Kenmore 790.46252400 RANGE
*
Support, glass, white, (4) WCI 318183101 Contact Us For Availability
*
Support, glass, bisque, (4) WCI 318183102 Contact Us For Availability
*
Cap, plug WCI 5303325173 Contact Us For Availability
*
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
*
Label, anti-tip WCI 316221000 Contact Us For Availability
1
Bracket, trim mtg WCI 318180310 Contact Us For Availability
2
Bracket, upper trim mtg WCI 318180312 Contact Us For Availability
3
Trim, door, white, RH side WCI 318178322 Contact Us For Availability
3
Trim, door, bisque, RH side WCI 318178328 Contact Us For Availability
3A
Trim, door, white, LH side WCI 318178323 Contact Us For Availability
3A
Trim, door, bisque, LH side WCI 318178329 Contact Us For Availability
3B
Trim, door, white, top WCI 318176646 Contact Us For Availability
3B
Trim, door, bisque, top WCI 318176648 Contact Us For Availability
4
Panel, door front assy, glass, white, with lo WCI 318187724 Contact Us For Availability
4
Panel, drawer, white, front WCI 318134011 Contact Us For Availability
4
Panel, drawer, bisque, front WCI 318134013 Contact Us For Availability
4
Panel, door front assy, glass, bisque, with l WCI 318187725 Contact Us For Availability
5
Screw, leveling WCI 318175503 Contact Us For Availability
9
Liner, door WCI 318157017 Contact Us For Availability
11
Bracket, drawer WCI 5303311125 Contact Us For Availability
12
Seal, oven door WCI 318053320 Contact Us For Availability
13
Channel, drawer, RH WCI 5303311129 Contact Us For Availability
13A
Channel, drawer, LH WCI 5303311130 Contact Us For Availability
16
Glass, oven door, 6.50 x 15.50, inner, heat b WCI 5303310533 Contact Us For Availability
16
Main Top, white WCI 318225602 Contact Us For Availability
16
Main Top, bisque WCI 318225603 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
17
Rod, support, main top panel WCI 3051554 Contact Us For Availability
18
Gasket, door glass seal, outer WCI 318053203 Contact Us For Availability
18
Hinge, maintop, (2) WCI 318227700 Contact Us For Availability
19A
Pan, surface element, small, bisque WCI 318067060 Contact Us For Availability
22
Bar, glass retainer, black WCI 318119001 Contact Us For Availability
23
Hinge, oven door, assembly WCI 5303310506 Contact Us For Availability
27#
Terminal Block, surface element, 36", white l WCI 318223414 Contact Us For Availability
27#
Terminal Block, surface element, 48", orange WCI 318223413 Contact Us For Availability
27#
Terminal Block, surface element, 36", yellow WCI 318223415 Contact Us For Availability
27#
Terminal Block, surface element, 42", brown l WCI 318223418 Contact Us For Availability
36
Knob, control, white WCI 316208112 Contact Us For Availability
36
Knob, control, bisque WCI 316208114 Contact Us For Availability
39
Handle, door, bisque WCI 316209702 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
56
Trim, oven, white WCI 318225901 Contact Us For Availability
56
Trim, oven, bisque WCI 318225903 Contact Us For Availability
58A
Insulation, oven wrapper WCI 318133700 Contact Us For Availability
58B
Insulation, oven back WCI 318133747 Contact Us For Availability
58D
Insulation WCI 3008673 Contact Us For Availability
59
Tube, vent, oven WCI 318072541 Contact Us For Availability
63
Plate, grounding strap WCI 316208500 Contact Us For Availability
64
Tape, 0.762 m, Neoprene WCI 5304417120 Contact Us For Availability
70
Shield, insulation WCI 318194400 Contact Us For Availability
70
Bracket, slide, rear WCI 5303311143 Contact Us For Availability
71
Panel, wiring cover, rear WCI 5303310515 Contact Us For Availability
71
Magnet & spring assy WCI 5303311144 Contact Us For Availability
72
Bracket & wheel assy WCI 5303311145 Contact Us For Availability
76
Front, oven WCI 318225301 Contact Us For Availability
77
Bracket, trim, handle, (2) WCI 318043100 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
83
Liner, oven WCI 318089613 Contact Us For Availability
86
Receptacle, hinge WCI 5303310524 Contact Us For Availability
87
Plate, mounting WCI 318111803 Contact Us For Availability
93
Support, terminal block, (4) WCI 318122500 Contact Us For Availability
102
Support, oven front WCI 5303311142 Contact Us For Availability
127
Adapter, vent tube, with converter WCI 318230000 Contact Us For Availability
145
Weight WCI 5303311108 Contact Us For Availability
146
Cover, weight WCI 318038502 Contact Us For Availability
162
Box, extension WCI 318225800 Contact Us For Availability
170
Anti-tip accessories WCI 5304405243 Contact Us For Availability
191
Bracket, angle, corner WCI 5303304030 Contact Us For Availability
192
Plate, reinforcement WCI 318042600 Contact Us For Availability
× ![]()
