Model Electrolux 790.45662100 Electric Range (Kenmore 79045662100) – Common Parts & Diagrams
All Parts
All Parts

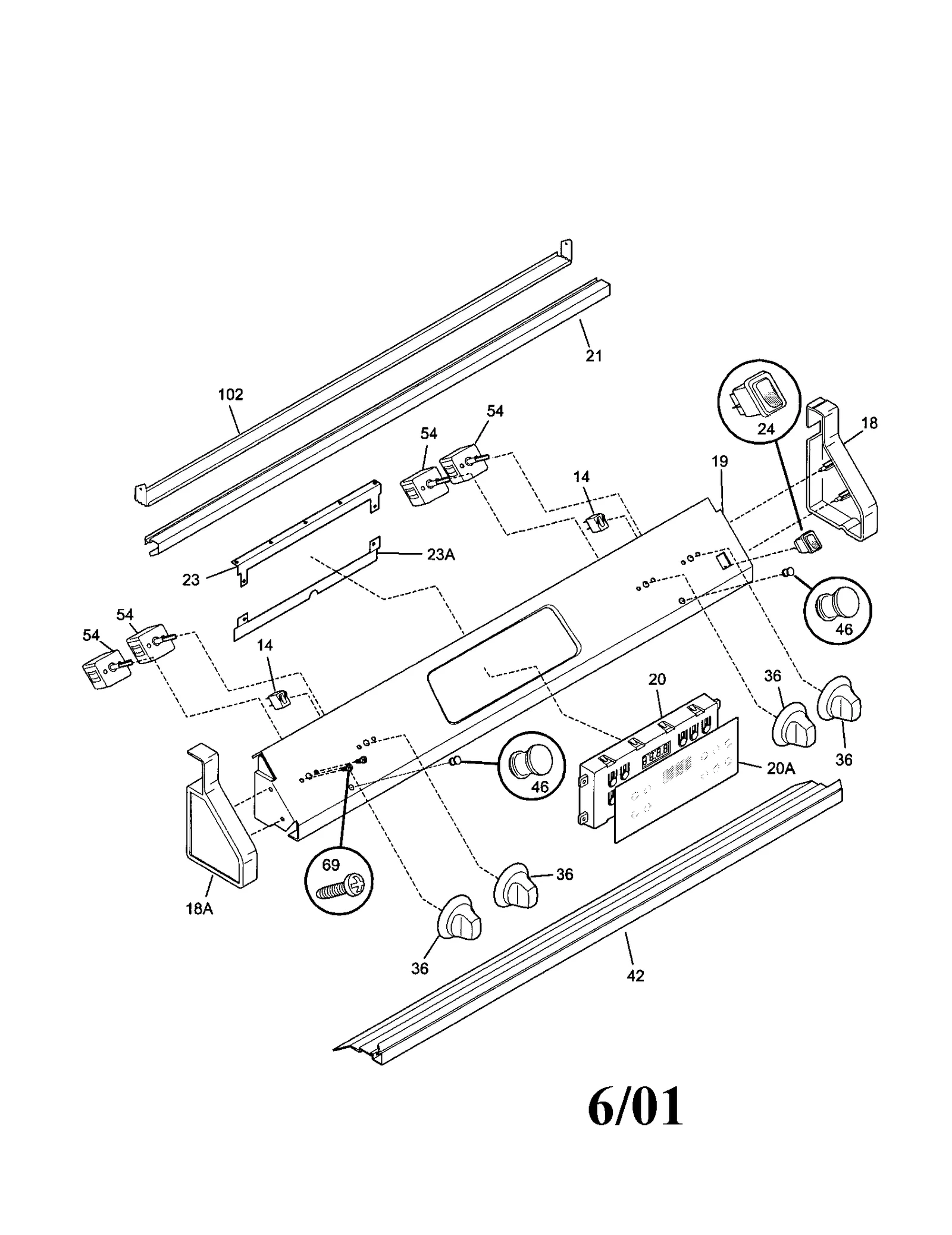

BACKGUARD
BACKGUARD

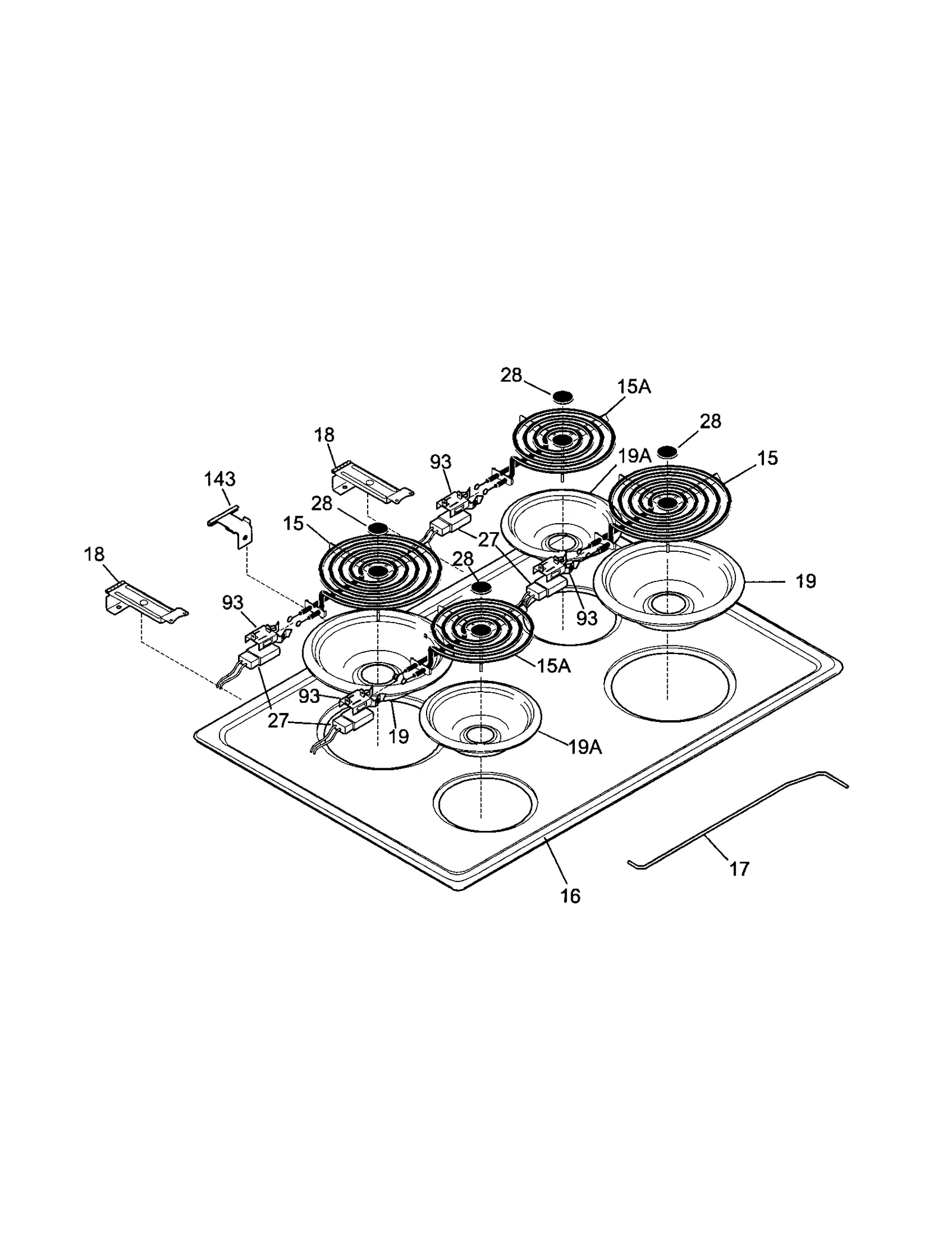

TOP/DRAWER
TOP/DRAWER

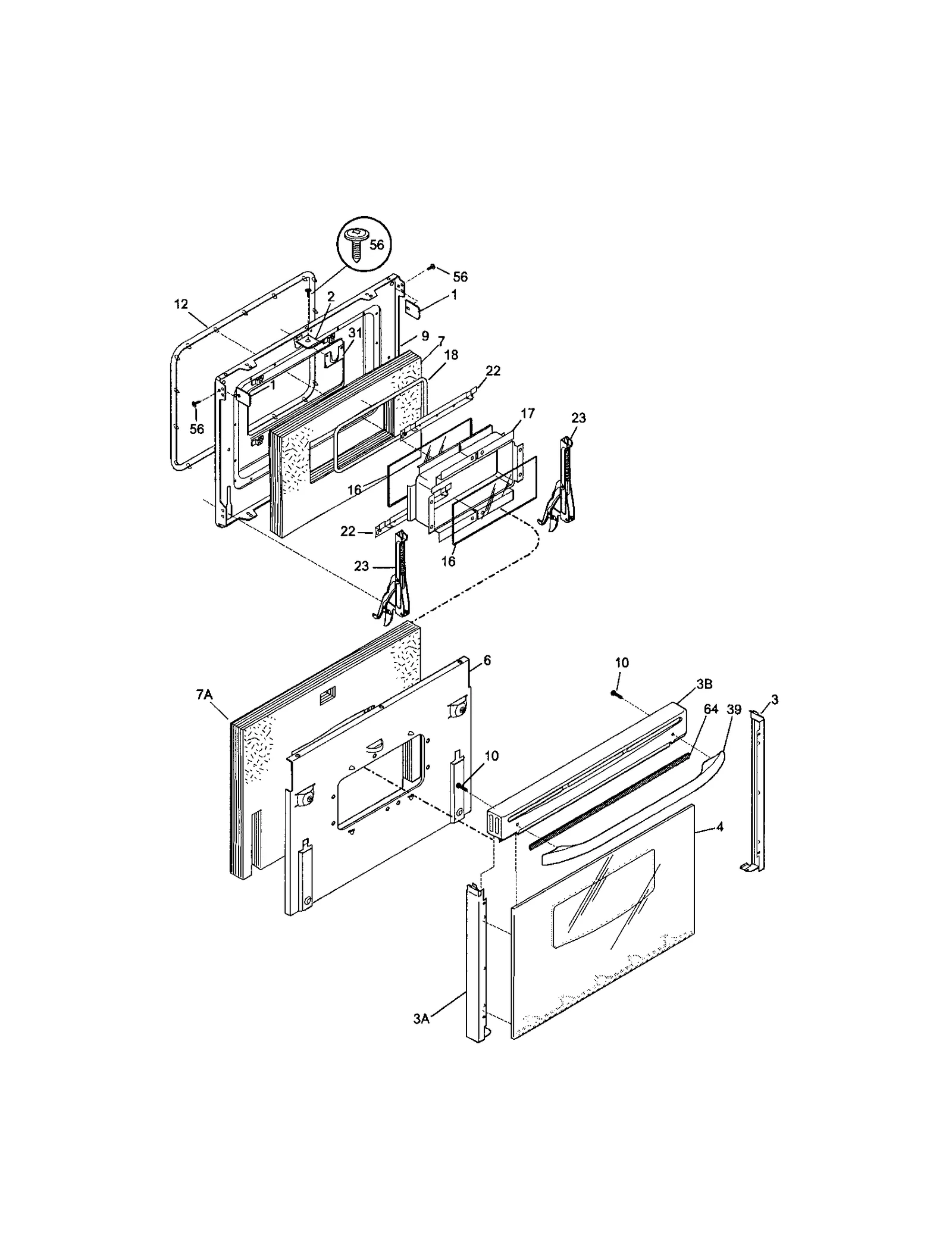

DOOR

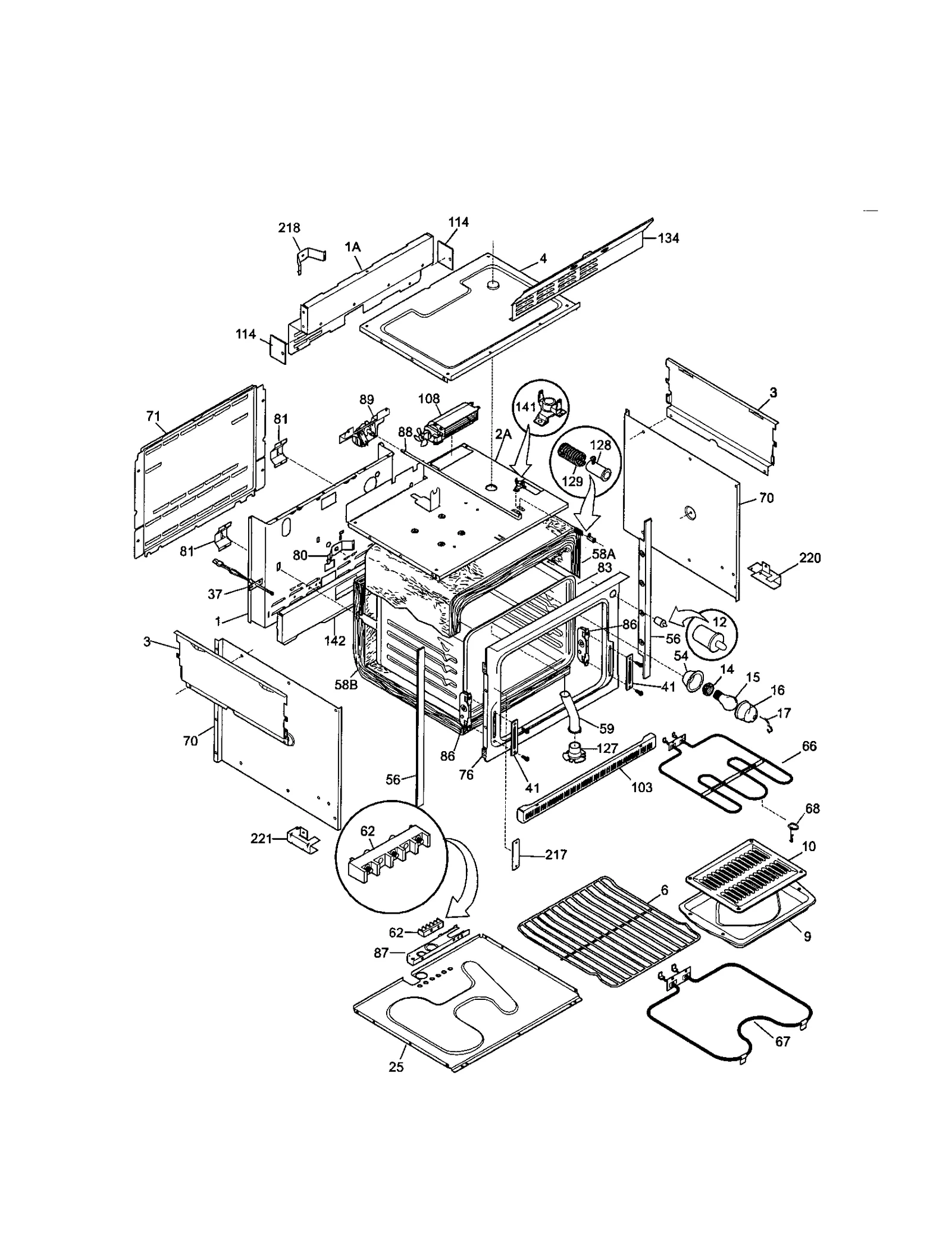

BODY
Common parts from model Electrolux 790.45662100 Electric Range (Kenmore 79045662100)
1
Bracket WCI 318180310 Contact Us For Availability
1
Main WCI 318066402 Contact Us For Availability
1A
Main WCI 318070910 Contact Us For Availability
2
Bracket WCI 318180311 Contact Us For Availability
2A
Oven Shield WCI 318108600 Contact Us For Availability
3
Trim WCI 318178302 Contact Us For Availability
3
Panel WCI 318159800 Contact Us For Availability
3A
Trim WCI 318178303 Contact Us For Availability
3AA
Trim WCI 318178305 Contact Us For Availability
3B
Door Trim WCI 318176624 Contact Us For Availability
3BB
TRIM, DOOR, BLACK, TOP WCI 318176625 Contact Us For Availability
3C
TRIM, DOOR, BLACK, RH SIDE WCI 318178304 Contact Us For Availability
4
Trim WCI 318187717 Contact Us For Availability
4
Oven Shield WCI 318133400 Contact Us For Availability
4A
Oven Trim WCI 318187718 Contact Us For Availability
6
Shield Insert WCI 318057011 Contact Us For Availability
6
Oven Rack WCI 5303310522 Contact Us For Availability
7
Insulation WCI 5303310532 Contact Us For Availability
7A
Insulation WCI 5303311150 Contact Us For Availability
9
In Dr Liner WCI 318157013 Contact Us For Availability
9
Broiler Pan WCI 5303317977 Contact Us For Availability
10
Insert Broil WCI 5303317976 Contact Us For Availability
14
Range Indicator Light WCI 5303051533 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 5303310533 Contact Us For Availability
16
Main Top-whi WCI 5303300166 Contact Us For Availability
16A
Range Main Top (Black) WCI 5303307287 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
17
Rod WCI 3051554 Contact Us For Availability
17
Glass Spacer WCI 318139000 Contact Us For Availability
18
Range Control Panel End Cap Set WCI 318254698 Contact Us For Availability
18
Hinge WCI 5303305530 Contact Us For Availability
18
Seal-rope WCI 5303310531 Contact Us For Availability
18B
End Cap-rh WCI 5303300160 Contact Us For Availability
19
Control Panel WCI 318182906 Contact Us For Availability
19A
Control Panel WCI 318182907 Contact Us For Availability
20
Clock WCI 318184401 Contact Us For Availability
21
Trim Backguard WCI 318027804 Contact Us For Availability
21A
Trim Backguard WCI 318027803 Contact Us For Availability
22
Range Oven Door Glass Retainer WCI 5303310511 Contact Us For Availability
23
Range Oven Control Board Bracket, Upper WCI 318015040 Contact Us For Availability
23
Hinge Assembly WCI 318024700 Contact Us For Availability
23A
Range Lower Bracket WCI 318015041 Contact Us For Availability
25
PANEL, HEAT SHIELD, SM OVEN BOTTOM WCI 318179107 Contact Us For Availability
27
Range Surface Element Terminal Block WCI 5303323704 Contact Us For Availability
28
Gibson Cooktop Element Center Medallion WCI 5303301461 Contact Us For Availability
31
Range Oven Door Latch WCI 5303310536 Contact Us For Availability
36
Control Knob WCI 318196300 Contact Us For Availability
36A
Control Knob WCI 318196302 Contact Us For Availability
39A
Door Handle WCI 316235500 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
42
Trim-vent Wh WCI 318106924 Contact Us For Availability
42A
Trim-vent Bl WCI 318106927 Contact Us For Availability
54
Range Surface Element Control Switch WCI 318120501 Contact Us For Availability
54
Oven Housing WCI 5303310514 Contact Us For Availability
56
Trim WCI 318002712 Contact Us For Availability
58A
Insulation WCI 5303310539 Contact Us For Availability
58B
Oven Insulation WCI 318132609 Contact Us For Availability
59
Tube WCI 318072524 Contact Us For Availability
64
Tape WCI 5304417120 Contact Us For Availability
70
Retainer Insert WCI 5303300142 Contact Us For Availability
71
Wiring Cover WCI 5303310515 Contact Us For Availability
76
Oven WCI 318124100 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
83
Oven Liner WCI 318089613 Contact Us For Availability
86
Hinge Channel WCI 5303310524 Contact Us For Availability
87
Mounting Plate WCI 318111800 Contact Us For Availability
88
Range Oven Door Lock Latch Rod WCI 5303311160 Contact Us For Availability
89A
Latch Switch WCI 318120710 Contact Us For Availability
93
Support WCI 318122500 Contact Us For Availability
102
Mounting Bracket WCI 318055601 Contact Us For Availability
103
Trim (White) WCI 5303300213 Contact Us For Availability
103A
Trim WCI 5303300217 Contact Us For Availability
108
Oven Blower WCI 318073012 Contact Us For Availability
114
Filler Plate WCI 318175100 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
134
**SHIELD WIRE LOUVERHTOPWARMER WCI 318077610 Contact Us For Availability
141
Thermostat Switch WCI 5303284446 Contact Us For Availability
142
Air Deflector WCI 318123901 Contact Us For Availability
143
Hinge Bracket WCI 5303300148 Contact Us For Availability
217
Plate WCI 316042300 Contact Us For Availability
220
Bracket WCI 5304401475 Contact Us For Availability
221
Bracket WCI 5304401476 Contact Us For Availability
× ![]()
