Model Electrolux 790.45264500 Electric Range (Kenmore 79045264500) – Common Parts & Diagrams

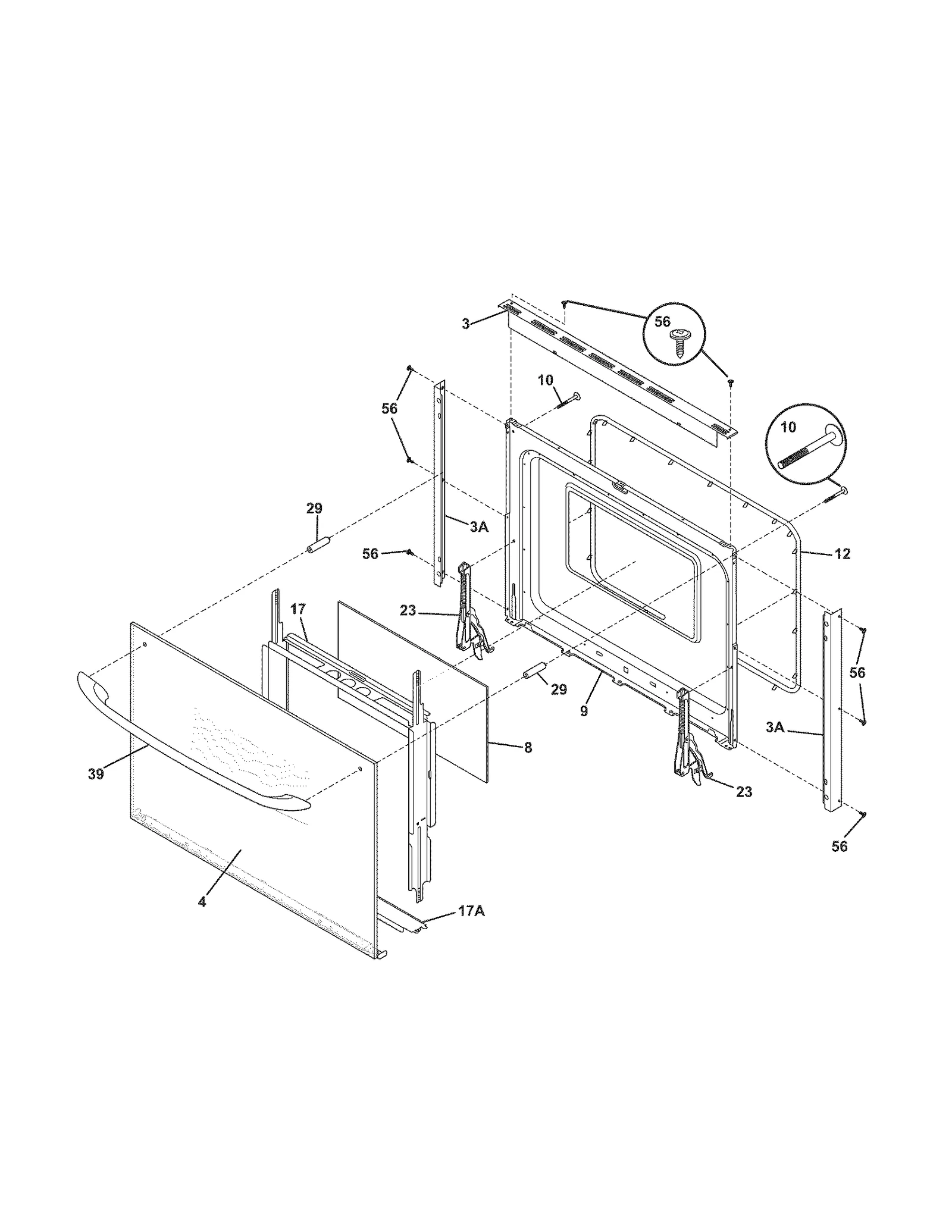

DOOR
DOOR

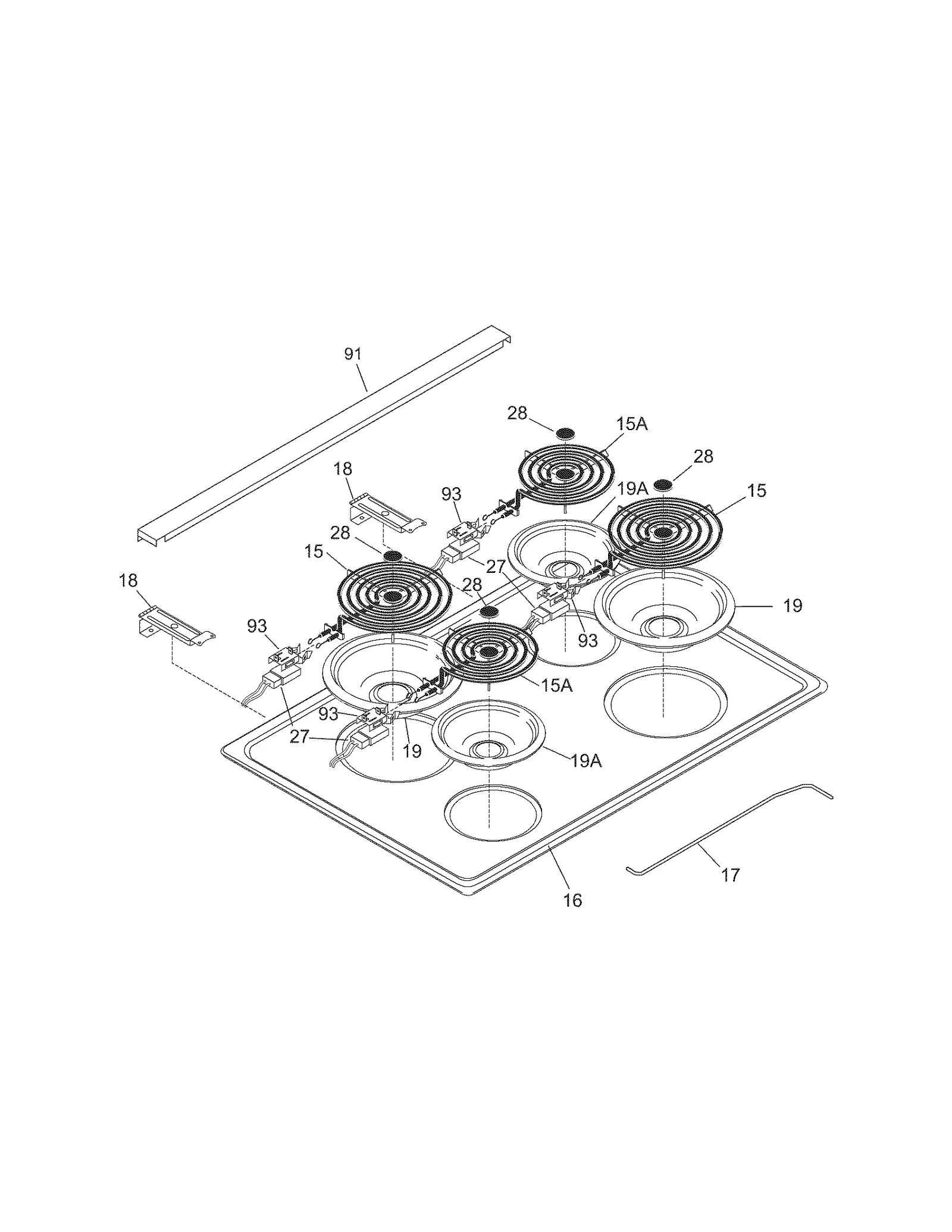

TOP/DRAWER
TOP/DRAWER

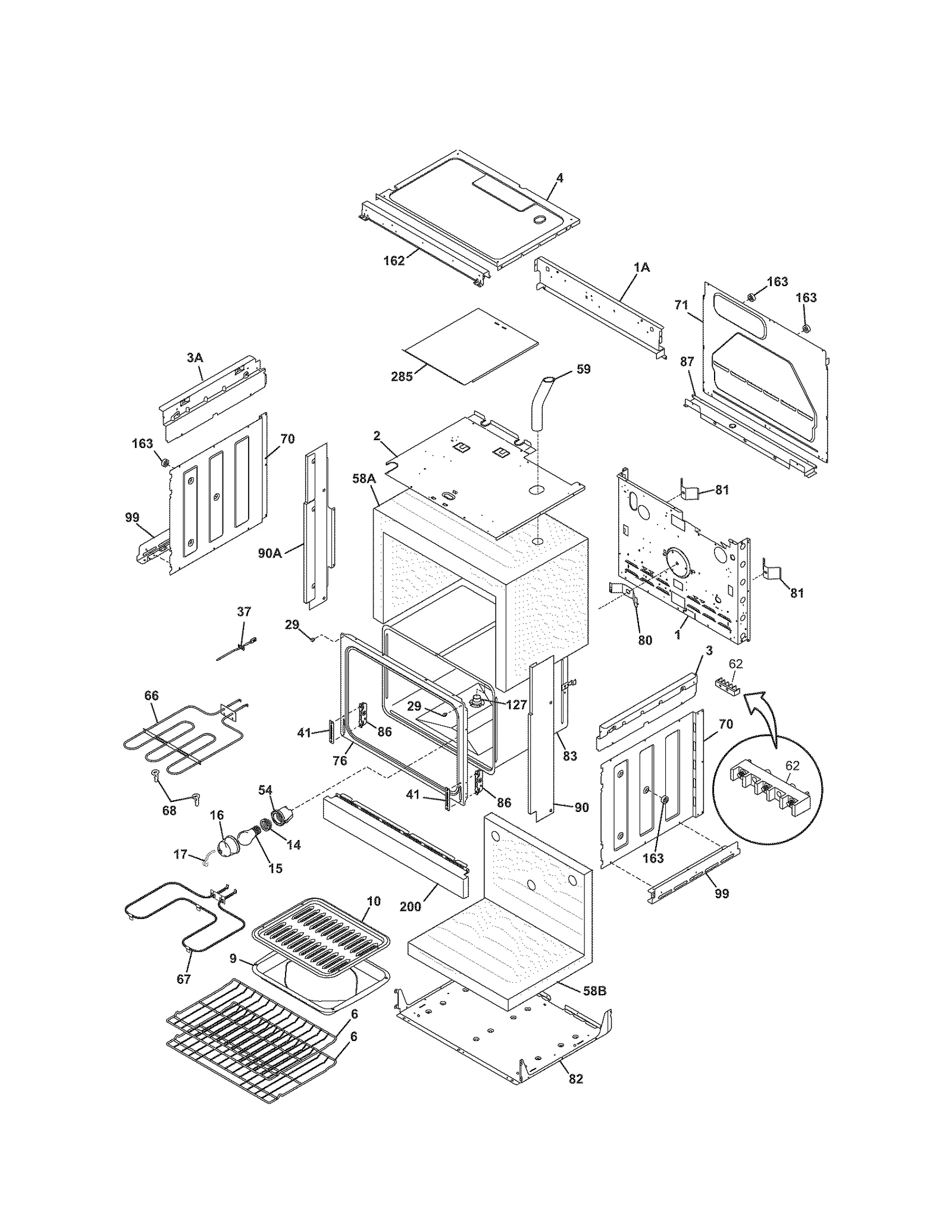

BODY
BODY

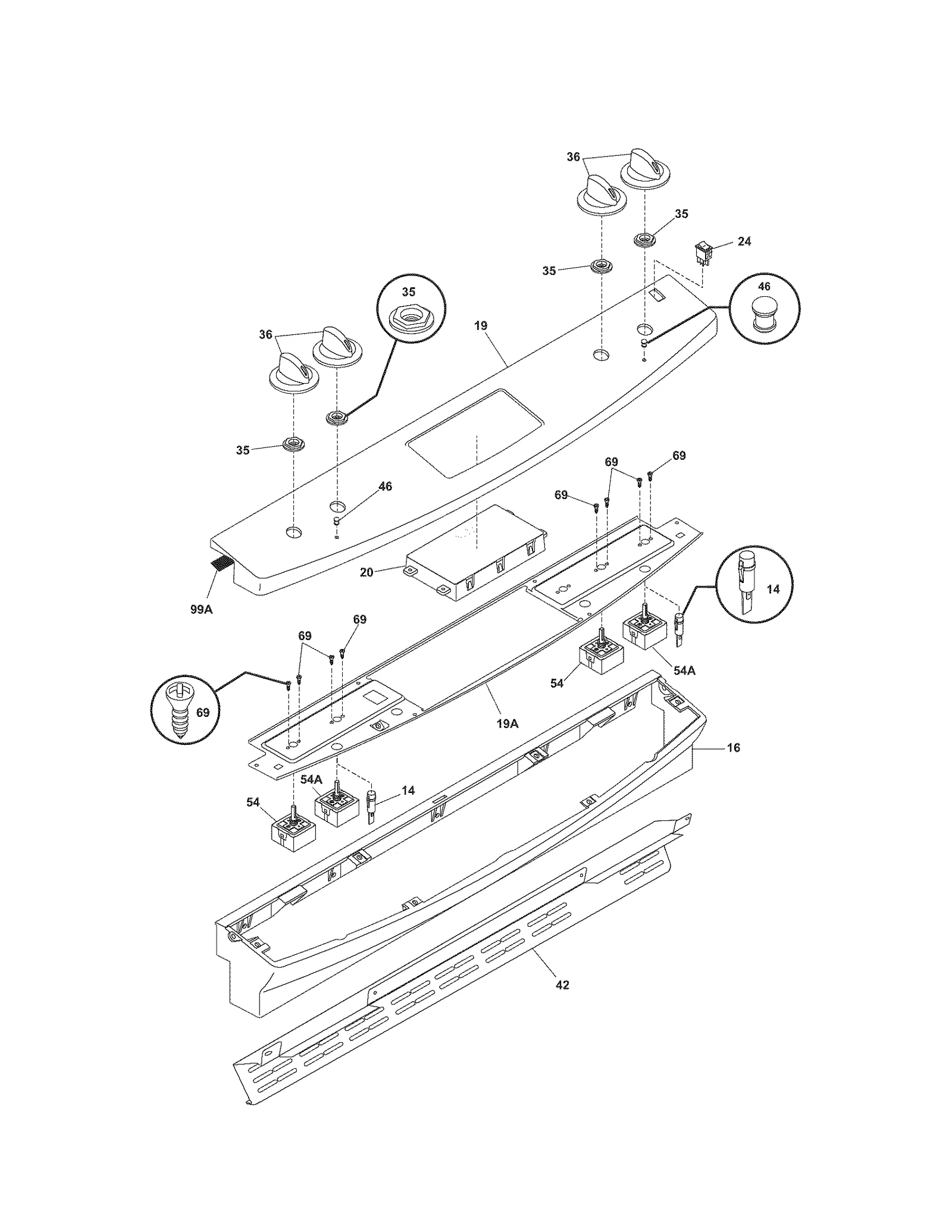

BACKGUARD
BACKGUARD
Common parts from model Electrolux 790.45264500 Electric Range (Kenmore 79045264500)
1
Back WCI 318259202 Contact Us For Availability
1A
Range Back Upper Main Panel WCI 318225110 Contact Us For Availability
2
Shield WCI 318258900 Contact Us For Availability
3
Crosley Range Oven Door Trim WCI 318260201 Contact Us For Availability
3
Range Side Panel Upper Right Support Bracket WCI 318225210 Contact Us For Availability
3A
Range Oven Door Trim WCI 318260401 Contact Us For Availability
3A
Crosley Range Side Panel Support Bracket, Lef WCI 318225211 Contact Us For Availability
4
Panel WCI 318073906 Contact Us For Availability
6
Rack WCI 318262505 Contact Us For Availability
8
Range Oven Door Inner Glass WCI 316427700 Contact Us For Availability
9
Broiler Pan WCI 5303317977 Contact Us For Availability
10
Insert Broil WCI 5303317976 Contact Us For Availability
12
Range Oven Door Seal WCI 318053325 Contact Us For Availability
14
Light WCI 318293900 Contact Us For Availability
16
Range Control Panel WCI 318296600 Contact Us For Availability
16
Range Control Panel WCI 318296601 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
18
Range Main Top Hinge WCI 318227710 Contact Us For Availability
19
Control Panel WCI 318297506 Contact Us For Availability
19
Panel WCI 318297507 Contact Us For Availability
19A
Panel WCI 318289701 Contact Us For Availability
20
Clock Timer WCI 318185325 Contact Us For Availability
20
Clock Timer WCI 318185326 Contact Us For Availability
24
Light Switch WCI 318037513 Contact Us For Availability
24
Rocker Switch WCI 318037517 Contact Us For Availability
35
Range Surface Burner Knob Support WCI 318183101 Contact Us For Availability
35
Range Surface Burner Knob Support (Bisque) WCI 318183102 Contact Us For Availability
36
Range Surface Element Knob WCI 316442417 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
42
Range Control Panel Trim WCI 318298011 Contact Us For Availability
46
Lens WCI 318228300 Contact Us For Availability
54
Range Oven Light Housing WCI 318222400 Contact Us For Availability
58A
Insulation WCI 318285074 Contact Us For Availability
58B
Insulation WCI 318285075 Contact Us For Availability
59
Tube WCI 318072572 Contact Us For Availability
70
Shield WCI 318259100 Contact Us For Availability
71
Panel WCI 318260006 Contact Us For Availability
76
Front WCI 318056216 Contact Us For Availability
80
Wall Oven Rear Panel Spacer Bracket WCI 5303320846 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
82
Shield WCI 318258707 Contact Us For Availability
83
Oven Liner WCI 318261403 Contact Us For Availability
86
Hinge Channel WCI 5303310524 Contact Us For Availability
87
Bracket WCI 318260600 Contact Us For Availability
90
Range Side Filler Panel, Right (White) WCI 318296922 Contact Us For Availability
90
Panel WCI 318296926 Contact Us For Availability
90A
Range Side Filler Panel, Left (White) WCI 318296923 Contact Us For Availability
90A
Panel WCI 318296927 Contact Us For Availability
91
Crosley Range Main Top Filler Trim, Rear WCI 318304301 Contact Us For Availability
99A
Gasket WCI 318313200 Contact Us For Availability
127
Adapter WCI 318317000 Contact Us For Availability
162
Box WCI 318225810 Contact Us For Availability
163
Spacer WCI 318014110 Contact Us For Availability
200
Range Base Trim (White) WCI 318330001 Contact Us For Availability
200
Range Trim WCI 318330002 Contact Us For Availability
285
Shield WCI 318236200 Contact Us For Availability
NI
Range Wire Harness WCI 318224817 Contact Us For Availability
NI
Range Wire Harness WCI 318301100 Contact Us For Availability
NI
Range Igniter Wire Harness WCI 318224815 Contact Us For Availability
NI
Range Wire Harness WCI 318224920 Contact Us For Availability
NI
Shouldr Bolt WCI 3051050 Contact Us For Availability
NI
Box Wire WCI 318078526 Contact Us For Availability
NI
Kit WCI 5303325856 Contact Us For Availability
NI
Range Wire Harness Retainer WCI 5304400192 Contact Us For Availability
NI
Screw WCI 08016432 Contact Us For Availability
NI
Service Data Sheet WCI 318127016 Contact Us For Availability
NI
Instructions WCI 318201614 Contact Us For Availability
NI
Use and Care Guide WCI 318203808 Contact Us For Availability
NI
Overlay WCI 318213810 Contact Us For Availability
NI
Overlay WCI 318213811 Contact Us For Availability
NI
Wiring Diagram WCI 318271902 Contact Us For Availability
NI
Repair Parts List WCI 5995443727 Contact Us For Availability
× ![]()
